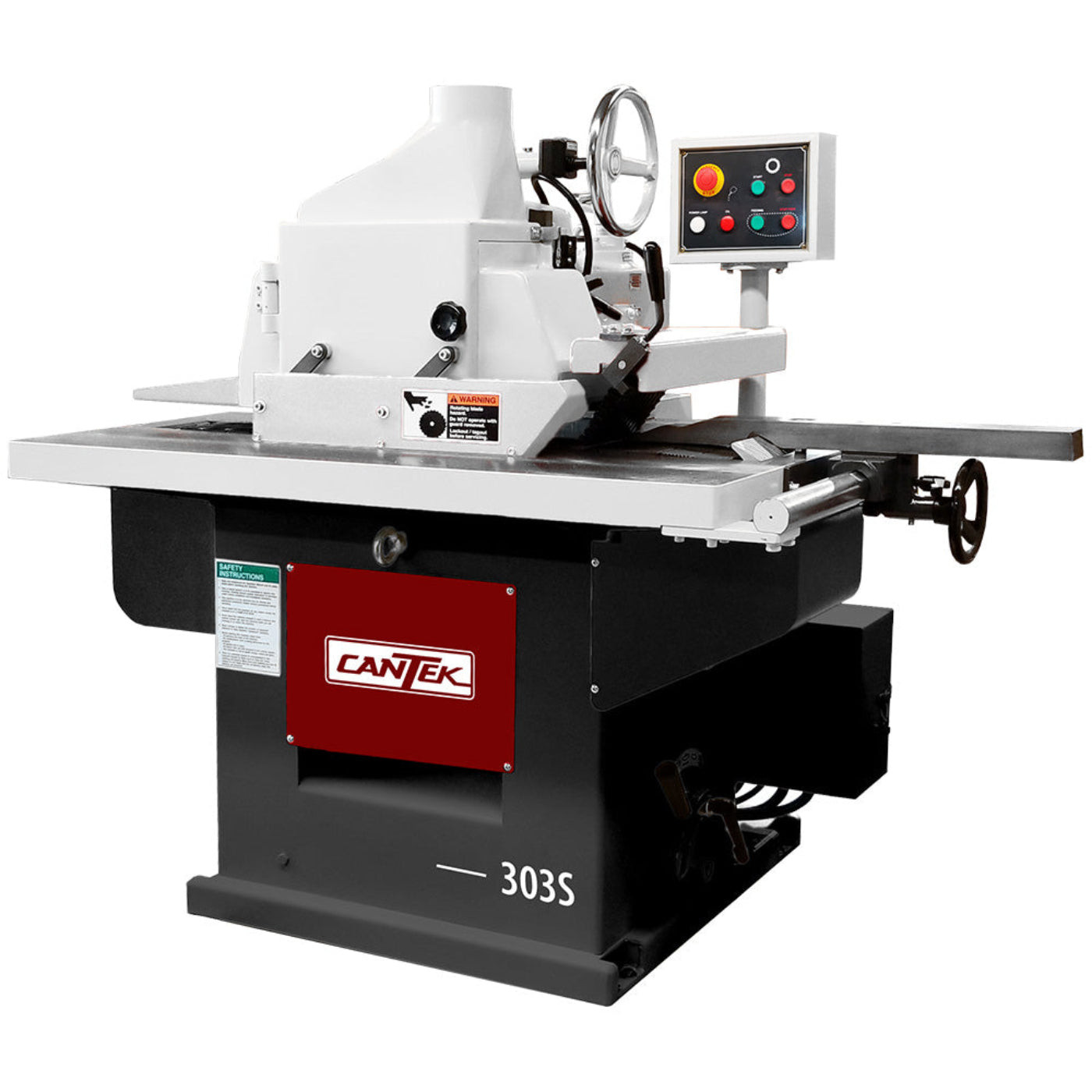

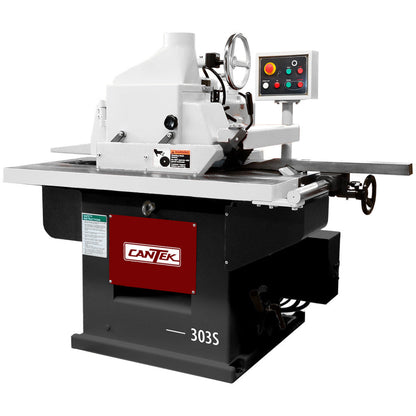

SCM Straight Line Ripsaw - 303S
The Cantek 303S single-blade ripsaw is a straight-line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material. The 303S automatically feeds the material for consistent rip results.
The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting. A powerful 10 HP motor with maximum 12โ blade provides a cutting depth up to 3.35โ. A micro-adjustable infeed fence allows for quick setups to ensure precise rip widths with fast adjustments.
The precision-built saw arbor constructed from nickel chrome steel ensures precision cutting without vibration. Cast iron chain and track assembly are precision machined and hardened for maximum wear resistance and superior cut quality.
A total of 6 hold-down rollers ensure the workpiece is held firmly onto the feed chain during cutting operations. Proper material hold-down ensures precise straight cutting with optimum edge quality.
Equipped with an electronic lubricator to automatically lubricate the chain track to ensure maximum wear resistance and a long chain & track life. The operator can quickly and easily change feed speeds according to the material being cut. Feed speeds can be changed from 50, 65, & 85 FPM.
The operator controls are located at the operator's eye level. In addition to the blade and feed controls, the panel has a low oil display light which will illuminate when the oil in the lubricator reservoir is low. When it goes beyond the low limit, the saw will stop until it is refilled.
Features
- Rigid machine body consists of a thick welded steel frame with an integral table which is fitted with a sturdy cast column.
- Precision-built saw arbor constructed to ensure precision cutting without vibration.
- Cast iron upper assembly & cast iron table with superior vibration damping for optimum results
- Micro-adjustable fence by rack and pinion for fast setups with precise results
- Cast iron chain and track assembly is precision machined and hardened for maximum wear resistance with superior cut quality
- Two rows of anti-kickback fingers for safe operation
- Swing down rear table prevents short workpieces and thin edgings from jamming in the machine
- Electronic chain lubricator provides consistent lubrication to the chain track for optimum wear resistance
- Powerful 10HP motor
- Three feed speeds can be externally adjusted for operator convenience
- Mechanical digital readout for setting the workpiece thickness
- 12โ blade is included
- Optional laser light for projecting the cutting line
What our Experts Think
-
Precision Straight-Line Ripping โ Engineered to produce accurate, straight cuts that improve material yield and prepare lumber for further machining operations.
-
Optimized for Production Workflows โ Designed for fast, efficient ripping of solid wood components, helping increase throughput in commercial woodworking environments.
-
Consistent Cut Quality โ Delivers smooth, uniform edges that reduce the need for secondary processing and improve overall manufacturing efficiency.
-
Built for Heavy-Duty Operation โ Robust construction and industrial-grade components ensure dependable performance during demanding daily production schedules.
-
Ideal for Professional Woodworking Shops โ Well-suited for furniture manufacturing, cabinet production, millwork, and other operations requiring precise and repeatable ripping results.
Q&A
Q: What is the SCM 303S Straight Line Ripsaw used for?
A: The 303S is designed for precision straight-line ripping of solid wood, producing clean, accurate edges for furniture, cabinetry, and millwork applications.
Q: What are the benefits of a straight-line ripsaw?
A: A straight-line ripsaw delivers highly accurate cuts, improved material yield, reduced waste, and consistent glue-ready edges.
Q: Is the 303S suitable for production woodworking environments?
A: Yes. It is built for cabinet shops, furniture manufacturers, millwork operations, and industrial woodworking facilities.
Q: Can it improve material utilization?
A: Yes. Its precision cutting capability helps maximize lumber yield while minimizing waste and rework.
Q: What materials can be processed with the 303S?
A: It is ideal for ripping hardwoods, softwoods, and other solid wood materials commonly used in woodworking production.
Q: How does a straight-line ripsaw improve efficiency?
A: It combines accurate cutting with fast processing speeds, reducing secondary operations and increasing production throughput.
Q: Does it help improve finished product quality?
A: Yes. Clean, straight edges contribute to stronger joints, better assembly accuracy, and a more professional final product.
Q: Who is this machine best suited for?
A: Professional woodworkers, cabinet makers, furniture manufacturers, and millwork facilities seeking precise, high-volume ripping performance.
Maintenance Tips
- Clean the saw blade area, feed system, table surface, and dust collection ports after each use.
- Inspect the saw blade regularly for dullness, damaged teeth, or resin buildup and sharpen or replace as needed.
- Keep the dust extraction system operating efficiently to prevent debris accumulation and maintain cutting accuracy.
- Check feed rollers, pressure assemblies, and guide systems for wear and proper operation to ensure consistent stock feeding.
- Lubricate bearings, chains, guide rails, and moving components according to the manufacturer's maintenance schedule.
- Verify blade alignment, fence settings, and feed system calibration regularly for precise straight-line ripping.
- Inspect drive belts, motors, and transmission components for wear, tension, and reliable performance.
- Remove pitch, resin, and fine dust from rollers and machine surfaces using approved cleaning products.
- Test anti-kickback devices, emergency stop switches, safety guards, and protective systems routinely.
- Operate and store the machine in a clean, dry environment and protect exposed metal surfaces from rust and corrosion.
