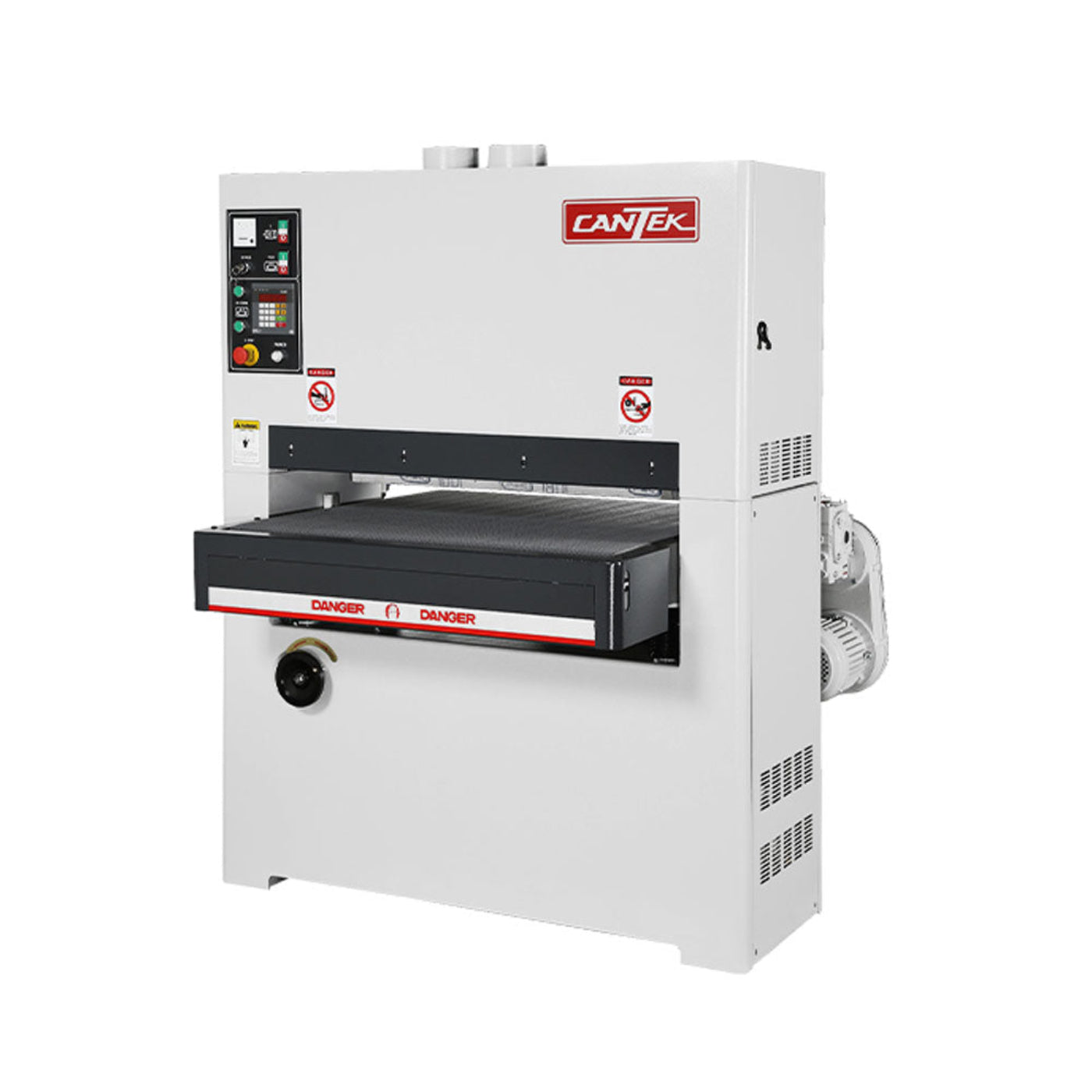

SCM 10HP 1-Phase 36" Wide Belt Sander - S371
The Cantek S371 36″ Wide Belt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
The control panel is centrally located for convenient operator access. Includes digital motorized thickness adjustment to 3-decimal places in Inch & 2-decimals in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance.
Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is equipped with belt overrun limit switches for added safety. Also equipped with a powerful 15HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes.
The S371 features an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and the table will automatically move into position
- Combination sanding unit with 5" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications
- Small footprint
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit
- Disc brake on the main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes
- Table raising jackscrews
- Material over-height limit switch
- Hour meter records the machine's actual running time, which can be used to provide timely maintenance for the machine
- Interlocks are located on all access doors
What our Experts Think
-
Industrial-Grade Sanding Performance – The 10HP motor provides the power needed for demanding woodworking applications, delivering consistent sanding results across a wide range of materials.
-
36-Inch Wide Capacity – Accommodates large panels, doors, tabletops, and cabinetry components, making it ideal for professional workshops and production environments.
-
Single-Phase Power Convenience – Designed for shops that require commercial sanding performance without access to three-phase electrical service.
-
Improves Surface Quality – Wide belt sanding technology helps produce smooth, uniform finishes while reducing manual sanding time and improving workflow efficiency.
-
Built for High-Volume Production – Heavy-duty construction, reliable feed system, and precision sanding capabilities make it suitable for continuous daily operation.
-
Versatile Material Processing – Effective for dimensioning, calibration sanding, surface preparation, and final finishing of hardwoods, softwoods, plywood, and composite materials.
