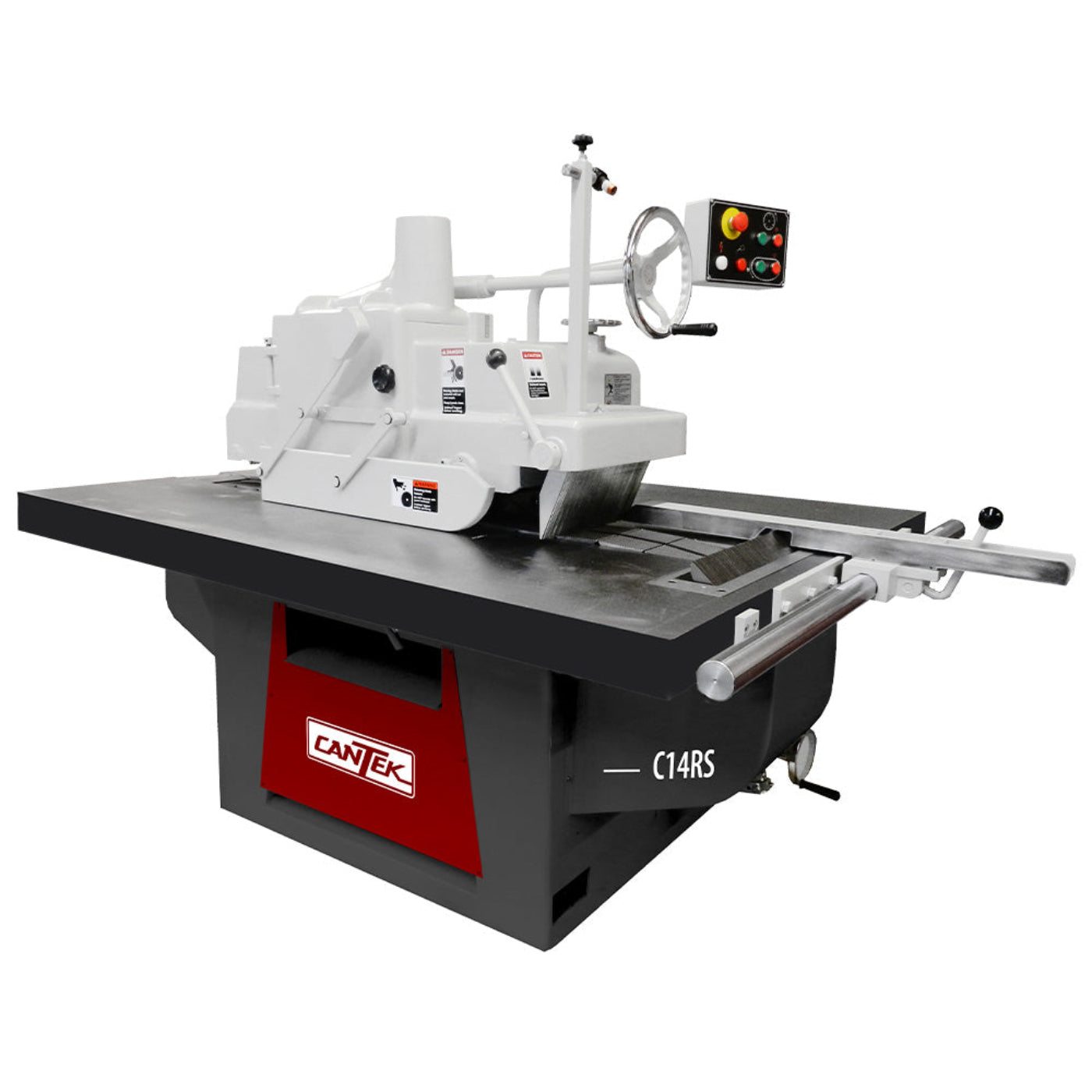

SCM Glue Line Ripsaw - C14RS
The Cantek C14RS Straight Line Glue Joint Ripsaw is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C14RS can produce a glue joint finish ready for panel glue-up right out of the saw.
The machine table is made of heavy-duty cast iron, and the saw head assembly has superior vibration damping for optimum cut quality and wear resistance. The table is precision machined to ensure consistency through any operation. Double-V FC35 high-grade cast-iron chain pads to ensure long life and optimum precision.
The chain track assembly is also made from FC35 high-grade cast iron and has a double V-pattern to ensure absolute precision straight line cutting. Each rail has oil lubrication points so that constant and consistent lubrication is applied for superior wear resistance.
Never have to oil your machine’s chains yourself again! This machine features automatic mechanical chain lubrication. Lubricant flow rate can be adjusted automatically with the caterpillar chain feed speed variation. Plus, when lubrication runs out, the chain stops automatically, preventing damage to the machine.
Quick setting rip fence runs on a round cylindrical guide. A ruler scale will indicate the fence position and is quickly set in place using a locking lever. The fence is outfitted with a bearing on the bottom side for ease of travel. Fence is notched to pass over and under the table and top kickback fingers for faster change over.
Features
- Produces a guaranteed glue joint finish to 15′, which eliminates the need to joint the material after ripping
- Precision straight-line feeding for parallel and accurate rip cuts
- Eight hold-down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut
- Mechanical operation Chain Oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed
- When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track
- Variable feed speed by frequency inverter for optimum cutting results
- Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life
- Very rigid machine body with a welded steel frame
- Absolute straight line feeding with glue joint to 15 ft.
- FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life
- Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced
- Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below
- Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment
- 3 sets of anti-kickback fingers: 2 top and 1 set in the table for added operator safety
- Soft start – Star Delta starter reduces the amp draw on startup
- Optional laser light to project the cutting line to achieve maximum material yield
What our Experts Think
-
Glue-Ready Edge Quality – Designed to produce exceptionally straight, smooth cuts that are often ready for edge gluing with minimal additional machining.
-
High-Precision Ripping Performance – Delivers accurate, repeatable cuts that help maximize material yield and improve overall production consistency.
-
Built for Production Efficiency – Ideal for high-volume ripping operations in furniture manufacturing, cabinet production, and millwork applications.
-
Reduces Secondary Processing – Produces clean edges that can help minimize jointing, sanding, and rework, saving valuable production time.
-
Heavy-Duty Industrial Construction – Engineered for continuous commercial use with robust components that ensure long-term reliability and dependable performance.
Q&A
Q: What is the SCM C14RS Glue Line Ripsaw used for?
A: The C14RS is designed for precision straight-line ripping, producing smooth, glue-ready edges on solid wood boards for furniture, cabinetry, and millwork production.
Q: What does “Glue Line” mean in a ripsaw?
A: It means the machine produces exceptionally smooth and straight edges that are often ready for gluing without additional jointing or edge preparation.
Q: Is the C14RS suitable for industrial woodworking operations?
A: Yes. It is built for cabinet manufacturers, furniture producers, millwork shops, and high-production woodworking facilities.
Q: Can the C14RS improve material yield?
A: Yes. Its precision cutting capability helps maximize lumber recovery while reducing waste and rework.
Q: What materials can be processed with this machine?
A: It is ideal for ripping hardwoods, softwoods, and other solid wood materials commonly used in woodworking production.
Q: How does a glue line ripsaw improve productivity?
A: It combines accurate cutting with clean, glue-ready edges, reducing secondary operations and increasing overall production efficiency.
Q: Does it help improve finished product quality?
A: Yes. Straight, smooth edges contribute to stronger glue joints, better assembly accuracy, and a higher-quality final product.
Q: Who is this machine best suited for?
A: Professional woodworkers, cabinet makers, furniture manufacturers, and industrial woodworking facilities seeking high-precision ripping and glue-ready edge quality.
Maintenance Tips
- Clean the saw blade area, feed system, table surface, and dust collection ports after each use to remove chips and debris.
- Inspect the saw blade regularly for dullness, damaged teeth, or resin buildup and sharpen or replace as needed.
- Keep the dust extraction system operating efficiently to prevent debris accumulation and maintain cutting quality.
- Check feed rollers, pressure assemblies, and guide fences for wear and proper alignment to ensure accurate feeding.
- Lubricate bearings, chains, guide rails, and moving components according to the manufacturer's maintenance schedule.
- Verify blade alignment, fence settings, and feed system calibration regularly for precise glue-line cuts.
- Inspect drive belts, motors, and transmission components for wear, proper tension, and reliable performance.
- Remove pitch, resin, and wood residue from rollers and machine surfaces using approved cleaning products.
- Test anti-kickback devices, emergency stop switches, safety guards, and protective systems routinely.
- Operate and store the machine in a clean, dry environment and protect exposed metal surfaces from rust and corrosion.
