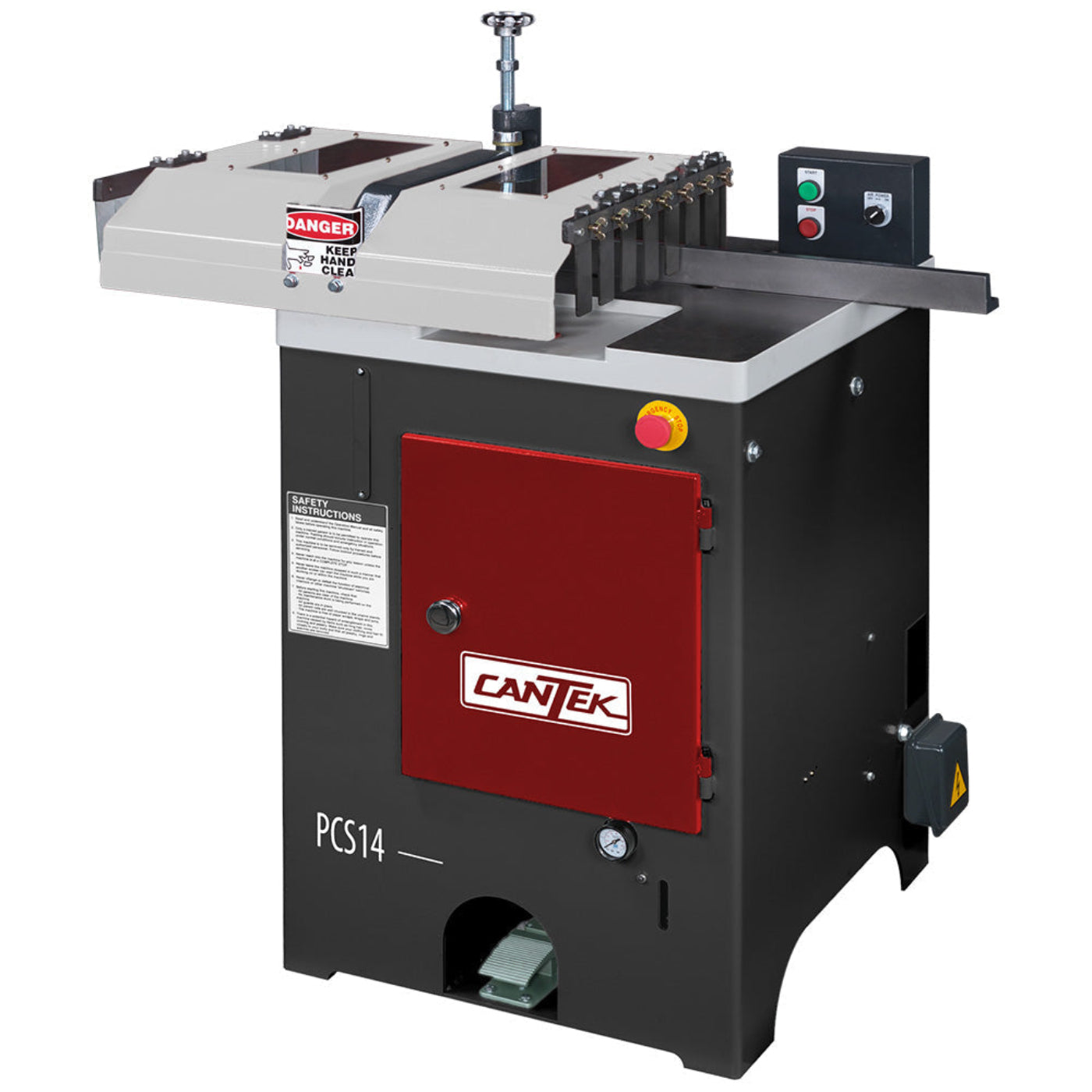

SCM 5HP 14" Pneumatic Chop Saw w/Foot Pedal Control - PCS14
The Cantek PCS14 14โณ pneumatic chop saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 5hp motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions.ย
A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and security bolt on the saw access door. Available in either left hand or right hand operation depending on your ideal production flow.
A safety guard is included with each saw covering both infeed and outfeed to keep operators hands away from the blade during operation. The adjustable fingers on the infeed are designed to minimize the opening to keep hands away from the cutting blade. Clear plastic covers allow the operator to view towards the cutting line to ensure no impediments are near.
The blade access door provides full access to the saw blade for convenient blade changes. The door is equipped with a microswitch so that the machine will not operate when the door is open. Equipped with an electro-pneumatic foot pedal for convenient operation.
The controls are located on top of the table, so the operator has convenient access to turn the machine on or off. The pneumatics can also be turned off to eliminate the stroke where necessary.
Features
- Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
- Infeed guard has adjustable fingers to minimize opening
- Door safety limit switches with extended security bolt
- Emergency stop button
- Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
Features
- Large cutting capacity of 1โ x 10โ, 2โ x 9โ, 3โ x 8โ
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
- Available in Right Hand & Left Hand configuration
- Powerful 5hp main motor
- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
- Fast cutting cycle with up to 95 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
What our Experts Think
-
Powerful 5HP Cutting Performance โ Designed to handle demanding crosscutting applications with the power needed for efficient processing of hardwoods, softwoods, and engineered materials.
-
14" Blade Capacity โ Provides excellent cutting versatility for a wide range of woodworking and production tasks, from trim pieces to larger stock materials.
-
Pneumatic Foot Pedal Operation โ Enhances productivity by allowing hands-free actuation, improving workflow efficiency and reducing operator fatigue during repetitive cutting cycles.
-
Built for Accuracy & Consistency โ Delivers precise, repeatable crosscuts, making it ideal for production environments where uniform results are essential.
-
Heavy-Duty Industrial Construction โ Engineered for reliability and continuous operation in cabinet shops, furniture manufacturing, and commercial woodworking facilities.
Q&A
Maintenance Tips
- Clean the saw blade area, worktable, guards, and dust collection points after each use to remove chips and debris.
- Inspect the 14" saw blade regularly for dullness, damaged teeth, or resin buildup and sharpen or replace as needed.
- Check pneumatic lines, fittings, cylinders, and the foot pedal control for air leaks or wear.
- Use clean, dry compressed air and drain moisture from the air system regularly to protect pneumatic components.
- Lubricate pivot points, bearings, guides, and moving assemblies according to the manufacturer's maintenance schedule.
- Verify blade alignment, cutting angles, and fence settings periodically for accurate and consistent cuts.
- Inspect electrical controls, motor components, switches, and wiring for signs of wear or damage.
- Ensure safety guards, blade covers, and emergency stop functions operate correctly before use.
- Keep the dust extraction system functioning efficiently to reduce debris buildup and improve cutting performance.
- Store and operate the machine in a clean, dry environment and protect exposed metal surfaces from rust and corrosion.
