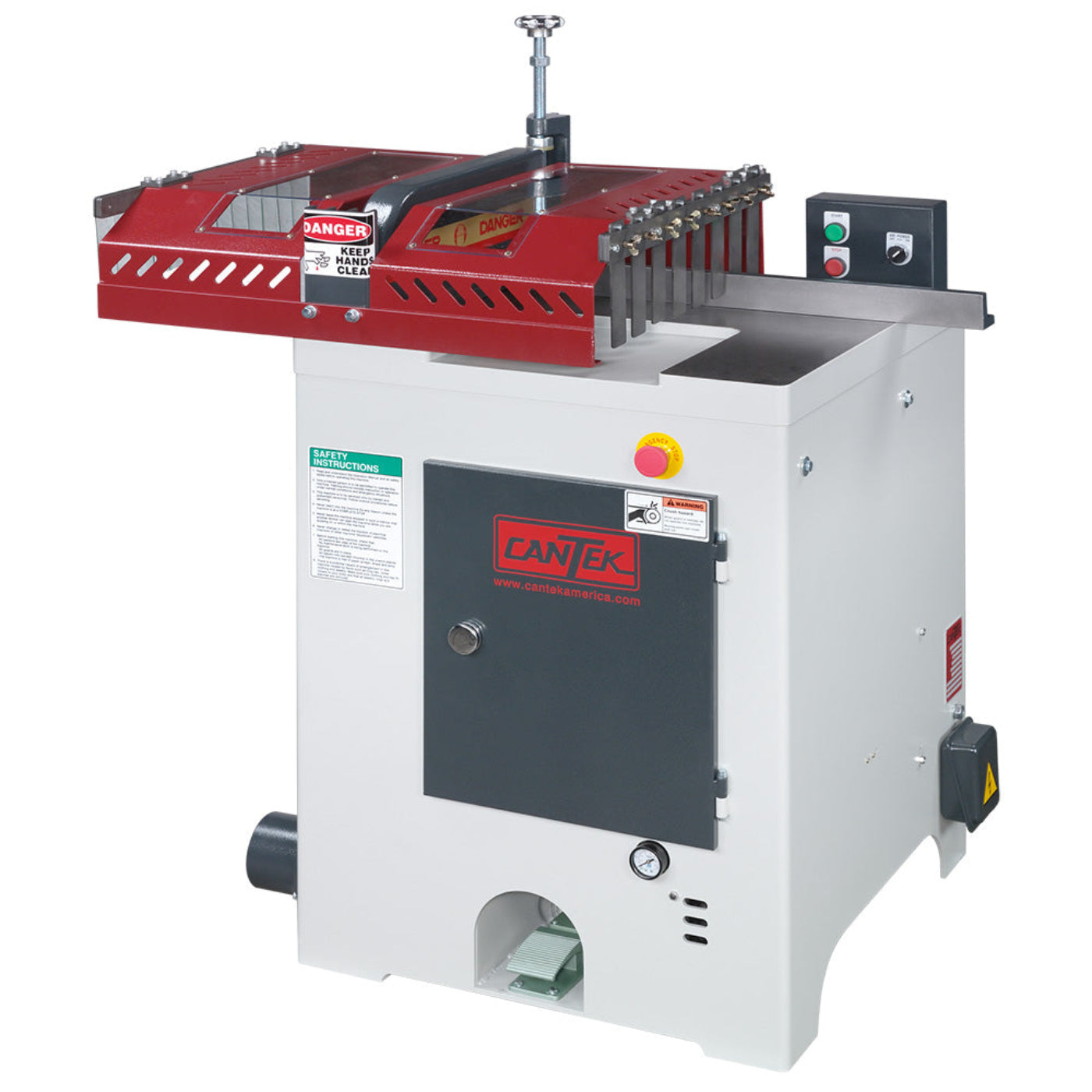

SCM Pneumatic Chop Saw w/ Foot Pedal Control (LH or RH) 230v 3-Phase - PCS18
The Cantek PCS18M 18″ pneumatic metal chop saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 10HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions.
A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, security bolt on the saw access door, blade misting system, and solid chrome table. Available in either left hand or right hand operation depending on your ideal production flow.
A safety guard is included, covering both infeed and outfeed to keep operators hands away from the blade during operation. The adjustable fingers on the infeed are designed to minimize the opening to keep hands away from the cutting blade. Clear plastic covers allow the operator to view towards the cutting line to ensure no impediments are near.
The blade access door provides full access to the saw blade for convenient blade changes. The door is equipped with a microswitch so that the machine will not operate when the door is open. The saw is also equipped with an electro-pneumatic foot pedal for convenient operation.
The saw controls are located on top of the table, so the operator has convenient access to turn the machine on or off. The pneumatics can also be turned off to eliminate the stroke where necessary.
- Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
- Infeed guard has adjustable fingers to minimize opening
- Door safety limit switches with extended security bolt
- Emergency stop button
- Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
Features
- Available in Right Hand & Left Hand configuration
- Powerful 10HP main motor
- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
- Fast cutting cycle with up to 45 strokes per minute
- Non-ferrous cutting blade
- Air over oil for precise speed control
- Blade misting system that applies a thin film of lubricant for preventing friction build up, and maximizes saw productivity and blade life
- Corrosion resistant solid chrome table
- Zero cut line with T-clamp that increases precision cuts and reduces possibility of tear out
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
