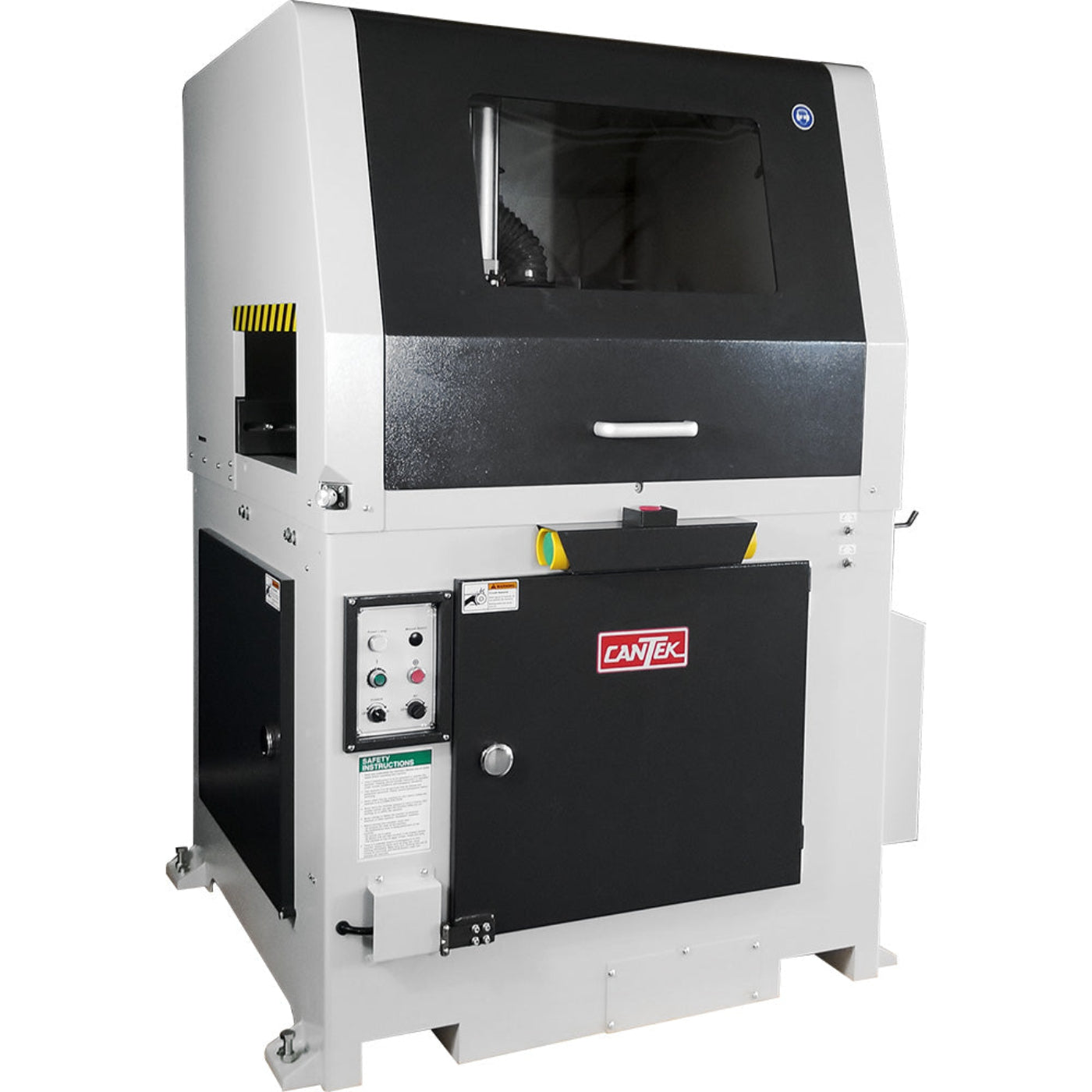

SCM 24" Miter Cutting Chop Saw - PCM610
The Cantek PCM610 24” Miter Chop Saw is a precision pneumatic cut off saw designed for cutting miters up to 60o in either direction. The saw is automatically cycled pneumatically and activated by a foot switch to allow for fast positioning of the workpiece. Capable of production cutting with up to 40 cuts per minute. The cutting speed is adjustable to ensure the optimum finish result on your workpiece no matter the species or size.
The rotary table runs on ball bearings to ensure effortless rotation of the blade according to the desired cutting angle. The workpiece is clamped pneumatically, and the clamping guard runs on linear guideways for smooth and fast clamping operation. The PCM610 is available with optional infeed and outfeed conveyor systems with manual stops or can be fitted with an automatic stop system such as Tigerstop for added productivity.
Features
- 20” blade driven by powerful 7.5 HP motor
- Manually swivelling saw blade can cut miters up to 60° either left or right
- Quick index pin at set angles which can also be locked manually at any angle
- Pneumatic foot pedal operation with adjustable cutting stroke for optimum finish results
- Pneumatic clamping mechanism runs on linear guideways to ensure smooth and fast clamping of the workpiece
- Precision ground and polished cast iron table
- Safety enclosure surrounds the saw blade to ensure safe operation with reduced noise
- Infeed and outfeed fences are precision ground and are adjustable to achieve the maximum cutting requirement
- Cabinet light included to illuminate the saw area
- Oil lubrication unit to lubricate the rotary table to ensure smooth adjustment
- High quality Schneider electrical controls
- Can be purchased with optional infeed & outfeed conveyors with manual stops or can be easily paired with an automatic stop to increase productivity
- Optional dual push button control
What our Experts Think
-
24" miter cutting capacity makes it ideal for accurately cutting large mouldings, trim, framing components, and millwork materials.
-
Designed for precise angle and crosscut operations, helping improve consistency and reduce material waste.
-
Heavy-duty SCM construction provides excellent stability and durability for demanding production environments.
-
Delivers clean, accurate cuts that help minimize rework and improve overall workflow efficiency.
- Well-suited for furniture, cabinet, door, window, and architectural millwork applications.
-
A dependable solution for woodworking professionals seeking precision, productivity, and long-term reliability in miter cutting operations.
Q&A
Q: What is the SCM PCM610 used for?
A: The PCM610 is designed for precise crosscutting and miter cutting of wood components used in furniture, cabinetry, millwork, and framing applications.
Q: What are the benefits of a 24" chop saw?
A: The large cutting capacity allows users to process wider and larger stock while maintaining accuracy and efficiency.
Q: Can the PCM610 perform angled cuts?
A: Yes, it is engineered for accurate miter cuts, making it ideal for trim, moulding, frame, and joinery work.
Q: Is the PCM610 suitable for production environments?
A: Yes, its heavy-duty construction is designed for continuous use in professional woodworking and manufacturing facilities.
Q: Why choose the SCM PCM610?
A: It delivers precise cutting accuracy, high productivity, reliable performance, and durable construction for demanding woodworking applications.
