SCM 10HP 1-Phase 24" Wide Belt Sander - C251

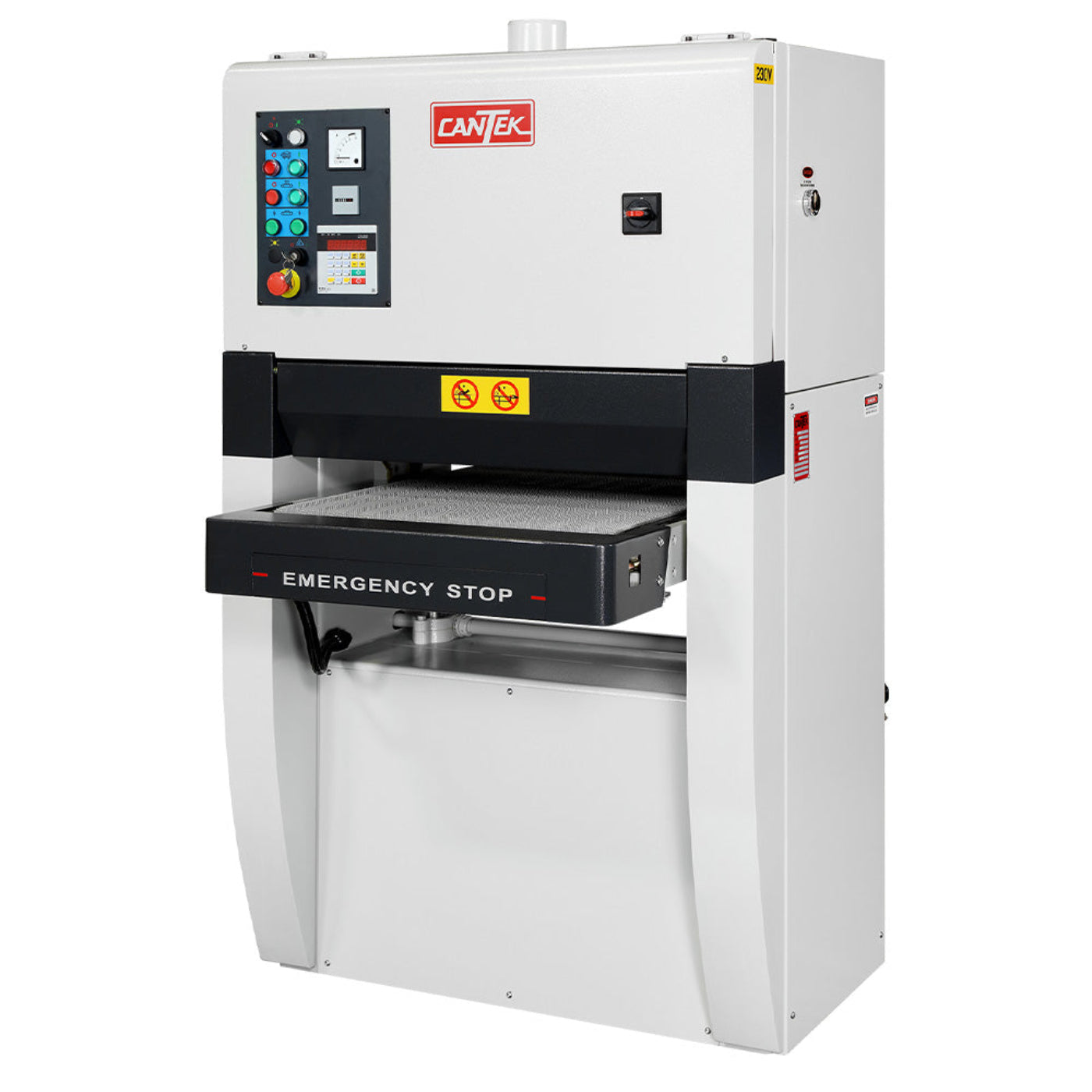

The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 2-decimal places in Inch & 1-decimal in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance scheduling.
An electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.
High-quality rubber conveyor belt with automatic belt tracking. The tracking system ensures the conveyor belt does not travel off to one side, causing damage. The C251 is equipped with a powerful 10HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes. Also equipped with dual infeed and dual outfeed hold-down rollers to firmly secure the panel during sanding operations.
Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels. On the electrical panel, high-quality Schneider electrical controls and Camozzi pneumatics are readily available.
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position
- Small footprint
- Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit
- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes
- Double infeed and outfeed pressure rolls for superior part hold down
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors
What our Experts Think
-
Professional Wide Belt Sanding Performance – The 24" sanding capacity and powerful 10HP motor provide fast, consistent sanding for cabinetry, furniture, panels, and custom woodworking projects.
-
Single-Phase Shop Friendly – Delivers industrial-grade sanding capability while operating on standard single-phase power, making it ideal for small and medium-sized professional workshops.
-
Excellent Surface Finish Quality – Wide belt sanding ensures even material removal, helping achieve smooth, uniform surfaces while reducing manual finishing work.
-
Improves Productivity – Processes workpieces quickly and consistently, saving time on large batches and improving workflow efficiency in production environments.
-
Built for Long-Term Reliability – SCM's heavy-duty construction and precision engineering provide dependable performance for demanding daily woodworking operations.
