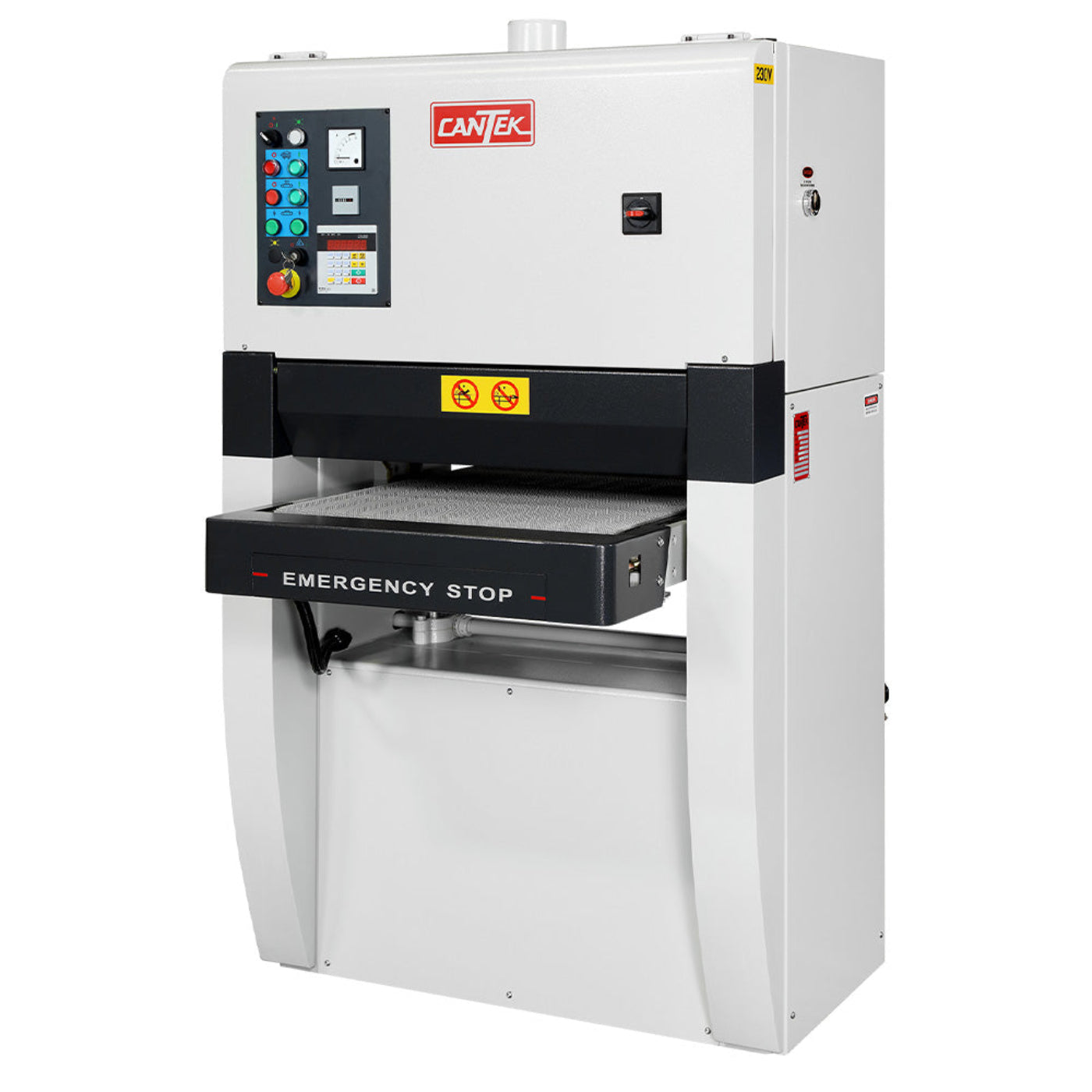

SCM 10HP 3-Phase 24" Wide Belt Sander - C251
The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 2-decimal places in Inch & 1-decimal in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance scheduling.
An electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.
High-quality rubber conveyor belt with automatic belt tracking. The tracking system ensures the conveyor belt does not travel off to one side, causing damage. The C251 is equipped with a powerful 10HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes. Also equipped with dual infeed and dual outfeed hold-down rollers to firmly secure the panel during sanding operations.
Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels. On the electrical panel, high-quality Schneider electrical controls and Camozzi pneumatics are readily available.
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position
- Small footprint
- Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit
- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes
- Double infeed and outfeed pressure rolls for superior part hold down
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors
What our Experts Think
-
Industrial 10HP Sanding Power – Built for demanding production environments, delivering fast material removal and consistent sanding performance across a wide range of woodworking applications.
-
24" Wide Sanding Capacity – Ideal for cabinet components, furniture panels, doors, and other medium-to-large workpieces requiring uniform surface preparation.
-
3-Phase Efficiency – Provides reliable power delivery and smooth operation for commercial workshops running high-volume sanding processes.
-
Consistent Finish Quality – Wide belt technology ensures even thickness control and superior surface smoothness, helping reduce manual sanding and finishing time.
-
Production-Ready Construction – Designed for durability, accuracy, and long-term performance in professional woodworking and manufacturing environments.
Q&A
Q: What is the SCM C251 Wide Belt Sander designed for?
A: The C251 is a professional-grade wide belt sander designed for calibration, stock removal, and fine finishing of wood panels and components.
Q: What is the benefit of the 24-inch sanding width?
A: The 24-inch capacity allows efficient processing of larger workpieces while maintaining excellent sanding consistency and productivity.
Q: Is the C251 suitable for industrial woodworking operations?
A: Yes. It is designed for cabinet shops, furniture manufacturers, millwork facilities, and production woodworking environments.
Q: What type of power supply does this model require?
A: This version is equipped with a 10HP three-phase motor, delivering reliable performance for demanding commercial applications.
Q: Can it be used for both calibration and finish sanding?
A: Yes. The machine is suitable for material thickness calibration, surface smoothing, and preparing wood for painting, staining, or finishing.
Q: How does a wide belt sander improve efficiency?
A: It provides uniform sanding across the entire workpiece, reduces manual labor, and increases throughput compared to conventional sanding methods.
Q: What materials can be processed with the C251?
A: It can handle hardwoods, softwoods, plywood, MDF, veneered panels, and other common woodworking materials.
Q: Who is this machine best suited for?
A: Professional woodworkers, cabinet manufacturers, furniture makers, and industrial woodworking facilities seeking consistent, high-quality sanding results.
Maintenance Tips
- Clean the sanding belt, conveyor table, rollers, and dust collection ports after each use.
- Inspect sanding belts regularly for wear, clogging, tears, or uneven abrasion and replace when necessary.
- Keep the dust extraction system operating efficiently to prevent dust buildup and maintain optimal airflow.
- Check conveyor belt tracking and tension periodically to ensure smooth, accurate material feeding.
- Lubricate bearings, chains, and moving components according to the manufacturer's recommended maintenance schedule.
- Verify drum, platen, and conveyor alignment regularly for consistent sanding performance across the full width.
- Remove resin, glue residue, and fine dust from rollers and contact surfaces using approved cleaning products.
- Inspect electrical connections, controls, and motor components for signs of wear, overheating, or damage.
- Test emergency stops, safety guards, and safety systems routinely to ensure proper operation.
- Store replacement sanding belts in a clean, dry environment to extend belt life and maintain sanding quality.
