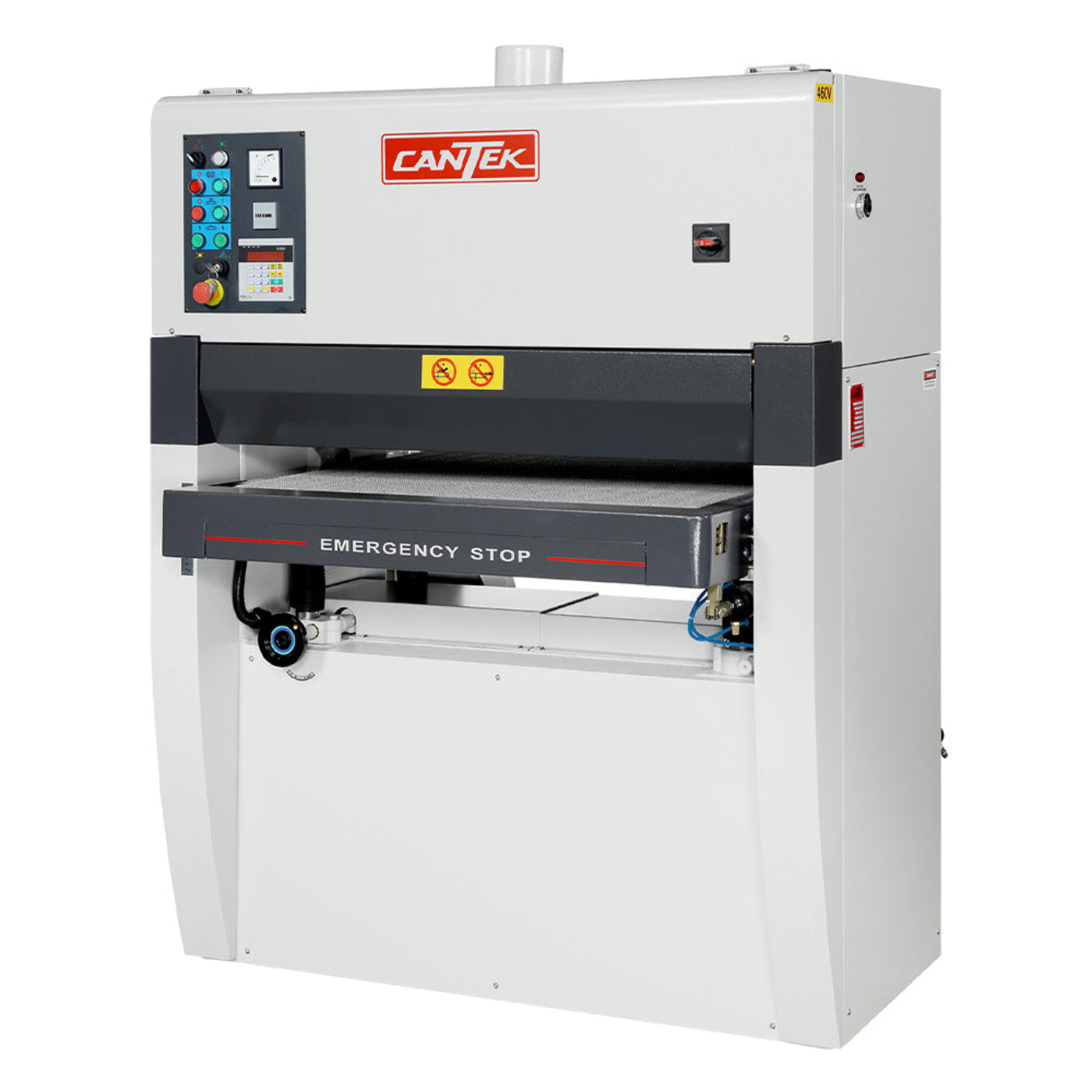

SCM 20HP 3-Phase 36" Wide Belt Sander - C371
The Cantek C371 36″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. The quick-release handle for belt changing and access to the removable platen.
Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 3-decimal places in Inch & 2-decimals in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance.
Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.
The sanding belt motor is equipped with a powerful 20HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes. The table is raised and lowered by four industrial ball screws ensuring perfect flatness and added durability.
Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.
The automatic conveyor belt tracking ensures the conveyor belt is centered and does not track off to one side, which could damage the belt. The electrical panel features high-quality Schneider electrical controls and readily available Camozzi pneumatics.
What our Experts Think
-
Powerful 20HP Industrial Motor – Provides exceptional sanding performance for demanding woodworking applications, delivering fast material removal and consistent results.
-
36" Wide Sanding Capacity – Ideal for processing large panels, doors, tabletops, cabinetry, and furniture components with maximum efficiency.
-
3-Phase Commercial Operation – Designed for continuous production environments, offering reliable power delivery and smooth machine performance throughout long work cycles.
-
Consistent Surface Quality – Wide belt sanding technology ensures uniform thickness control and professional-grade finishes across the entire workpiece.
-
Built for High-Volume Productivity – Heavy-duty construction and precision engineering help reduce downtime, increase throughput, and maintain long-term reliability.
Q&A
Maintenance Tips
- Clean the sanding belt, conveyor table, rollers, and dust collection ports after each use to prevent dust buildup.
- Inspect sanding belts regularly for wear, tears, glazing, or clogging and replace them when sanding quality declines.
- Ensure the dust extraction system is operating efficiently to maintain airflow and protect internal components.
- Check conveyor belt tracking and tension periodically for smooth, accurate material feeding.
- Lubricate bearings, chains, and moving assemblies according to the manufacturer's recommended maintenance schedule.
- Verify drum, platen, and conveyor alignment regularly to ensure consistent sanding results across the full 36" width.
- Remove resin, glue residue, and fine dust from rollers and contact surfaces using approved cleaning products.
- Inspect electrical controls, wiring, motors, and connections for signs of wear, overheating, or loose components.
- Test emergency stop switches, safety guards, and protective systems routinely to ensure safe operation.
- Store replacement sanding belts in a clean, dry, climate-controlled environment to maximize belt life and maintain sanding performance.
