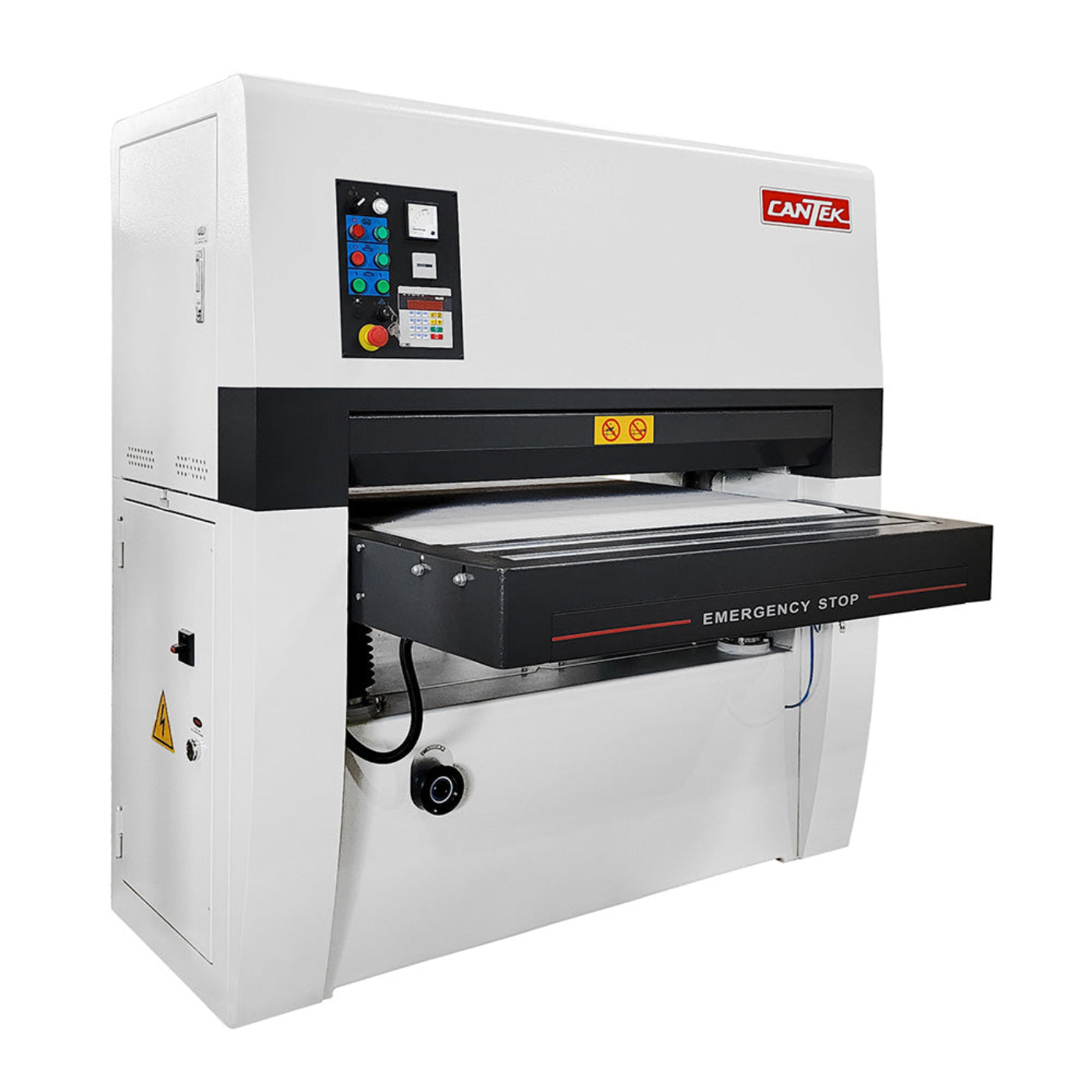

SCM 20HP 3-Phase 44" Wide Belt Sander - C431
The Cantek C431 43″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 3-decimal places in Inch & 2-decimals in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance.
Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.
The C431 is equipped with a powerful 20HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes. It comes standard with a high-quality reinforced rubber conveyor belt which combines superior grip with high accuracy thickness. The conveyor belt is tracked automatically by a pneumatic tracking cylinder.
An extended infeed table with dual idle table rolls facilitate the workpiece's handling. It comes equipped with an overhead lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Additionally is equipped with a front safety push bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position
- Small footprint
- Combination sanding unit with 5” rubber contact drum and 2.6” wide adjustable sanding platen for a wide range of sanding applications
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit
- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes
- Double infeed and outfeed pressure rolls for superior part hold down
- Four table-raising jack screws
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors
What our Experts Think
-
Powerful 20HP Industrial Motor – Delivers the performance needed for heavy-duty sanding applications, ensuring efficient material removal and consistent production output.
-
44" Wide Sanding Capacity – Accommodates extra-large panels, doors, tabletops, cabinetry, and furniture components, reducing the need for multiple passes.
-
3-Phase Production Efficiency – Designed for continuous commercial operation, providing smooth power delivery and reliable performance in demanding manufacturing environments.
-
Consistent Surface Finishing – Wide belt technology ensures uniform thickness control and high-quality surface preparation for professional-grade results.
-
Built for High-Volume Workflows – Heavy-duty construction and precision engineering help maximize throughput, reduce downtime, and support long-term shop productivity.
Q&A
Maintenance Tips
- Clean the sanding belt, conveyor table, rollers, and dust collection ports after each use to prevent dust buildup.
- Inspect sanding belts regularly for wear, tears, glazing, or clogging and replace them when sanding performance declines.
- Ensure the dust extraction system is operating efficiently to maintain airflow and protect internal components.
- Check conveyor belt tracking and tension periodically for smooth, accurate material feeding.
- Lubricate bearings, chains, and moving assemblies according to the manufacturer's recommended maintenance schedule.
- Verify drum, platen, and conveyor alignment regularly to ensure consistent sanding results across the full 44" width.
- Remove resin, glue residue, and fine dust from rollers and contact surfaces using approved cleaning products.
- Inspect electrical controls, motors, wiring, and connections for signs of wear, overheating, or loose components.
- Test emergency stop switches, safety guards, and protective systems routinely to ensure safe operation.
- Store replacement sanding belts in a clean, dry, climate-controlled environment to maximize belt life and sanding performance.
