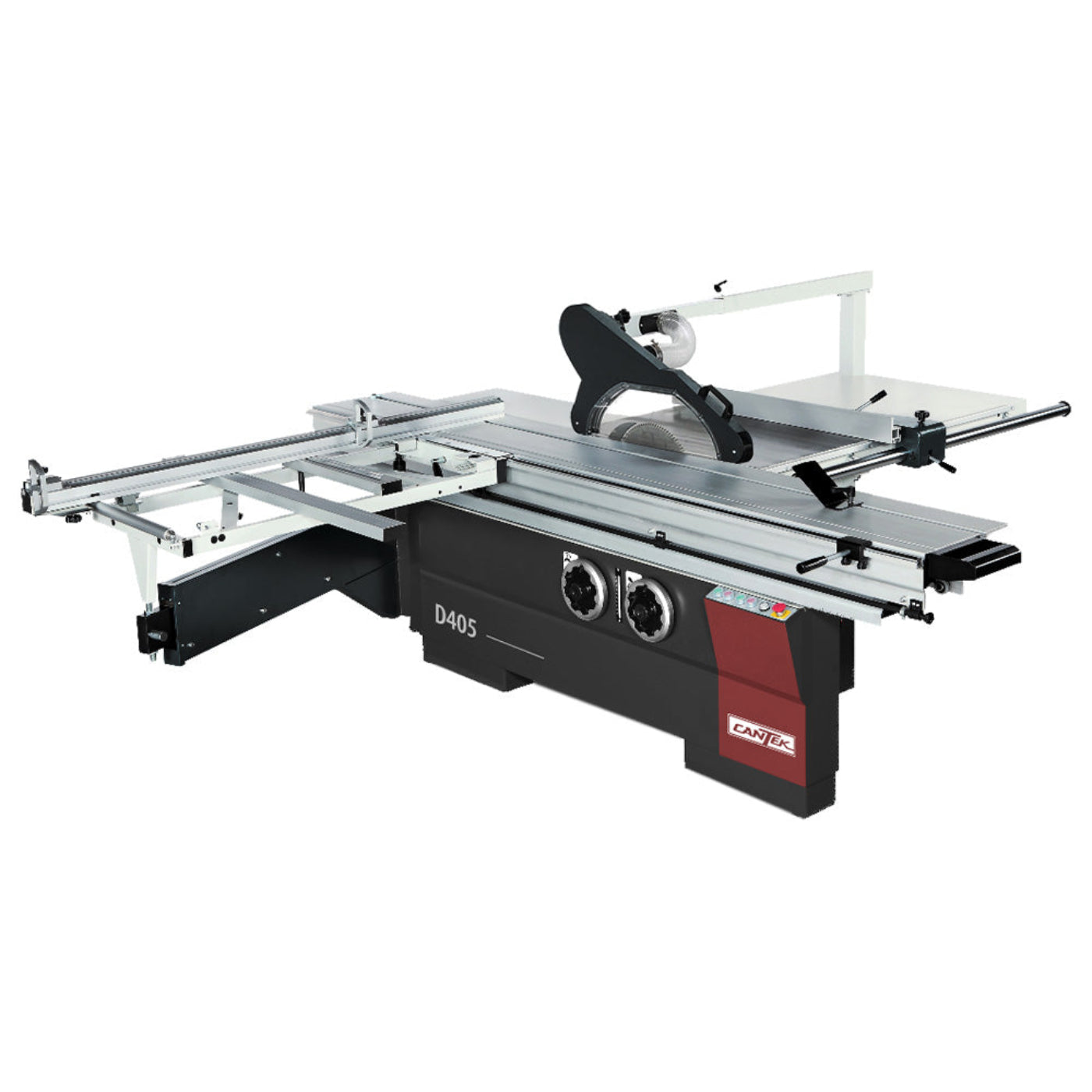

SCM 5HP 1-Phase 10 ft. Sliding Table Saw - D405M-10

SCM 5HP 1-Phase 10 ft. Sliding Table Saw - D405M-10

The D405M Saw with 10 ft. slider is the ideal panel-cutting solution for cabinet shops, millwork companies, and furniture shops that need a precision saw but only require manual adjustments. It combines a robust 5HP main motor and 1HP scoring unit with heavy-duty construction, such as its cast-iron main table and saw carriage, resulting in precise panel sizing with high accuracy and repeatability cut after cut.

The sliding table on the D405M runs on precision hardened upper and lower linear guide rails, making it easy and smooth to move. These rails, along with the chrome rollers, are highly wear-resistant. The table can be locked in multiple positions to facilitate panel loading. Reinforced webbing inside the extrusions ensures the table stays perfectly straight and precise.

An industrial cast-iron rip fence on the D405M adds to the stability of this sliding table saw. The fence runs on a hardened round guide rail and features a dual inch/mm scale for making micro adjustments. Easily adjust the fence forwards and backwards, or from vertical to flat for a lower profile when performing narrow bevel cuts.

The D405M includes a miter crosscut fence that can be set from a positive stop of 90° to 45° with an angle scale. Two flip stops are set in place along the crosscut fence with dual inch/mm scales. The crosscut fence can also be extruded to 140" (3,500mm). All of this is supported by a heavy-duty outrigger and support arm.

Good dust collection is vital to keep your saw running smoothly and efficiently. The D405M features an overarm blade guard with a built-in dust extraction port so that dust is captured as soon as it is made. It comes equipped with a quick-change guard system so the operator can choose the standard straight guard, or the bubble guard for bevel cutting.

Features

• Precision anodized aluminum sliding table running on precision ground steel guides for smooth table movement
• Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
• Manual blade rise, fall, and tilting with a convenient pointer for blade angle display
• Heavy-duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob
• Overarm safety guard with quick-change system for changing between straight and bevel cutting guards

• Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
• Heavy-duty outrigger for support of workpiece during cutting operations
• Dual inch and metric scales for both rip and crosscut fence
• Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience
• Eccentric hold-down clamp, table return handle, and wedge for solid wood ripping included
• Overhead saw blade guard with built-in dust port included (CE-type)

Includes

• (1) 14" main blade
• (1) 120mm scoring blade
• (1) Eccentric hold-down clamp
• Wedge for solid wood ripping

What our Experts Think

• Professional 5HP Cutting Power – Offers the strength needed for precise cutting of hardwoods, plywood, MDF, and large sheet materials while running on single-phase power.
• 10 ft. Sliding Table System – Provides outstanding support for oversized panels and long workpieces, ensuring smooth handling and highly accurate cuts.
• Single-Phase Shop Friendly – Ideal for professional workshops that need industrial-level performance without access to three-phase electrical service.
• Precision & Control – Manual adjustments allow operators to achieve consistent, repeatable results for cabinetry, furniture manufacturing, and custom woodworking projects.
• Heavy-Duty Construction – Built for stability, reduced vibration, and long-term durability, helping maintain accuracy in demanding production environments.
