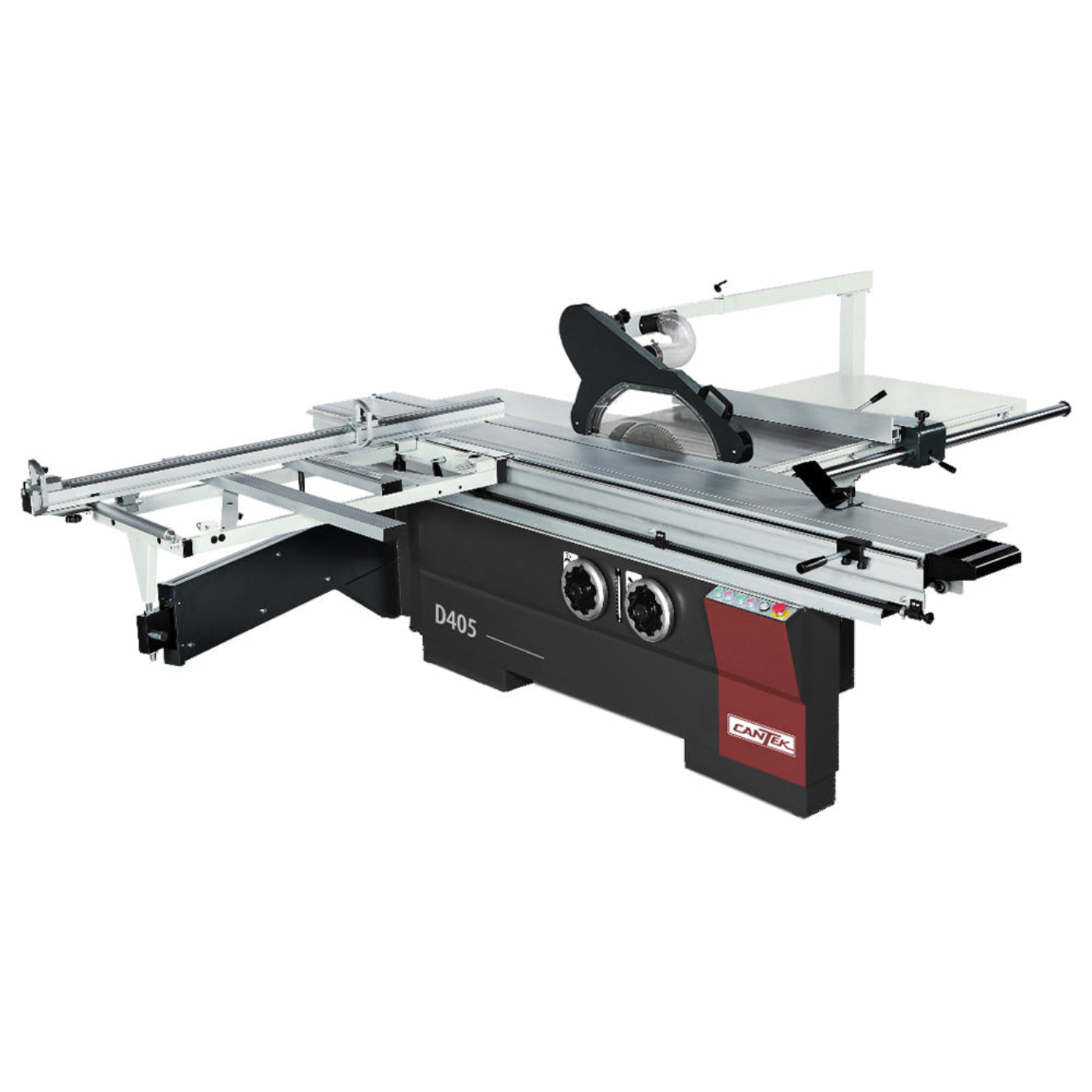

SCM 5HP 1-Phase 8 ft. Sliding Table Saw - D405M-8

SCM 5HP 1-Phase 8 ft. Sliding Table Saw - D405M-8

The D405M Saw with 8 ft. slider is the ideal panel-cutting solution for cabinet shops, millwork companies, and furniture shops that need a precision saw but have limited floor space. It combines a robust 5HP main motor and 1HP scoring unit with heavy-duty construction, such as its cast-iron main table and saw carriage, resulting in precise panel sizing with high accuracy and repeatability cut after cut.

The sliding table on the D405M runs on precision hardened upper and lower linear guide rails, making it easy and smooth to move. These rails, along with the chrome rollers, are highly wear-resistant. The table can be locked in multiple positions to facilitate panel loading. Reinforced webbing inside the extrusions ensures the table stays perfectly straight and precise.

An industrial cast-iron rip fence on the D405M adds to the stability of this sliding table saw. The fence runs on a hardened round guide rail and features a dual inch/mm scale for making micro adjustments. Easily adjust the fence forwards and backwards, or from vertical to flat for a lower profile when performing narrow bevel cuts.

The D405M includes a miter crosscut fence that can be set from a positive stop of 90° to 45° with an angle scale. Two flip stops are set in place along the crosscut fence with dual inch/mm scales. The crosscut fence can also be extruded to 140" (3,500mm). All of this is supported by a heavy-duty outrigger and support arm.

Good dust collection is vital to keep your saw running smoothly and efficiently. The D405M features an overarm blade guard with a built-in dust extraction port so that dust is captured as soon as it is made. It comes equipped with a quick-change guard system so the operator can choose the standard straight guard, or the bubble guard for bevel cutting.

Features

• Precision anodized aluminum sliding table running on precision ground steel guides for smooth table movement
• Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
• Manual blade rise, fall, and tilting with a convenient pointer for blade angle display
• Heavy-duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob
• Overarm safety guard with quick-change system for changing between straight and bevel cutting guards

• Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
• Heavy-duty outrigger for support of workpiece during cutting operations
• Dual inch and metric scales for both rip and crosscut fence
• Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience
• Eccentric hold-down clamp, table return handle, and wedge for solid wood ripping included
• Overhead saw blade guard with built-in dust port included (CE-type)

Includes

• (1) 14" main blade
• (1) 120mm scoring blade
• (1) Eccentric hold-down clamp
• Wedge for solid wood ripping

What our Experts Think

• Powerful 5HP Single-Phase Performance – Delivers professional-grade cutting power for hardwoods, plywood, MDF, and other sheet materials while operating on standard shop power.
• 8 ft. Sliding Table Capacity – Provides excellent support for panels and large workpieces, helping improve cutting accuracy, material handling, and operator control.
• Precision Manual Operation – Offers straightforward adjustments and dependable accuracy, making it ideal for custom woodworking, cabinetry, and furniture production.
• Single-Phase Workshop Friendly – A great choice for professional shops that require industrial-level performance without the need for three-phase electrical service.
• Built for Long-Term Reliability – Heavy-duty construction reduces vibration and ensures consistent, repeatable results in demanding woodworking environments.

Q&A

Q: What is the SCM D405M-8 Sliding Table Saw used for?
A: The D405M-8 is a professional sliding table saw designed for precision cutting of panels, sheet goods, solid wood, and cabinetry components.

Q: What are the benefits of the 8-foot sliding table?
A: The 8-foot sliding table provides excellent support for larger workpieces and panels while maintaining smooth, accurate material handling.

Q: Is the D405M-8 suitable for professional woodworking shops?
A: Yes. It is ideal for cabinet makers, furniture manufacturers, millwork operations, and custom woodworking businesses.

Q: What type of power does this machine require?
A: The D405M-8 is powered by a 5HP single-phase motor, offering industrial-level performance without requiring three-phase power.

Q: Can it process sheet goods and hardwood materials?
A: Yes. It is designed to accurately cut plywood, MDF, melamine, hardwoods, softwoods, and other woodworking materials.

Q: How does a sliding table improve cutting accuracy?
A: The sliding carriage supports and guides the workpiece through the blade, resulting in cleaner, straighter, and more repeatable cuts.

Q: Does the D405M-8 improve workshop efficiency?
A: Yes. It reduces material handling effort, speeds up workflow, and helps increase overall production productivity.

Q: Who is this machine best suited for?
A: Professional woodworkers, cabinet shops, furniture manufacturers, and millwork facilities seeking precision panel processing with the convenience of single-phase power.
