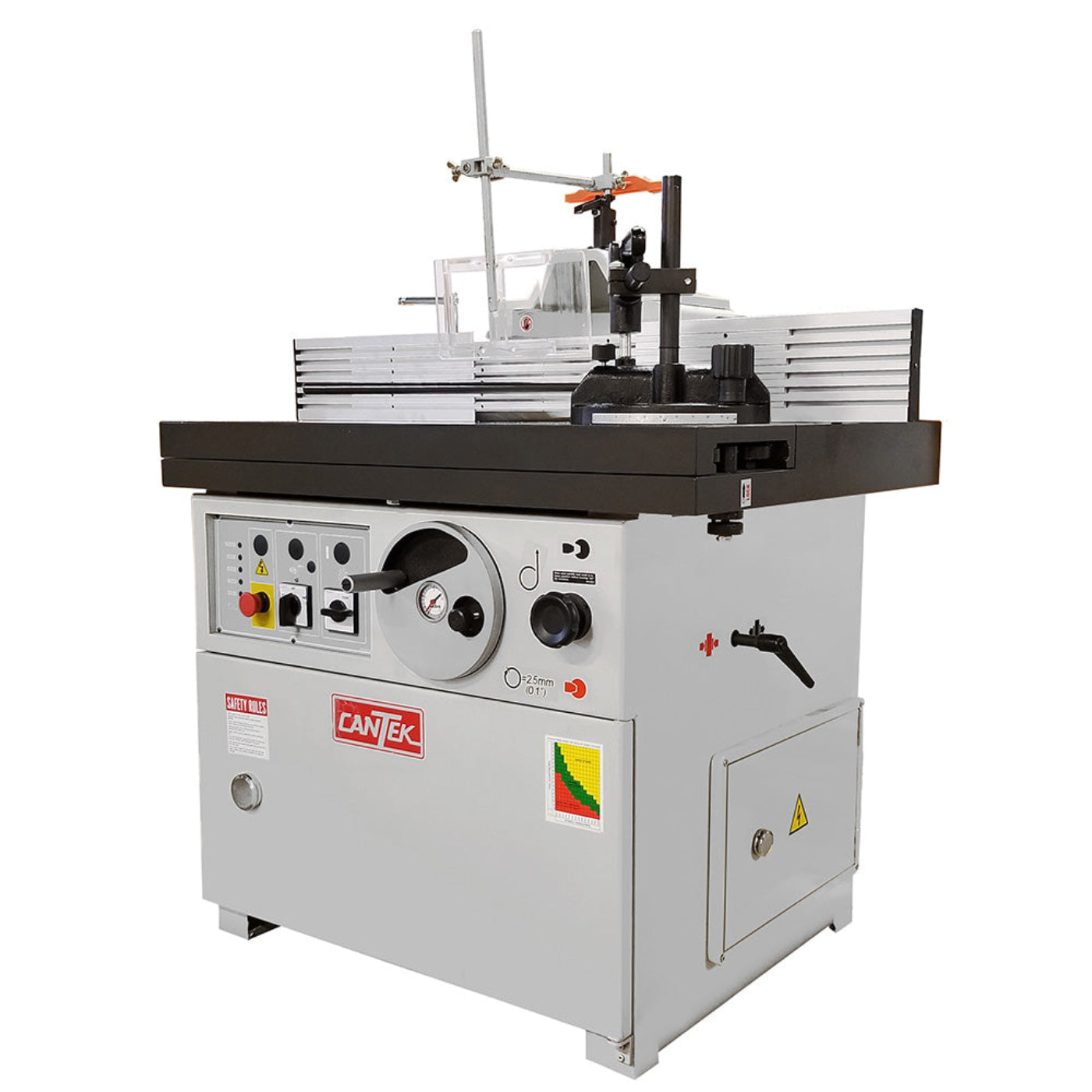

SCM 7.5HP Spindle Shaper w/ Sliding Table - SS512CSB
The Cantek SS512CSB sliding table shaper is a ruggedly built sliding table shaper with refined features well suited for demanding production environments. Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The sliding table is cast iron and runs on bearings for smooth and vibration free movement. The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.
Features
- Cast iron sliding table runs on bearings for vibration free and smooth movement
- 1-1/4” interchangeable spindle is standard (other sizes available)
- Large cast-iron table is ground and polished for maximum stability and durability
- Powerful 7.5 HP motor for even the most demanding profiling work
- Five spindle speeds can be easily adjusted to suit your tool diameter
- Electronic spindle brake for added safety and facilitates with fast changeover
- Precision fence assembly with micro infeed and outfeed fence adjustment
- Finger style fence allows fence to be adjusted around the cutter for added safety and workpiece stability
- Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig
- Precision ground and electronically balanced spindle
- V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM)
- Electric spindle brake for added safety
- Spindle lock – with limit switch safety, machine will not start with lock engaged
- Micro spindle height adjustment with dial indicator for precise height adjustment
- 1 ¼” Interchangeable cutter spindle is standard
- Forward/reverse spindle rotation
- Adjustable “finger” type fence
- Independent micro-fence adjustment on both sides
- Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base
What our Experts Think
Q&A
Maintenance Tips
- Clean the spindle, sliding table, fences, and dust collection areas after each use.
- Inspect shaper cutters and tooling regularly for wear, damage, or dull edges and replace when necessary.
- Keep the sliding table rails clean and free of debris to ensure smooth, accurate movement.
- Lubricate bearings, sliding mechanisms, elevation systems, and moving components according to SCM maintenance guidelines.
- Verify spindle alignment, fence settings, and table calibration for precise machining results.
- Inspect the 7.5HP motor, drive belts, and electrical connections for signs of wear or overheating.
- Ensure cutter assemblies, spindle nuts, and tool holders are securely tightened before operation.
- Maintain an efficient dust extraction system to reduce buildup and improve machine performance.
- Tighten loose hardware, guards, and adjustment controls during routine inspections.
- Follow SCM’s preventive maintenance schedule to maximize accuracy, tooling life, and machine reliability.
