SCM Automatic Edgebander - MX350M (1PH)

SCM Automatic Edgebander - MX350M (1PH)

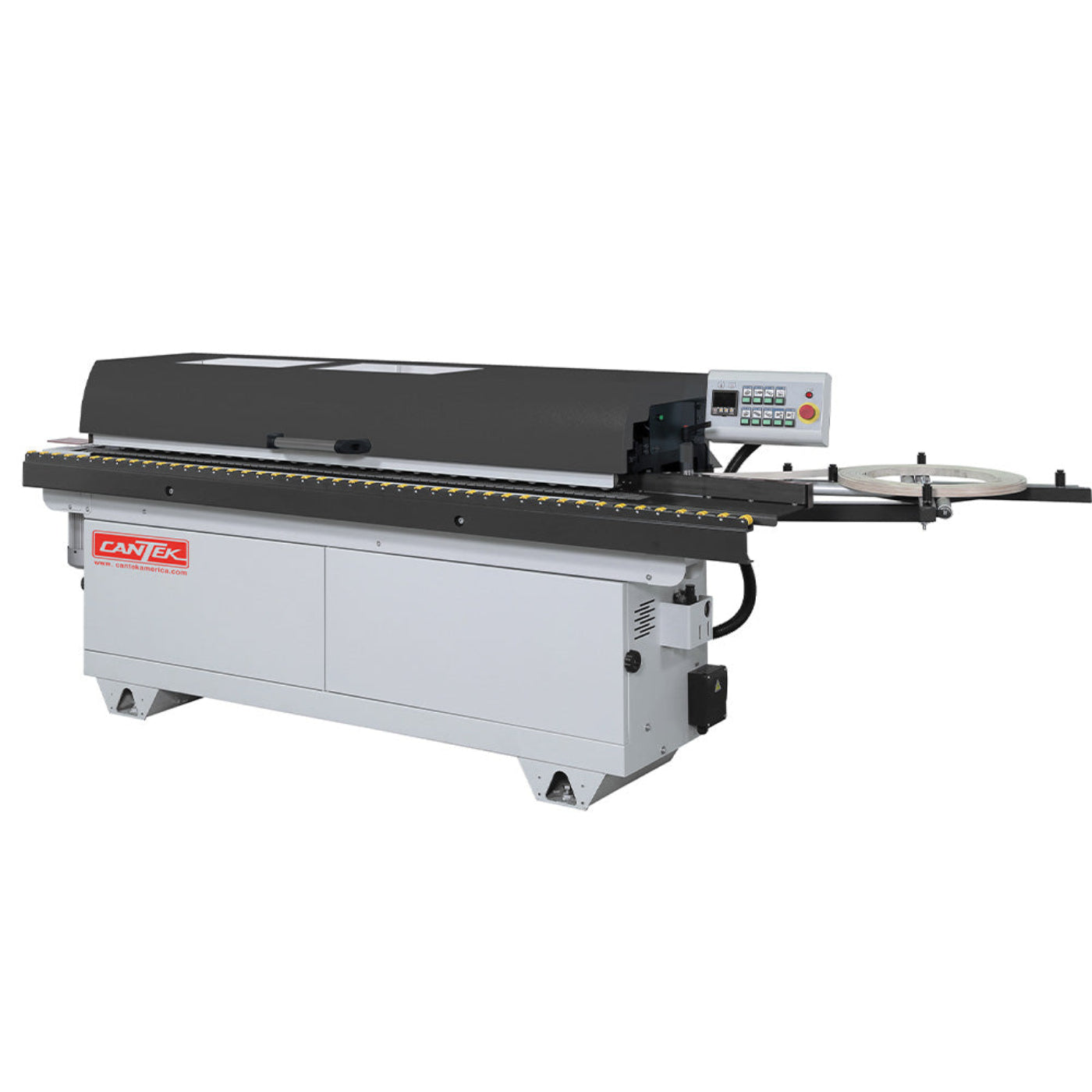

The Cantek MX350M Automatic Edgebander is an entry level edgebander with pre-milling that is the perfect blend of quality and affordability.  With fine attention to detail and quality componentry, the MX350M can output high quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel just prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. Additionally, the machine is equipped with end trimming, flush trimming, PVC scraping, and buffing.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4 mm & 3 mm.

Front and rear trimming cut-off can be made together with flush trimming and buffing unit (opt) on both sides of work-piece. The machines are made exclusively to execute above functions within the dimensions of the technical characteristics specified. When using the Max 350M, it is advisable to use good compressed air and dust collection system. Flush trimming is the only operation which gives dust emission. Connect the machine to an efficient dust collector system which guarantees a suction outlet at least a 20 mt/1”.

Features

• Compact design makes it the ideal edgebanding solution for small workshops
• Pre-milling the panel ensures optimum edge quality prior to edgebanding
• Precise adjustments for optimum edge quality
• Chain feed system ensures consistent feeding of material for consistent results
• Available in 230V 1 or 3 phase

• PLC control system with LED display and keypad
• Workpiece is fed by chain
• Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4-3 mm; strip material up to 4mm can be hand-fed
• Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
• 2 kg (2.64 lb) Teflon-coated hot-melt glue pot
• Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

What our Experts Think

• Automated Edge Banding Efficiency – Simplifies panel processing with automatic edge application, helping increase productivity and reduce manual labor.
• Professional Finish Quality – Produces clean, precise, and durable edge banding results for cabinets, furniture, shelving, and custom woodworking projects.
• Single-Phase Workshop Friendly – Operates on standard single-phase power, making it ideal for professional shops without access to three-phase electrical service.
• Consistent Production Results – Delivers repeatable edge quality and improved workflow efficiency while minimizing setup time and rework.
• Built for Daily Use – Durable construction and reliable components ensure dependable long-term performance in demanding woodworking environments.
