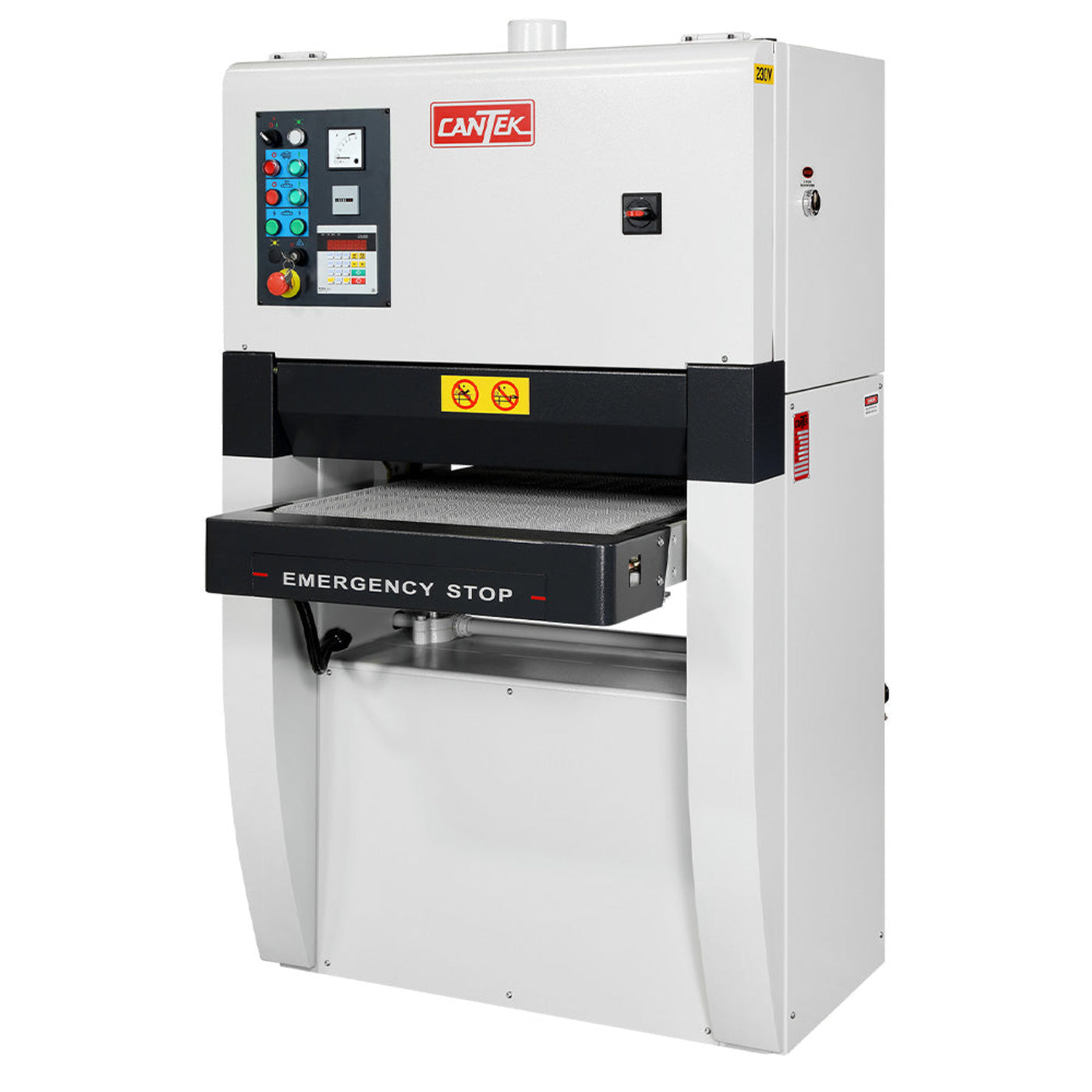

SCM 10HP 3-Phase 24" Wide Belt Sander - C251-8
The Cantek C251-8 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 2-decimal places in Inch & 1-decimal in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance scheduling.
An electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.
High-quality rubber conveyor belt with automatic belt tracking. The tracking system ensures the conveyor belt does not travel off to one side, causing damage. The C251 is equipped with a powerful 10HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes. Also equipped with dual infeed and dual outfeed hold-down rollers to firmly secure the panel during sanding operations.
Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels. On the electrical panel, high-quality Schneider electrical controls and Camozzi pneumatics are readily available.
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position
- Small footprint
- Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit
- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes
- Double infeed and outfeed pressure rolls for superior part hold down
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors
What our Experts Think
-
Industrial 10HP Performance – Designed for professional woodworking operations that require powerful, consistent sanding for production-scale workloads.
-
24" Wide Belt Capacity – Easily handles cabinet parts, furniture components, doors, and large panels while maintaining uniform sanding results across the workpiece.
-
3-Phase Production Efficiency – Provides reliable power and smooth operation for continuous use in commercial and manufacturing environments.
-
Precision Surface Finishing – Delivers consistent thickness control and high-quality surface preparation, helping reduce secondary sanding and finishing labor.
-
Built for Long-Term Reliability – Heavy-duty construction and industrial-grade components ensure dependable performance in demanding workshop conditions.
Q&A
Q: What is the SCM C251-8 Wide Belt Sander used for?
A: The C251-8 is designed for precision sanding, thickness calibration, and surface finishing of wood panels, cabinetry components, and furniture parts.
Q: What are the benefits of the 24-inch sanding capacity?
A: The 24-inch working width allows efficient processing of larger workpieces while maintaining consistent sanding quality and productivity.
Q: Is the C251-8 suitable for commercial woodworking shops?
A: Yes. It is built for cabinet makers, furniture manufacturers, millwork operations, and professional woodworking environments.
Q: What type of power does this machine require?
A: The C251-8 is equipped with a 10HP three-phase motor, providing reliable power for continuous-duty sanding applications.
Q: Can it perform both calibration and finish sanding?
A: Yes. It is designed to handle stock removal, thickness calibration, surface smoothing, and finish preparation.
Q: How does a wide belt sander improve workflow?
A: It delivers uniform sanding results, reduces manual labor, improves surface consistency, and increases production efficiency.
Q: What materials can be processed with the C251-8?
A: It is suitable for hardwoods, softwoods, MDF, plywood, veneered panels, and other woodworking materials.
Q: Who is this machine best suited for?
A: Professional woodworkers, cabinet shops, furniture makers, and industrial woodworking facilities seeking dependable, high-quality sanding performance.
