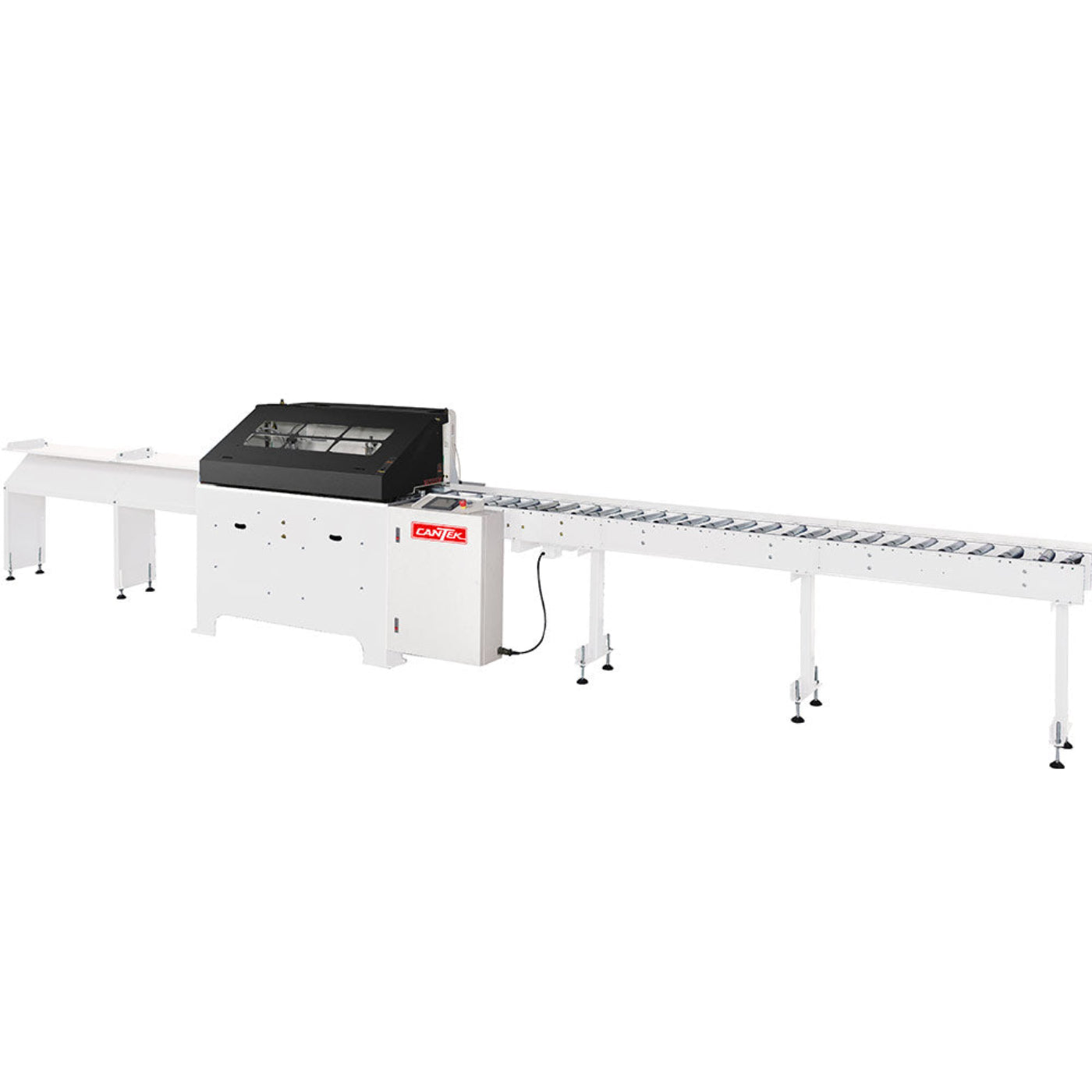

SCM Automatic Throughfeed End Matcher - EM12

SCM Automatic Throughfeed End Matcher - EM12

The Cantek EM12 End Matcher is specially designed for machining tongue and groove (with or without bevels) on hardwood flooring and wall/ceiling paneling up to 12” wide. Its compact design with a continuous through-feed system allows for maximum output in a small space.

Equipped with a user-friendly touchscreen interface allow for simple operation with excellent performance and error diagnostics. The dual counter-rotating cutterheads produce both the tongue and groove simultaneously ensuring a perfect match. The anti-tear-out blocks and counter-rotation of the heads ensure optimum cut quality without chipping or blowout. The insert-style segmented cutterheads can be adjusted according to your desired tongue/groove thickness and can perform a micro-bevel or not.

The variable speed infeed conveyor, variable feed speed, and variable cross-cutting speed allow the operator full control according to the type and size of material being run.  The innovative clamps allow for simultaneous top and side clamping to ensure pieces are perfectly square for consistent end-matching results.

For added productivity, the EM12 End Matcher can be installed in line with our CFS100 Automatic Defect Cutoff Chop Saw to perform defecting and end matching in a single line.  This greatly reduces the handling while increasing output with defect-free flooring or paneling.

Features

• 12″ Wide Continuous Through-Feed System – Handles Random Length Min. 12″ to Any Length
• Designed to produce end-match tongue & groove on hardwood flooring and paneling
• Also can be used for Finger Joint Cutting – if desired
• Can handle random lengths from 11” to an unlimited length
• Powered 10’ roller infeed conveyor and 8’ gravity outfeed conveyor (other lengths and options available to suit your requirement)
• The through-feed design allows for the tongue and groove to be cut simultaneously
• Counter-rotating cutter heads and anti-tear out blocks ensure a superior finish
• Carbide insert cutterhead set included
• Easy use touch screen control will also keep track of the total linear feet run as well as keep a piece count.
• Complete Safety and Noise Reduction Enclosure
• All Controls easily accessed from front of machine
• Variable speed through feed systems is controlled by frequency inverter
• Carbide Insert Type T & G Cutterheads – included Std – 1 set (extras optional)

What our Experts Think

• Automated Throughfeed Operation – Streamlines end-matching processes by automatically feeding and machining workpieces, improving production speed and consistency.
• Precision End-Matching Performance – Produces accurate tongue-and-groove or end-matched profiles that ensure tight-fitting joints and professional-quality finished products.
• Ideal for Flooring & Millwork Production – Well-suited for manufacturers producing flooring, paneling, mouldings, and other wood products requiring precise end profiling.
• Boosts Productivity & Material Flow – Continuous throughfeed design reduces handling time, increases throughput, and supports efficient high-volume manufacturing.
• Built for Industrial Reliability – Heavy-duty construction and precision engineering provide dependable performance in demanding commercial woodworking environments.
