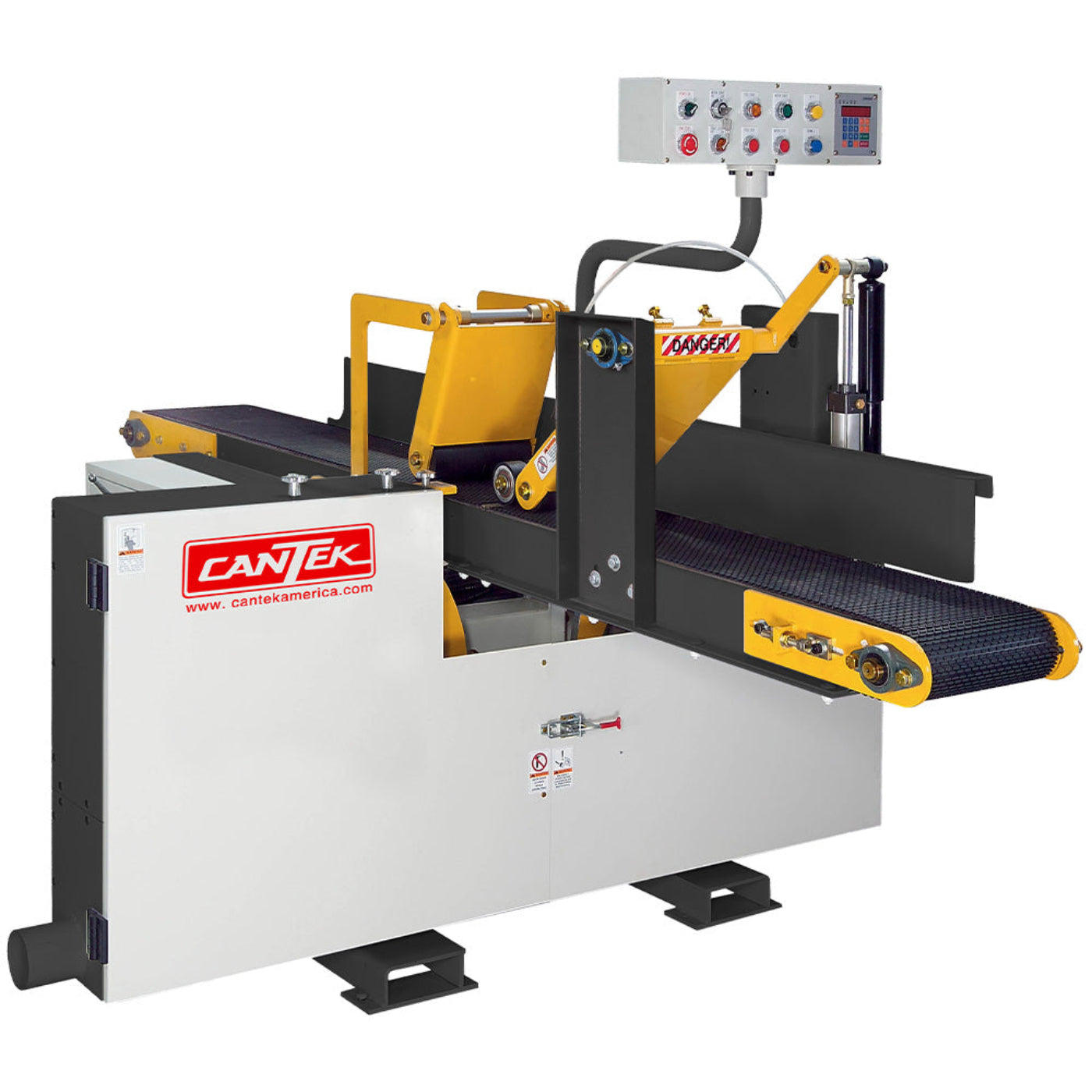

SCM Horizontal Resaw - HR11P
The powerful yet economically priced Cantek HR11P Horizontal Band Resaw can produce a cut up to 11.8” wide and 4.92” thick. Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material. The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. Equipped with motorized thickness adjustment with digital control for convenient blade height adjustment. The HR11P is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.
Features
- Powerful 20HP saw motor capable of cutting through virtually any wood species with ease
- Solid steel 28” diameter saw wheels capable of running a 1” wide, thin kerf blade for maximum cut accuracy and material yield
- Pneumatic top pressure rolls for optimum part hold down
- Digital thickness control for fast and convenient height adjustment
- Powerful 3HP hydraulic unit for controlling the feed conveyor
- Simple operation and low price point allowing for the maximum return on your investment
- Adjustable sandwich style guide system ensures the blades run true and cut straight
- Blade lubrication system ensure the blade runs cool for an optimum blade life
- Hydraulic blade tensioning for superior cutting results
- Motorized thickness adjustment
- Digital thickness control ensures accuracy & repeatability of material thickness
- Air actuated top pressure roller holds material firmly on conveyor belt
- Heavy duty steel band wheels are precision machined and dynamically balanced
- Variable feed speed with a maximum feed speed of 53 FPM
What our Experts Think
-
Precision Horizontal Resawing – Designed to produce accurate, uniform cuts for veneers, panels, and dimensional lumber while maintaining excellent material consistency.
-
Maximizes Material Yield – Helps recover more usable stock from each board, reducing waste and improving overall production efficiency.
-
Ideal for Production Woodworking – Well-suited for furniture manufacturing, cabinet production, millwork, and other operations requiring high-quality resawing performance.
-
Consistent Cut Quality – Delivers smooth, repeatable results that minimize secondary processing and support efficient downstream operations.
-
Built for Industrial Reliability – Heavy-duty construction and precision engineering ensure dependable performance in demanding commercial woodworking environments.
Q&A
Maintenance Tips
- Clean the saw blade, conveyor system, and guide assemblies daily to remove sawdust and resin buildup.
- Check blade tension and tracking regularly to ensure accurate, consistent cutting performance.
- Inspect the resaw blade for wear, cracks, or damaged teeth and replace or sharpen as needed.
- Lubricate bearings, guide systems, and moving components according to the maintenance schedule.
- Verify blade guide alignment to maintain straight cuts and reduce blade wear.
- Keep the conveyor and feed system clean and properly aligned for smooth material handling.
- Inspect drive belts and mechanical components for wear, tension, and proper operation.
- Ensure dust collection ports remain clear and the extraction system functions efficiently.
- Test safety guards, switches, and emergency stop features routinely.
