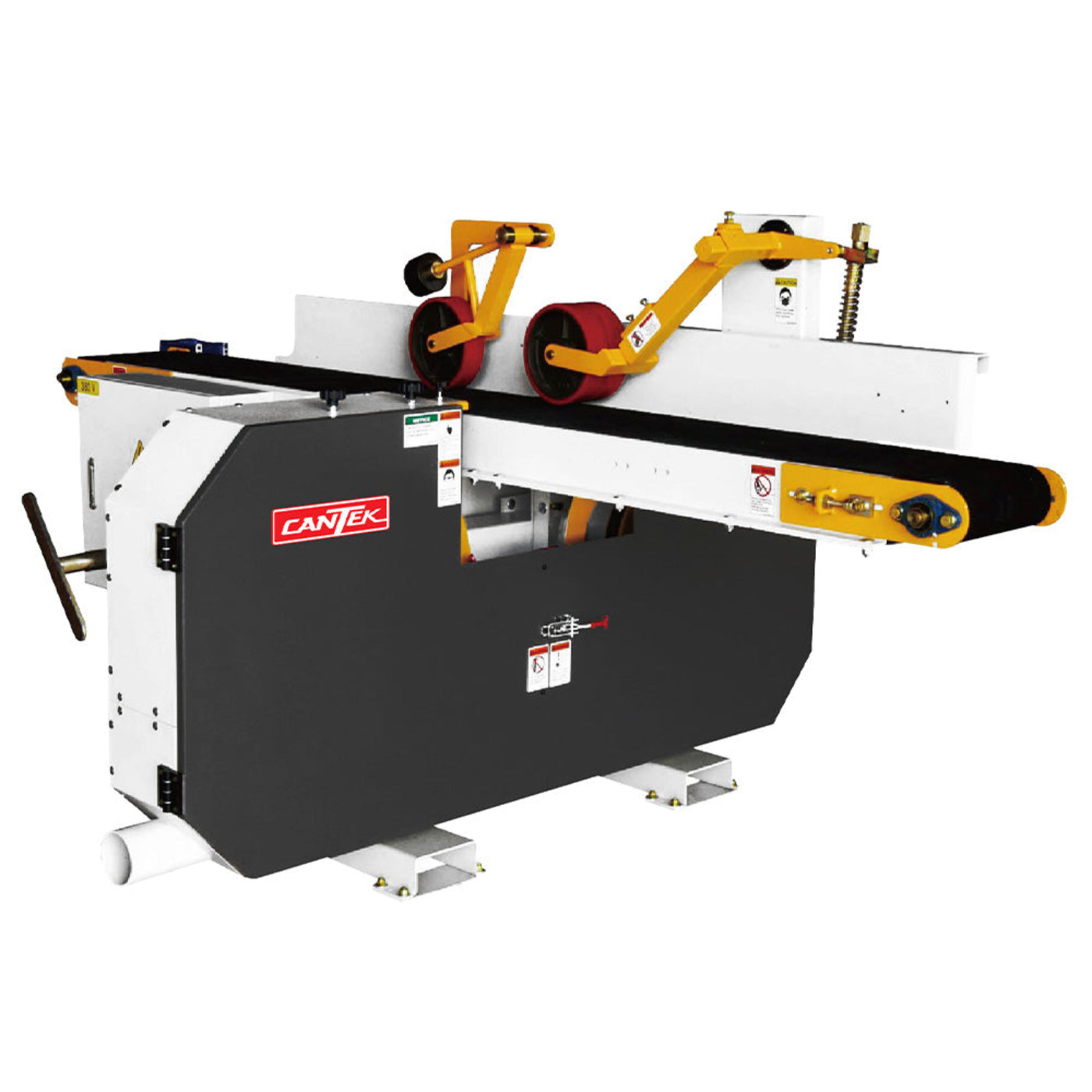

SCM Horizontal Resaw - HR12E
The powerful yet economically priced Cantek HR12E horizontal resaw can produce a cut up to 11.8” wide and 4.92” thick. Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material. The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. The user-friendly controls and operation make will allow your resawing operation to get up to speed quickly. It is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.
Features
- Powerful 20HP saw motor capable of cutting through virtually any wood species with ease
- Solid steel 28” diameter saw wheels capable of running a 1” wide, thin kerf blade for maximum cut accuracy and material yield
- Variable feed speed by inverter to ensure optimum cut accuracy and blade life
- Simple operation and low price point allowing for the maximum return on your investment
- Adjustable sandwich style guide system ensures the blades run true and cut straight
- Blade lubrication system ensure the blade runs cool for an optimum blade life
- Single head horizontal configuration with
- Variable feed speed by inverter from 16 – 82 FPM
- Heavy duty solid steel saw wheels are precision ground and dynamically balanced
- Powerful 20HP saw wheel motor
- Manual saw wheel elevation
- Both saw blade housing elevation screws are linked by a shaft to ensure synchronized movement and precisely level adjustment
- Adjustable sandwich style guide system
- Manual saw blade tension adjustment by handle
- Auto blade lubrication system
- (2) spring loaded hold down rollers ensure material is held firmly on the conveyor belt during material resawing
- Standard electrics are 230/3/60 to UL/CSA Standards (Other voltages available on request)
What our Experts Think
-
Accurate Horizontal Resawing – Delivers precise, consistent cuts for producing veneers, panels, and dimensioned lumber with excellent repeatability.
-
Improves Material Recovery – Maximizes yield from valuable wood stock by reducing waste and increasing usable output from each board.
-
Designed for Production Efficiency – Streamlines resawing operations with smooth material processing, helping boost throughput in commercial woodworking environments.
-
Consistent Cut Quality – Produces clean, uniform results that reduce the need for additional machining and support efficient downstream production.
-
Heavy-Duty Industrial Construction – Built for durability and reliable performance in furniture manufacturing, millwork, and high-volume woodworking applications.
