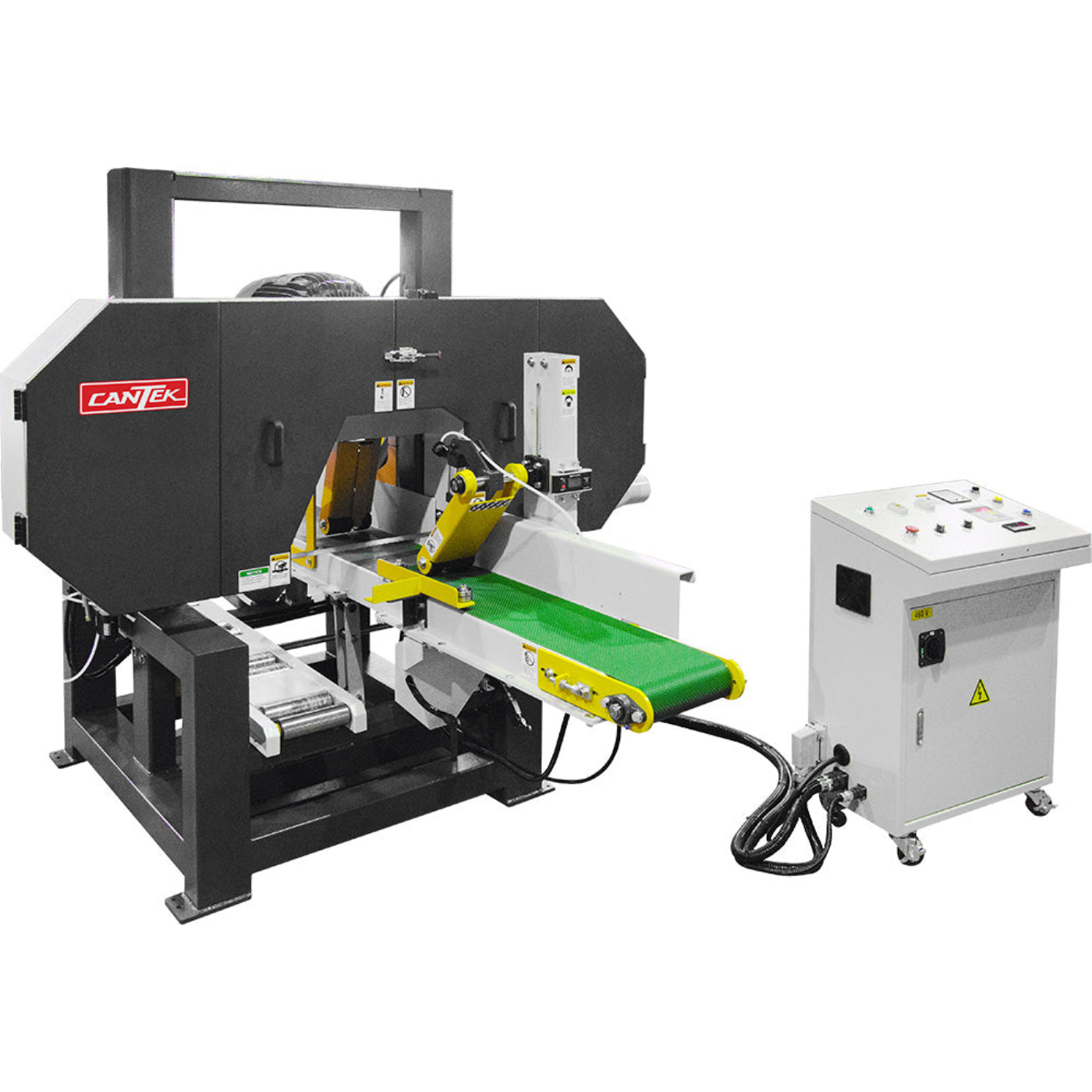

SCM Horizontal Resaw w/ Tilt - HR300PBX
The Cantek HR300PBX tilting bed horizontal band resaw is industrially built for demanding resawing applications. The bed can be tilting from 0-45o making it ideal for bevel siding, moulding blanks, or millwork components. Capable of feeding up to 11.8” x 11.8” timber and cutting up to 10” thick. The powerful 30HP saw motor has a variable feed control allowing you to match the cutting speed to your blade & application requirements.
The HR300PBX runs a 2” wide blade which runs on solid steel band wheels which are precision machined and balanced for a smooth cutting action. The precision sandwich style blade guides ensure the blade runs true for optimum cutting results. The thickness is conveniently adjusted using a precision motorized digital thickness control.
Features
- Manually tilting feed belt for straight of bevel cutting from 0 – 45°
- Powerful 30HP saw wheel motor with variable speed inverter for precise blade speed setting according to your needs
- Heavy-duty tubular steel frame
- Motorized thickness (blade height) adjustment with digital position readout
- Hydraulic blade tensioning for optimum cutting results
- Precision sandwich style saw guide system with moveable left guide to move as close as desired to the material being cut for improved cut accuracy
- Air mist blade cooling system
- Mobile control panel with digital thickness control, ammeter, feed speed display can be positioned where the operator desires
- Solid steel saw wheels – precision machined and balanced
- Pneumatic pressurized top hold down rollers on feed conveyor
- Heavy-duty infeed guide-fence on conveyor right including holdover system
- Idle roller return conveyor to return parts required additional machining
- Reinforced urethane conveyor belt for positive feeding and long life including
- Variable feed speed by VFD (frequency inverter)
- Y Delta – low amperage starter on the saw motor
- Electrical components to UL/CSA standards – 460/3/60 electrics
- Smooth infeed system (limit switch & timer 1 to 3 seconds) with timed pressure roller
What our Experts Think
-
Horizontal Resawing Precision – Designed to produce accurate, consistent veneer, panel, and lumber cuts while maximizing material yield from valuable stock.
-
Integrated Tilt Functionality – The tilting capability adds versatility for specialized cutting applications and greater flexibility in production workflows.
-
Improved Material Utilization – Helps reduce waste and increase recovery rates, making it an excellent choice for operations focused on efficiency and profitability.
-
Ideal for High-Production Woodworking – Well-suited for furniture manufacturing, millwork, panel production, and custom woodworking environments requiring precise resawing.
-
Built for Industrial Reliability – Heavy-duty construction and precision engineering ensure dependable performance during continuous commercial operation.
Q&A
Q: What is the SCM HR300PBX Horizontal Resaw used for?
A: The HR300PBX is designed for precision resawing of lumber, allowing thick boards to be cut into thinner, uniform pieces while maximizing material yield.
Q: What are the benefits of a horizontal resaw?
A: A horizontal resaw improves lumber recovery, reduces waste, increases production efficiency, and produces consistent thickness across workpieces.
Q: What advantage does the tilt feature provide?
A: The tilt capability offers greater flexibility for specialized cutting applications, helping operators achieve precise cuts for a wider range of production requirements.
Q: Is the HR300PBX suitable for industrial woodworking operations?
A: Yes. It is built for sawmills, furniture manufacturers, flooring producers, millwork facilities, and other high-production woodworking environments.
Q: Can it improve material yield?
A: Yes. By accurately slicing lumber into multiple thinner sections, the machine helps maximize usable material and reduce waste.
Q: What materials can be processed with the HR300PBX?
A: It is suitable for hardwoods, softwoods, and other solid wood materials commonly used in woodworking and lumber processing.
Q: Does it improve cutting consistency and accuracy?
A: Yes. The machine is designed to deliver precise, repeatable cuts for consistent thickness and high-quality finished products.
Q: Who is this machine best suited for?
A: Sawmills, furniture manufacturers, flooring producers, millwork companies, and industrial woodworking facilities seeking efficient, high-accuracy resawing performance.
Maintenance Tips
- Clean the saw blade, conveyor belt, and blade guides after each shift to prevent dust and resin buildup.
- Check blade tension regularly and adjust according to manufacturer specifications for accurate cuts.
- Inspect the 2" resaw blade for wear, cracks, or dullness; sharpen or replace when needed.
- Lubricate moving parts, bearings, and guide systems as recommended in the maintenance schedule.
- Monitor the air mist blade cooling system and keep it clean for optimal blade life.
- Check conveyor belt condition and alignment to ensure smooth material feeding.
- Inspect pneumatic hold-down rollers and air lines for proper operation and leaks.
- Verify blade guide alignment periodically to maintain cutting accuracy.
- Keep dust collection ports clear to improve performance and workplace safety.
- Tighten loose fasteners, guards, and electrical connections during routine inspections.
