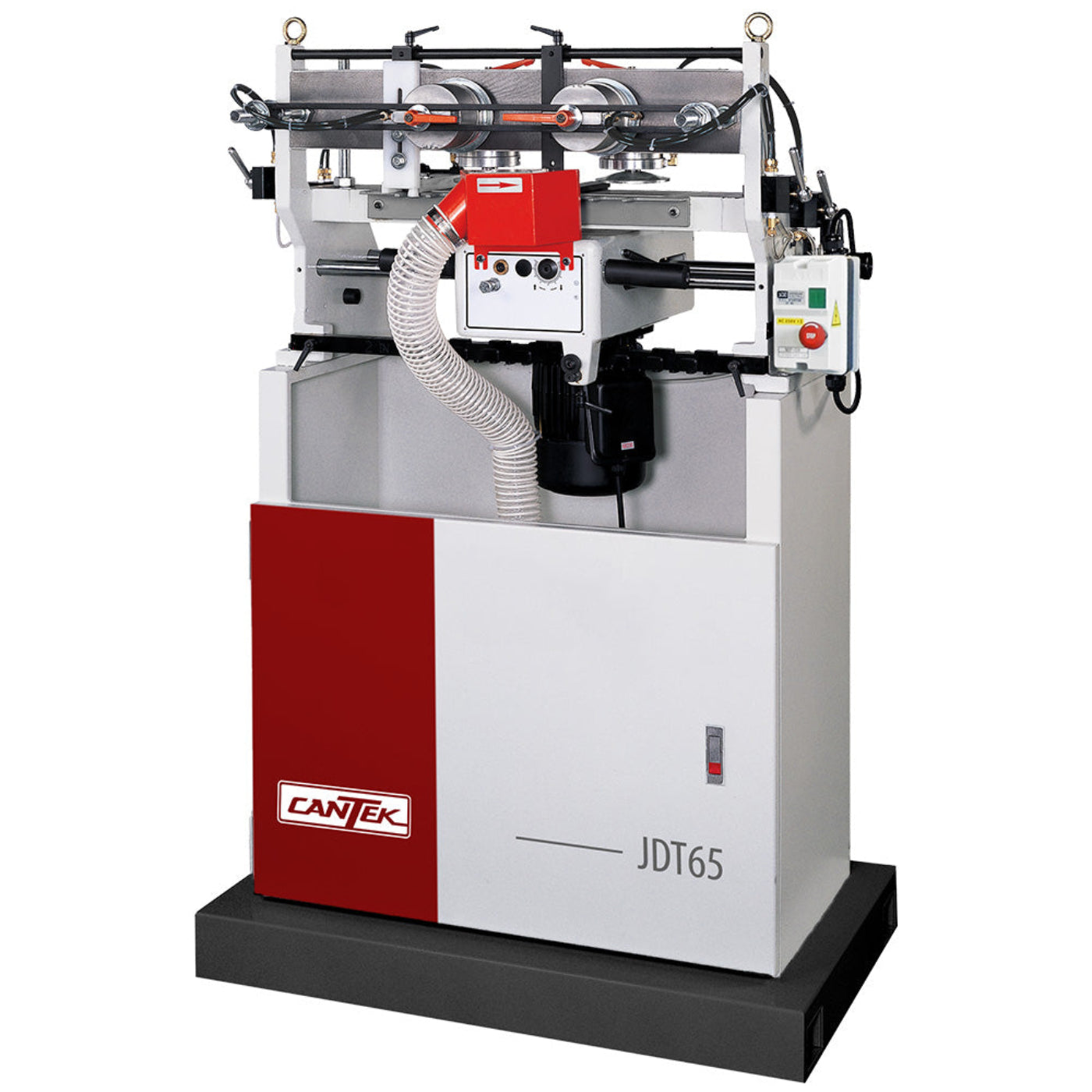

SCM 1HP Manual Dovetail Machine - JDT65
Maximize your cabinet and furniture production with the Cantek JDT65 Manual Dovetailer. Create beautifully-aesthetic dovetails from a wide range of wood types, including plywood and solid wood. This machine features a 1HP motor, pneumatic clamping system, and a 4-sided template that is easy to follow. With a maximum workpiece capacity of 59โณ x 16.5โณ, the JDT65 is ideal for small- to medium-sized cabinet and furniture shops.
The JDT65 produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity. The operator controls the dovetail unit by following a simple template allowing for ease of operation and quality joints.
The 4-sided template on the JDT65 allows you to create "half-blind" dovetails, where the dovetails are visible on only one side of the joint. It will create dovetails in one of four different "pitches" (1", 1-1/2", 2", and 2-1/2") or centerlines. The floating dovetailing unit is equipped with ball bearings that run on chrome steel guide rails for smooth, effortless operation.
Four pneumatic clamps with individual lever activation ensure the workpiece is held firmly during machining and speeds up material changeover. The 18,500 RPM precision spindle delivers a clean cut, and an eccentric single flute cutter in the chuck is easily adjustable to loosen or tighten the joint.
Features
- Ideal for drawer production and furniture parts which require high quality dovetail joints
- Pneumatic clamping system holds workpieces firmly and speeds up changeover
- Equipped with 4-sided template that provides four pitches between dovetails
- Tenon and mortise depth are conveniently adjusted according to workpiece thickness
- Dovetailing unit with ball bearings running on chrome steel guide rails
- Standard pitch includes 1", 1-1/2", 2", and 2-1/2"
- Indication bar that specifies the cutting position
- Anti-tear out blocks prevent blowout on drawer components
What our Experts Think
-
Precision Dovetail Joinery โ Designed to create strong, accurate dovetail joints for drawers, cabinetry, and fine woodworking projects with consistent repeatability.
-
Manual Control for Craftsmanship โ Gives operators full control over positioning and cutting, making it ideal for custom woodworking and detailed joinery applications.
-
Reliable 1HP Performance โ Provides sufficient power for efficient dovetail machining while maintaining smooth operation and precise cutting accuracy.
-
Ideal for Cabinet & Furniture Production โ Perfect for workshops producing drawers, casework, and furniture components that require durable, professional-quality joints.
-
Compact & Workshop Friendly โ Space-efficient design allows professional joinery capabilities without requiring a large production footprint.
Q&A
Q: What is the SCM JDT65 Manual Dovetail Machine used for?
A: The JDT65 is designed to create precise dovetail joints for drawers, cabinets, furniture, and other woodworking projects.
Q: What are the benefits of dovetail joinery?
A: Dovetail joints provide exceptional strength, durability, and a professional appearance, making them ideal for high-quality woodworking applications.
Q: Is the JDT65 suitable for professional woodworking shops?
A: Yes. It is designed for cabinet makers, furniture manufacturers, custom woodworkers, and joinery workshops.
Q: What type of power does this machine require?
A: The JDT65 is powered by a 1HP motor, providing reliable performance for precision dovetail cutting operations.
Q: Can it improve production consistency?
A: Yes. The machine helps produce accurate, repeatable dovetail joints while reducing manual layout and cutting time.
Q: What materials can be used with the JDT65?
A: It is suitable for a variety of hardwood and softwood materials commonly used in cabinetry and furniture construction.
Q: Is the machine easy to operate?
A: Yes. Its manual operation allows users to maintain control over the cutting process while achieving consistent results.
Q: Who is this machine best suited for?
A: Professional cabinet makers, furniture builders, woodworking shops, and craftsmen seeking strong, precise dovetail joinery.
