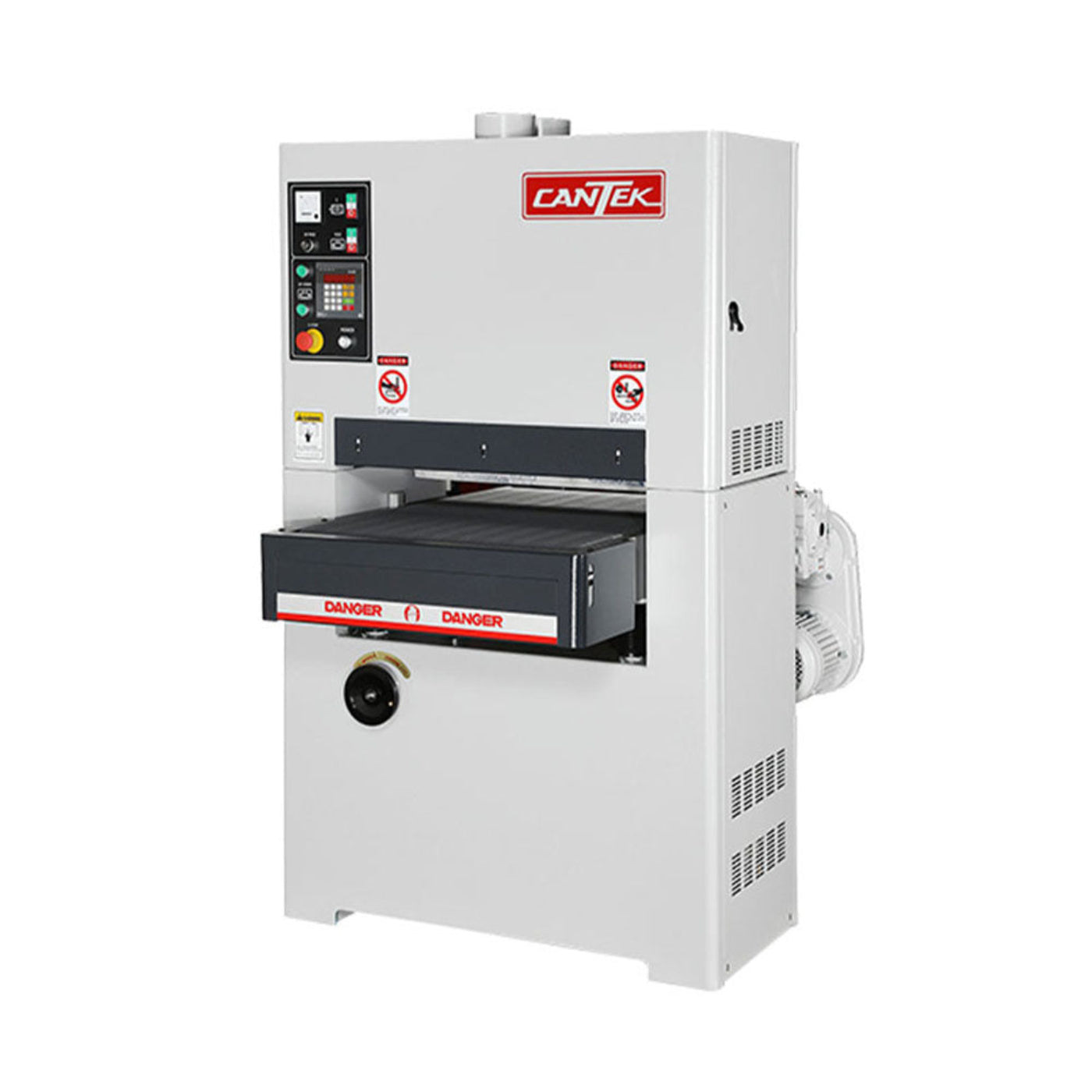

SCM 10HP 1-Phase 24" Wide Belt Sander - S251
The Cantek S251 24″ Wide Belt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 2-decimal places in Inch & 1-decimal in MM. Also, emergency stop button, ammeter for load monitoring. High-quality rubber conveyor belt with automatic belt tracking. The tracking system ensures the conveyor belt does not travel off to one side, causing damage.
Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.
Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position
- Combination sanding unit with 3-3/8" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications
- Equipped with a powerful 10HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes
- Small footprint
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit
- Disc brake on the main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes
- Material over-height limit switch
- Interlocks are located on all access doors
What our Experts Think
-
Powerful 10HP Sanding Performance – Built to handle demanding woodworking applications with the power needed for efficient stock removal and fine finishing operations.
-
24" Wide Capacity – Accommodates a wide range of panels, cabinet components, furniture parts, and woodworking projects while maintaining consistent results across the full width.
-
Single-Phase Convenience – Provides professional-grade sanding performance without requiring three-phase power, making it an excellent fit for many commercial and advanced workshop environments.
-
Consistent, High-Quality Finishes – Wide belt sanding technology delivers uniform thickness control and smooth surface finishes, reducing the need for additional hand sanding.
-
Designed for Productivity – Helps increase throughput, improve workflow efficiency, and maintain repeatable sanding results across production runs.
