SCM 10HP 3-Phase 24" Wide Belt Sander - S251

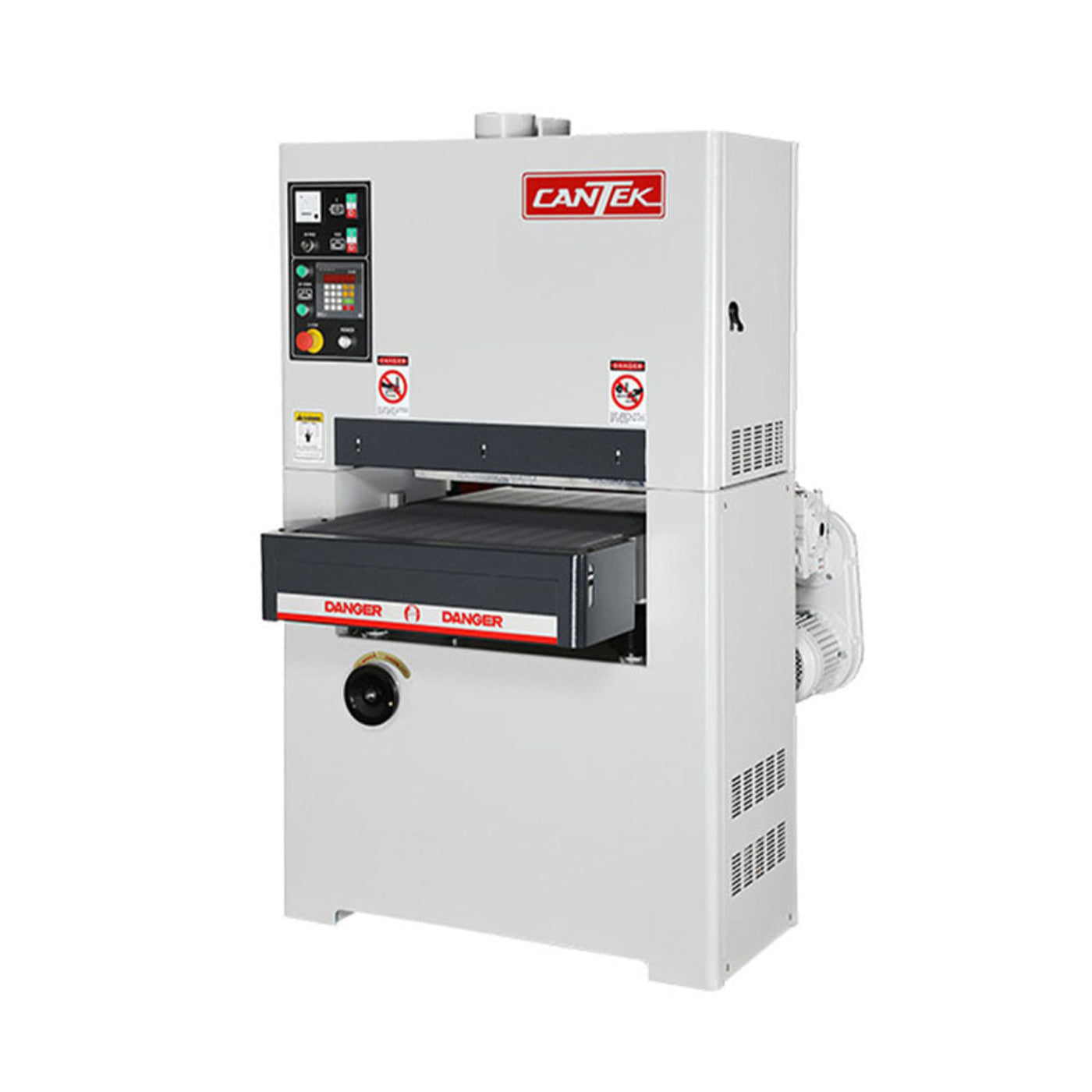

The Cantek S251 24″ Wide Belt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 2-decimal places in Inch & 1-decimal in MM. Also, emergency stop button, ammeter for load monitoring. High-quality rubber conveyor belt with automatic belt tracking. The tracking system ensures the conveyor belt does not travel off to one side, causing damage.
Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.
Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email salesoaktreesupplies.com
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position
- Combination sanding unit with 3-3/8" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications
- Equipped with a powerful 10HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes
- Small footprint
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit
- Disc brake on the main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes
- Material over-height limit switch
- Interlocks are located on all access doors
What our Experts Think
-
Powerful 10HP Industrial Motor – Provides the strength needed for demanding sanding applications, from stock removal to fine finishing in professional woodworking environments.
-
24" Wide Sanding Capacity – Accommodates large panels, cabinet components, doors, and furniture parts, improving efficiency and workflow flexibility.
-
3-Phase Commercial Performance – Delivers smooth, reliable power for continuous operation, making it well-suited for production shops and manufacturing facilities.
-
Consistent Surface Quality – Wide belt sanding technology ensures uniform material removal and accurate thickness control for professional-grade finishes.
-
Built for High-Volume Production – Heavy-duty construction and precision engineering help maximize productivity while maintaining long-term durability and dependable performance.
Q&A
Maintenance Tips
- Clean the sanding belt, conveyor table, rollers, and dust collection ports after each use to maintain optimal performance.
- Inspect sanding belts regularly for wear, tears, clogging, or uneven abrasion and replace when necessary.
- Keep the dust extraction system operating efficiently to reduce dust buildup and improve machine longevity.
- Check conveyor belt tracking and tension periodically for smooth, accurate feeding of materials.
- Lubricate bearings, chains, and moving components according to the manufacturer's recommended maintenance schedule.
- Verify sanding drum, platen, and conveyor alignment regularly to ensure consistent sanding quality.
- Remove resin, glue residue, and fine dust from rollers and contact surfaces using approved cleaning products.
- Inspect electrical controls, wiring, and motor components for signs of wear, overheating, or loose connections.
- Test emergency stop switches, safety guards, and safety systems routinely to ensure safe operation.
- Store replacement sanding belts in a clean, dry environment to maximize belt life and maintain sanding performance.
