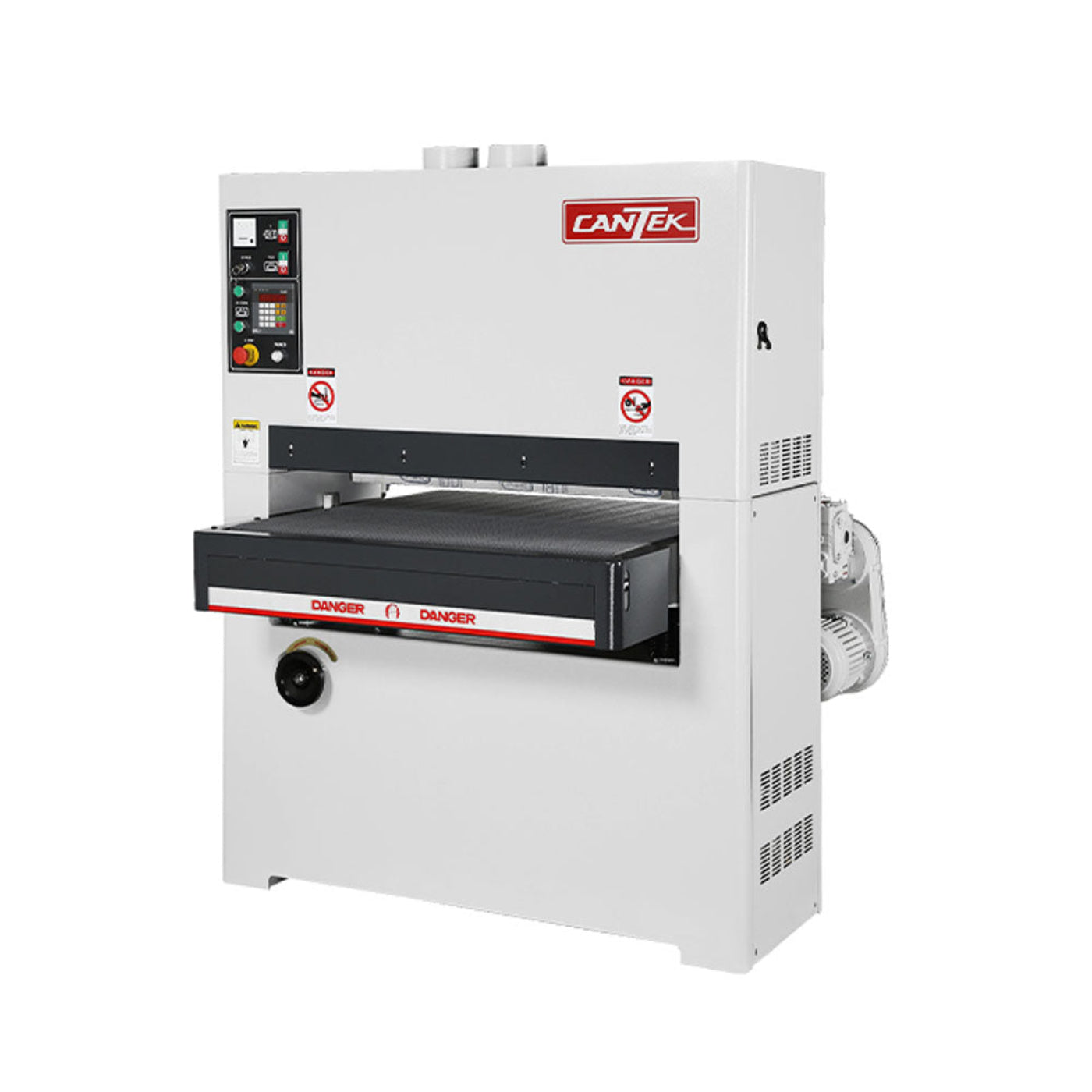

SCM 15HP 3-Phase 36" Wide Belt Sander - S371
The Cantek S371 36″ Wide Belt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.
The control panel is centrally located for convenient operator access. Includes digital motorized thickness adjustment to 3-decimal places in Inch & 2-decimals in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance.
Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is equipped with belt overrun limit switches for added safety. Also equipped with a powerful 15HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes.
The S371 features an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email salesoaktreesupplies.com
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and the table will automatically move into position
- Combination sanding unit with 5" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications
- Small footprint
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit
- Disc brake on the main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes
- Table raising jackscrews
- Material over-height limit switch
- Hour meter records the machine's actual running time, which can be used to provide timely maintenance for the machine
- Interlocks are located on all access doors
What our Experts Think
-
High-Powered 15HP Performance – Built for demanding industrial sanding applications, delivering exceptional material removal rates and consistent results on large workpieces.
-
36" Wide Sanding Capacity – Ideal for processing wide panels, tabletops, doors, cabinetry, and furniture components with fewer passes and greater efficiency.
-
3-Phase Industrial Reliability – Designed for continuous commercial operation, providing smooth power delivery and dependable performance in production environments.
-
Superior Finish Quality – Wide belt technology ensures uniform sanding, accurate thickness control, and smooth surface preparation for professional-grade results.
-
Production-Focused Design – Heavy-duty construction and precision engineering help maximize throughput, reduce finishing time, and support long-term workshop productivity.
Q&A
Maintenance Tips
- Clean the sanding belt, conveyor bed, rollers, and dust collection ports after each use to prevent debris buildup.
- Inspect sanding belts regularly for wear, tears, loading, or uneven abrasion and replace when required.
- Ensure the dust extraction system is operating efficiently to maintain airflow and reduce internal dust accumulation.
- Check conveyor belt tracking and tension periodically for smooth, accurate material feeding.
- Lubricate bearings, chains, and moving assemblies according to the manufacturer's maintenance schedule.
- Verify drum, platen, and conveyor alignment regularly to ensure uniform sanding performance across the full 36" width.
- Remove resin, glue residue, and fine dust from rollers and contact surfaces using approved cleaning products.
- Inspect electrical components, controls, and motor connections for signs of wear, overheating, or damage.
- Test emergency stops, safety guards, and protective systems routinely to ensure safe operation.
- Store replacement sanding belts in a clean, dry, climate-controlled environment to maximize belt life and performance.
