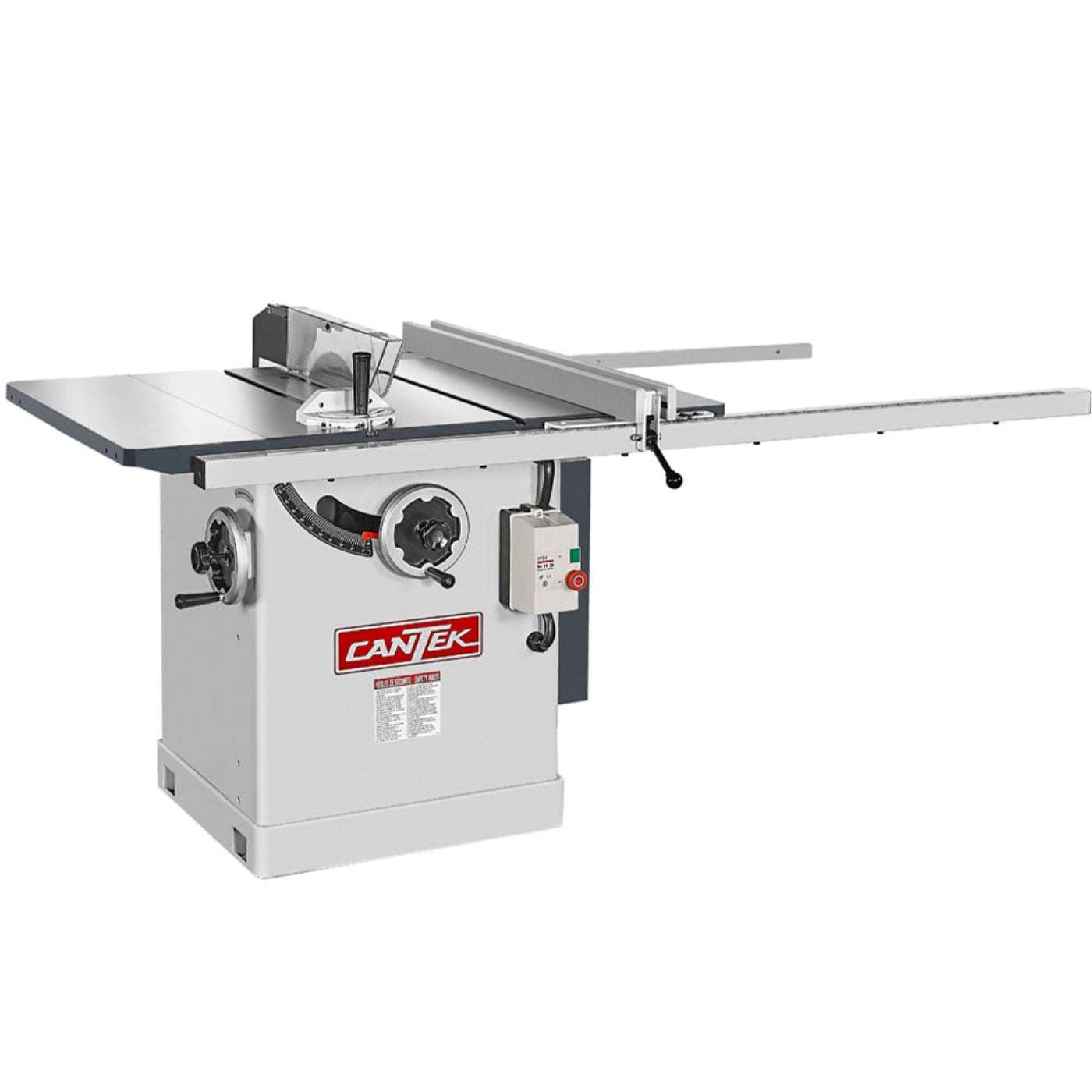

SCM 10HP 3-Phase 16" Industrial Cabinet Saw - TA16B
Cantek TA series table saws are built for serious woodworkers. This 16" table saw boasts a 10HP, 3-phase motor that delivers the power you need to cut through material as thick as 5-1/2" (at 90°). Ideal for medium-sized production shops.
The large precision-ground & polished cast-iron table and saw unit ensure vibration-free cutting with optimum quality. The TA16B comes standard with a T-square rip fence equipped with a single locking lever to ensure the fence is square every time. The fence is set accurately in place by a dual metric/inch scale, which features a magnifying glass for easy visibility.
Safety is key on the TA16B. This saw is equipped with a clear blade guard that adjusts to the height of the workpiece. The guard also has a built-in splitter and anti-kickback fingers to protect the operator. Blade height and angle adjustments are made via the two handwheels on the machine. The blade can tilt from 0 - 45° to the right.
The TA16B includes a miter gauge that runs in a T-slot on either the left or right side of the blade. It also comes with a removeable 1" arbor and additional 1" dado arbor extension & throat plate.
Features
- Heavy-duty cast iron table is precision ground for accuracy & precision
- Industrial strength cast iron saw carriage and trunnion for vibration free cutting
- 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade
- Right tilt blade to 45°
- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility
- Miter gauge with two miter slots in the table
- Comes with dado arbor & dado table insert
- 16” blade can be lowered completely under the table
- Rugged machine frame construction provides maximum stability and reduced vibration
- Saw guard with built in splitter and safety anti-kickback unit
- 1” standard and 1” dado arbor included along with appropriate cast iron table inserts
- Handwheel adjustment for blade height and tilting adjustments which can be locked in place
- CSA / UL approved magnetic switch
What our Experts Think
-
Heavy-Duty 10HP Performance – Engineered for demanding industrial woodworking applications, providing the power needed to cut thick hardwoods, composites, and large sheet materials with ease.
-
Large 16" Blade Capacity – Offers increased cutting depth and versatility, making it ideal for production shops handling a wide range of woodworking tasks.
-
Industrial 3-Phase Operation – Delivers smooth, reliable power for continuous commercial use, helping maintain productivity in high-volume manufacturing environments.
-
Exceptional Accuracy & Stability – The cabinet-style design minimizes vibration and supports precise, repeatable cuts for furniture making, cabinetry, and custom millwork.
-
Built for Long-Term Shop Use – Constructed with industrial-grade components to withstand rigorous daily operation while maintaining consistent performance.
