AWOCO RH-IT06-CR Ceiling Mount Range Hood- Split Insert - 800 CFM & 6" Vent - AWC-RH-IT06-CR30
-

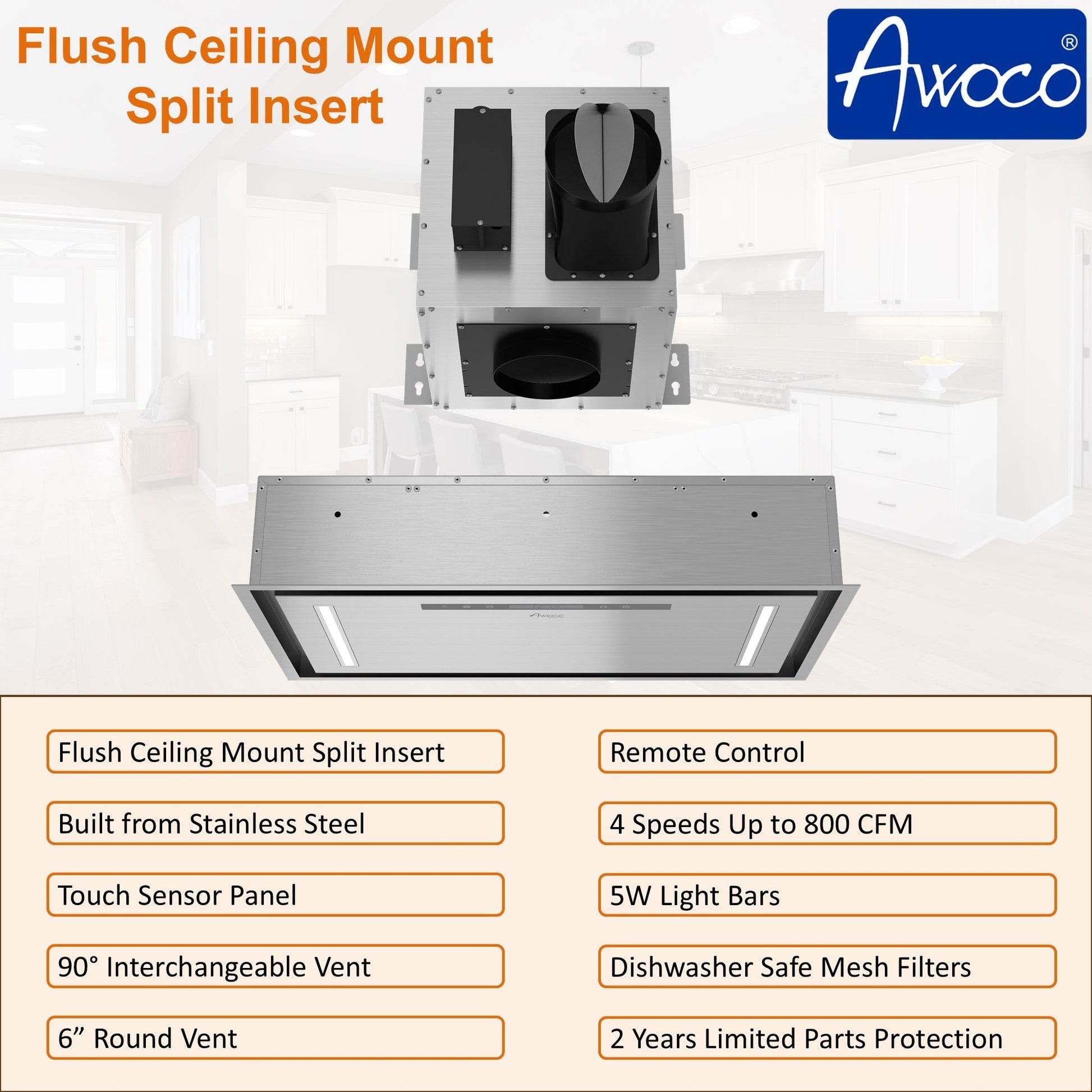

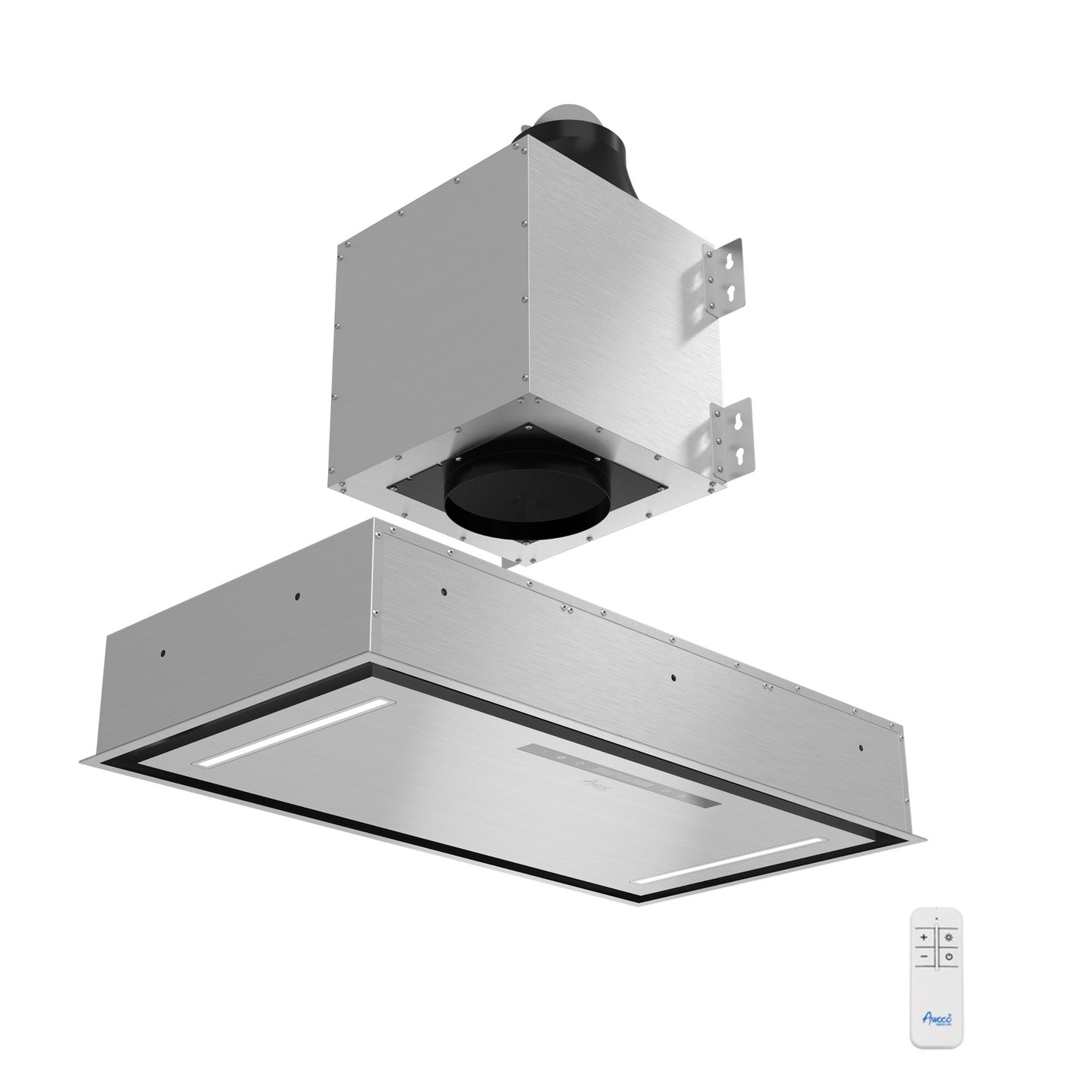

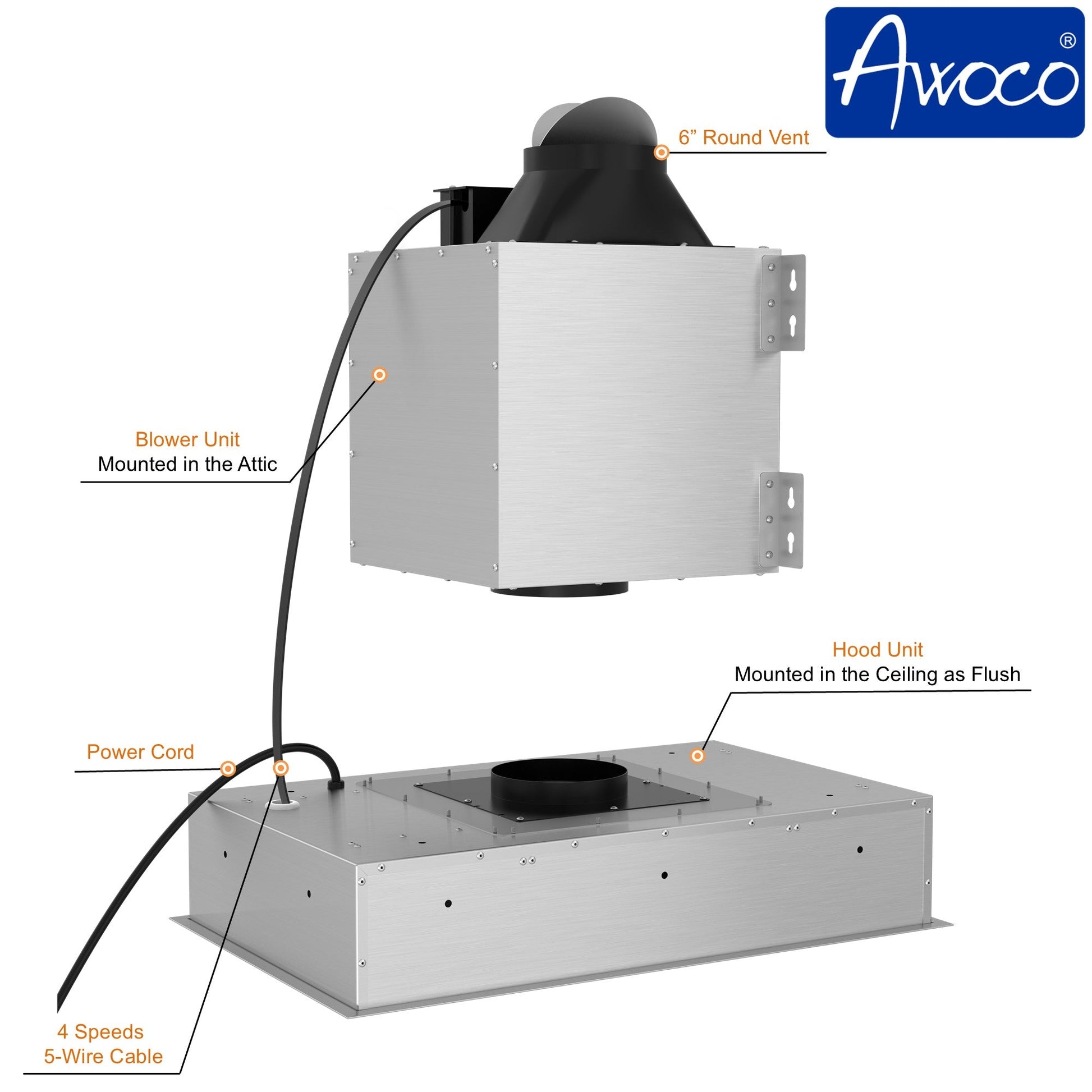

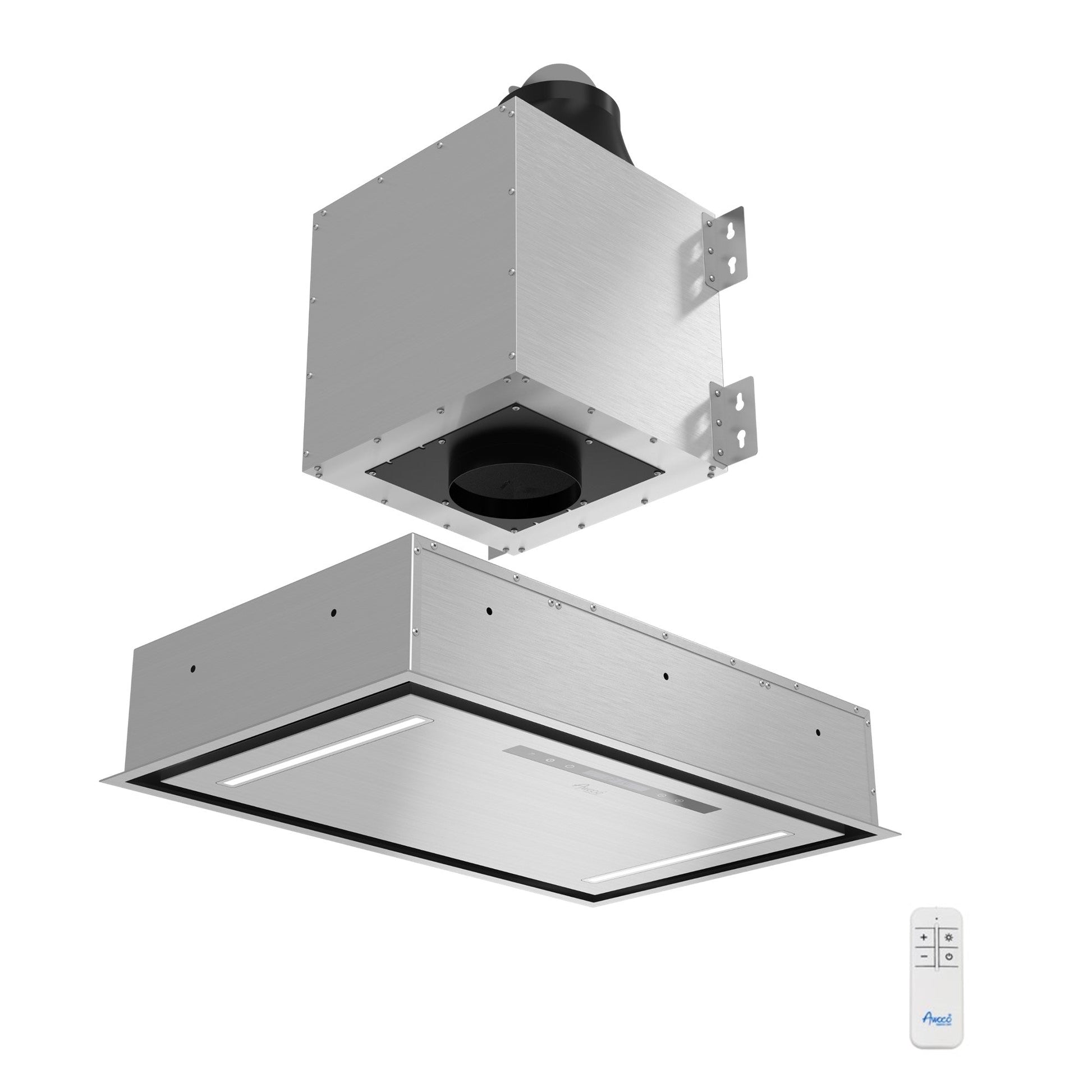

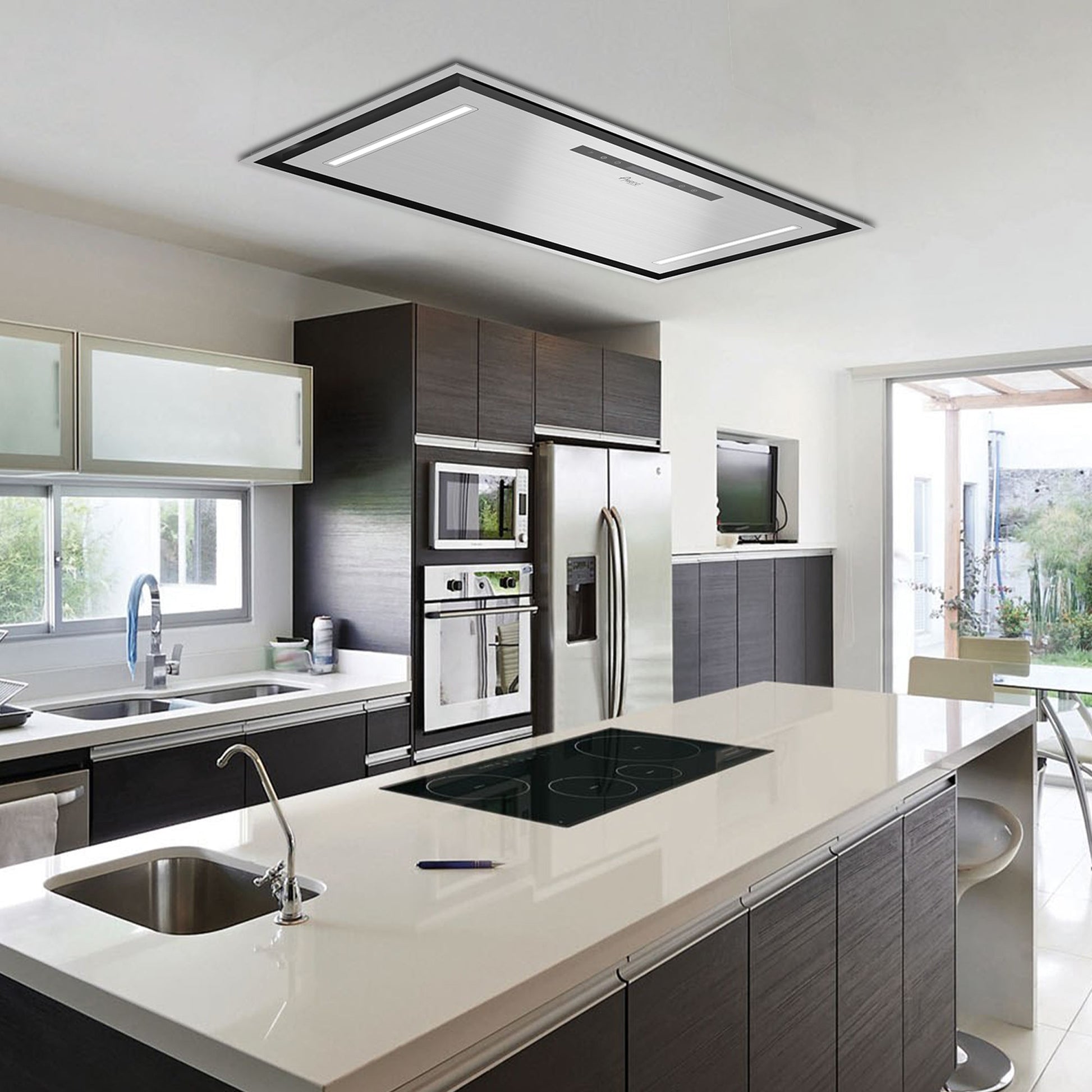

Flush Ceiling Mount Range Hood Split Insert, 6” Round Vent - The blower unit is mounted in the attic and the hood unit is mounted in the ceiling. This model is designed to be installed as a flush ceiling mount split insert range hood. Constructed from stainless steel, which offers greater durability and longer-lasting performance. 6” Round Vent. Ducted vent outside. Ducts are not included.
-

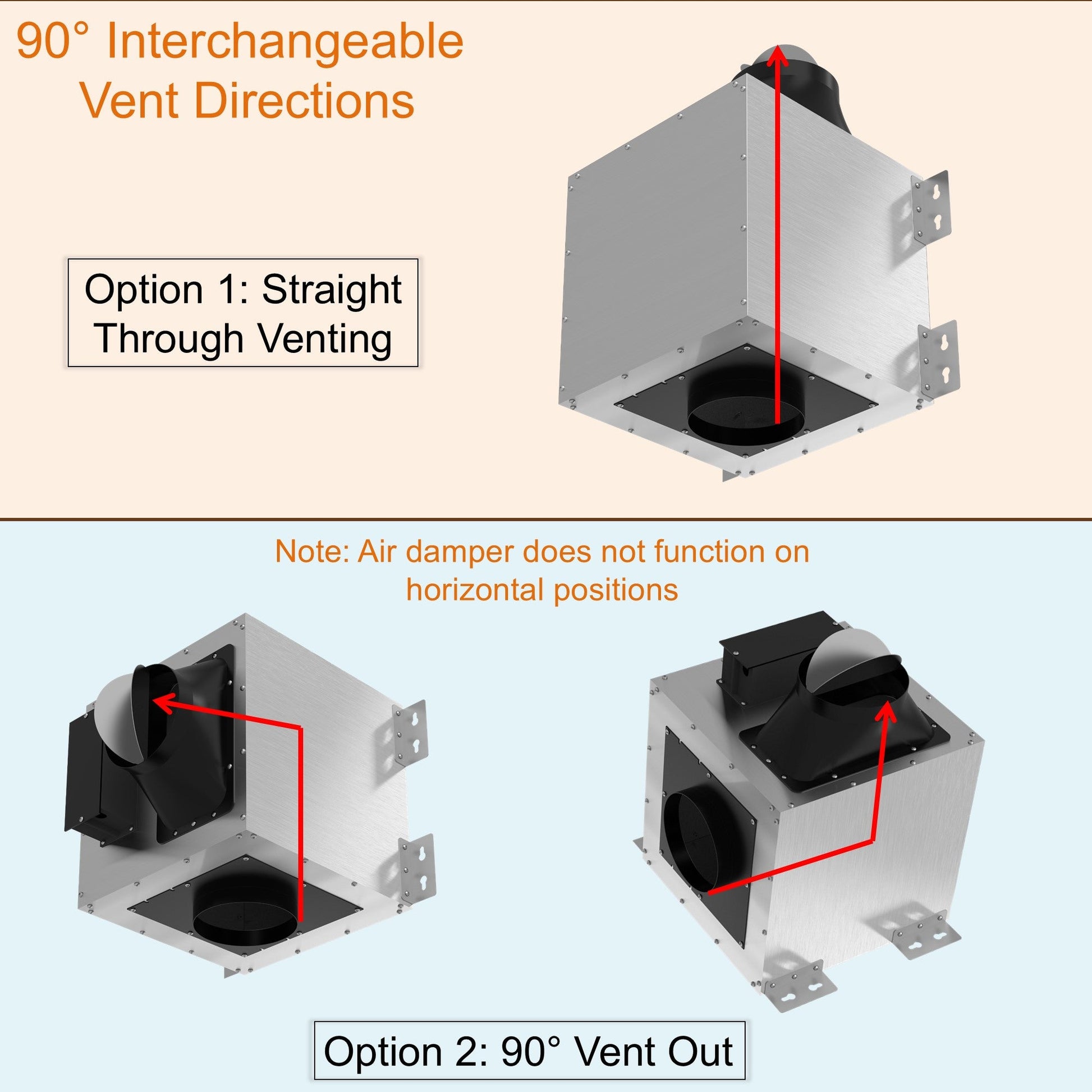

90° Interchangeable Vent Direction - With 90° interchangeable vent directions (1 straight through and 90° vent out) this model makes venting out simple and adaptable to your installation requirements. Versatile blower attic installation, can be installed as a horizontal (Air damper does not function on horizontal mount), vertical mount.
-

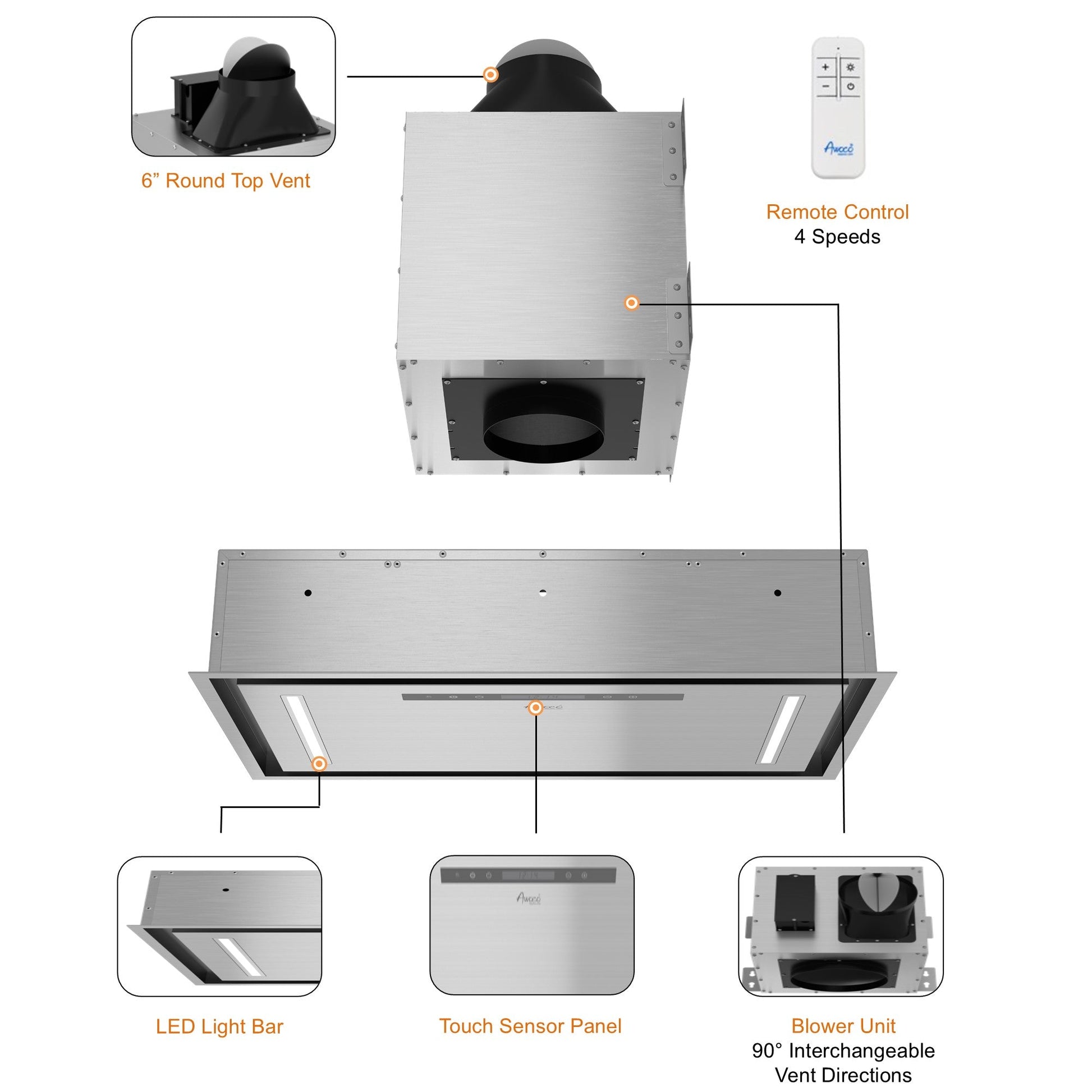

4 Speeds Powerful Operation & LED Lights - 4 speeds (Q, I, II, III up to 800 CFM), touch sensor panel. Comes with 5W LED light bars that provide enough brightness to help illuminate your cooking space. Slick and elegant design for a ceiling flush installation. Power rating: 120V/60Hz, 140W Max. 44" long power cord with a plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.
-
Dishwasher Safe Mesh Filters, Remote Control - Ceiling Mount Range Hood Dishwasher safe commercial style aluminum mesh filters. The oil is contained in the mesh filters, no oil holders needed. Includes a remote control to control the range hood with just a click, no wall switch controls. Up to 15 minutes delay auto shut off to vent the leftover smoke after done cooking

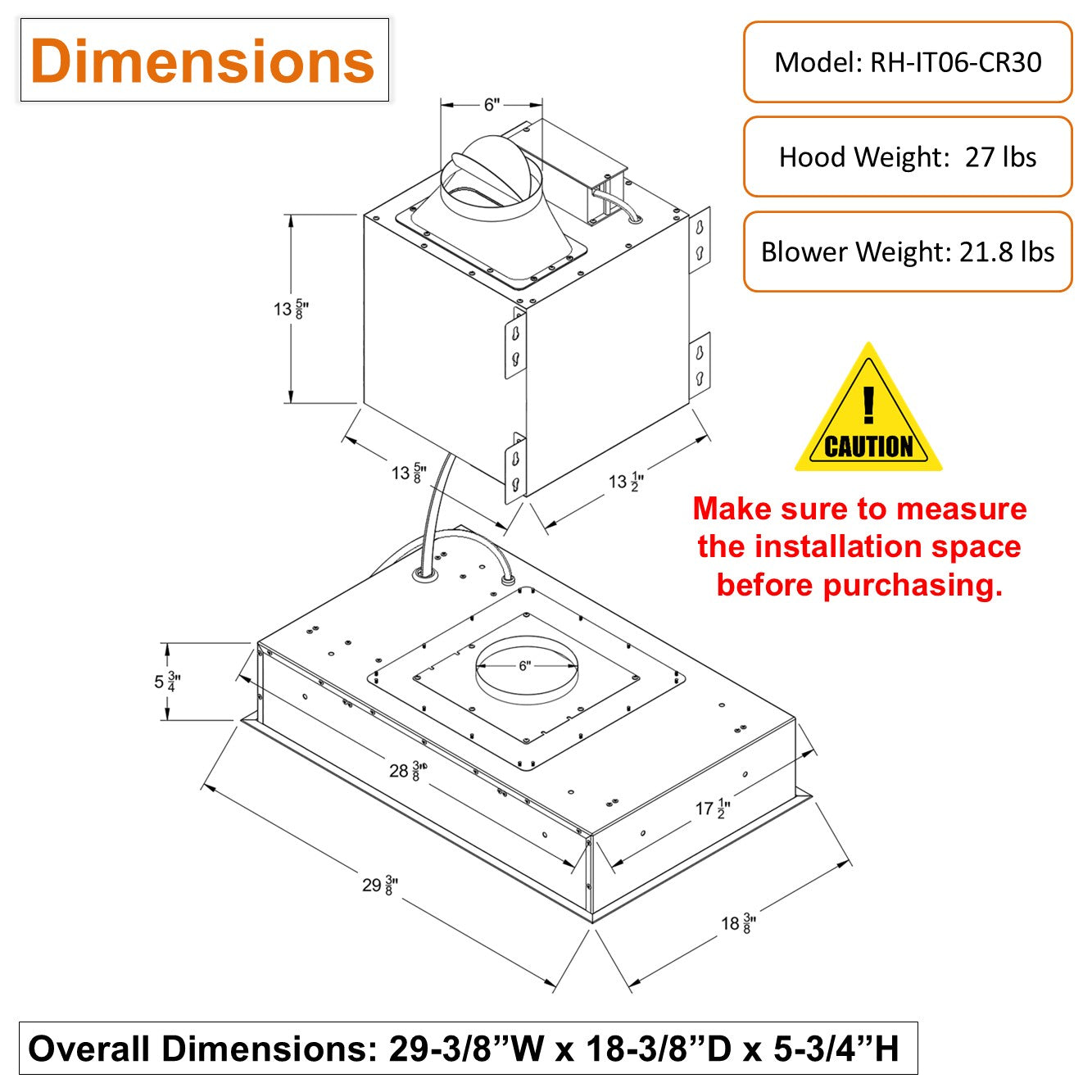

- Ceiling Mount Range Hood 30” Dimensions: 29-3/8”W x 18-3/8“D x 5-3/4“H. Hood weight: 27 lbs. Blower weight: 21.8 lbs.

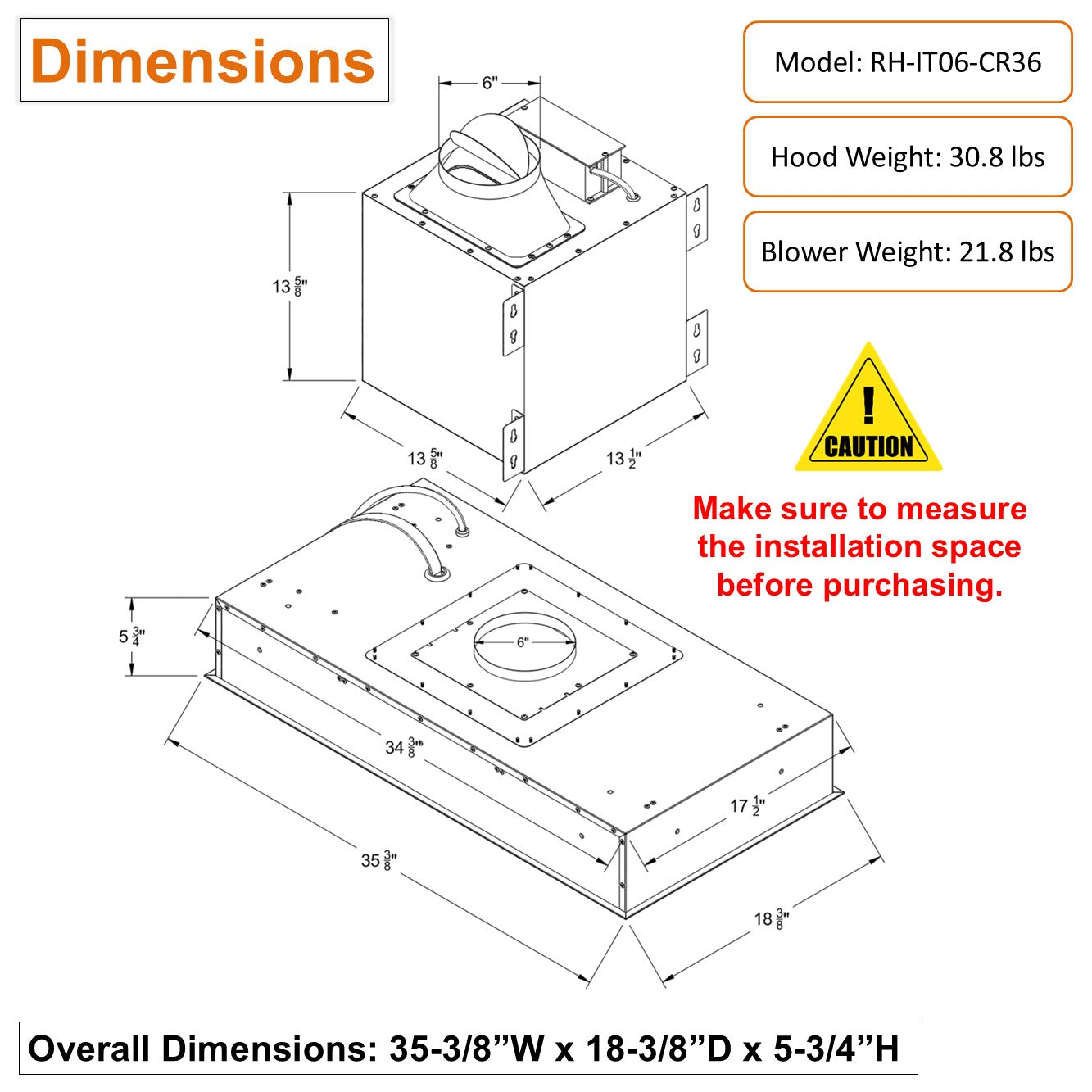

- Ceiling Mount Range Hood 36” Dimensions: 35-3/8“W x 18-3/8“D x 5-3/4“H. Hood weight: 30.8 lbs. Blower weight: 21.8 lbs.
What our Experts Think
Q&A
Q: What is the AWOCO RH-IT06-CR30 ceiling mount range hood?
A: The AWOCO RH-IT06-CR30 is a split insert ceiling mount range hood with an 800 CFM blower and 6-inch round vent, designed for powerful and discreet kitchen ventilation.
Q: How does the split insert design work?
A: The hood insert installs in the ceiling or custom hood enclosure, while the blower unit is installed in the attic to help reduce kitchen noise and improve airflow performance.
Q: How powerful is the ventilation system?
A: It delivers up to 800 CFM of suction power with 4 fan speeds to efficiently remove smoke, grease, steam, and cooking odors.
Q: What size duct is required for installation?
A: The RH-IT06-CR30 uses a 6-inch round top vent and requires ducted outdoor ventilation. Ductwork is not included.
Q: Does this ceiling mount range hood include lighting?
A: Yes. It features energy-efficient LED lights to provide bright illumination over the cooking area.
Q: Are the filters easy to clean?
A: Yes. The range hood includes dishwasher-safe mesh filters designed to capture grease while maintaining strong airflow.
Q: Is the AWOCO RH-IT06-CR30 suitable for modern kitchen designs?
A: Yes. Its flush ceiling mount design creates a clean, minimalist look while providing powerful ventilation for contemporary kitchens.
Maintenance Tips
- Clean filters regularly to remove grease, smoke residue, and cooking debris.
- Wash filters with warm, soapy water or use a dishwasher if manufacturer-approved.
- Dry filters completely before reinstalling to maintain proper airflow.
- Wipe the hood exterior with a soft cloth and stainless steel cleaner.
- Avoid abrasive cleaners or scrubbers that may damage the finish.
- Inspect the blower and 6" vent connection periodically for grease buildup or blockages.
- Keep the ventilation system clear to maintain optimal 800 CFM performance.
- Clean interior surfaces regularly to prevent grease accumulation.
- Check lighting and controls for proper operation.
- Replace damaged filters to ensure efficient ventilation.
