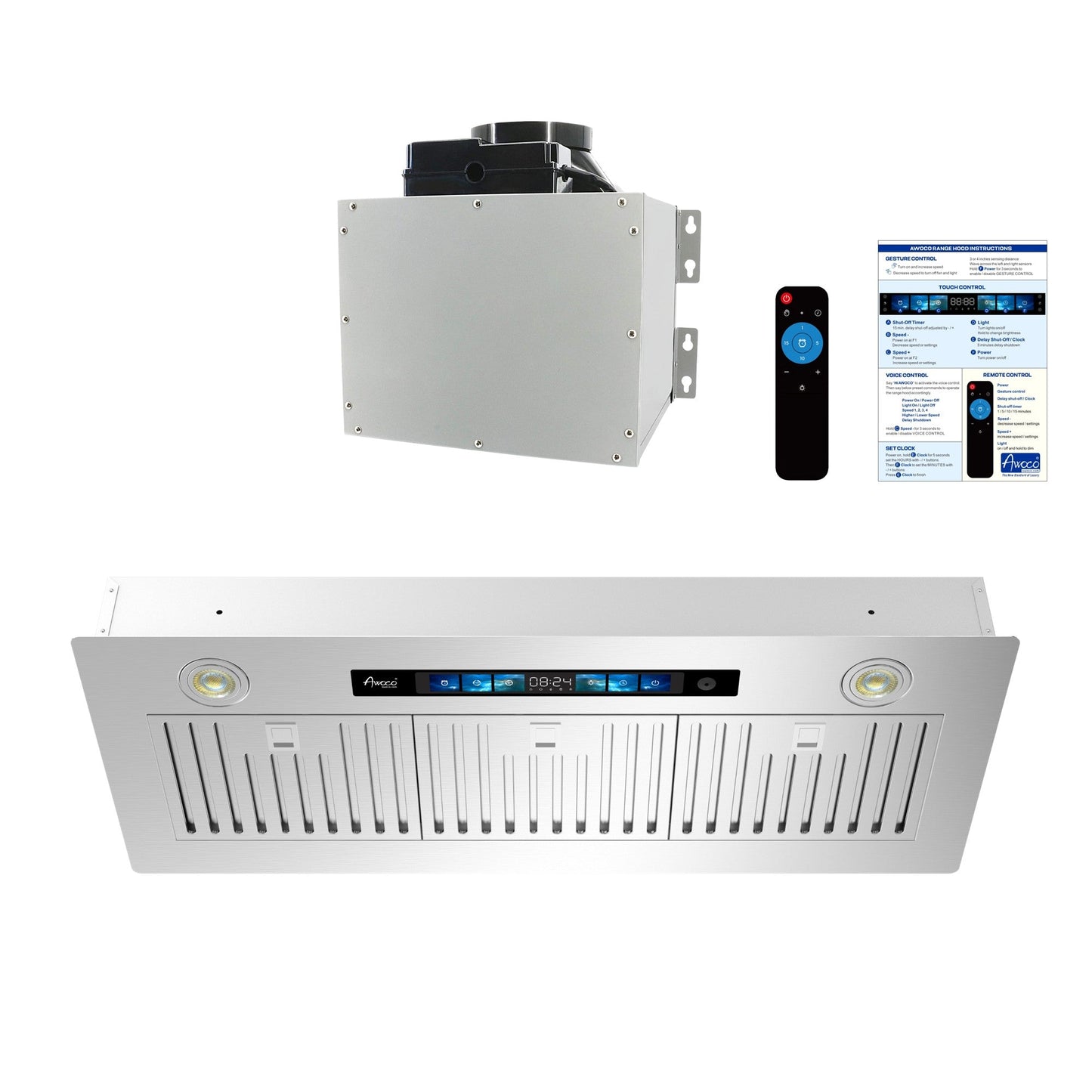

AWOCO RH-IT06-V Ceiling Mount Range Hood - Split Insert - 800CFM - 6" Blower - RH-IT06-V30-COLD
- Ceiling Mount Range Hood RH-IT06-V30-COLD - Package includes: RH-IT06-V30 with 6000K Cool Blue-ish White LED Lights.
- Ceiling Mount Range Hood RH-IT06-V30-WARM - Package includes: RH-IT06-V30 with 4000K Natural White LED Lights.
- Ceiling Mount Range Hood RH-IT06-V36-COLD - Package includes: RH-IT06-V36 with 6000K Cool Blue-ish WhiteLED Lights.
- Ceiling Mount Range Hood RH-IT06-V36-WARM - Package includes: RH-IT06-V36 with 4000K Natural White LED Lights.
Features
-

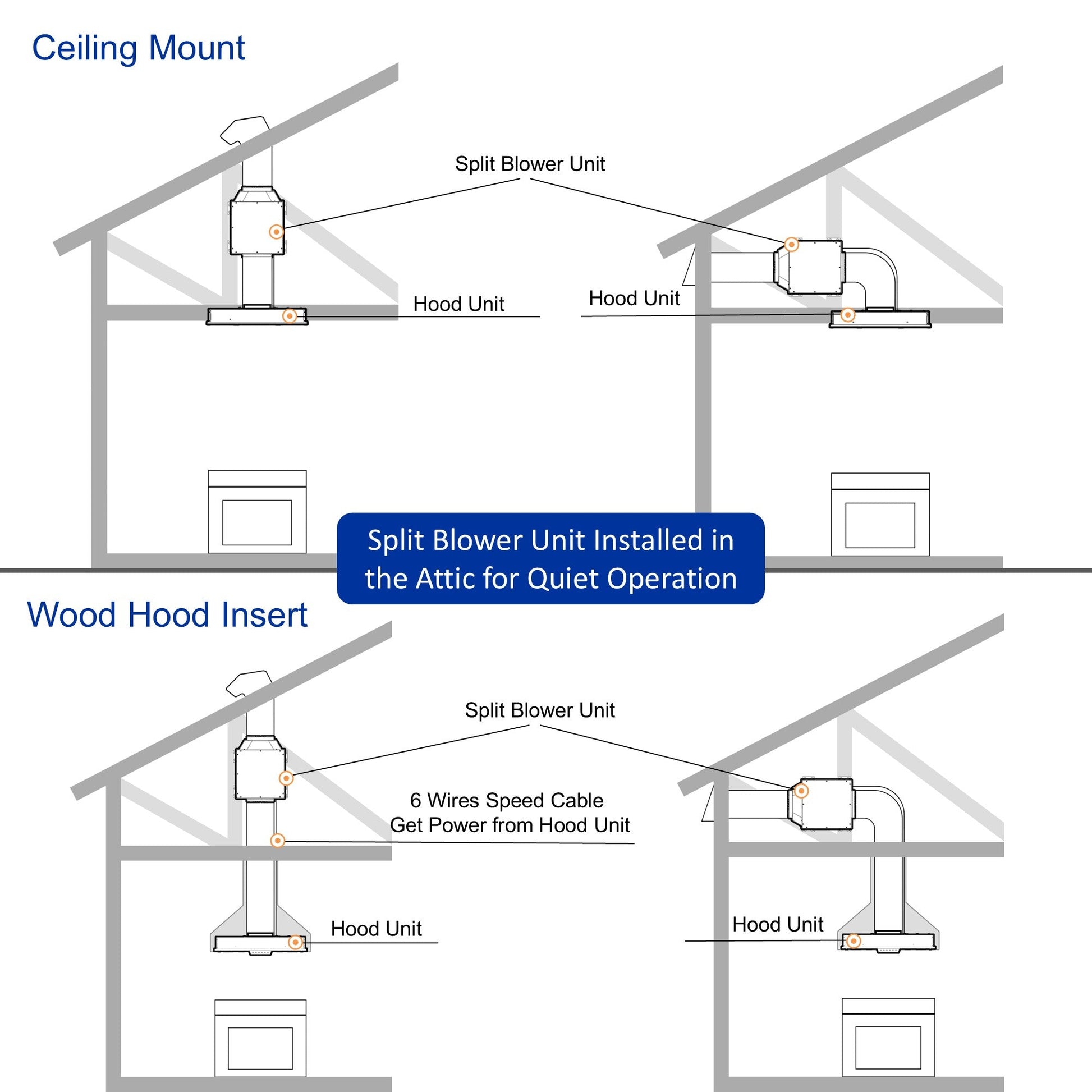

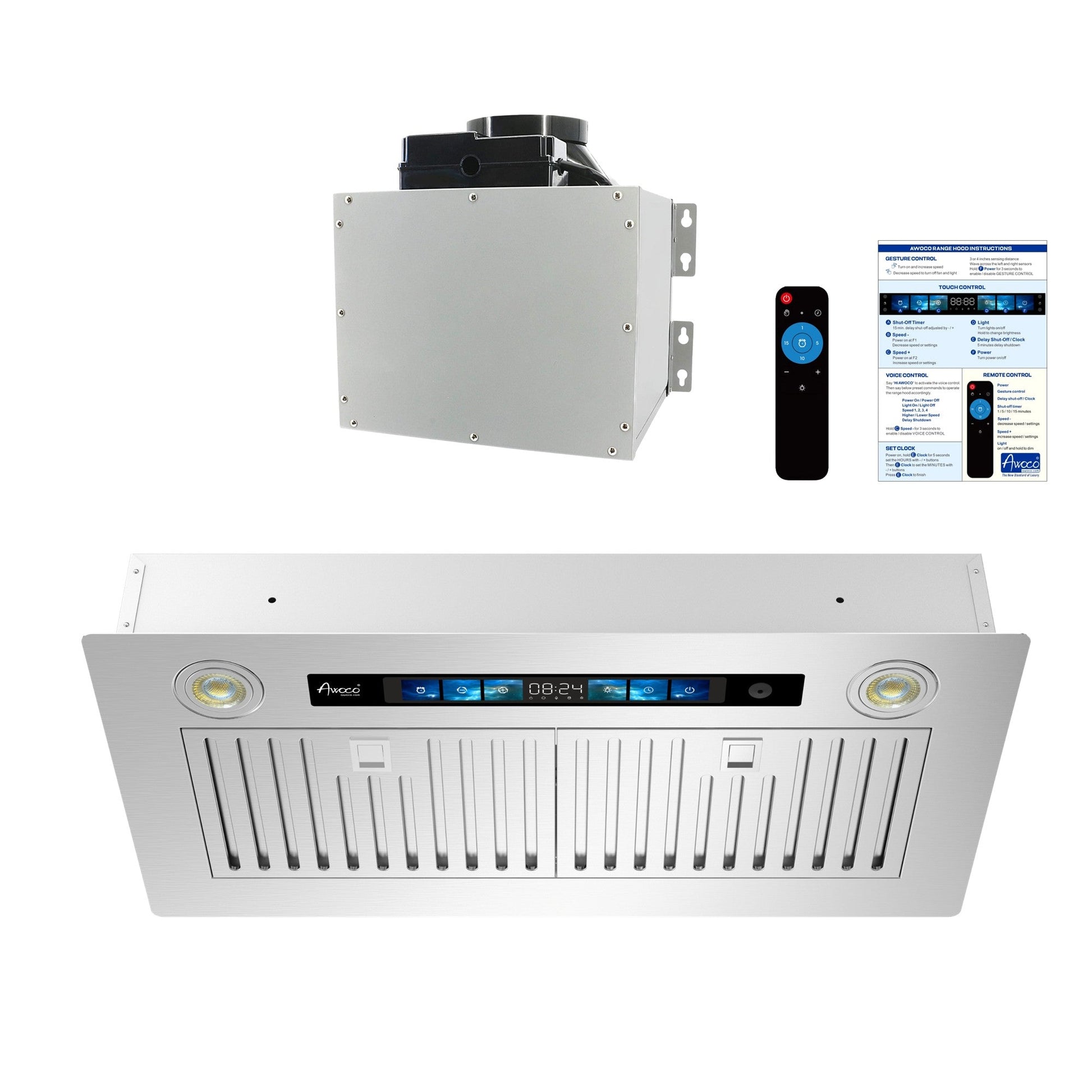

Split Quiet Insert, Ceiling Mount Range Hood - The hood unit and the blower unit are shipped in two packages. The hood unit is installed in the ceiling or wood hood. The blower unit is installed in the attic. Made from high-quality 1mm thick stainless steel with a brushed finish for durability. The 6" round top vent directs airflow outside (ducts not included), efficiently removing smoke and grease. Split Range Hood reduces noise by installing the fan away from the kitchen, while improving ventilation, lighting, and air quality. Not applicable for 12" depth kitchen cabinets.
-

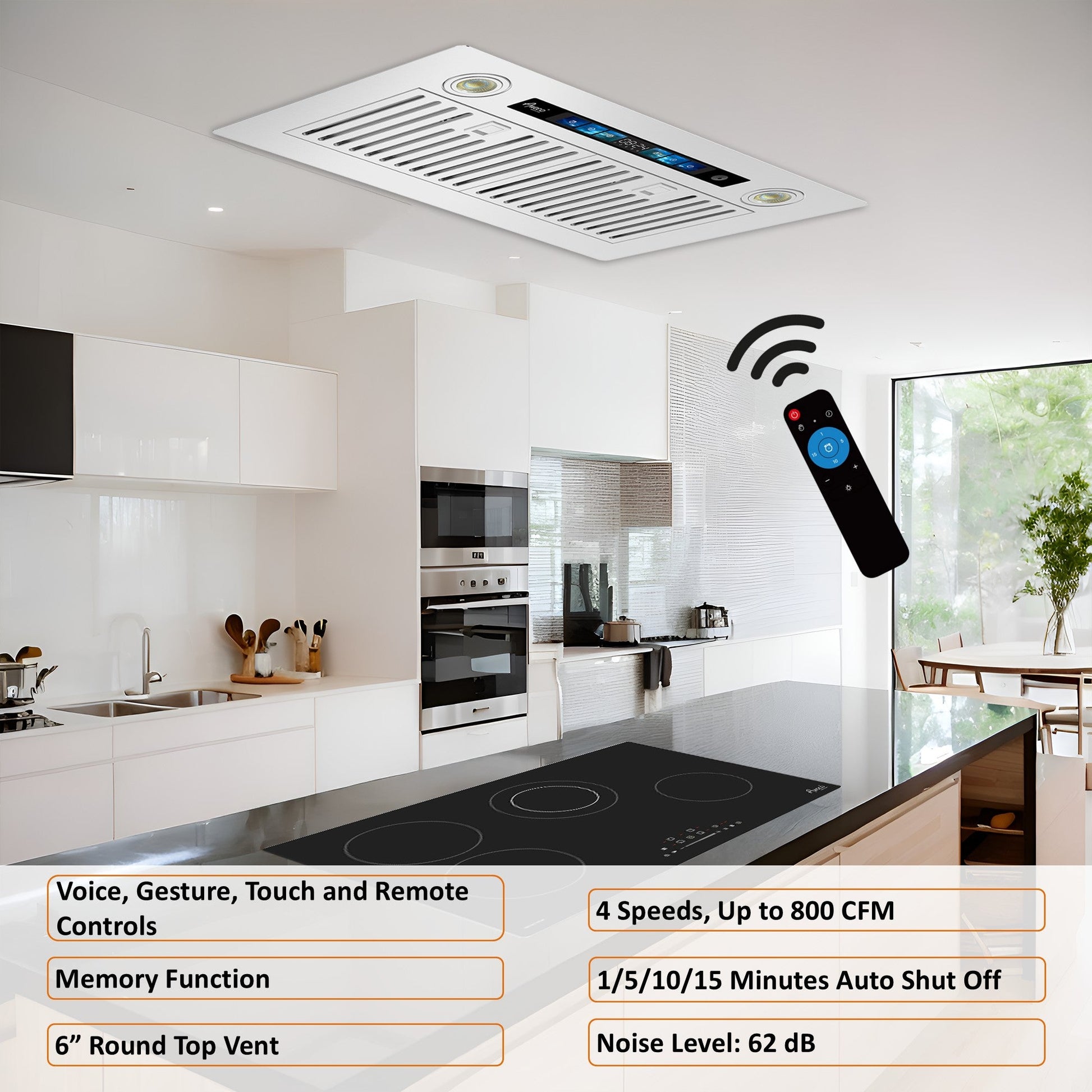

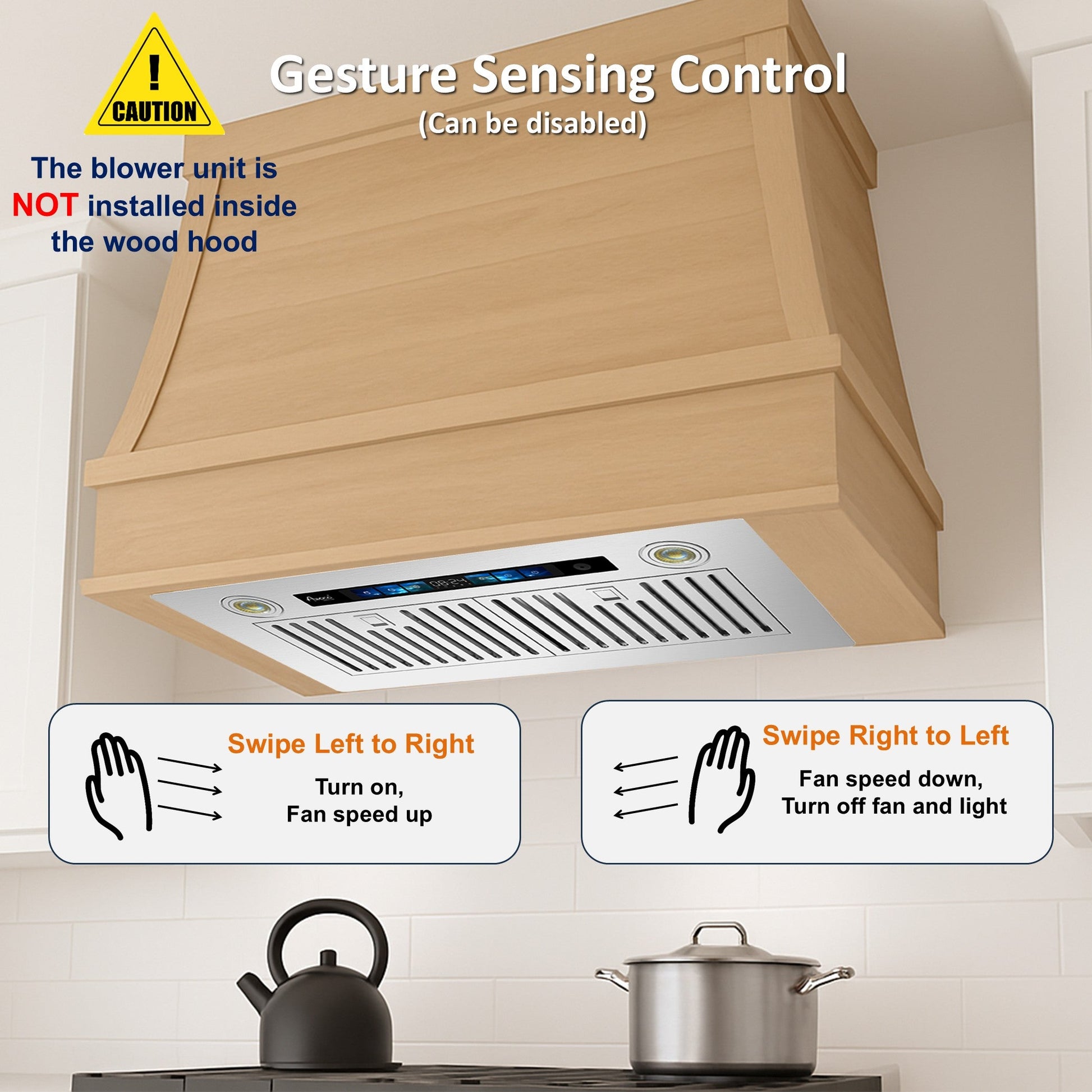

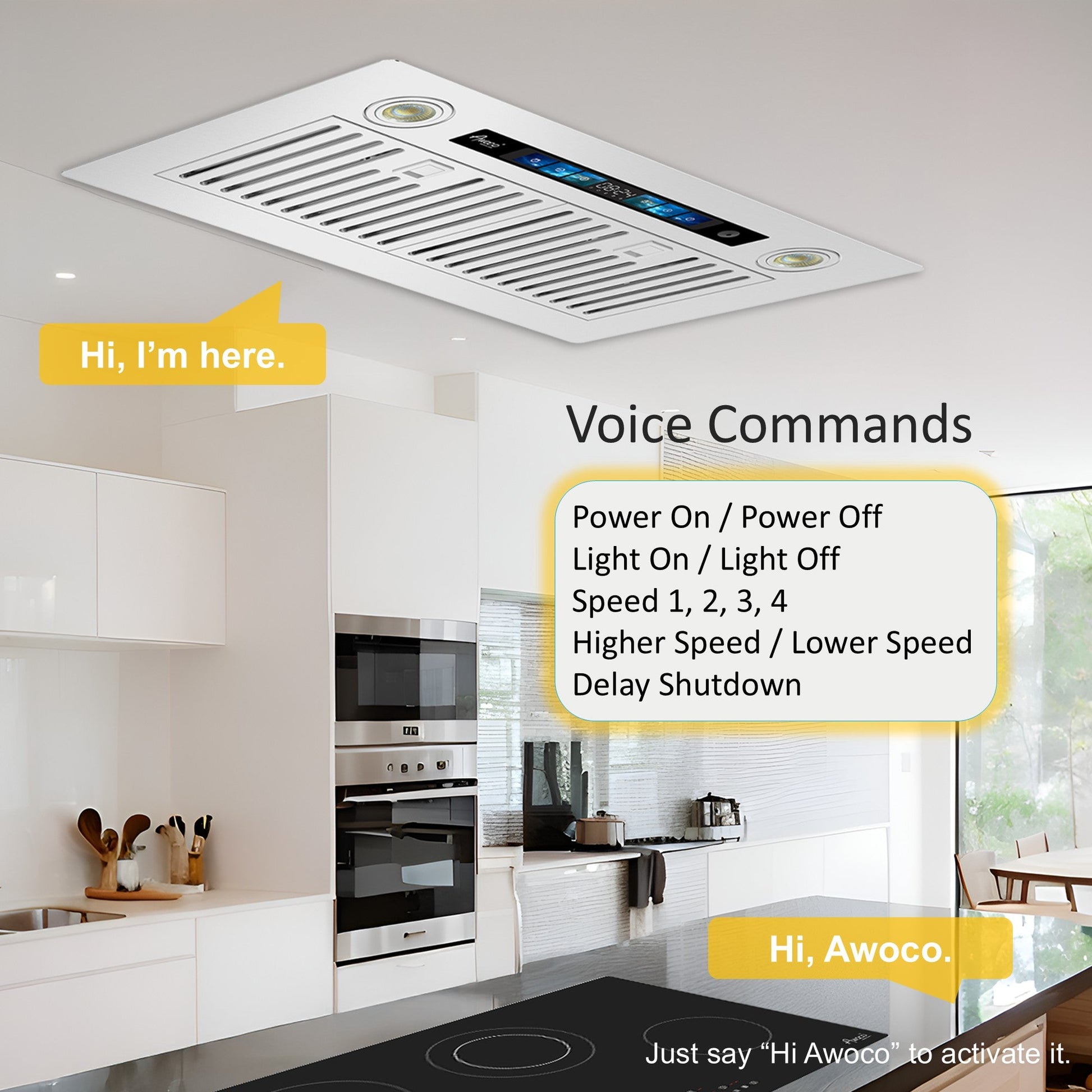

4-In-1 Voice, Gesture, Touch & Remote Controls - For hands-free operation, activate the voice control range hood by saying "Hi Awoco", and 2 magnetic instruction stickers are included. The gesture range hood can adjust the fan speed and power with a simple hand wave. Gesture control can be disabled and the system also includes a touch control panel and remote for added convenience.
-

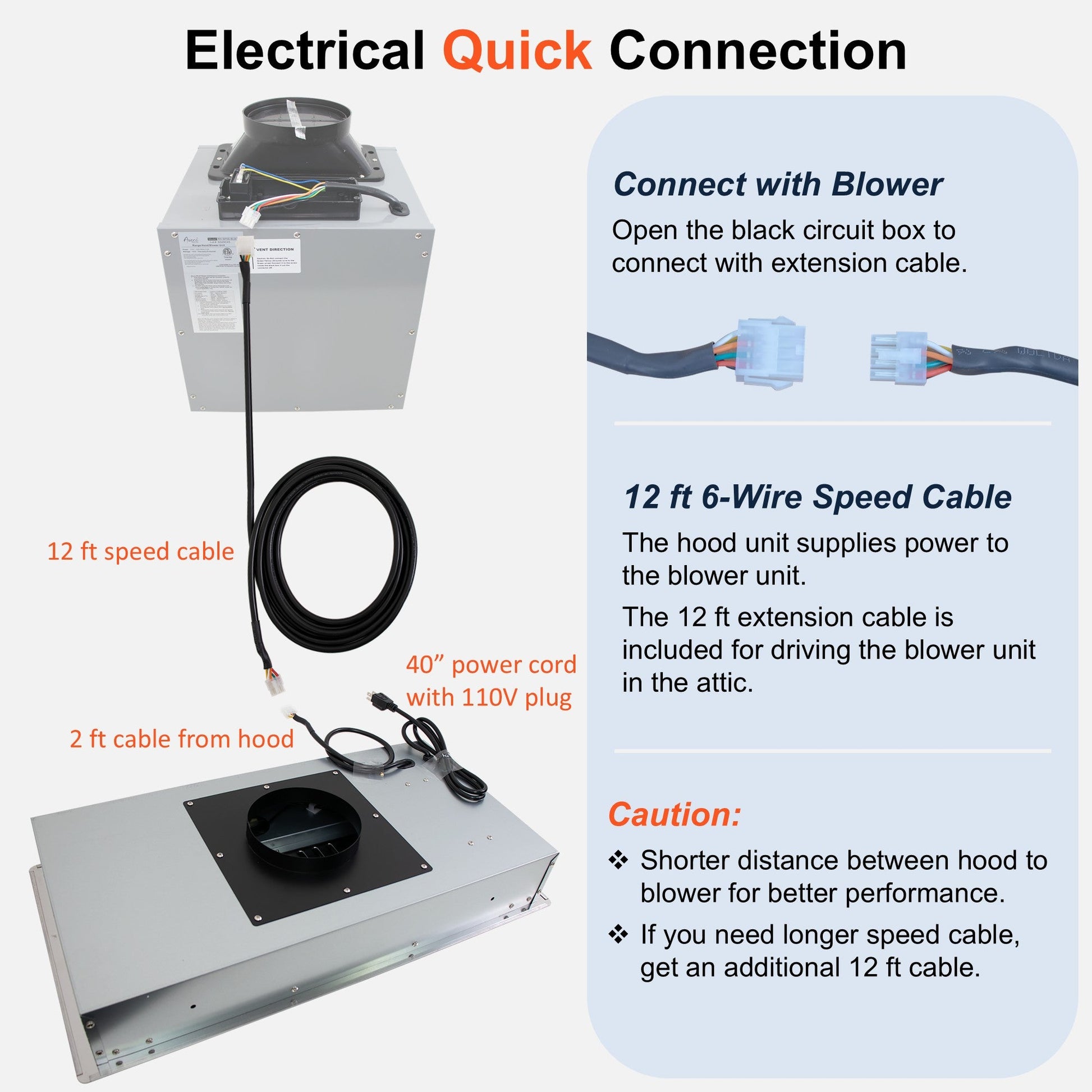

4 Speed Exhaust Fan, Customizable 1~30 Mins Delay Shut-Off - Offers 4 adjustable fan speeds, with a maximum suction power of 800 CFM. The 5-minute default delay shut-off helps clear fumes, and can manually adjust the delay time up to 30 minutes for convenience and flexibility. Equipped with dishwasher-safe baffle filters for easy cleaning and maintenance. 12 ft speed wire cable is included for the hood to drive the blower unit.
-

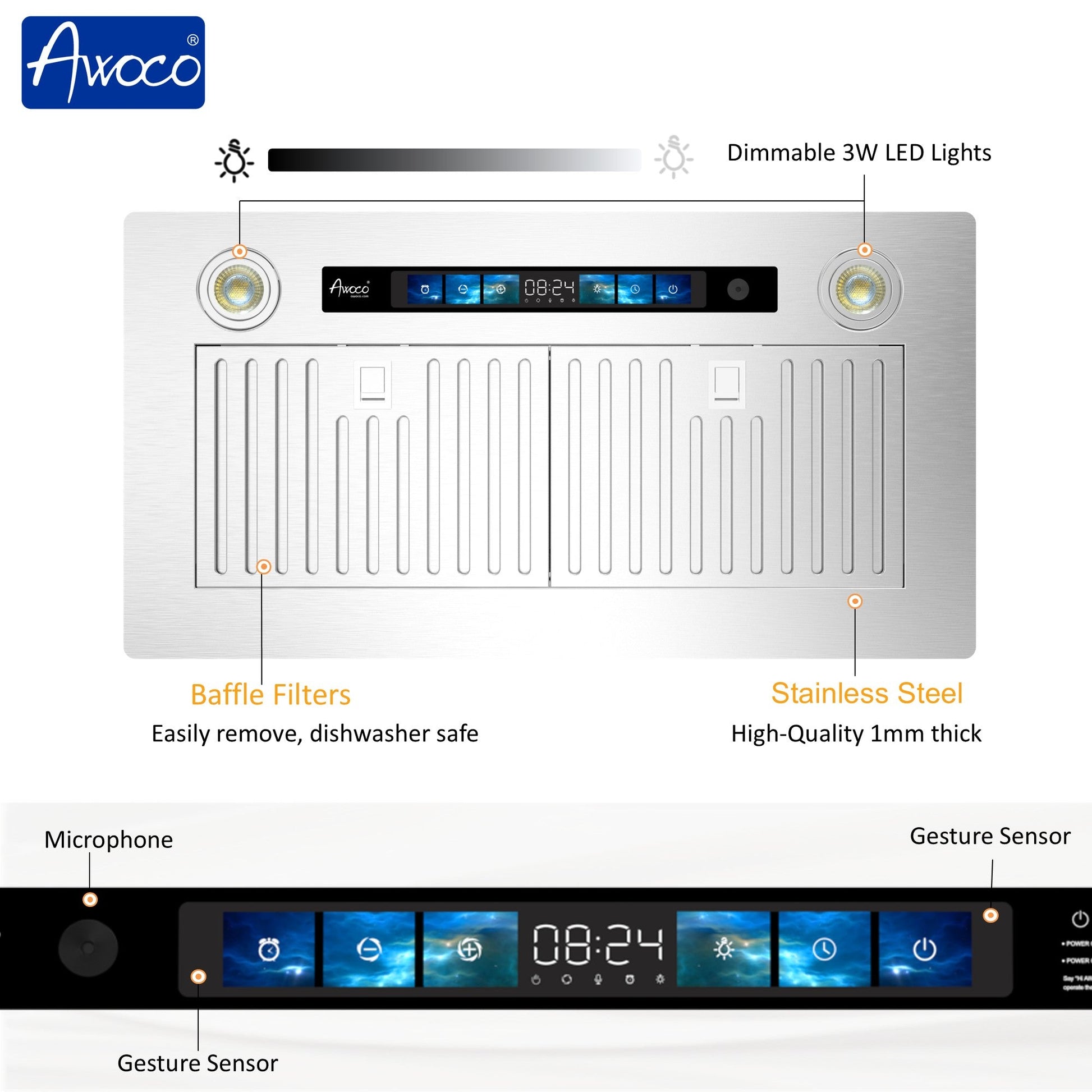

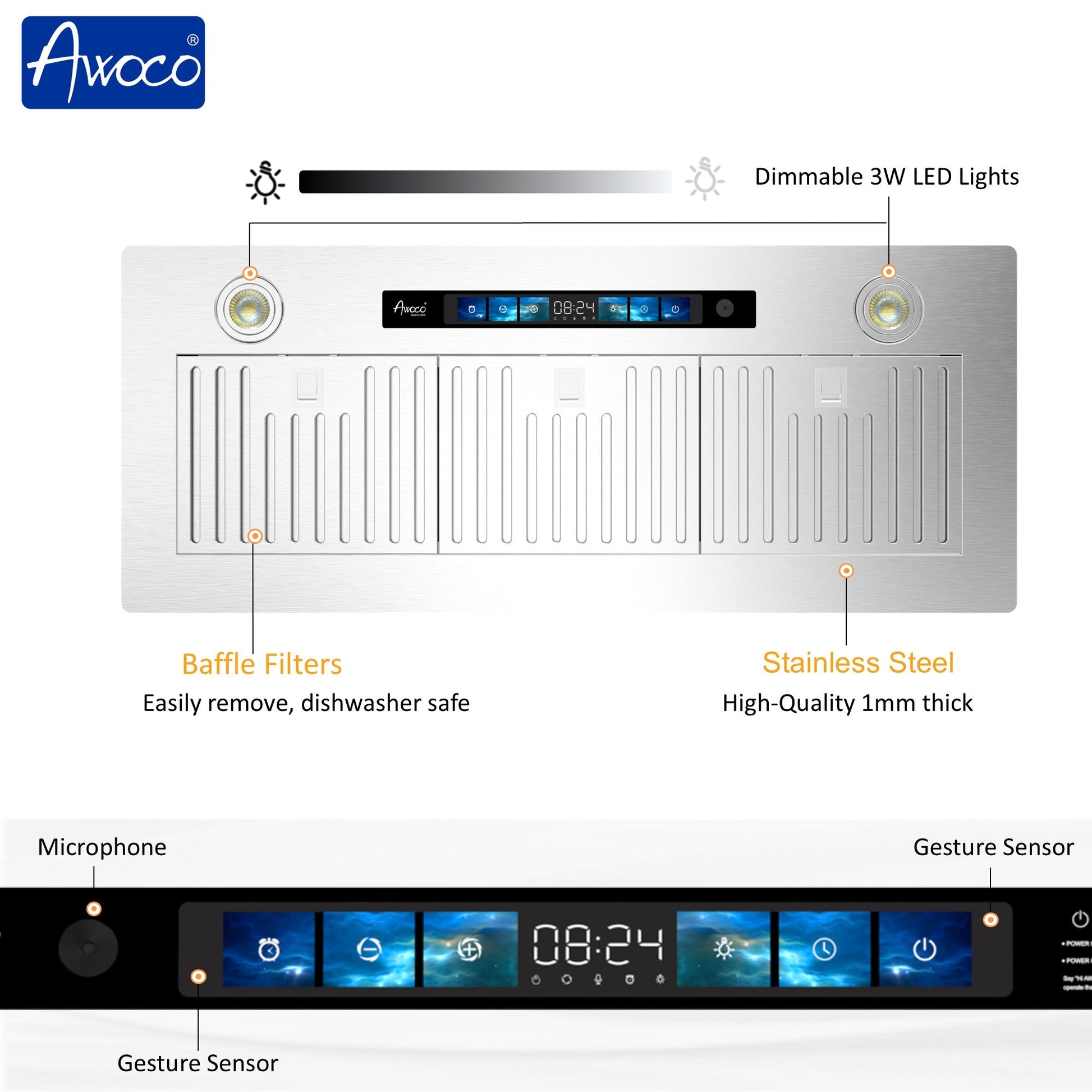

Memory Function, Dimmable LED Lights - Saves the previous settings and automatically restores them for each use, saving time, enhancing convenience, and ensuring consistent performance every time you cook. It features two 3W energy-saving LED lights for bright, efficient illumination, with dimmable settings adjustable via the remote control or by holding light button to change brightness.
-

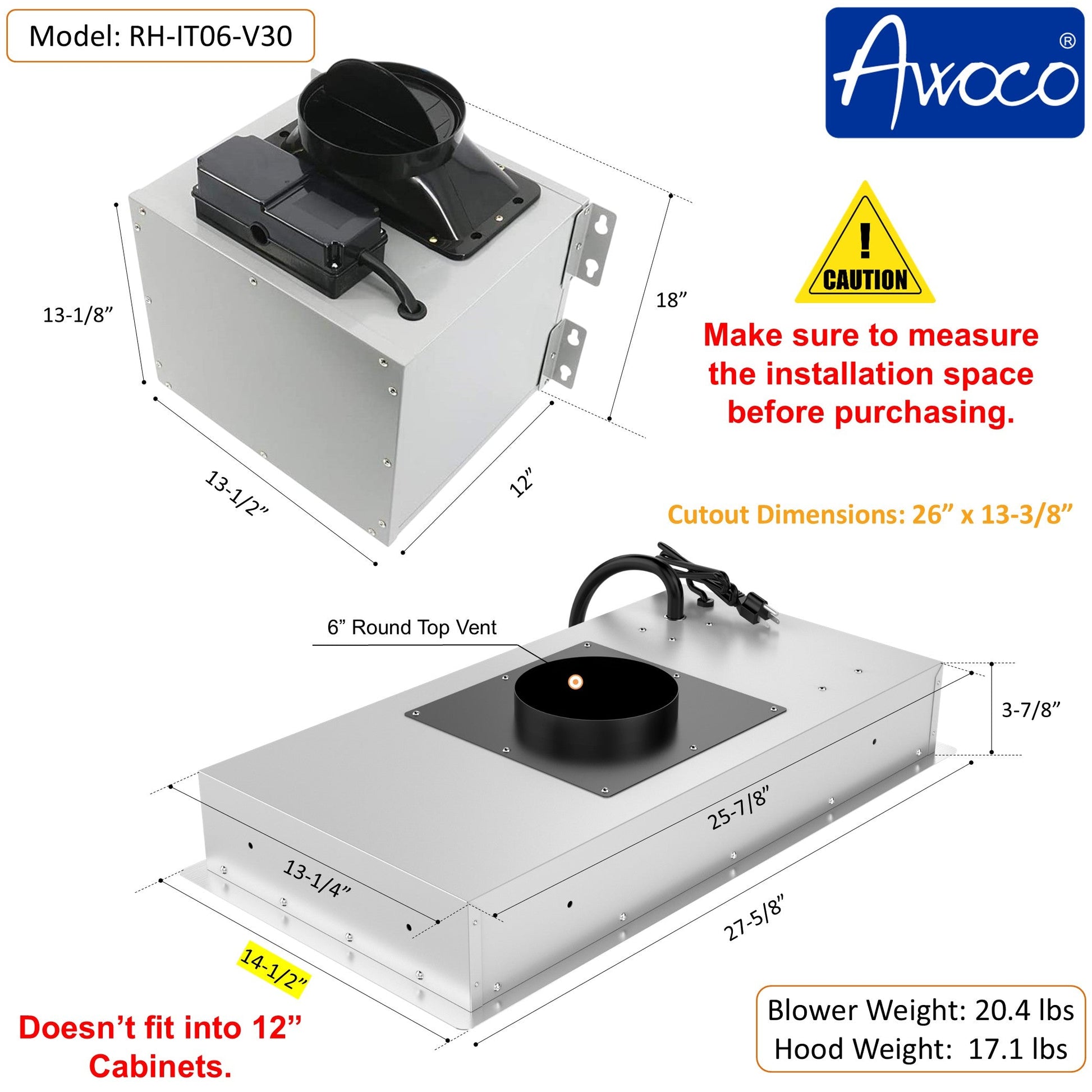

30” Dimensions: Overall Hood Dimensions: 27-5/8"W x 14-1/2"D x 3-7/8"H. Cutout Dimensions: 26"W x 13-3/8"D, Hood weight: 17.1 lbs. Blower Overall Dimensions: 13-1/2"W x 12"D x 18"H. Blower Weight: 20.4 lbs. Power rating: 120V/60Hz, 140W Max. Noise level at low: 62 dB.
-

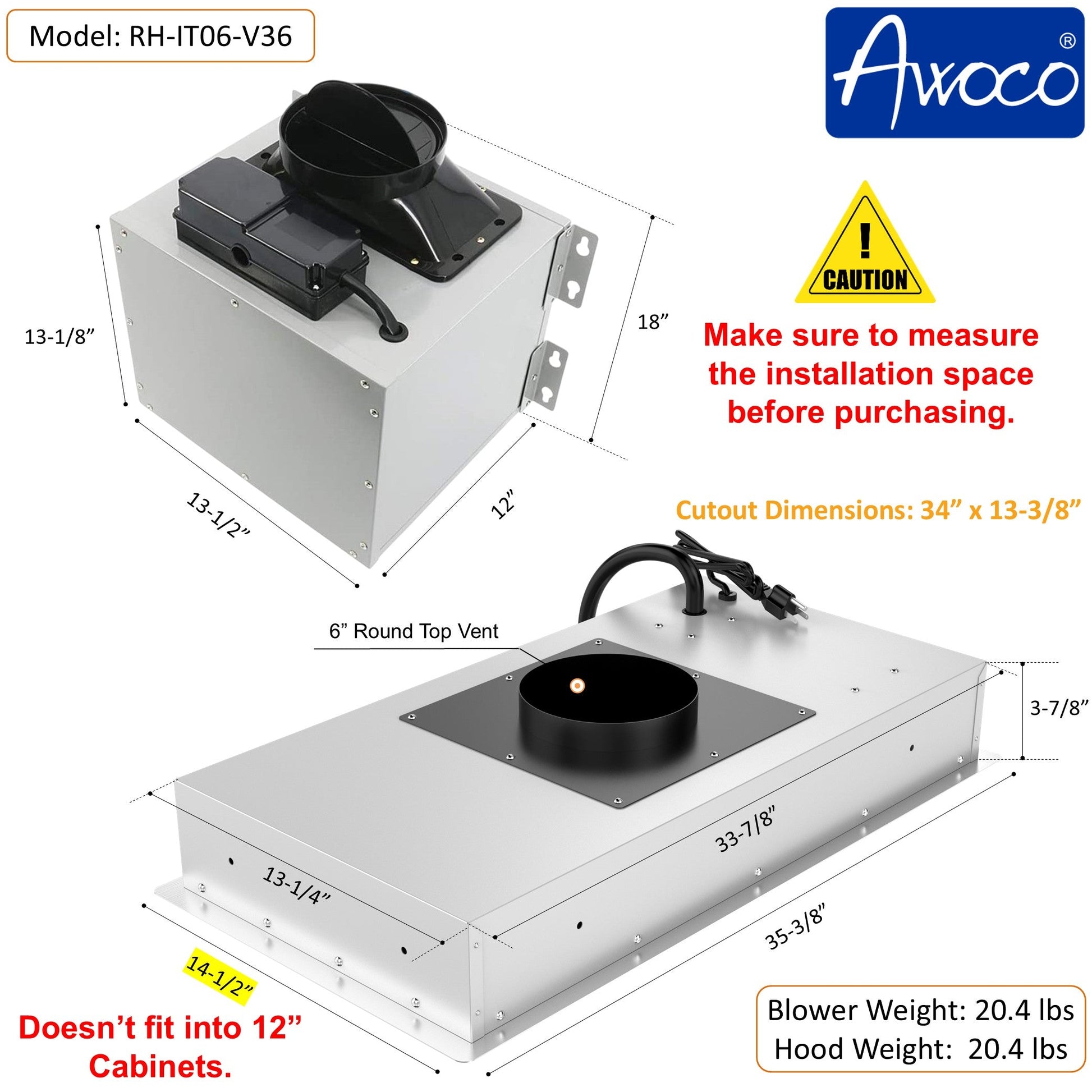

36” Dimensions: Overall Hood Dimensions: 35-3/8"W x 14-1/2"D x 3-7/8"H. Cutout Dimensions: 34"W x 13-3/8"D, Hood weight: 20.4 lbs. Blower Overall Dimensions: 13-1/2"W x 12"D x 18"H. Blower Weight: 20.4 lbs. Power rating: 120V/60Hz, 140W Max. Noise level at low: 62 dB.
What our Experts Think
Q&A
Q: What is the AWOCO RH-IT06-V30-COLD ceiling mount range hood?
A: It is a split insert ceiling mount range hood with an 800 CFM blower, 6-inch round vent, and cool white LED lighting designed for powerful kitchen ventilation.
Q: How does the split insert design improve performance?
A: The hood unit installs in the ceiling or custom wood hood while the blower installs in the attic, helping reduce kitchen noise and improve smoke, grease, and odor removal.
Q: What is the maximum airflow capacity?
A: The AWOCO RH-IT06-V provides up to 800 CFM of ventilation power with 4 adjustable fan speeds for different cooking needs.
Q: What type of venting does this range hood require?
A: It uses a 6-inch round top exhaust vent and is designed for ducted outdoor ventilation. Ductwork is not included.
Q: Does this ceiling mount range hood include easy-to-clean filters?
A: Yes. It features dishwasher-safe filters designed to capture grease while maintaining efficient airflow.
Q: What lighting does the RH-IT06-V30-COLD include?
A: The COLD version includes bright 6000K cool white LED lights for improved cooking visibility.
Q: Is this range hood suitable for modern kitchen designs?
A: Yes. Its ceiling mount split insert design provides a sleek, built-in appearance ideal for contemporary kitchens and custom hood installations.
Maintenance Tips
- Clean mesh filters regularly to remove grease, smoke residue, and cooking debris.
- Wash filters with warm, soapy water or use a dishwasher if manufacturer-approved.
- Dry filters completely before reinstalling to maintain proper airflow.
- Wipe the hood exterior with a soft cloth and stainless steel cleaner.
- Avoid abrasive cleaners or scrubbers that may damage the finish.
- Inspect the blower and vent system periodically for grease buildup or blockages.
- Keep the 6" blower and duct connection clear for efficient ventilation.
- Check lighting and control functions regularly for proper operation.
- Clean the interior surfaces of the hood to prevent grease accumulation.
- Replace damaged filters to maintain optimal airflow and performance.
