Chattanooga Galaxy TTET300 Traction Table - DJO-3264102US

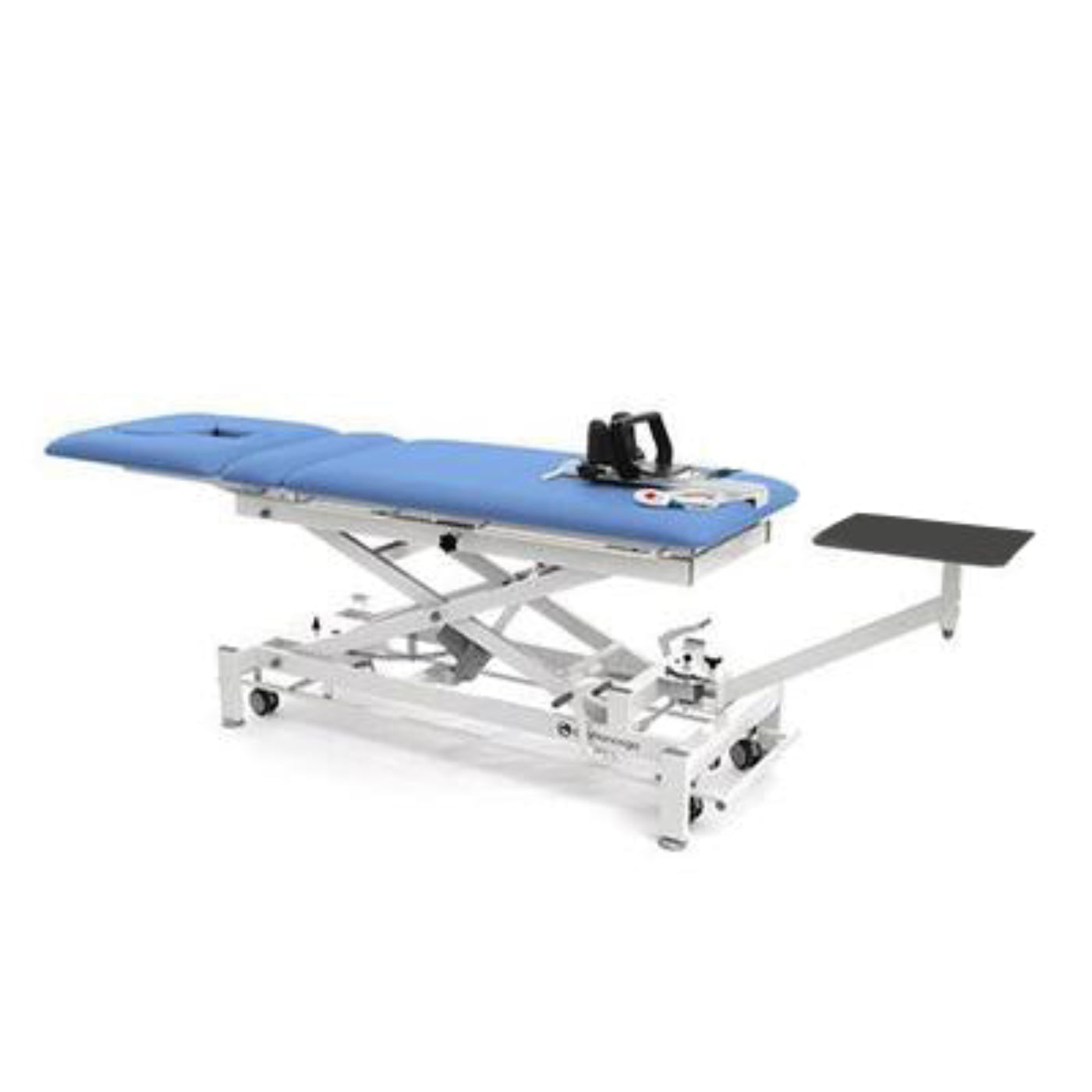

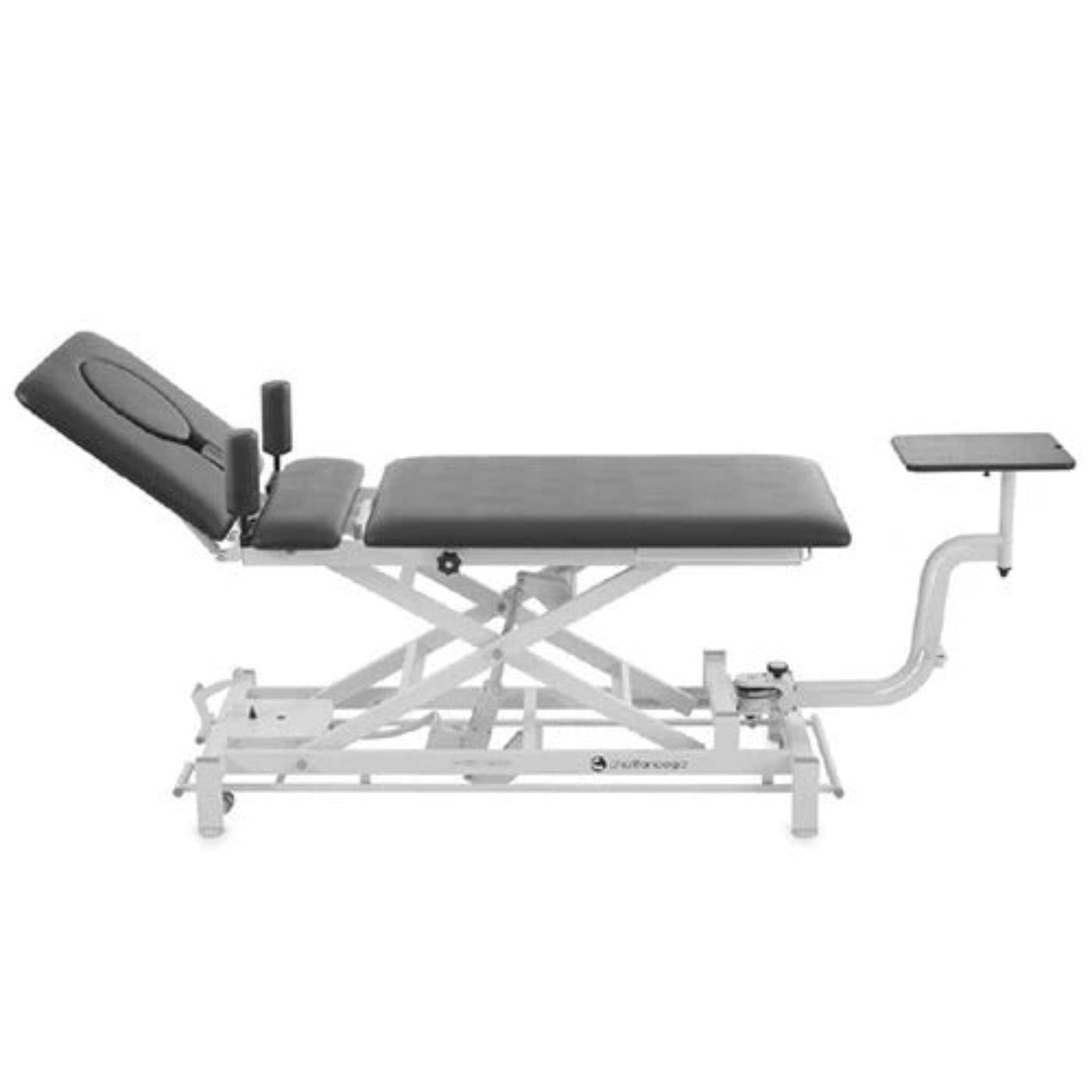

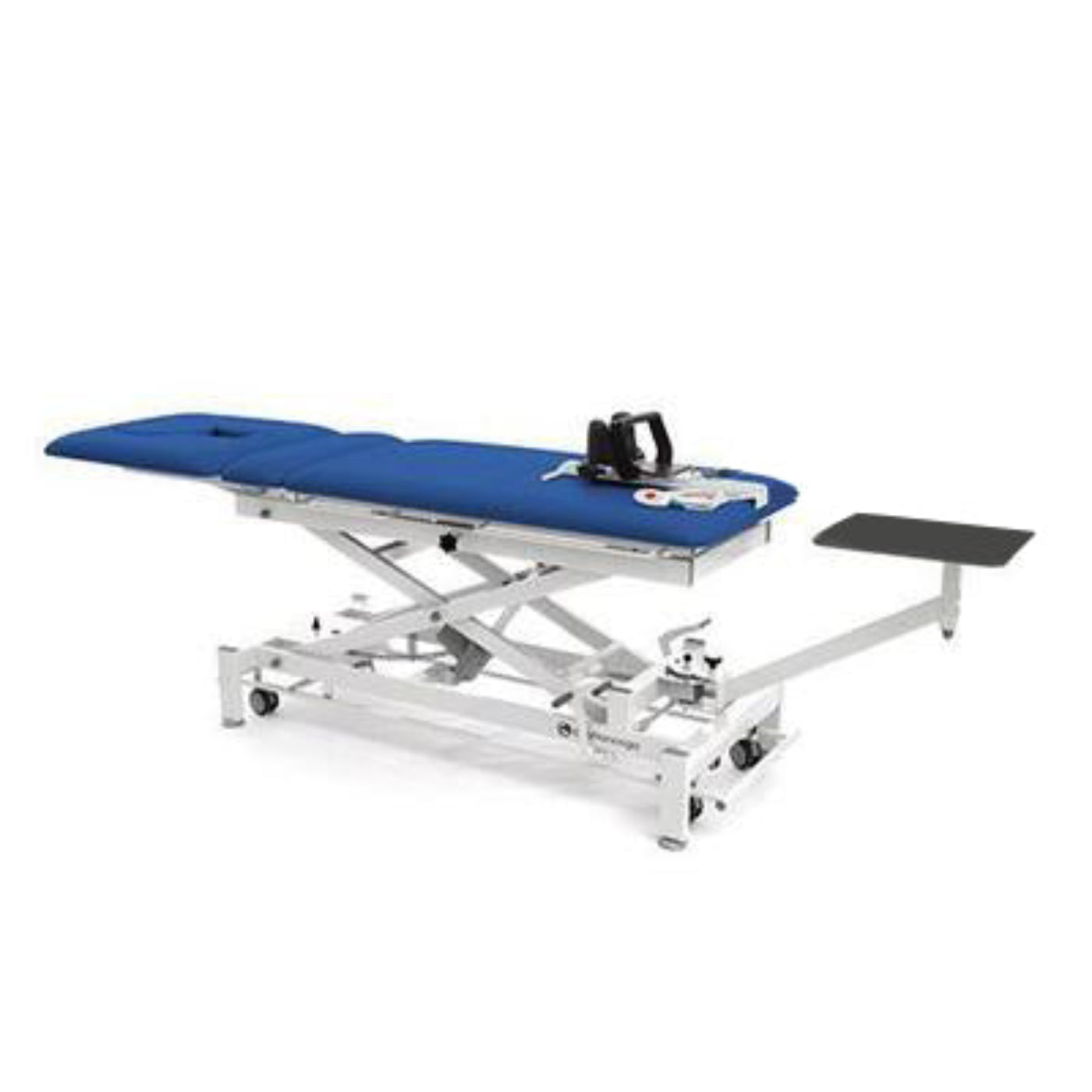

The Chattanooga Galaxy TTET300 Traction Table is a scissor-frame, multidirectional table with retractable wheels.

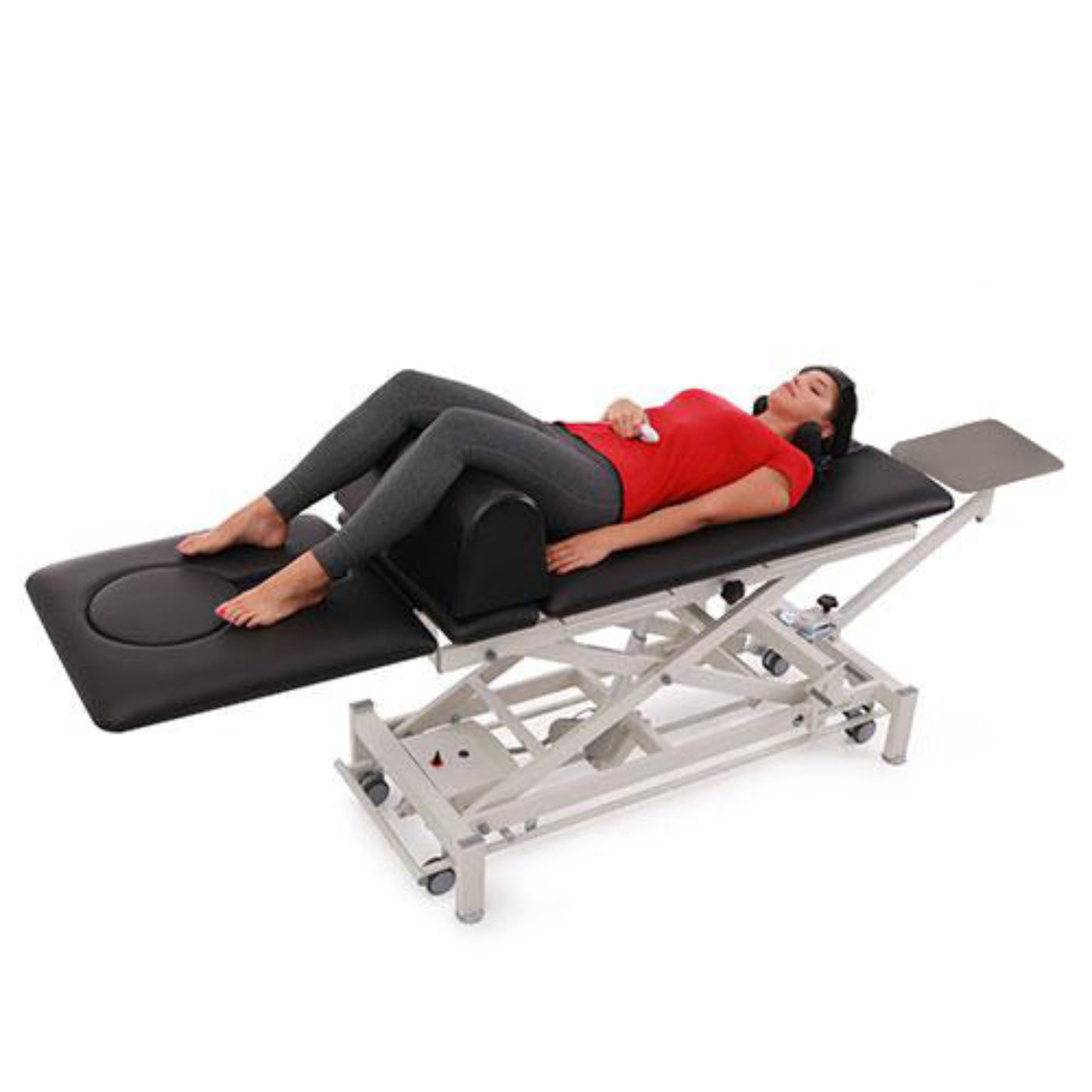

The Chattanooga Galaxy TTET300 Traction Table can be used in prone and supine positions for manual therapy applications and traction therapy, with gas spring assists for seamless movement. The roller-mounted surface prevents friction below the hips and legs, enabling patients to benefit from the full traction force during their procedures. When not in use for traction therapy, this table can also double as a treatment table.
It supports up to 440 lb (with a max workload of 605 lb) and can be adjusted between 19" and 39" for height, via theĀ HalloTronic + System. The head section can be repositioned from -10 degrees to 82 degrees.
Features
Ā Features
- Maximum workload of 605 lb.
- Multifunctional 3-section table.
- Scissor frame and retractable wheels allow for easy movement.
Specifications
Ā Specifications
-
Mains Power:Ā 120 V, 50/60 HZ.
-
Current:Ā Max 2A with 120V.
- Dimensions:
-
Head Section: 23".
-
Middle Section: 8".
-
Leg Section: 44.7".
-
Width: 27.5".
-
Total Table Length: 79.5".
-
Total Length with Traction Platform: 103".
- Adjustment:Ā
-
Angle Inclination: Head: -10 degrees to +82 degrees.
-
Displacement: Leg: 6".
- Height:Ā
- Minimum: 19".
- Maximum: 39".
-
Dynamic Lifting Capacity: 440 lb.
-
Maximum Workload: 605 lb.
-
Electrical Safety Class: Class I, Type B.
-
Safety Tests: CE, Class I Rule 12.
-
Shipping Weight: 330 lb.
-
Shipping Dimensions: 86.6" x 33.5" x 31.5".
-
Table Weight: 274 lb.
Colors
Chattanooga Galaxy TTET300 Traction Table Colors
-
#3264102US: Blue.
-
#3264108US: Black.
-
#3264119US: Imperial Blue.
-

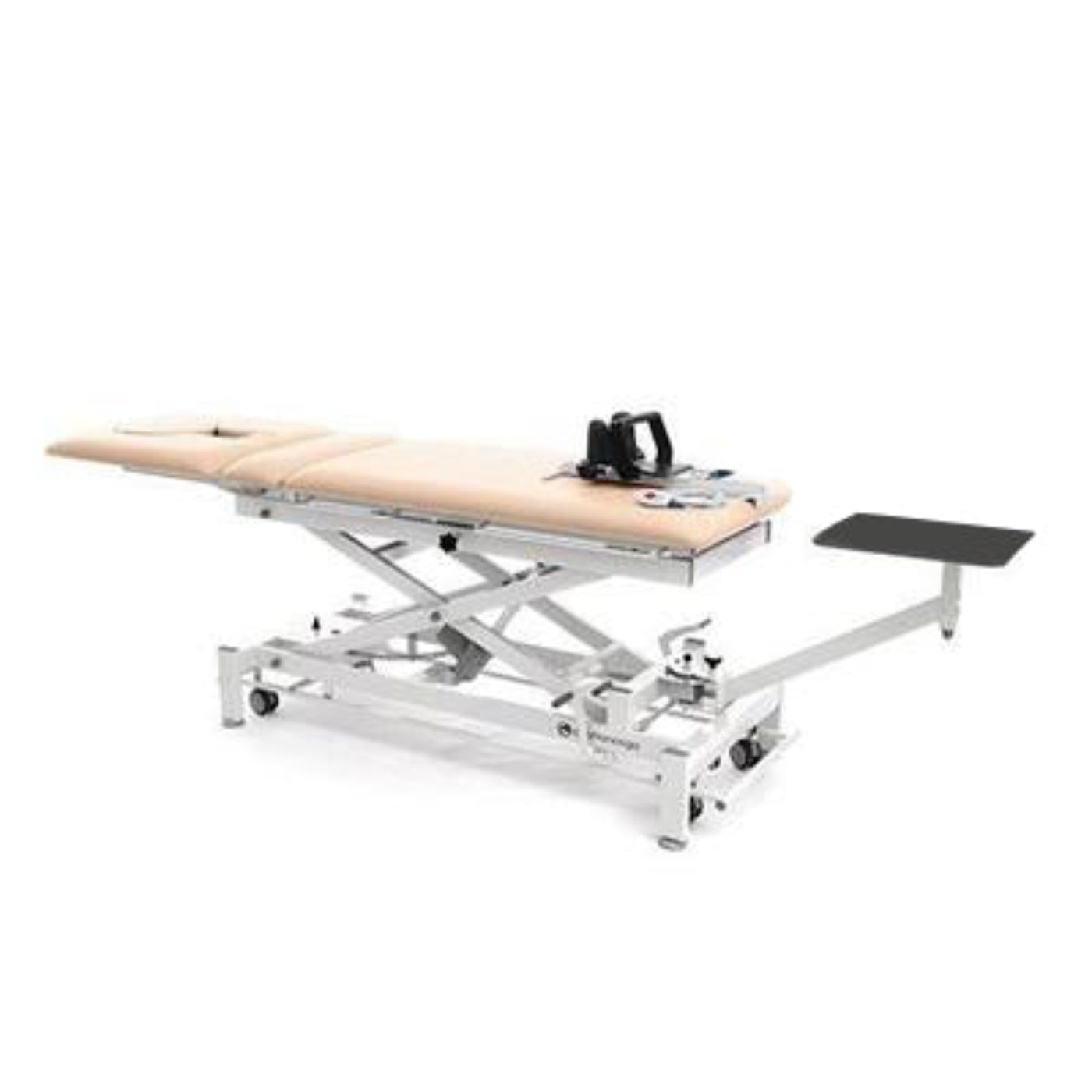

#3264101US: Beige.
-

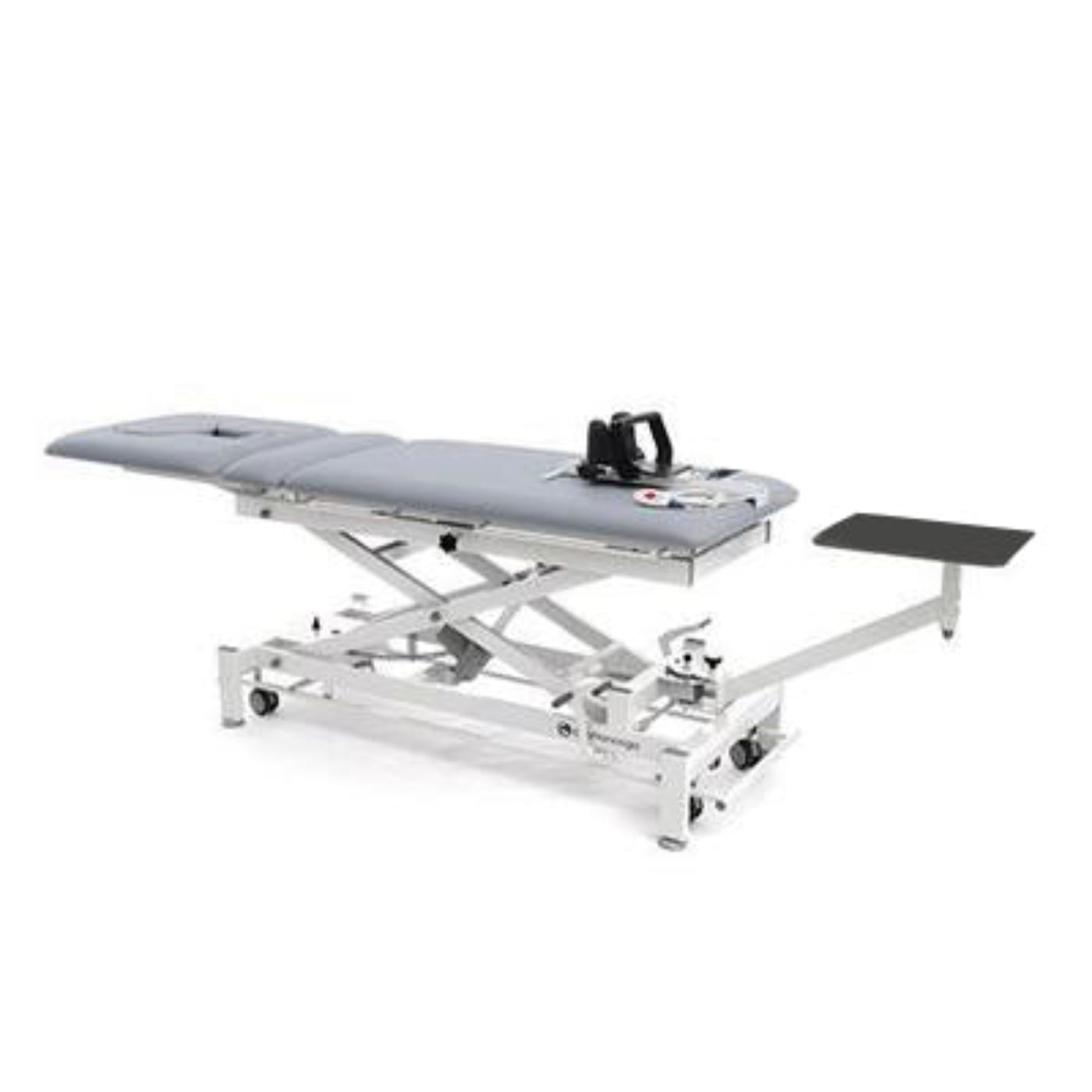

#3264106US: Gray.
-
#3264107US: Graphite Gray.
Accessories
Accessories
Please note, the following items are NOT included with purchase of the table. These are commonly purchased as optional accessories for the table.
- #8200: Chattanooga TTET400 / TTET300 Traction Unit Kit with Stool. (Available in six stool colors).
- #8206: Chattanooga TTET400 / TTET300 Traction Unit Kit with Bolster.
Literature
Literature
Chattanooga General Line Traction Catalog
What our Experts Think
Q&A
Q: What is the Chattanooga Galaxy TTET300 Traction Table used for?
A: It is a professional 3-section traction and treatment table designed for spinal traction, chiropractic care, and physiotherapy, enabling controlled positioning and patient comfort during manual or mechanical traction therapy.
Q: What are its key features?
A: It includes a scissor-frame base with retractable wheels, electric height adjustment (approx. 19ā39 in), a roller-mounted low-friction surface, gas-assisted movable sections, and an adjustable head/back section up to ~82Ā° for flexible treatment positioning.
Q: What is the weight capacity?
A: It supports up to about 440 lb (dynamic lifting capacity) with a maximum workload around 605 lb, depending on configuration.
Q: Can it be used without traction therapy?
A: Yes. The locking rolling sections allow it to function as a standard treatment table when not used for traction.
Q: Is the traction unit included?
A: No. The traction unit is sold separately and must be paired for full traction therapy use.
Q: What makes it patient-friendly?
A: Its friction-reducing surface, smooth electric height adjustment, and multi-position sections help improve comfort and treatment precision in prone or supine positions
