Chattanooga OptiFlex S Shoulder CPM - DJO-2029
The Chattanooga OptiFlex S Shoulder CPM (#2029) includes one shoulder CPM unit (which is also portable), data card, and erasable pen. Patient kits are sold separately.
The Chattanooga OptiFlex S Shoulder CPM is designed to address full range of motion capabilities. This include full adduction, abduction, flexion, extension, internal and external rotation, and more. The OptiFlex S is also technologically savvy, with an ease-of-use that includes a Patient Data Chip Card. This chip card can be quickly inserted into the card reader on the device, and stores individual patient data and preferences for angles, speed, and motion of the CPM device. What's more, this CPM device can also collapse and fold into a portable unit for easy transfer.
The unit provides patient comfort while providing anatomical motion for the shoulder for enhanced outcomes. Continuous Passive Motion (CPM) is used to help the joints of the body recover after surgery. After a surgical procedure in the shoulder, the joint must be routinely exercised to prevent the surrounding tissue from becoming stiff and forming scar tissue.
Features
Features
- Designed to be lightweight and portable at 55 lb (25 kg).
- Includes patient data card and erasable pen.

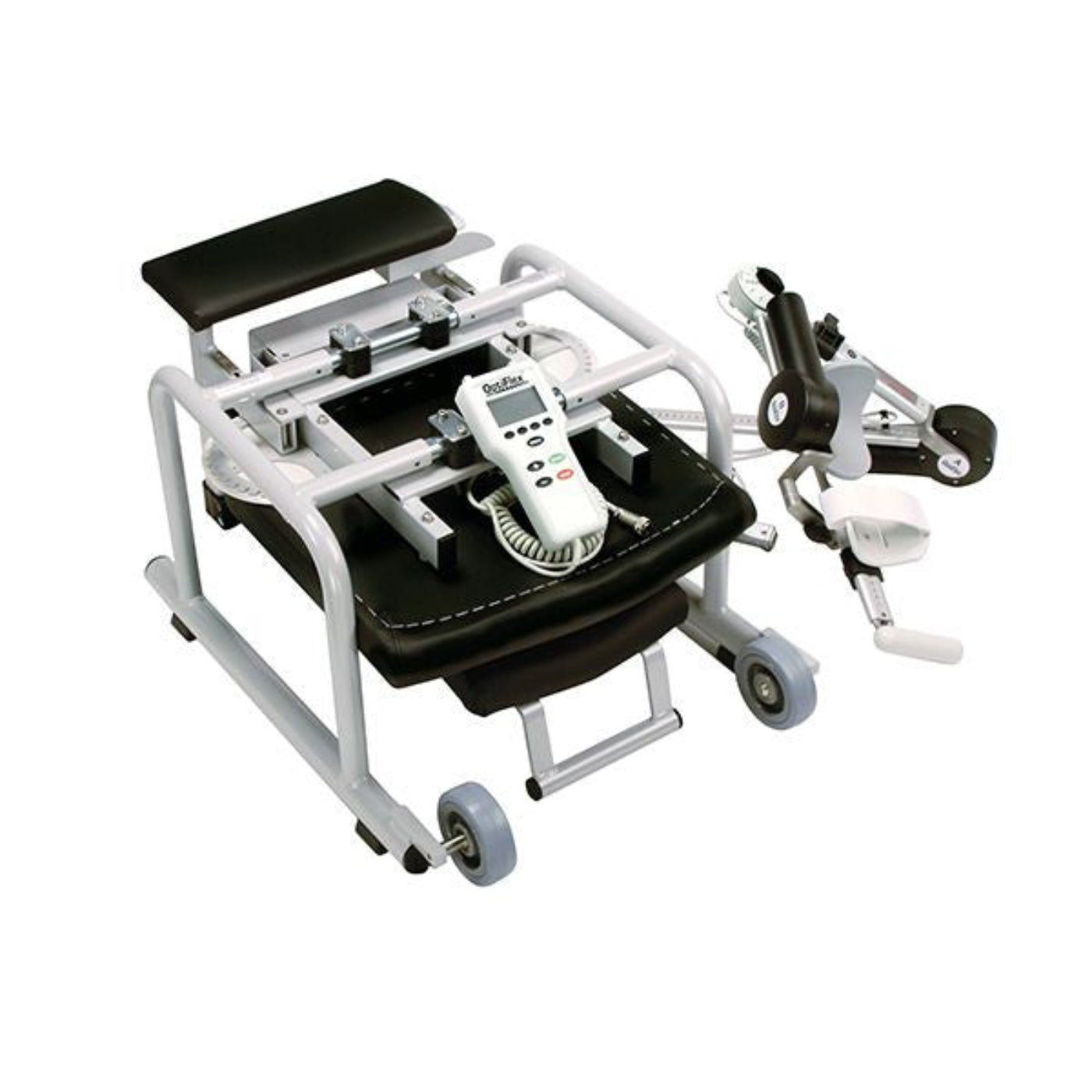

- Easy-to-transport with the unit€˜s folding feature.
- Fully adjustable chair and patented left/right shoulder design, with ergonomic arm rest for healthy arm.
- User-friendly hand control for storing treatment information of a memory chip card.
- Customizable treatment parameters that are able to be fully synchronized.
Specifications
Specifications
| Weight |
55 lb (25 kg) |
| Dimensions |
34.4" × 22.6" × 22.8" (87.5 × 57.5 × 58 cm) |
| Transport Size |
14.6" × 22.6" × 22.8" (37 × 57.5 × 58 cm) |
| Motor Control |
On / Off |
| Pause Function |
0 – 30 sec |
| Speed Control |
0 – 100% |
| Timer Range |
1 – 300 min |
| Warm-up Mode |
50% of programmed ROM |
| Synchronization |
On / Off |
| Reverse-on-load |
1 – 20 |
| Therapy Run Time Display |
h : m |
| Adduction / Abduction |
0 – 30 – 175° |
| Internal / External Rotation |
90 – 0 – 90° |
| Flexion / Extension |
0 – 30 – 175° |
| Horizontal Adduction / Abduction |
0 – 0 – 125° |
| Safety Standards |
CSA 601-1-M90, UL 2601-1 |
Accessories
The Chattanooga OptiFlex S Shoulder CPM is commonly purchased with:
- #20660: Chattanooga CPM Patient Kit - OptiFlex S.
- #20719: Chattanooga Grey Fleece Patient Kit.
- #20661: Chattanooga CPM Data Card.
- #20731: Chattanooga Instructional CD.
Literature
Literature
Chattanooga CPM and Homecare Catalog
What our Experts Think
-
Engineered for advanced shoulder rehabilitation, the Chattanooga OptiFlex S delivers smooth, anatomical continuous passive motion (CPM) to support recovery following shoulder surgery or injury.
-
Universal left/right shoulder design eliminates the need for separate units, improving efficiency and reducing equipment costs for clinics.
-
Fully programmable treatment settings allow clinicians to customize range of motion, speed, pause, and therapy duration to match individual rehabilitation protocols.
-
Patient Data Chip Card stores treatment parameters for fast, consistent repeat sessions and improved workflow.
-
Designed for patient comfort, featuring an ergonomic healthy-arm support, adjustable chair, and synchronized motors for controlled, natural shoulder movement.
-
Portable, lightweight, and foldable, making it ideal for hospitals, orthopedic practices, rehabilitation centers, and sports medicine clinics that require flexible equipment deployment.
Q&A
Q: What is the Chattanooga OptiFlex S Shoulder CPM - DJO-2029?
A: The Chattanooga OptiFlex S Shoulder CPM is a continuous passive motion (CPM) device designed to support shoulder rehabilitation by providing controlled, anatomical movement following surgery or injury.
Q: What conditions is it used for?
A: It is commonly used during recovery from rotator cuff repair, shoulder replacement, capsular release, fractures, and other orthopedic shoulder procedures to help restore range of motion.
Q: What shoulder movements does it support?
A: The unit provides programmable flexion/extension, adduction/abduction, horizontal adduction/abduction, and internal/external rotation for comprehensive shoulder therapy.
Q: Can it be used for either shoulder?
A: Yes. Its patented universal design accommodates both left and right shoulders without requiring separate models.
Q: Is the OptiFlex S easy to customize?
A: Yes. It features synchronized motors, an easy-to-use hand control, adjustable treatment settings, and a patient data card for storing therapy protocols.
Q: What features improve patient comfort and portability?
A: The OptiFlex S includes an ergonomic arm support, a fully adjustable chair, a folding design for transport, and a lightweight 55 lb frame for convenient clinical use.
