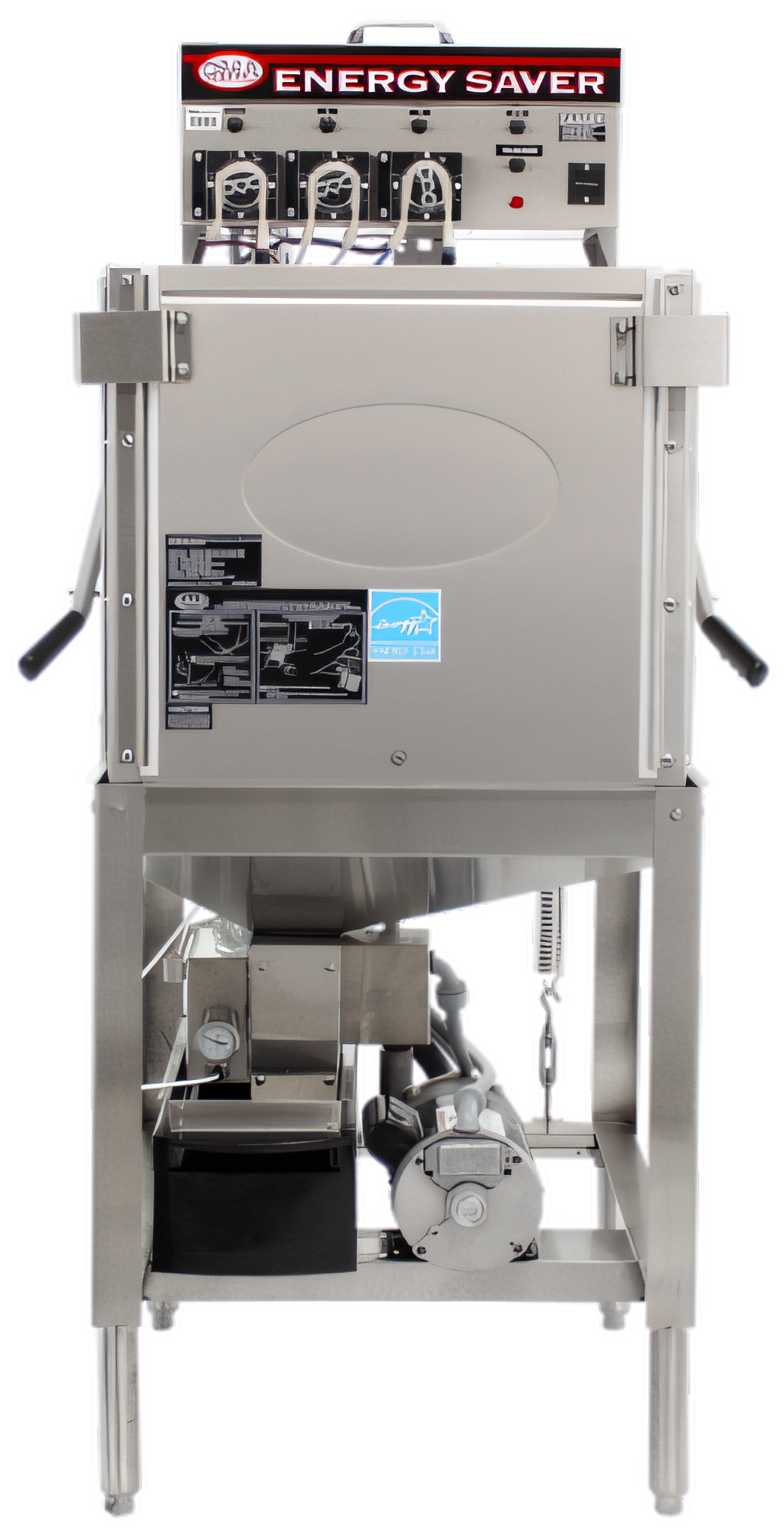

CMA Energy Mizer® Door-Type Dishwasher – Model EST-EXT
Low-temp, low-water, straight-thru design
Slash utility costs and boost throughput with the CMA Energy Mizer® EST-EXT. Using just 1.09 gallons per cycle,
this ENERGY STAR® certified, low-temperature unit powers through up to 40 racks per hour while its rugged
stainless-steel construction stands up to the toughest commercial kitchens.
Why you’ll love it
- 40 racks / 160 covers per hour with a quick 90-second total cycle.
- Low-temperature chemical sanitizing—no booster heater, no steam, lower energy bills.
- Ultra-efficient: only 1.09 gal of water per rack saves on water and sewer fees.
- 1 HP wash pump moves 52 GPM for consistent, high-pressure cleaning.
- Top-mounted controls with built-in chemical pumps and automatic deliming system.
- Poly Pro™ scrap accumulator & self-cleaning pump screen keep solids out of the drain.
- Auto start/stop door-actuated operation for safety and labor savings.
- Generous 20-1/2" door clearance handles sheet pans, mixing bowls, and more.
- All-stainless cabinet, impeller, and scrap tray for maximum service life.
- Certified: ENERGY STAR®, UL, cULus, ETL Sanitation (NSF/ANSI 3).
Quick-view specs
| Rack capacity |
40 racks/hr (20" × 20") |
| Total cycle time |
90 s – 53 s wash / 15 s rinse / 22 s dwell |
| Water use |
1.09 gal per rack (4.12 L) |
| Required water temp |
120 °F min (140 °F recommended) |
| Door clearance |
20-1/2" (52 cm) |
| Wash pump |
1 HP – 52 GPM |
| Electrical |
115 V / 1-phase / 16 A |
| Exterior dimensions |
25-3/4"W × 25-3/4"D × 56"H
(80-1/2"H with door open) |
| Shipping weight |
≈ 249 lb (113 kg) |
What’s in the box
- (2) 20" × 20" dishracks
- Built-in Poly Pro™ scrap accumulator
- Factory-installed detergent, sanitizer & rinse-aid pumps
- One-year parts & labor warranty (U.S. installations)
- Operator & installation manuals
Installation note: Unit must be installed by qualified personnel to 115 V power, 120 °F potable
water, and a 2" drain in compliance with local codes. CMA recommends a water softener when hardness exceeds
3.5 gpg to maintain optimal wash results.
Need tables, chemical alarms, or other accessories? Ask about factory-approved options perfectly matched to the EST-EXT.
