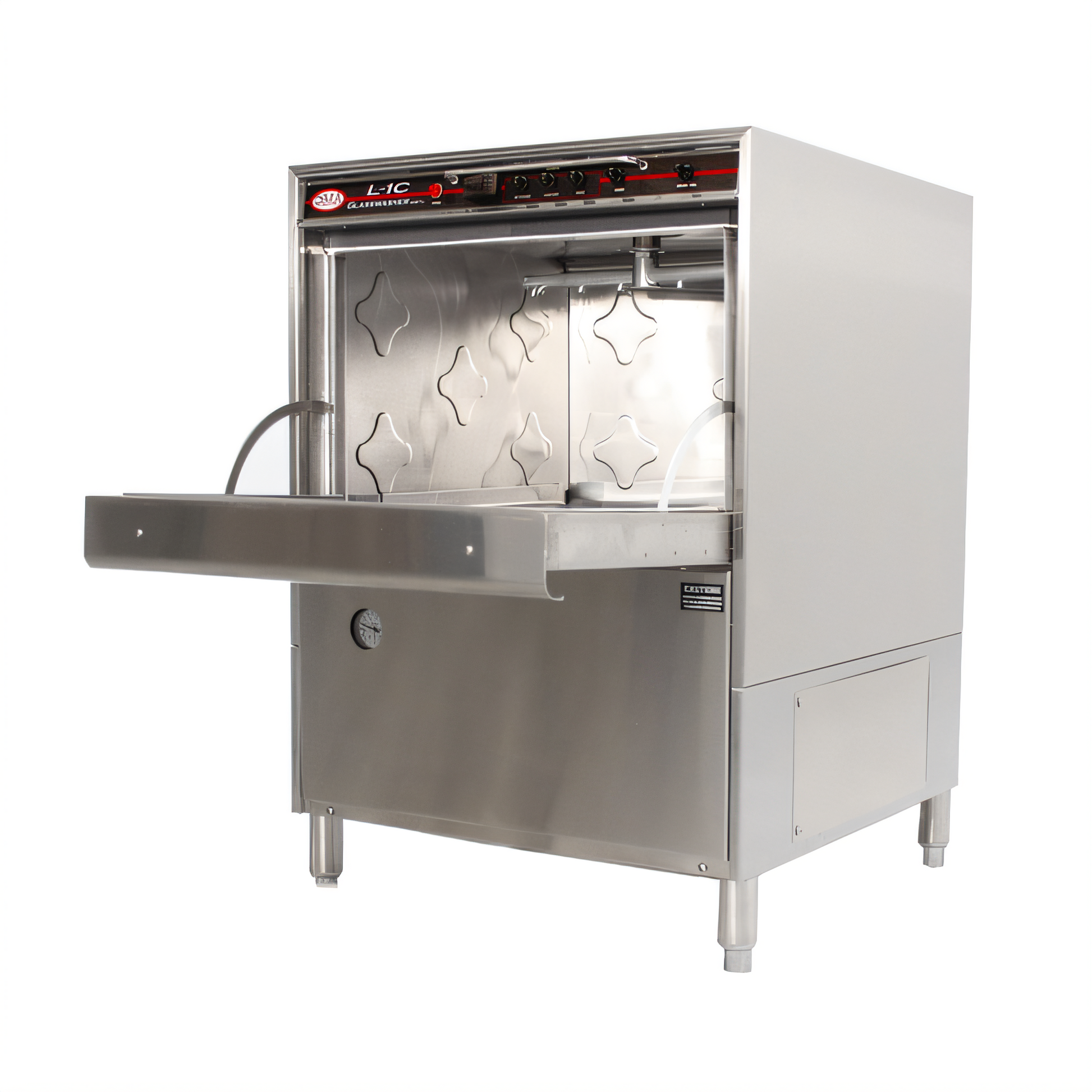

CMA Energy Mizer® L-1C Undercounter Glasswasher
Low-Temperature • 30 Racks / 120 Covers per Hour • NSF & cULus Listed
Quiet, efficient and built to last—the Energy Mizer® L-1C delivers sparkling glasses and dishes
while slashing water, chemical and energy costs. Its patented Noise Suppression Technology,
stainless-steel construction and chemical-sanitizing rinse make it the perfect “behind-the-bar”
solution for restaurants, cafés and tasting rooms.
Why You’ll Love It
- Noise Suppression Technology (NST) cuts operational sound by up to 50 % for a more pleasant guest experience.
- Economical—uses only 1.7 gal. of water per cycle (≈51 GPH).
- Fast 2-minute cycles wash, rinse and sanitize up to 30 racks per hour.
- Low-temperature chemical sanitizing eliminates the need for a costly booster heater.
- Double-wall, all-stainless construction adds durability, heat retention and quiet performance.
- Upper & lower stainless steel wash arms with reinforced end caps deliver full-coverage cleaning.
- Built-in detergent, sanitizer and rinse aid pumps ensure precise chemical dosing every cycle.
- Pumped drain—no floor drain required for flexible installation.
- Integrated pump-purge & deliming system reduces soil and scale buildup for better results and easier maintenance.
- Ships with one 16-compartment glass rack and adjustable 4" legs.
Technical Specifications
| Capacity |
30 racks / 120 covers per hour |
| Cycle Time |
2 min total (58 s wash • 32 s rinse • 30 s purge) |
| Water Usage |
1.7 gal. per rack |
| Wash Tank Capacity |
1.7 gal. |
| Pump |
1 HP, 35 GPM recirculating |
| Sanitizing Method |
Low-temperature chemical (built-in pumps) |
| Door Clearance |
11" (accommodates tall stemware) |
| Rack Size (included) |
20" × 20" – 16-compartment glass rack |
| Dimensions (W × D × H) |
24" × 24" × 34–35" |
| Electrical |
115 V / 1-ph / 16 A |
| Water Inlet / Drain |
½" NPT / 1" OD pumped drain |
| Certifications |
NSF, cULus |
| Shipping Weight |
≈203 lb |
For optimal performance CMA recommends incoming water at 120 °F minimum (140 °F ideal) and hardness ≤ 3.5 gpg.
A standard tank-style water heater is advised.
Peace-of-Mind Coverage
Every Energy Mizer® glasswasher is backed by CMA’s one-year parts & labor warranty
when installed by a qualified technician and registered within 30 days of purchase.
