Rich Solar Complete Off-Grid Solar Kit | 38 x MEGA 335 Solar Panels | 13,000W 120/240V Output | 48VDC - RS-CBK1301C

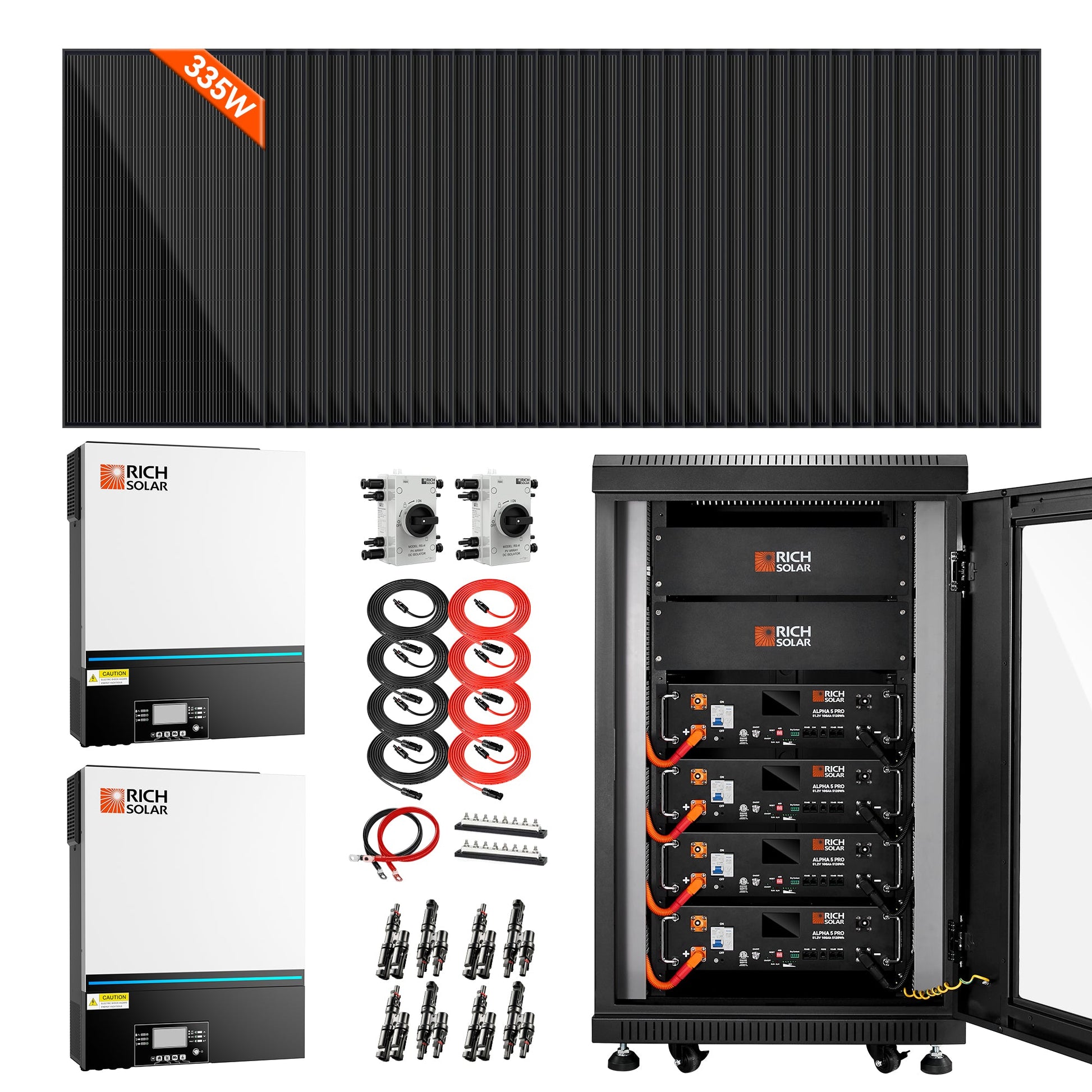

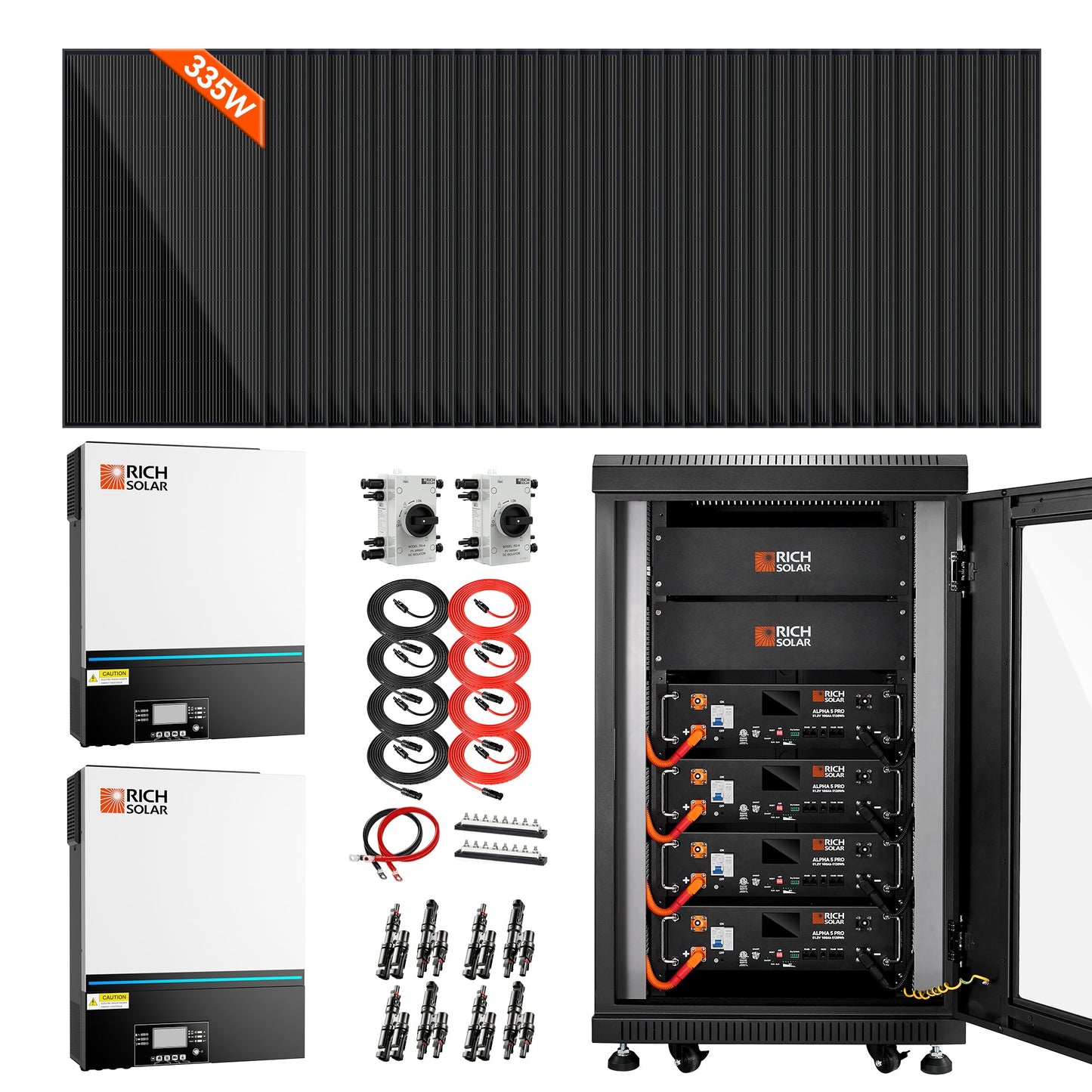

Includes
- 38 x MEGA 335 Watt Monocrystalline Solar Panel (RS-M335P)
- 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
- 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)
- 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
- 2 x Busbar 600 AMP
- 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
- 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
- 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
- 1 x Free Battery Rack
What our Experts Think
-
Built for whole-home energy independence โ With 12.73kW of solar generation capacity from 38 high-output 335W panels and a powerful 13,000W split-phase inverter system, this kit is designed to support large off-grid homes, farms, workshops, and commercial applications.
-
True 120/240V split-phase power โ Unlike smaller off-grid systems, this setup delivers residential-grade 120/240V output, making it capable of running heavy loads such as well pumps, HVAC systems, power tools, electric appliances, and other demanding equipment.
-
Exceptional solar production potential โ The large solar array helps maximize daily energy harvest, making it particularly attractive for properties with high energy consumption or locations seeking to minimize generator runtime.
-
Efficient 48V system architecture โ Operating on a 48V battery platform improves overall system efficiency, reduces current draw, and supports larger inverter loads while minimizing wiring losses.
-
Designed for scalability and long-term growth โ The system architecture allows users to expand battery storage and energy capacity as future power requirements increase, providing flexibility for evolving off-grid lifestyles.
-
Reliable performance in remote locations โ Ideal for cabins, homesteads, agricultural operations, and remote properties where utility access is unavailable, unreliable, or prohibitively expensive.
-
Premium value for large-scale off-grid installations โ Purchasing a complete, pre-engineered solar package simplifies system design, component compatibility, and installation planning compared to sourcing equipment individually.
-
Durable, all-weather solar generation โ High-efficiency monocrystalline panels are engineered for long service life, dependable low-light performance
Q&A
Q: What is included in the Rich Solar RS-CBK1301C Complete Off-Grid Solar Kit?
A: This complete off-grid system includes 38 x 335W MEGA monocrystalline solar panels (12.7kW total), two 6,500W 48V hybrid inverters (13,000W combined output), four 5.12kWh LiFePO4 server-rack batteries (20.48kWh total storage), disconnect switches, busbars, cables, and a battery rack.
Q: How much power can this solar kit produce?
A: The system delivers up to 13,000W of continuous 120/240V split-phase AC power, making it suitable for whole-home off-grid applications, workshops, farms, and large cabins.
Q: How much battery storage is included?
A: The kit includes four 51.2V 100Ah LiFePO4 batteries, providing 20.48kWh of energy storage for overnight and backup power needs.
Q: Can this system run an entire off-grid home?
A: Yes. With 13kW inverter capacity and over 20kWh of lithium battery storage, the system is designed to power major household loads, including well pumps, appliances, HVAC systems, and power tools.
Q: What type of inverter is included?
A: The kit features two RS-H6548 pure sine wave hybrid inverters with built-in MPPT charge controllers, Wi-Fi monitoring, generator compatibility, and parallel expansion capability.
Q: Is the system expandable?
A: Yes. The inverter platform supports parallel operation of up to six units, and the battery bank can be expanded to increase storage capacity as energy demands grow.
Q: Are the LiFePO4 batteries safe and long-lasting?
A: Yes. The included lithium iron phosphate batteries feature integrated BMS protection, long cycle life, UL certifications, and low-maintenance operation for reliable long-term performance.
Q: Are the solar panels designed for harsh weather conditions?
A: Yes. The MEGA 335W panels feature anti-reflective tempered glass, corrosion-resistant aluminum frames, and excellent low-light performance for year-round energy production.
Maintenance Tips
- Clean solar panels every 2โ4 months to remove dust, dirt, leaves, and bird droppings for maximum energy production.
- Inspect panel mounts, wiring, MC4 connectors, disconnects, and busbars quarterly for loose connections, corrosion, or damage.
- Monitor inverter status, error codes, and system performance regularly; address alerts promptly. The kit includes dual 6.5kW hybrid inverters.
- Keep inverter ventilation areas clean and unobstructed to prevent overheating.
- Check LiFePO4 battery voltage, state of charge, and communication status monthly. Follow manufacturer temperature and storage guidelines to maximize battery life.
- Tighten battery and DC power connections annually according to manufacturer specifications.
- Trim nearby trees and vegetation to minimize shading and maintain peak solar output.
- Test breakers, disconnect switches, and surge protection devices every 6โ12 months.
- Review energy production trends regularly to identify panel soiling, shading, or component issues early.
- Schedule a professional system inspection annually for optimal safety, efficiency, and long-term reliability.
