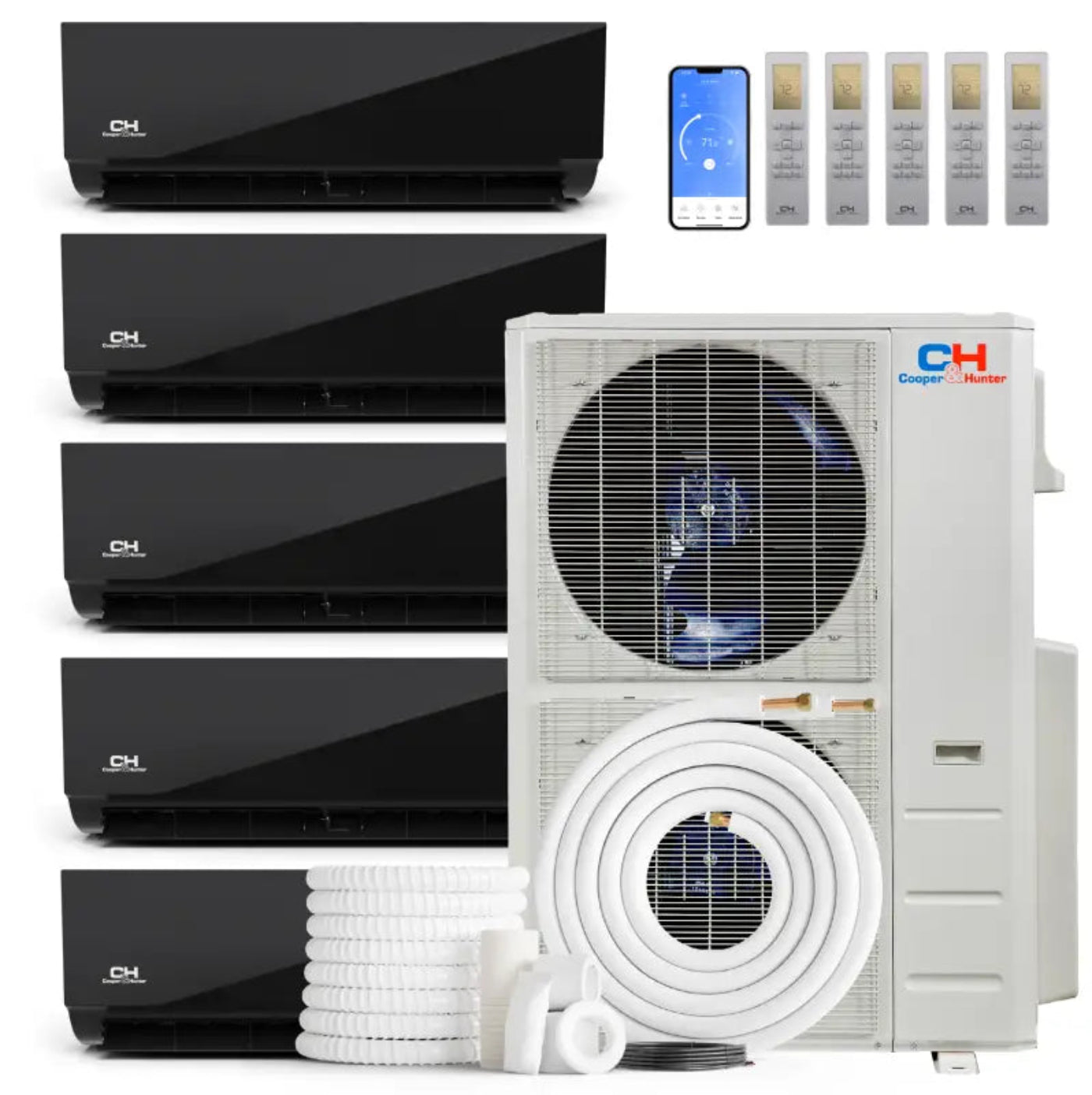

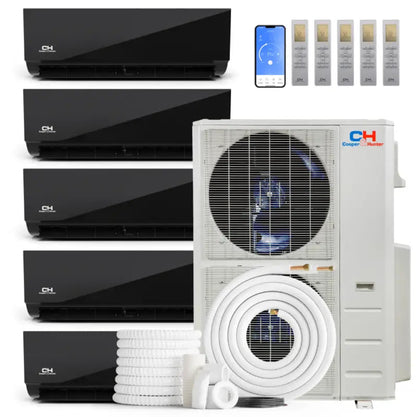

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 12K+12K+12K+12K+24K - CH-R60MES-230VORB12MOLVWMRB12MOLVWMRB12MOLVWMRB12MOLVWMRB24MOLVWM-NO
The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.
Features
-
5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
-
60,000 BTU nominal system capacity across 5 zones, each on its own remote
-
22 SEER2 inverter efficiency — current R454B generation
-
Heat pump — heats down to -13°F outdoor ambient
-
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
-
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
-

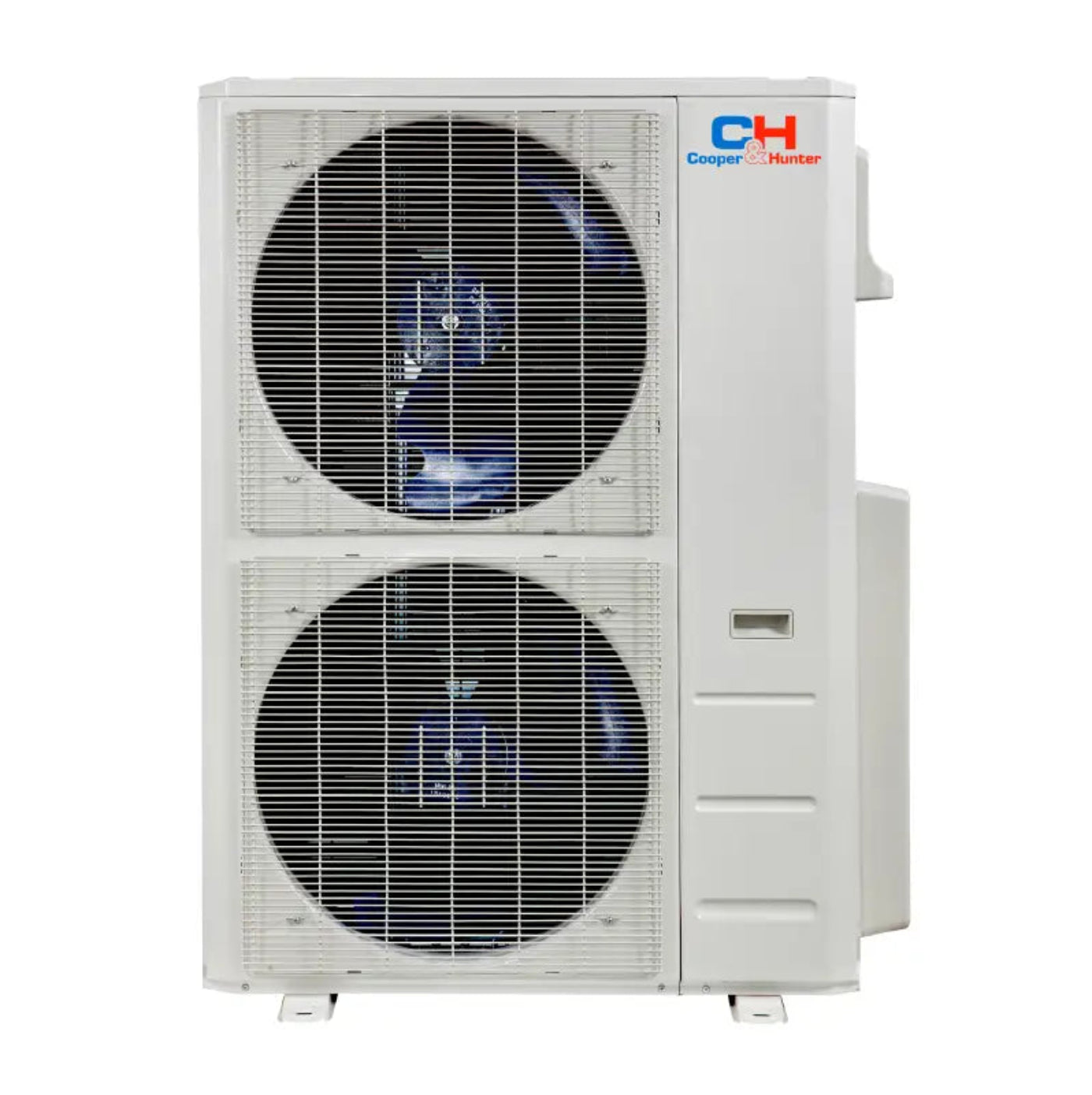

Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit
-

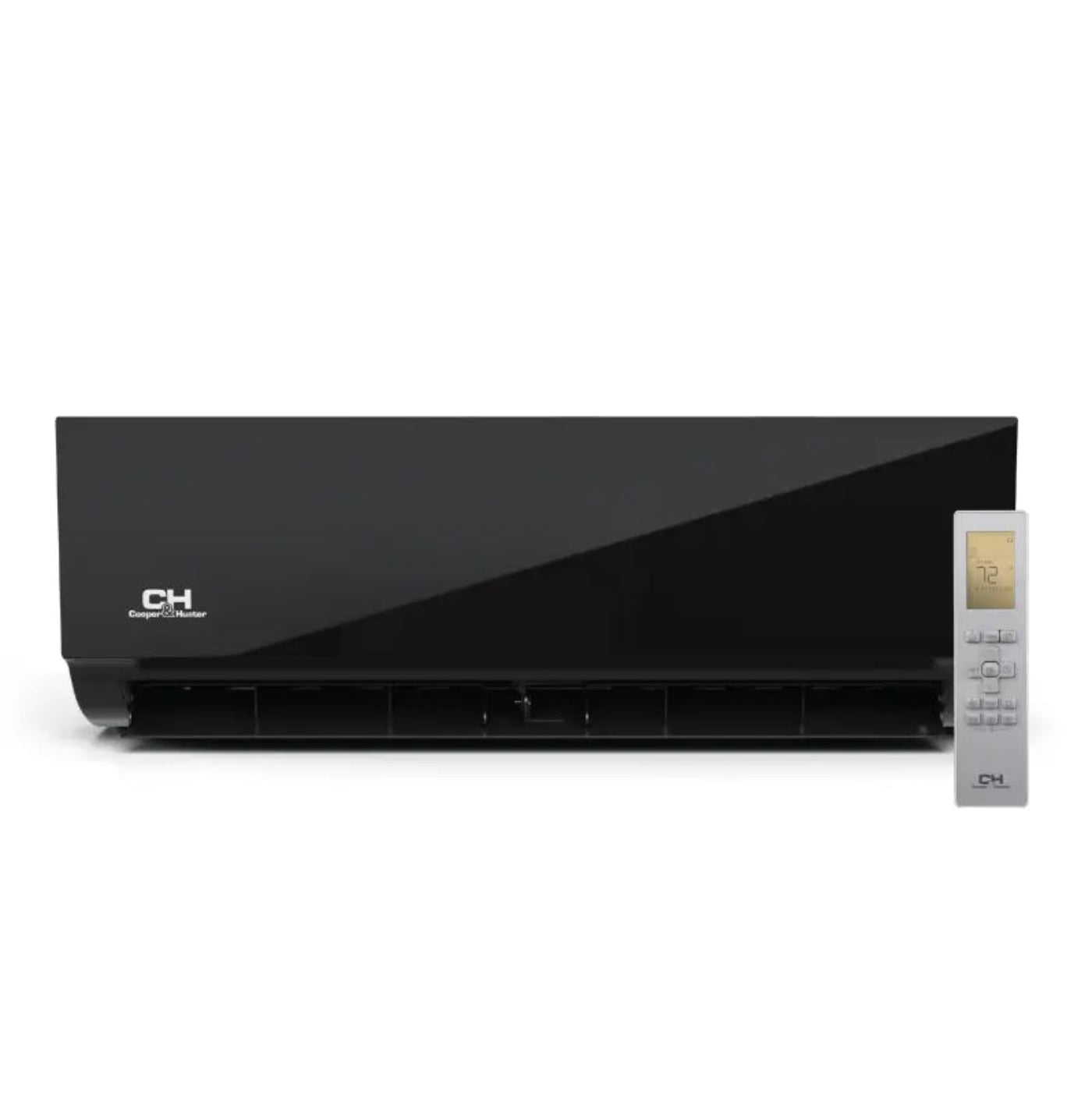

Up to 5 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
-
Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply |
208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) |
60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) |
60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F |
39,000 Btu/h |
| SEER2 / EER2 |
22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) |
9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse |
36 A / 40 A |
| Max. Connectable Indoor Units |
6 |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
237.88 / 270.28 lbs |
| Refrigerant Type / Charge |
R454B / 151.68 oz |
| Pre-charged Line Length |
150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor |
262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) |
49.2 ft / 33 ft |
| Operating Range — Cooling / Heating |
-13–122°F / -13–75°F outdoor ambient |
What our Experts Think
-
Exceptional whole-home comfort: The Cooper & Hunter Olivia Midnight 60,000 BTU 5-Zone Mini Split system is designed for powerful, efficient climate control across large homes and multi-room spaces.
-
Ideal 5-zone configuration: The 12K + 12K + 12K + 12K + 24K BTU setup provides flexible temperature control, allowing each room or area to be adjusted independently for personalized comfort.
-
High-capacity inverter performance: The 60,000 BTU outdoor unit delivers reliable cooling and heat pump heating performance while inverter technology helps optimize energy usage.
-
Eco-friendly R454B refrigerant: Built with next-generation R454B refrigerant, offering improved environmental performance with lower global warming potential than older refrigerant options.
-
Perfect for large spaces: The powerful 24K BTU indoor unit is well suited for open living areas, while the additional 12K zones provide balanced comfort throughout bedrooms, offices, and other rooms.
-
Modern Midnight design: The sleek black wall-mounted indoor units add a premium look while offering convenient features, remote control operation, and optional smart control compatibility.
-
Ductless installation advantage: A great solution for homes without existing ductwork, renovations, additions, and spaces requiring independent climate zones.
-
Expert recommendation: A premium multi-zone HVAC solution for homeowners seeking maximum coverage, energy efficiency, and year-round heating and cooling flexibility.
Q&A
Q: What is the cooling capacity of the Cooper & Hunter Midnight 5-Zone Mini Split System?
A: This system provides 60,000 BTU of cooling capacity for efficient whole-home or multi-room climate control.
Q: What indoor units are included in this 5-zone mini split package?
A: It includes five wall-mounted indoor units configured as 12K+12K+12K+12K+24K BTU for flexible temperature control in multiple spaces.
Q: Does this system provide heating and cooling?
A: Yes, it is a ductless heat pump system designed for year-round heating and air conditioning.
Q: What refrigerant does this Cooper & Hunter mini split use?
A: It uses R454B refrigerant, a next-generation refrigerant option for modern HVAC efficiency and environmental performance.
Q: What voltage is required for installation?
A: This system operates on 208-230V, single-phase, 60Hz electrical power.
Q: Is this a ductless mini split air conditioner?
A: Yes, the wall-mounted ductless design delivers efficient heating and cooling without requiring traditional ductwork.
Q: Can each zone be controlled separately?
A: Yes, the 5-zone configuration allows independent comfort settings for different rooms or areas.
Q: What type of spaces is this 60,000 BTU mini split ideal for?
A: It is designed for large homes, additions, offices, and multi-room applications needing powerful zoned heating and cooling.
Maintenance Tips
- Clean or replace air filters regularly to maintain airflow and indoor air quality.
- Keep indoor units, vents, and louvers free from dust and buildup.
- Clean outdoor condenser coils periodically to improve system efficiency.
- Keep the outdoor unit clear of leaves, debris, and surrounding obstructions.
- Inspect refrigerant lines and connections for leaks or damage.
- Clean condensate drains to prevent clogs, leaks, and moisture issues.
- Avoid blocking indoor units with furniture or curtains for better air circulation.
- Check system settings and temperature modes for efficient operation.
- Schedule professional maintenance regularly to support reliable performance and extend system life.
