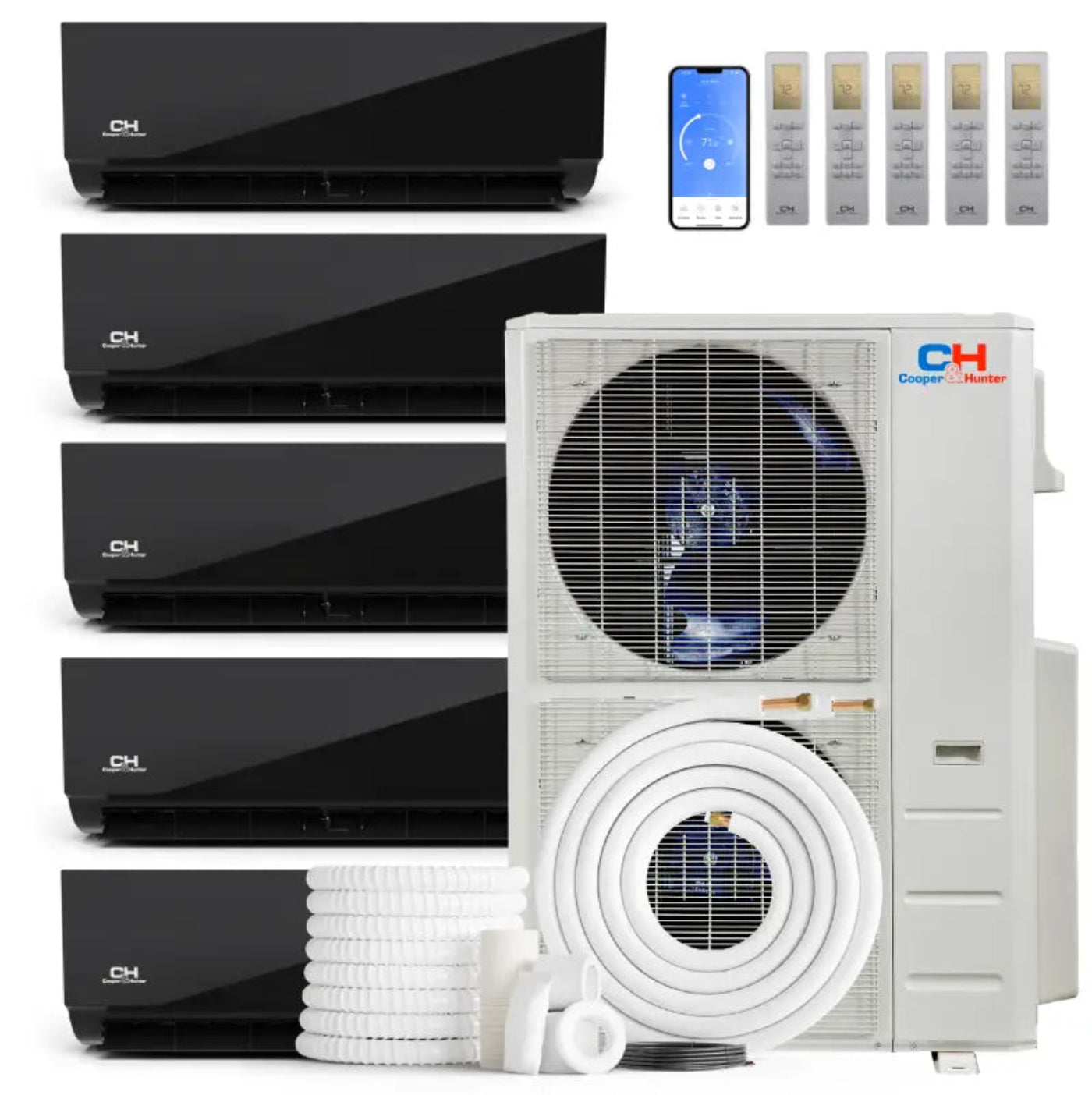

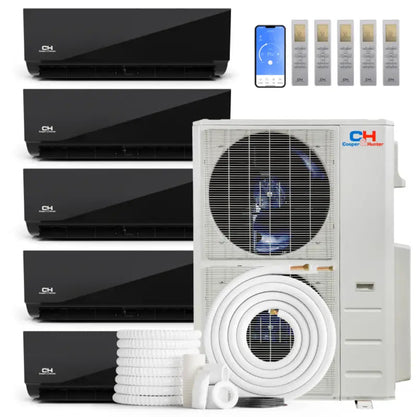

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+12K+12K+12K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB12MOLVWMRB12MOLVWMRB12MOLVWM-NO
The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.
Features
-
5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
-
60,000 BTU nominal system capacity across 5 zones, each on its own remote
-
22 SEER2 inverter efficiency — current R454B generation
-
Heat pump — heats down to -13°F outdoor ambient
-
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
-
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
-

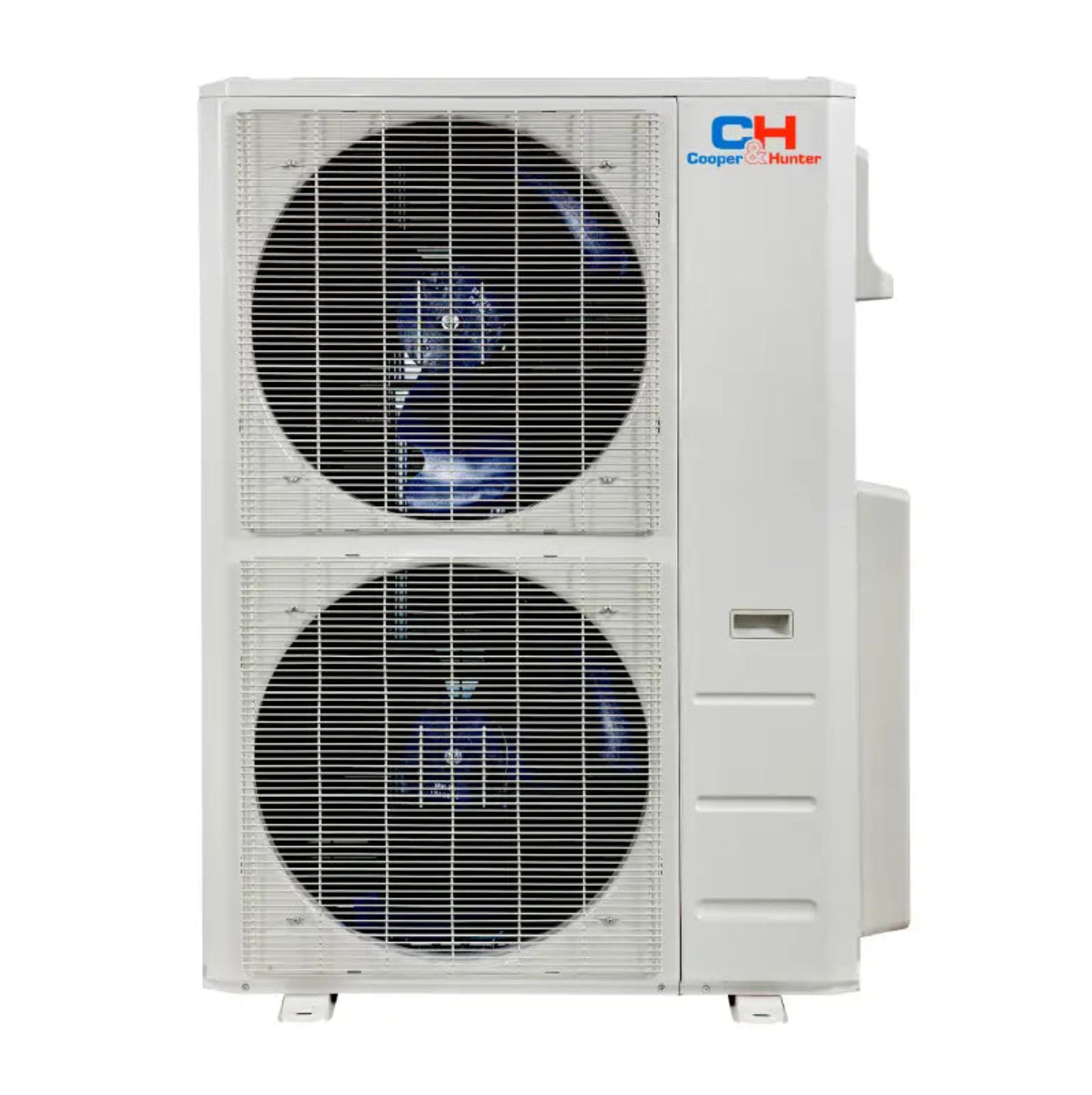

Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit
-

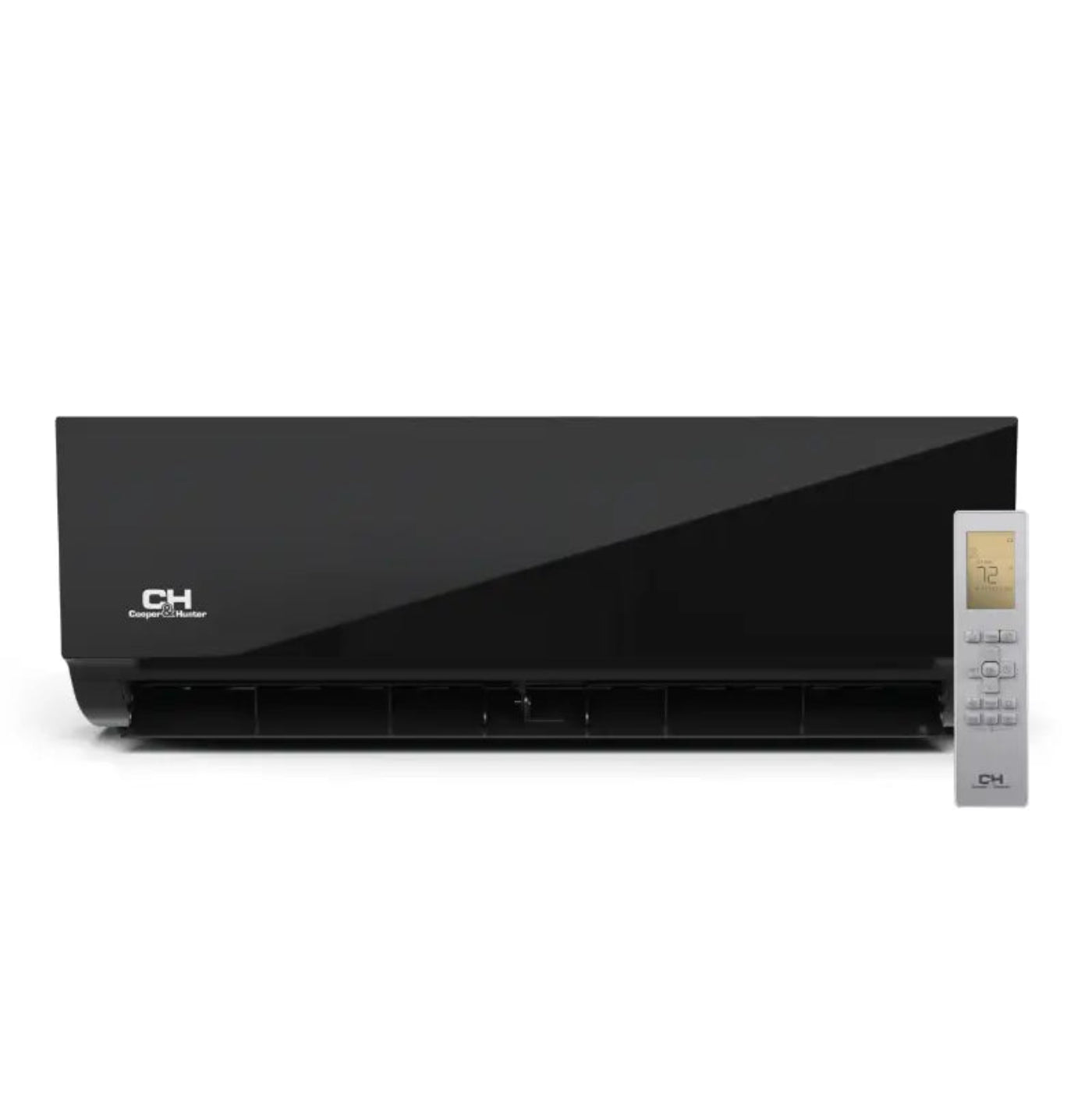

Up to 5 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
-
Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply |
208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) |
60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) |
60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F |
39,000 Btu/h |
| SEER2 / EER2 |
22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) |
9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse |
36 A / 40 A |
| Max. Connectable Indoor Units |
6 |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
237.88 / 270.28 lbs |
| Refrigerant Type / Charge |
R454B / 151.68 oz |
| Pre-charged Line Length |
150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor |
262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) |
49.2 ft / 33 ft |
| Operating Range — Cooling / Heating |
-13–122°F / -13–75°F outdoor ambient |
What our Experts Think
-
Maximum multi-room comfort: The Cooper & Hunter Olivia Midnight 60,000 BTU 5-Zone Mini Split system provides powerful heating and cooling for large homes, offices, and multi-room spaces with independent zone control.
-
Flexible 5-zone setup: Five wall-mounted indoor units (9K + 9K + 12K + 12K + 12K BTU) allow customized temperature settings in different rooms for improved comfort and efficiency.
-
High-capacity performance: The 60,000 BTU outdoor unit is designed to handle demanding whole-home climate needs while maintaining reliable operation.
-
Energy-conscious operation: Inverter technology helps adjust output based on demand, reducing unnecessary energy use while maintaining consistent temperatures.
-
Eco-friendly refrigerant: Uses R454B refrigerant, a next-generation refrigerant option with lower global warming potential compared with older refrigerants.
-
Smart comfort features: Olivia Midnight indoor units offer convenient features such as Follow Me mode, Sleep mode, timer functions, and optional smart control compatibility.
-
All-season solution: Provides both cooling and heat pump heating, making it a practical year-round HVAC upgrade without ductwork.
-
Expert recommendation: A strong choice for homeowners looking for efficient, customizable whole-home comfort with a sleek black wall-mounted design and multiple independent zones.
Q&A
Q: What is the cooling capacity of the Cooper & Hunter Midnight 5-Zone Mini Split System?
A: This system provides 60,000 BTU of cooling capacity with five wall-mounted indoor units for whole-home comfort.
Q: How many zones can this mini split control?
A: It features 5 independent zones with 9K+9K+12K+12K+12K BTU indoor units, allowing customized temperatures in different rooms.
Q: Does this system provide heating and cooling?
A: Yes, the ductless heat pump provides efficient heating and air conditioning throughout the year.
Q: What refrigerant does this Cooper & Hunter mini split use?
A: It uses R454B refrigerant, a next-generation refrigerant designed for improved environmental performance.
Q: What voltage is required for installation?
A: This system operates on 208-230V, single-phase, 60Hz electrical power.
Q: Is this a ductless mini split air conditioner?
A: Yes, the wall-mounted design provides efficient heating and cooling without the need for traditional ductwork.
Q: Can each room have its own temperature setting?
A: Yes, the 5-zone design allows individual comfort control for multiple rooms or areas.
Maintenance Tips
- Clean or replace air filters regularly to maintain strong airflow and indoor air quality.
- Keep indoor units, vents, and louvers free from dust and debris.
- Clean outdoor condenser coils periodically to improve cooling and heating efficiency.
- Keep the outdoor unit area clear of leaves, dirt, and other obstructions.
- Inspect refrigerant lines and connections for leaks or damage.
- Clean condensate drains to prevent clogs, leaks, and moisture buildup.
- Avoid blocking indoor units with furniture or curtains for better air circulation.
- Check system settings and operation modes for efficient performance.
- Schedule professional maintenance periodically to maximize efficiency and extend system life.
