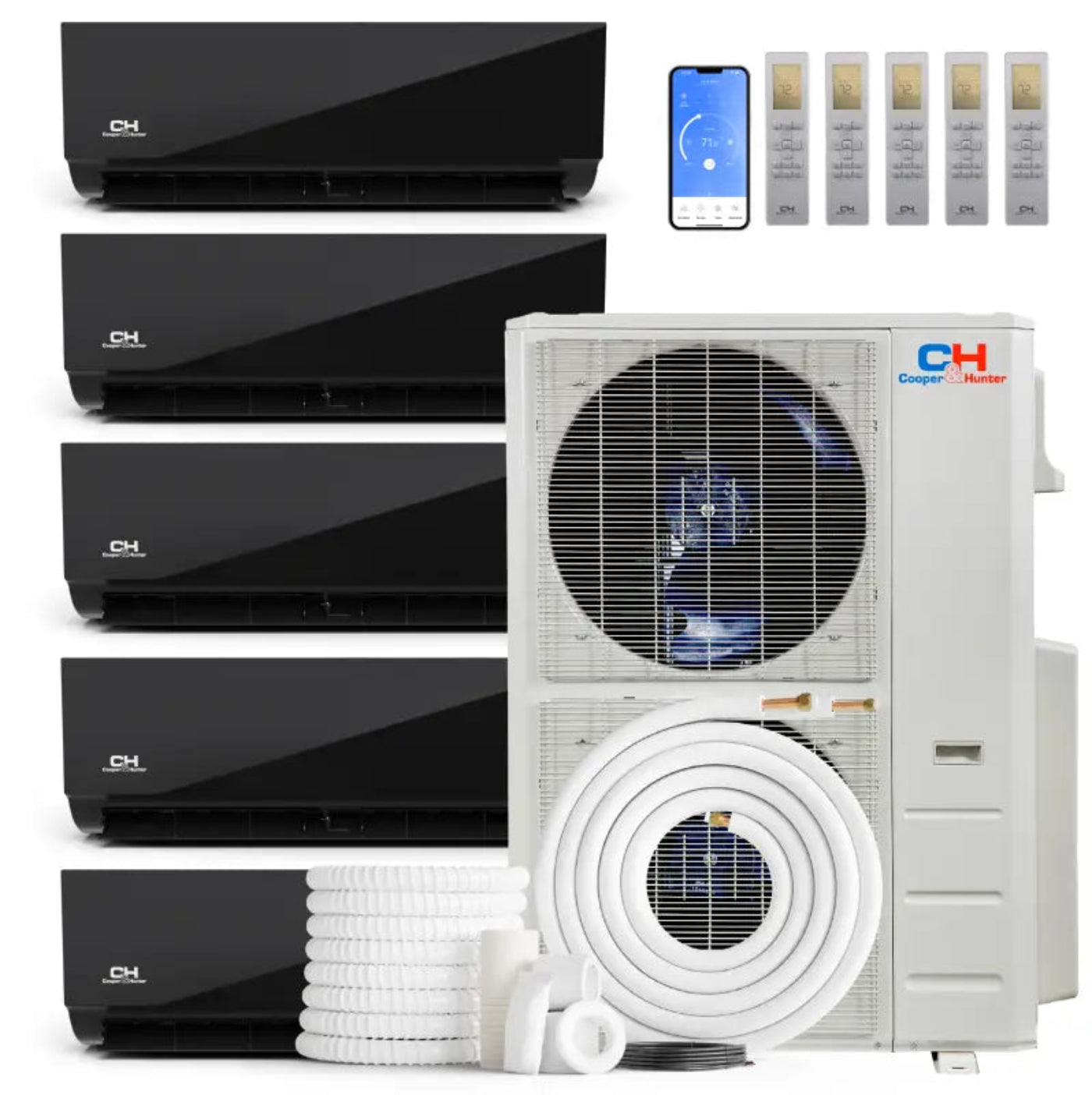

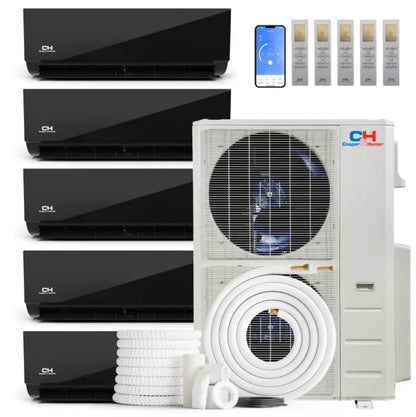

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+12K+18K+24K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB12MOLVWMRB18MOLVWMRB24MOLVWM-NO
The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.
Features
-
5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
-
60,000 BTU nominal system capacity across 5 zones, each on its own remote
-
22 SEER2 inverter efficiency — current R454B generation
-
Heat pump — heats down to -13°F outdoor ambient
-
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
-
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
-

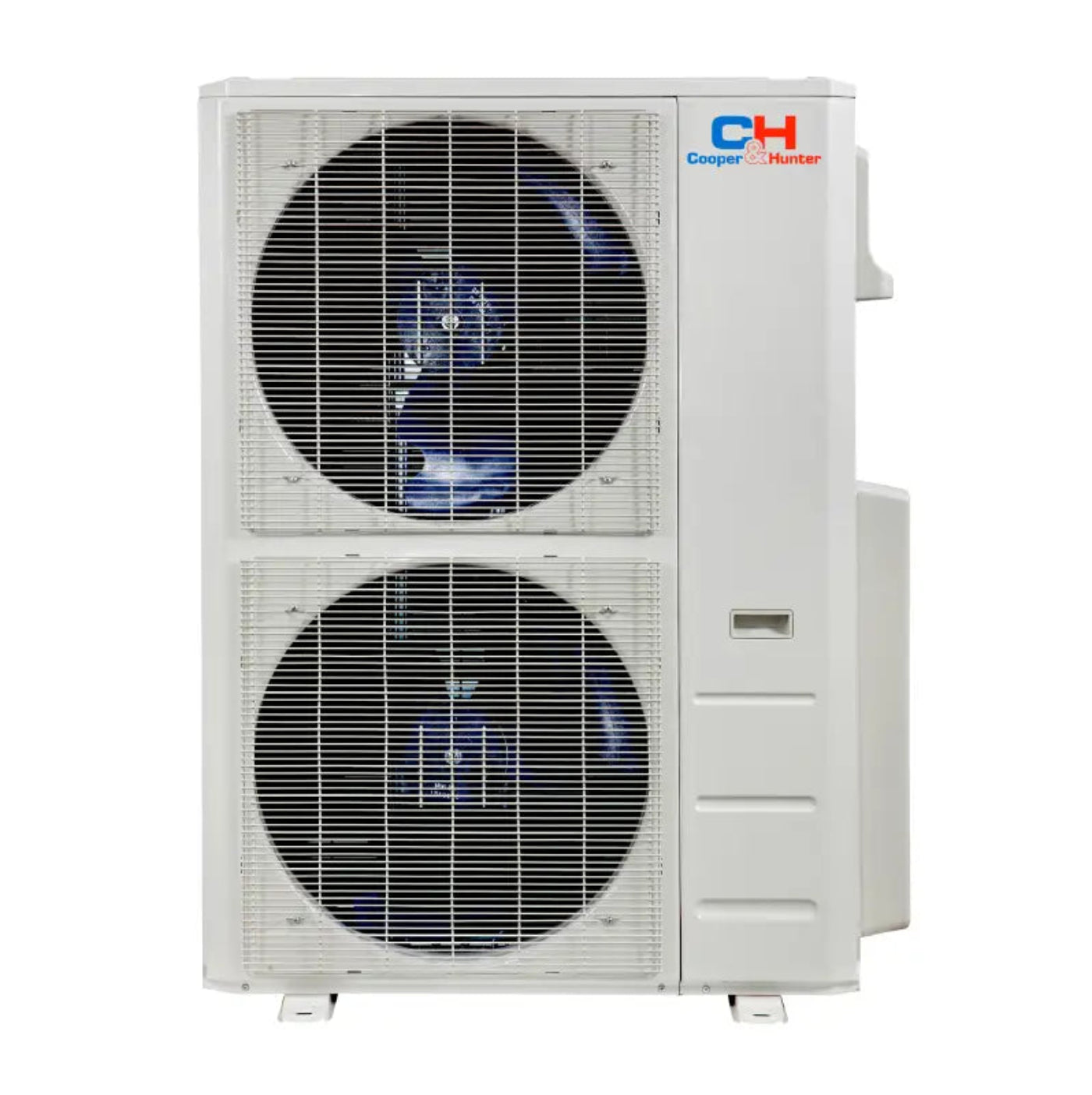

Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit
-

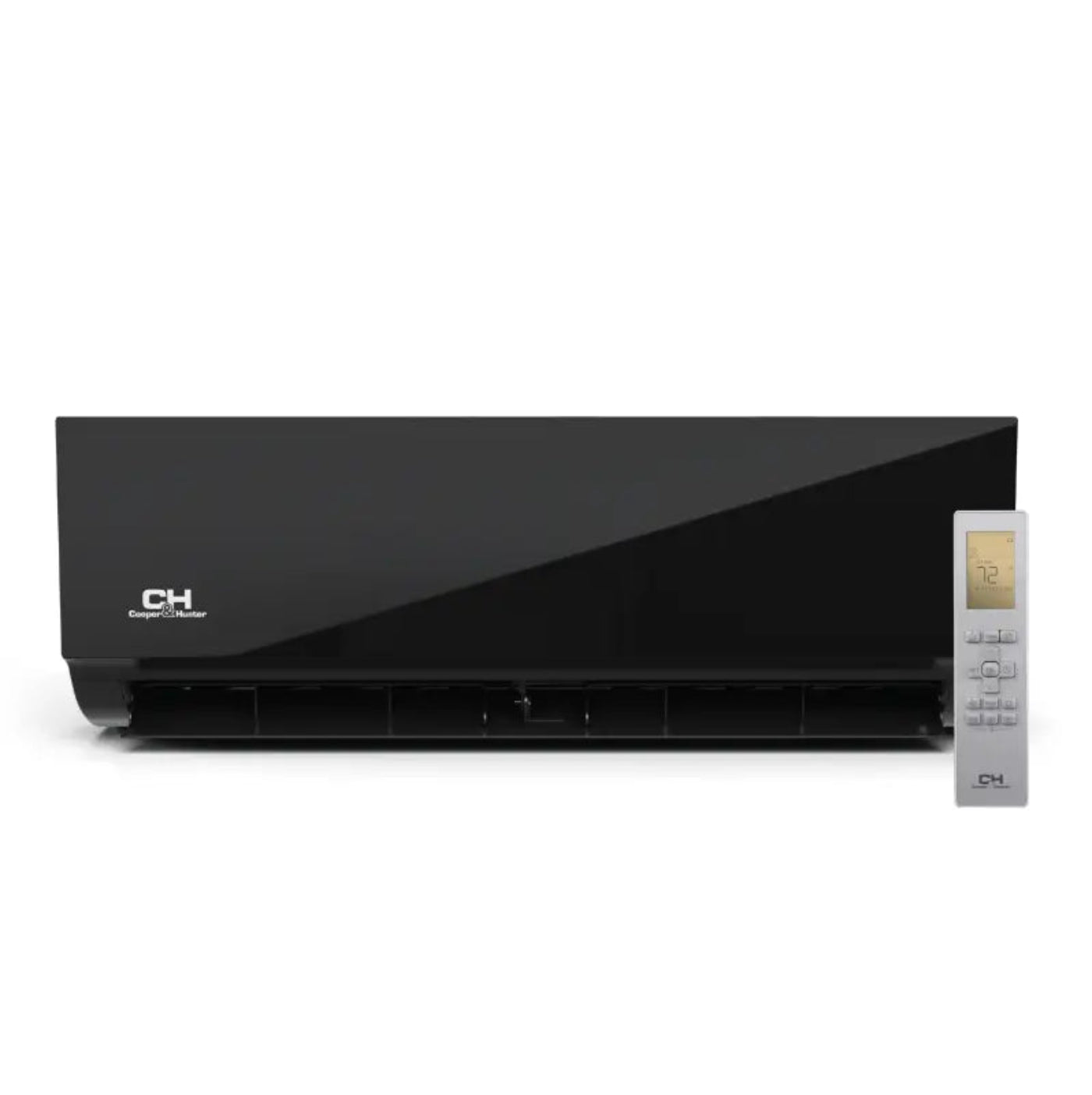

Up to 5 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
-
Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply |
208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) |
60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) |
60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F |
39,000 Btu/h |
| SEER2 / EER2 |
22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) |
9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse |
36 A / 40 A |
| Max. Connectable Indoor Units |
6 |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
237.88 / 270.28 lbs |
| Refrigerant Type / Charge |
R454B / 151.68 oz |
| Pre-charged Line Length |
150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor |
262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) |
49.2 ft / 33 ft |
| Operating Range — Cooling / Heating |
-13–122°F / -13–75°F outdoor ambient |
What our Experts Think
-
Powerful whole-home climate control: The Cooper & Hunter Olivia Midnight 60,000 BTU 5-Zone Mini Split system delivers robust cooling and heating performance for large homes, offices, and multi-room spaces.
-
Flexible 5-zone comfort: The 9K + 9K + 12K + 18K + 24K BTU configuration allows independent temperature control, helping maximize comfort in every room.
-
Smart energy efficiency: Inverter technology adjusts system output based on demand to help maintain consistent temperatures while improving energy savings.
-
Eco-friendly R454B refrigerant: Designed with next-generation R454B refrigerant for improved environmental performance and reduced global warming impact.
-
Optimized room coverage: The 24K BTU indoor unit is ideal for larger living areas, while the additional zones provide targeted comfort for bedrooms, offices, and smaller spaces.
-
Premium Midnight design: Sleek black wall-mounted units provide a modern appearance while delivering quiet, reliable operation and convenient controls.
-
Year-round versatility: Heat pump technology provides efficient cooling in summer and heating during colder months without requiring traditional ductwork.
-
Expert recommendation: A premium choice for homeowners seeking powerful, customizable, and energy-efficient multi-zone comfort with modern ductless technology.
Q&A
Q: What is the cooling capacity of the Cooper & Hunter Midnight 5-Zone Mini Split System?
A: This system delivers 60,000 BTU of cooling capacity for powerful multi-room heating and cooling performance.
Q: What indoor units are included in this 5-zone system?
A: It includes five wall-mounted indoor units in a 9K+9K+12K+18K+24K BTU configuration for flexible zone comfort.
Q: Does this mini split provide both heating and cooling?
A: Yes, it is a ductless inverter heat pump system designed for year-round air conditioning and heating.
Q: What refrigerant does this Cooper & Hunter mini split use?
A: It uses R454B refrigerant, a next-generation refrigerant designed for modern HVAC efficiency and reduced environmental impact.
Q: What voltage is required for this system?
A: This mini split operates on 208-230V, single-phase, 60Hz electrical power.
Q: Is this a ductless mini split air conditioner?
A: Yes, the wall-mounted ductless design provides efficient heating and cooling without traditional ductwork.
Q: Can each zone be controlled separately?
A: Yes, the 5-zone design allows independent temperature control for different rooms and spaces.
Q: Does this system use inverter technology?
A: Yes, inverter technology helps maintain consistent comfort by adjusting compressor output for efficient operation.
Maintenance Tips
- Clean or replace air filters regularly to maintain efficient airflow and indoor air quality.
- Keep indoor units, vents, and louvers free from dust and debris.
- Clean outdoor condenser coils periodically to improve cooling and heating performance.
- Keep the outdoor unit area clear of leaves, dirt, and other obstructions.
- Inspect refrigerant lines and connections for leaks or damage.
- Clean condensate drains regularly to prevent clogs and water buildup.
- Avoid blocking indoor units with furniture or curtains for proper air circulation.
- Check temperature settings and operating modes for energy-efficient performance.
- Schedule professional maintenance periodically to maximize efficiency and extend system life.
