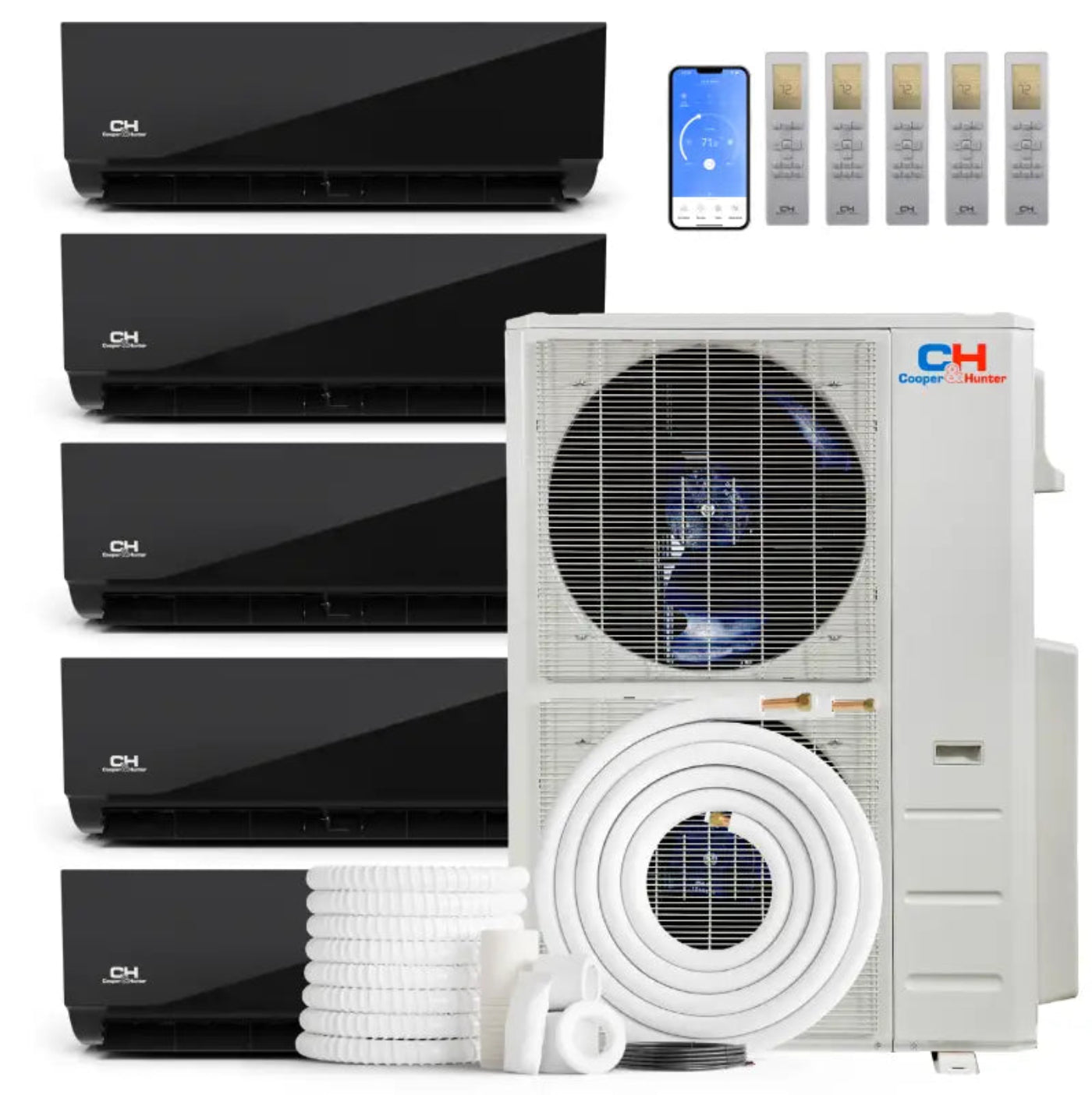

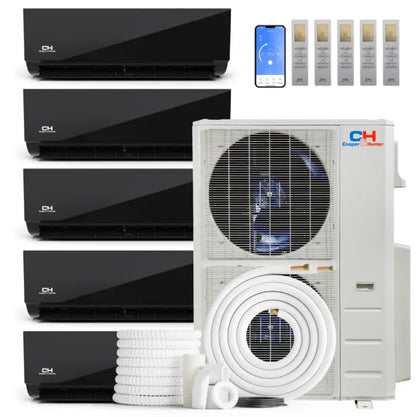

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+9K+12K+24K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB09MOLVWMRB12MOLVWMRB24MOLVWM-NO
The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.
Features
-
5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
-
60,000 BTU nominal system capacity across 5 zones, each on its own remote
-
22 SEER2 inverter efficiency — current R454B generation
-
Heat pump — heats down to -13°F outdoor ambient
-
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
-
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
-

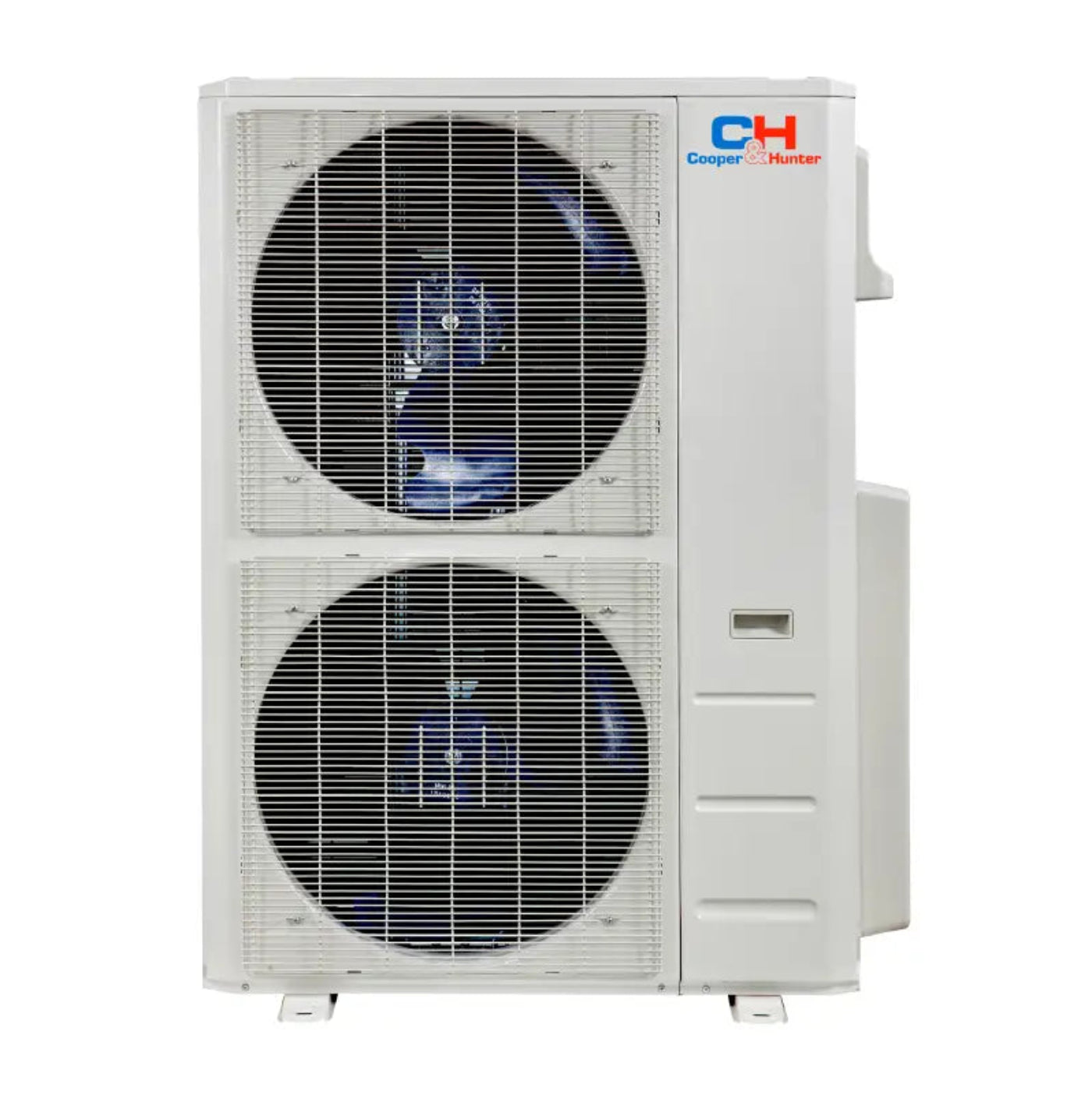

Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit
-

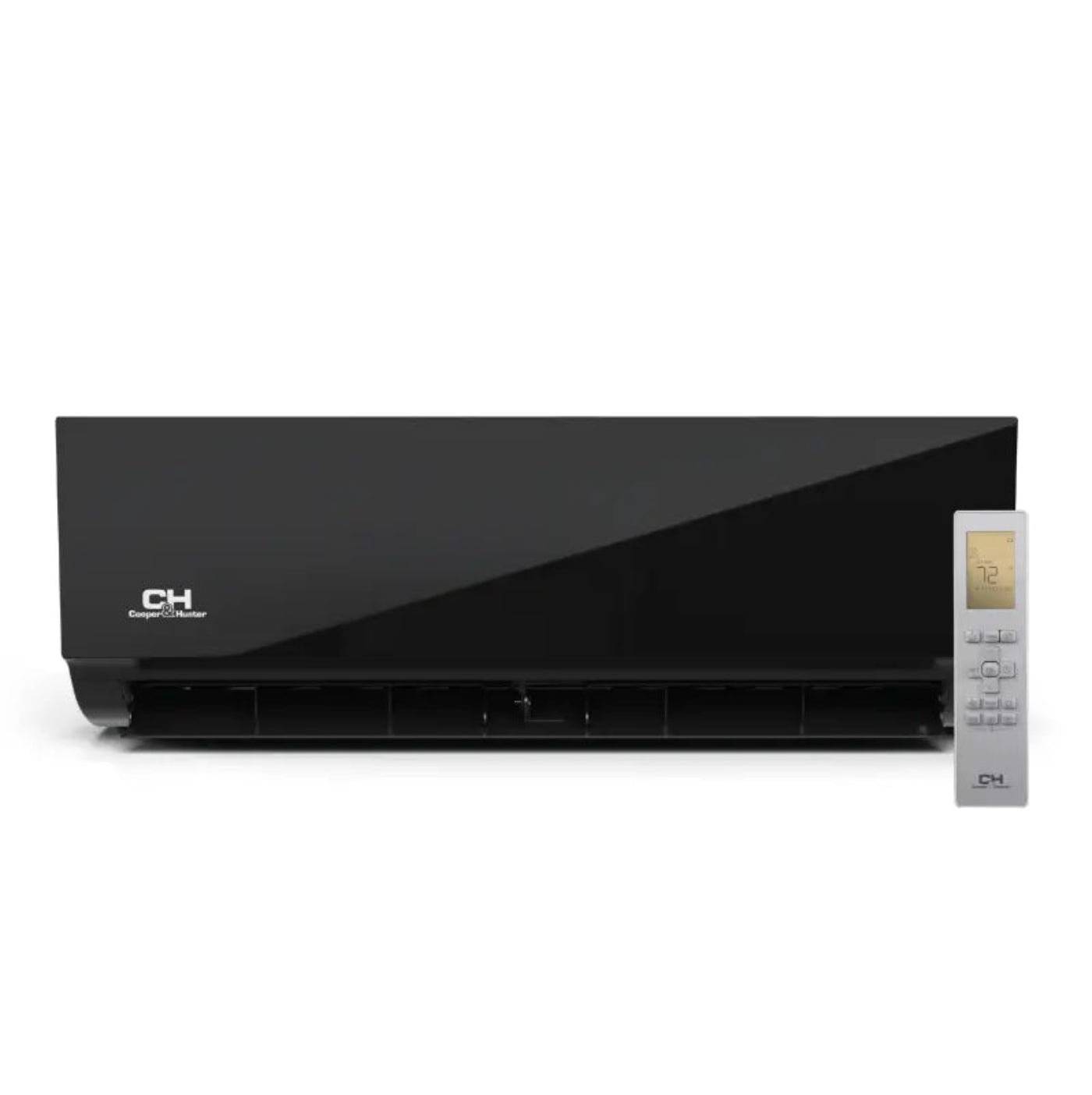

Up to 5 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
-
Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply |
208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) |
60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) |
60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F |
39,000 Btu/h |
| SEER2 / EER2 |
22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) |
9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse |
36 A / 40 A |
| Max. Connectable Indoor Units |
6 |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
237.88 / 270.28 lbs |
| Refrigerant Type / Charge |
R454B / 151.68 oz |
| Pre-charged Line Length |
150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor |
262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) |
49.2 ft / 33 ft |
| Operating Range — Cooling / Heating |
-13–122°F / -13–75°F outdoor ambient |
What our Experts Think
-
Whole-Home Climate Control – This 60,000 BTU 5-zone system (9K + 9K + 9K + 12K + 24K) provides customized heating and cooling for multiple rooms with independent zone comfort.
-
Energy-Efficient Inverter Technology – Variable-speed inverter operation helps maintain stable temperatures while improving efficiency and reducing unnecessary energy use.
-
Modern R454B Refrigerant – Uses advanced R454B refrigerant technology for efficient operation with improved environmental performance.
-
Flexible Multi-Zone Design – The combination of smaller 9K zones and a powerful 24K indoor unit makes it ideal for bedrooms, offices, living areas, and larger spaces.
-
Reliable Heating & Cooling – Heat pump functionality delivers year-round comfort with cooling and heating capability in a wide range of outdoor temperatures.
-
Expert Verdict – A strong choice for larger homes and multi-room applications, offering powerful performance, personalized comfort, and efficient operation from one outdoor system.
Q&A
Q: What is the total capacity of this mini split system?
A: This 60,000 BTU multi-zone system includes five indoor units (9K+9K+9K+12K+24K) to provide flexible heating and cooling for multiple rooms.
Q: Can each zone be controlled separately?
A: Yes. Each indoor unit offers independent temperature control, allowing personalized comfort throughout your space.
Q: Does this system provide heating and cooling?
A: Yes. The heat pump system provides efficient cooling and heating for year-round comfort.
Q: What refrigerant does this system use?
A: It uses R454B refrigerant, designed for improved efficiency and reduced environmental impact.
Q: Is this system energy efficient?
A: Yes. Inverter technology adjusts compressor output based on demand to help maintain comfort while improving energy savings.
Maintenance Tips
-
Clean the indoor unit air filters every 2–4 weeks to maintain efficient airflow, cooling, and heating performance.
-
Keep all indoor units and the outdoor condenser clear of dust, leaves, and debris to support proper airflow and system efficiency.
-
Wipe indoor unit panels and louvers with a soft, damp cloth and avoid abrasive cleaners to protect the finish.
-
Inspect condensate drain lines regularly to help prevent clogs, leaks, and moisture issues.
-
Schedule annual professional maintenance to check refrigerant levels, electrical connections, and overall system operation.
