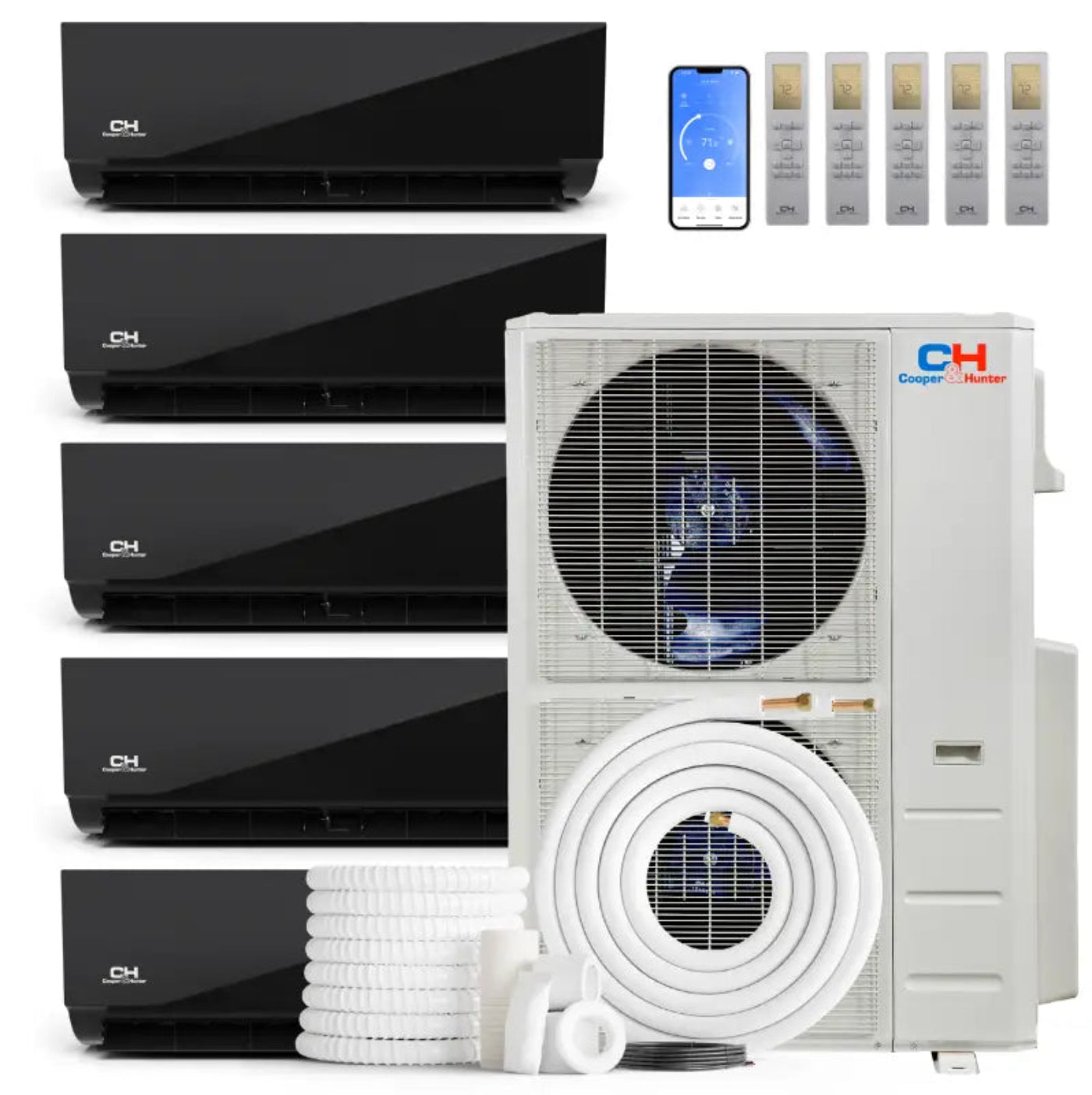

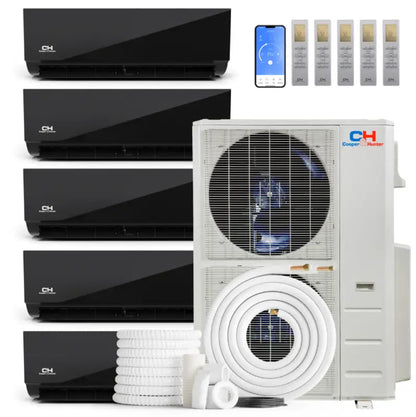

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+9K+9K+24K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB09MOLVWMRB09MOLVWMRB24MOLVWM-NO
The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.
Features
-
5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
-
60,000 BTU nominal system capacity across 5 zones, each on its own remote
-
22 SEER2 inverter efficiency — current R454B generation
-
Heat pump — heats down to -13°F outdoor ambient
-
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
-
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
-

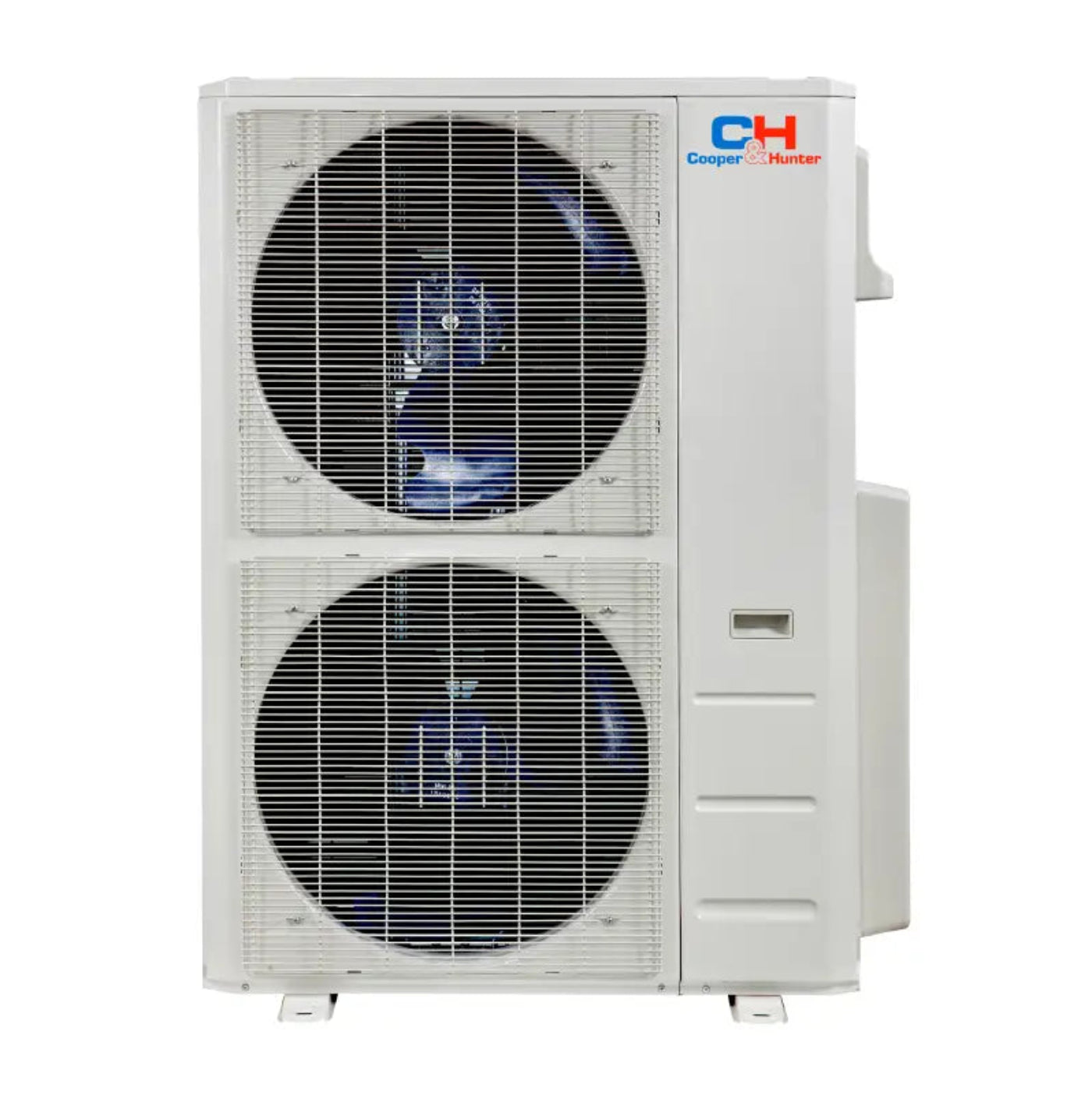

Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit
-

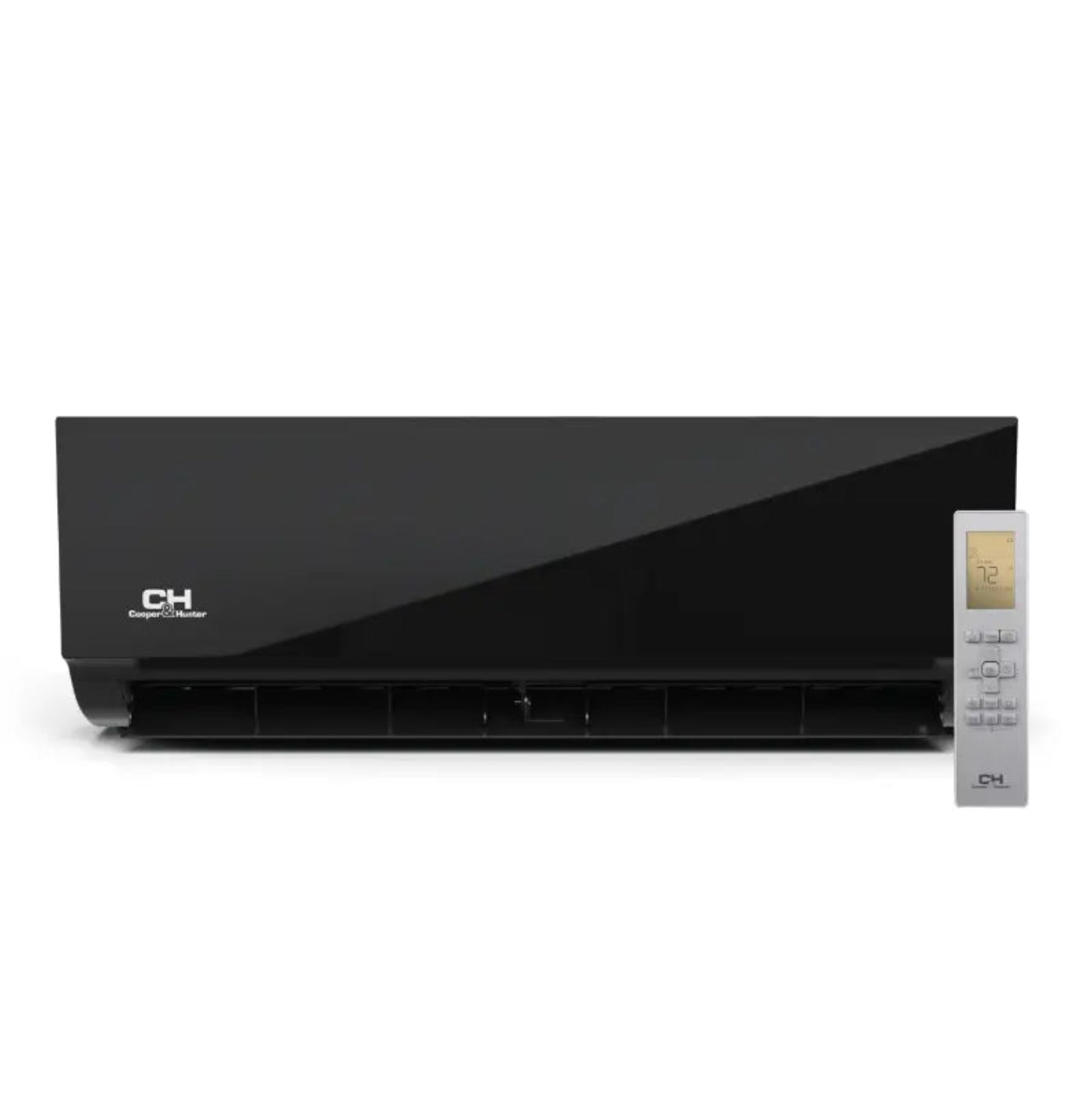

Up to 5 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
-
Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply |
208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) |
60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) |
60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F |
39,000 Btu/h |
| SEER2 / EER2 |
22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) |
9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse |
36 A / 40 A |
| Max. Connectable Indoor Units |
6 |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
237.88 / 270.28 lbs |
| Refrigerant Type / Charge |
R454B / 151.68 oz |
| Pre-charged Line Length |
150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor |
262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) |
49.2 ft / 33 ft |
| Operating Range — Cooling / Heating |
-13–122°F / -13–75°F outdoor ambient |
What our Experts Think
-
Whole-home comfort solution: The Cooper & Hunter 60,000 BTU 6-Zone Concealed Duct Mini Split system delivers powerful heating and cooling for large homes, offices, and multi-room applications.
-
Flexible 6-zone control: The 6K + 6K + 6K + 6K + 9K + 9K BTU configuration provides customized comfort in multiple areas with independent zone management.
-
Hidden duct installation: Concealed duct indoor units provide a clean, built-in appearance while delivering conditioned air through discreet ductwork for a seamless interior design.
-
High-capacity inverter performance: The 60,000 BTU outdoor unit adjusts output based on demand to maintain comfort efficiently while helping reduce energy consumption.
-
Eco-friendly R454B refrigerant: Uses advanced R454B refrigerant technology designed for improved environmental performance with lower global warming potential.
-
Quiet and efficient operation: Concealed indoor units help minimize visible equipment while providing comfortable airflow and reliable year-round performance.
-
Versatile heating and cooling: Heat pump functionality offers both summer cooling and winter heating from one efficient ductless system.
-
Expert recommendation: An excellent choice for homeowners, builders, and commercial spaces seeking powerful multi-zone comfort with a discreet, premium HVAC installation.
Q&A
Q: What is the cooling capacity of the Cooper & Hunter 6-Zone Concealed Duct Mini Split System?
A: This system delivers 60,000 BTU of cooling capacity for efficient multi-room heating and cooling.
Q: How many zones does this mini split system support?
A: It supports 6 independent zones, allowing customized comfort control across multiple rooms.
Q: What indoor units are included in this package?
A: This configuration includes six concealed duct units: 6K+6K+6K+6K+9K+9K BTU for flexible zoning.
Q: Does this system provide heating and cooling?
A: Yes, it is a ductless mini split heat pump designed for year-round air conditioning and heating.
Q: What refrigerant does this Cooper & Hunter system use?
A: It uses R454B refrigerant, a next-generation lower-GWP refrigerant for modern HVAC applications.
Q: What voltage is required for installation?
A: This system operates on 208-230V, single-phase, 60Hz power.
Maintenance Tips
- Clean or replace air filters regularly to maintain efficient airflow and indoor air quality.
- Inspect and clean ductwork periodically to reduce dust buildup and improve air distribution.
- Keep return air grilles and supply vents clear of obstructions.
- Clean outdoor condenser coils regularly to support cooling and heating efficiency.
- Keep the outdoor unit area free from leaves, dirt, and debris.
- Inspect refrigerant lines and connections for leaks or damage.
- Check condensate drain lines to prevent clogs, leaks, and moisture issues.
- Monitor airflow and temperature performance across all zones.
- Schedule professional maintenance periodically to improve reliability and extend system life.
