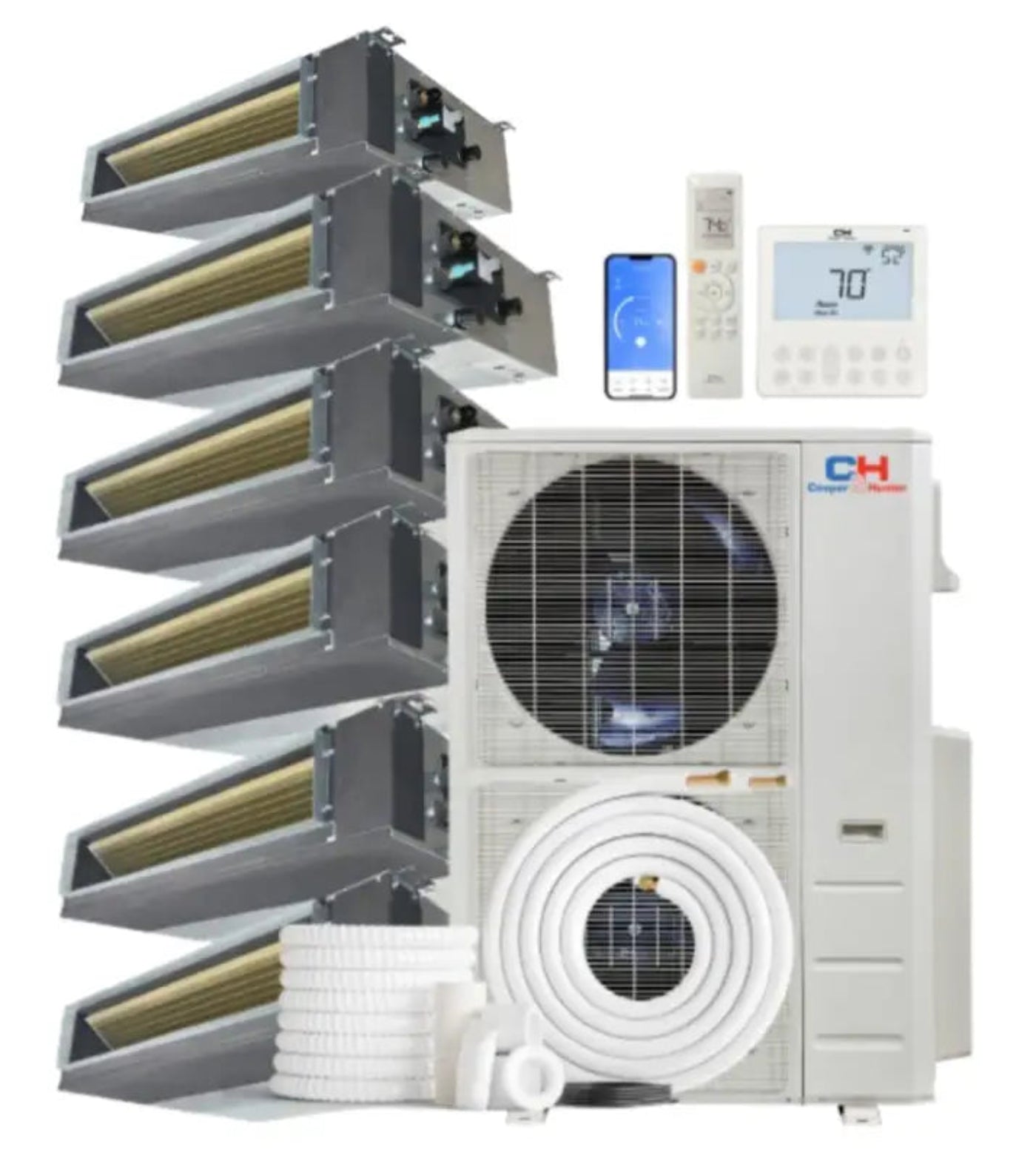

Cooper & Hunter 6 Zone 48,000 BTU Concealed Duct Mini Split AC R454B 9K+9K+9K+9K+12K+12K - CH-R48MES-230VORH09MDTRH09MDTRH09MDTRH09MDTRH12MDTRH12MDT-NO
The Cooper & Hunter 6-Zone Mini Split System features a 48,000 BTU capacity, 24 SEER2 efficiency, and built-in Wi-Fi control for seamless temperature management across six zones. It utilizes R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in colder climates.
Features
-
6-zone system — the CH-R48MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
-
48,000 BTU nominal system capacity across 6 zones, each on its own remote
-
24 SEER2 inverter efficiency — current R454B generation
-
Heat pump — heats down to -13°F outdoor ambient
-
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
-
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
-

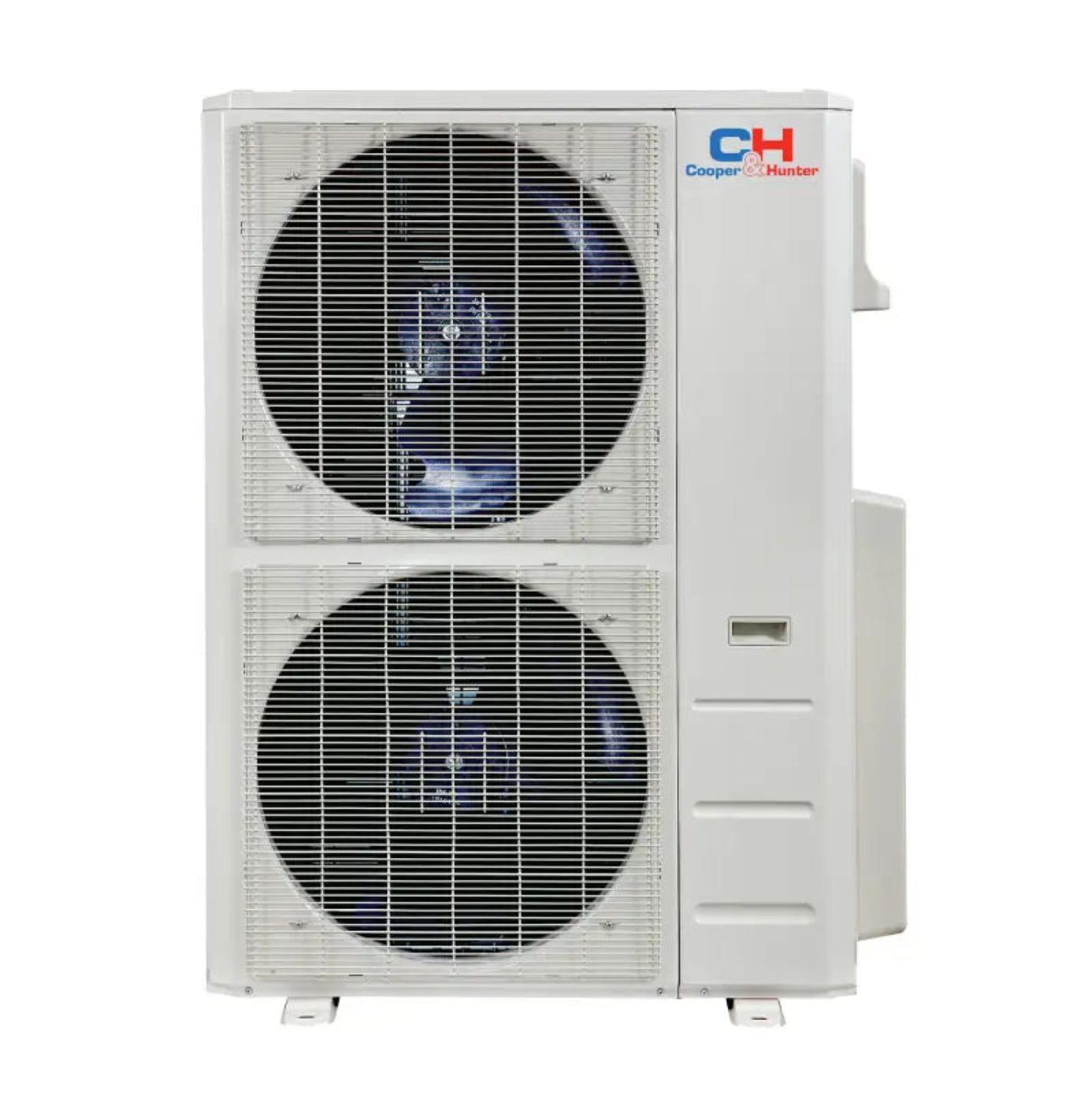

Outdoor unit (condenser): CH-R48MES-230VO — 48000 BTU R454B multi-zone outdoor unit
-

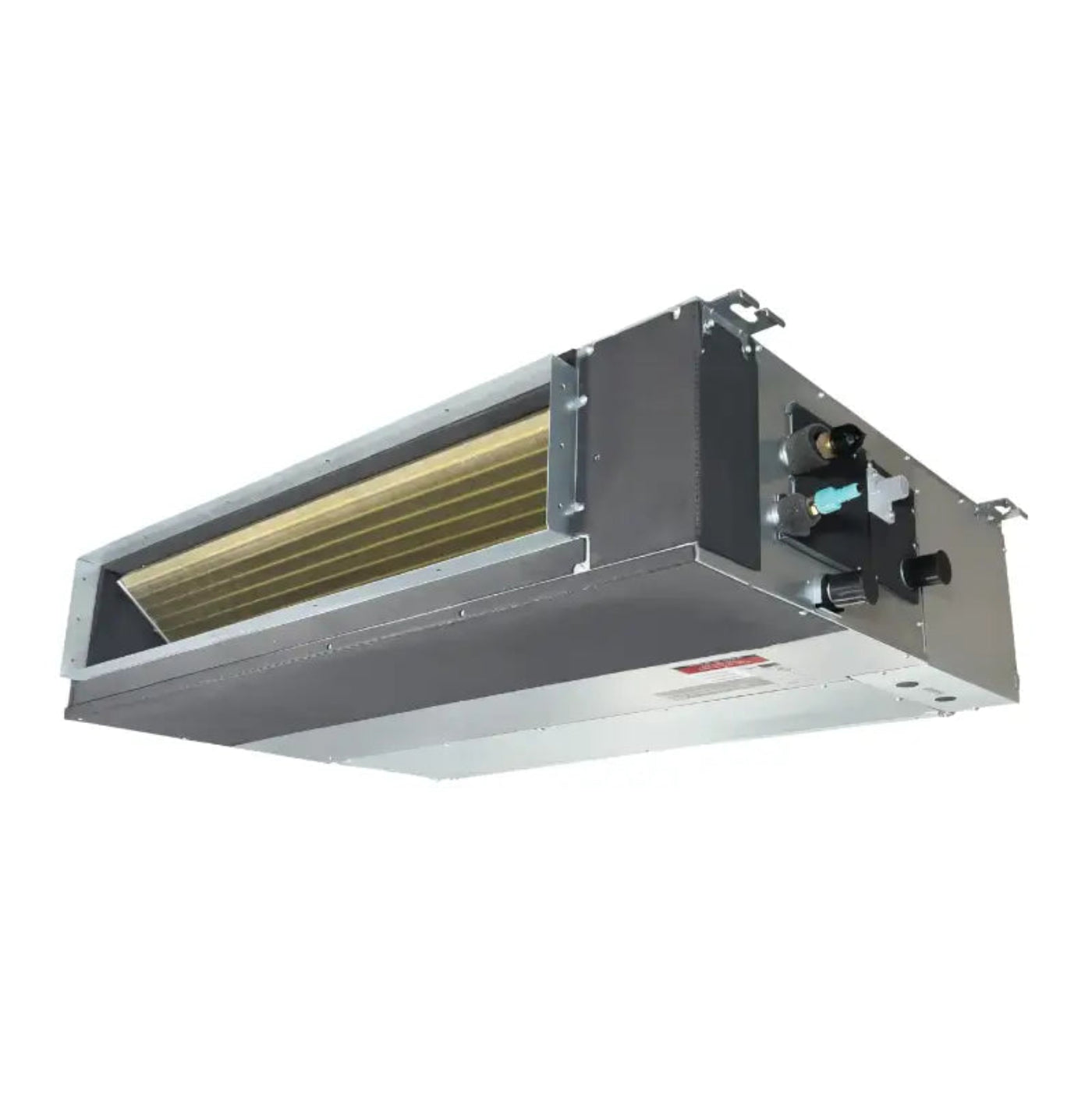

Up to 6 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
-
Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply |
208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) |
60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) |
60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F |
39,000 Btu/h |
| SEER2 / EER2 |
22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) |
9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse |
36 A / 40 A |
| Max. Connectable Indoor Units |
6 |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
237.88 / 270.28 lbs |
| Refrigerant Type / Charge |
R454B / 151.68 oz |
| Pre-charged Line Length |
150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor |
262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) |
49.2 ft / 33 ft |
| Operating Range — Cooling / Heating |
-13–122°F / -13–75°F outdoor ambient |
What our Experts Think
-
Flexible 5-zone comfort: The Cooper & Hunter Hyper 36,000 BTU 5-Zone Mini Split system provides efficient heating and cooling across multiple rooms with independent zone control.
-
Smart zone configuration: The 6K + 6K + 6K + 6K + 18K BTU setup combines compact zones for smaller rooms with a powerful 18K unit for larger living spaces.
-
Space-saving one-way cassette design: Ceiling-mounted one-way cassette indoor units deliver discreet installation and even airflow while maintaining a clean interior appearance.
-
Advanced inverter performance: Hyper series technology helps adjust output based on demand, improving temperature stability and energy efficiency.
-
Eco-friendly R454B refrigerant: Uses next-generation R454B refrigerant designed for improved environmental performance with lower global warming potential.
-
All-season heating and cooling: Heat pump functionality provides dependable comfort throughout the year without requiring traditional ductwork.
-
Ideal for modern properties: A great solution for renovations, new construction, offices, and multi-room spaces needing flexible climate control.
-
Expert recommendation: A premium choice for customers seeking discreet ceiling installation, multiple comfort zones, and efficient ductless HVAC performance.
Q&A
Q: What is the cooling capacity of the Cooper & Hunter Hyper 5-Zone Mini Split System?
A: This system delivers 36,000 BTU of cooling capacity with Hyper Heat technology for efficient multi-room comfort.
Q: How many zones does this mini split system support?
A: It supports 5 independent zones, allowing customized temperature control in multiple rooms or areas.
Q: What indoor units are included in this package?
A: This configuration includes five one-way cassette indoor units: 6K+6K+6K+6K+18K BTU for flexible zone comfort.
Q: Does this system provide both heating and cooling?
A: Yes, it is a ductless heat pump system designed for year-round air conditioning and heating performance.
Q: What refrigerant does this Cooper & Hunter mini split use?
A: It uses R454B refrigerant, a modern lower-GWP refrigerant designed for improved environmental performance.
Q: What voltage is required for installation?
A: This system operates on 208-230V, single-phase, 60Hz electrical power.
Q: Is this a ductless one-way cassette mini split system?
A: Yes, the ceiling cassette design provides discreet installation while delivering efficient zoned heating and cooling without traditional ductwork.
