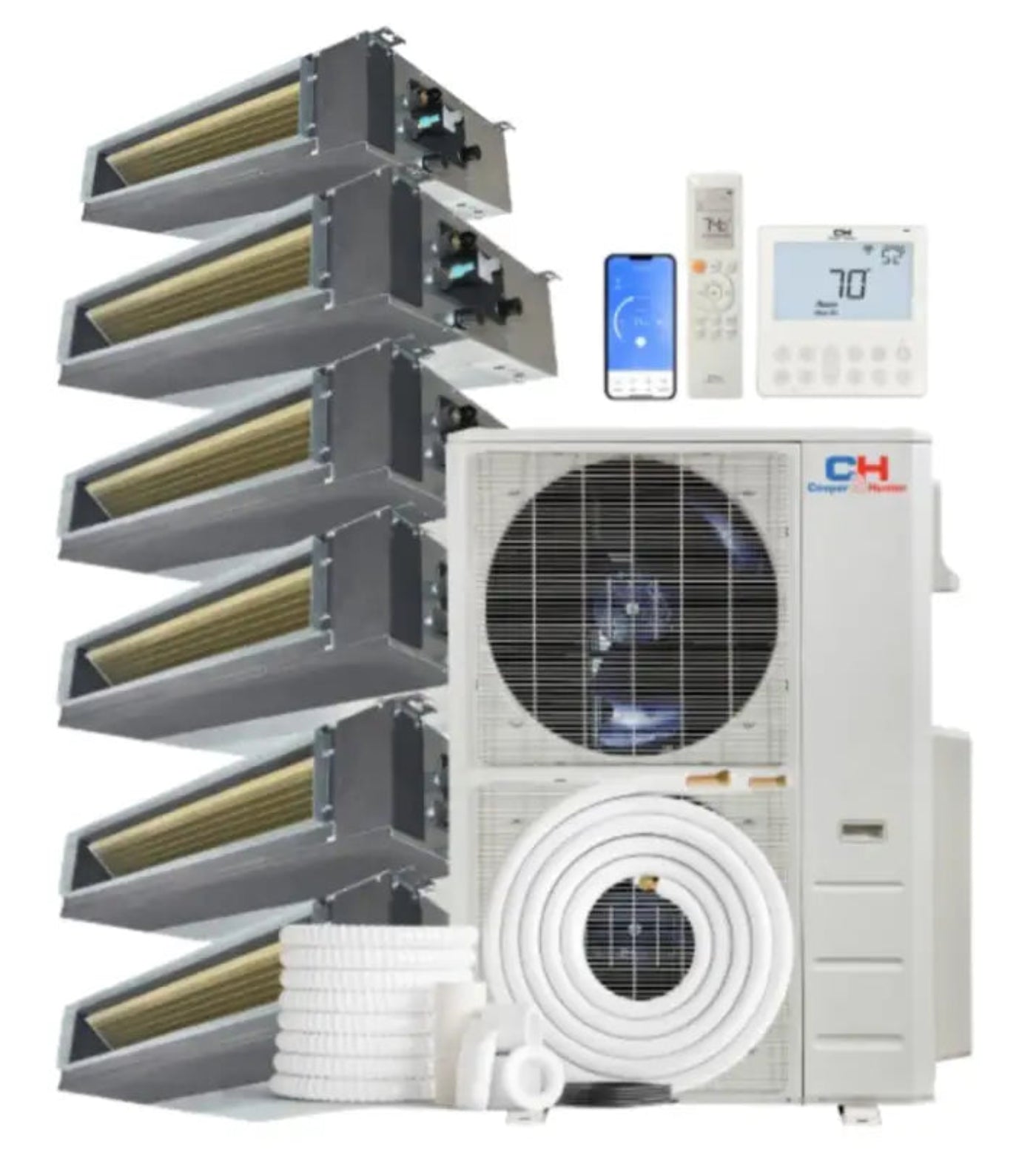

Cooper & Hunter 6 Zone 60,000 BTU Concealed Duct Mini Split AC R454B 6K+6K+6K+6K+9K+9K - CH-R60MES-230VORH06MDTRH06MDTRH06MDTRH06MDTRH09MDTRH09MDT-NO
The Cooper & Hunter 6-Zone Mini Split System features a 60,000 BTU capacity, 22 SEER2 efficiency, and built-in Wi-Fi control for seamless temperature management across six zones. It includes the CH-R60MES-230VO outdoor unit, uses R454B refrigerant, and operates effectively in heating conditions as low as -13°F.
Features
-
6-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
-
60,000 BTU nominal system capacity across 6 zones, each on its own remote
-
22 SEER2 inverter efficiency — current R454B generation
-
Heat pump — heats down to -13°F outdoor ambient
-
R454B refrigerant, factory pre-charged; built-in Wi-Fi control
-
Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
-

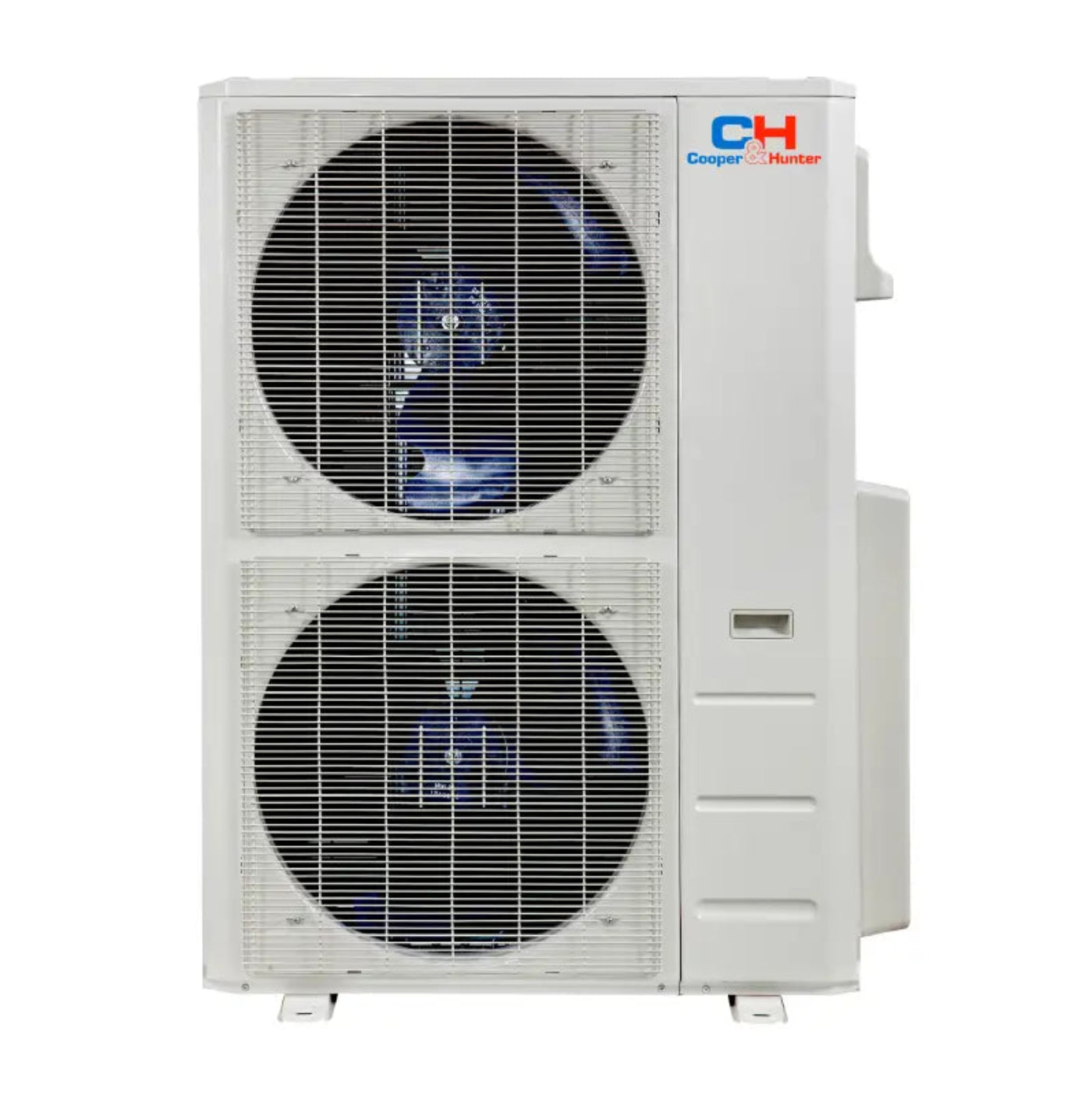

Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit
-

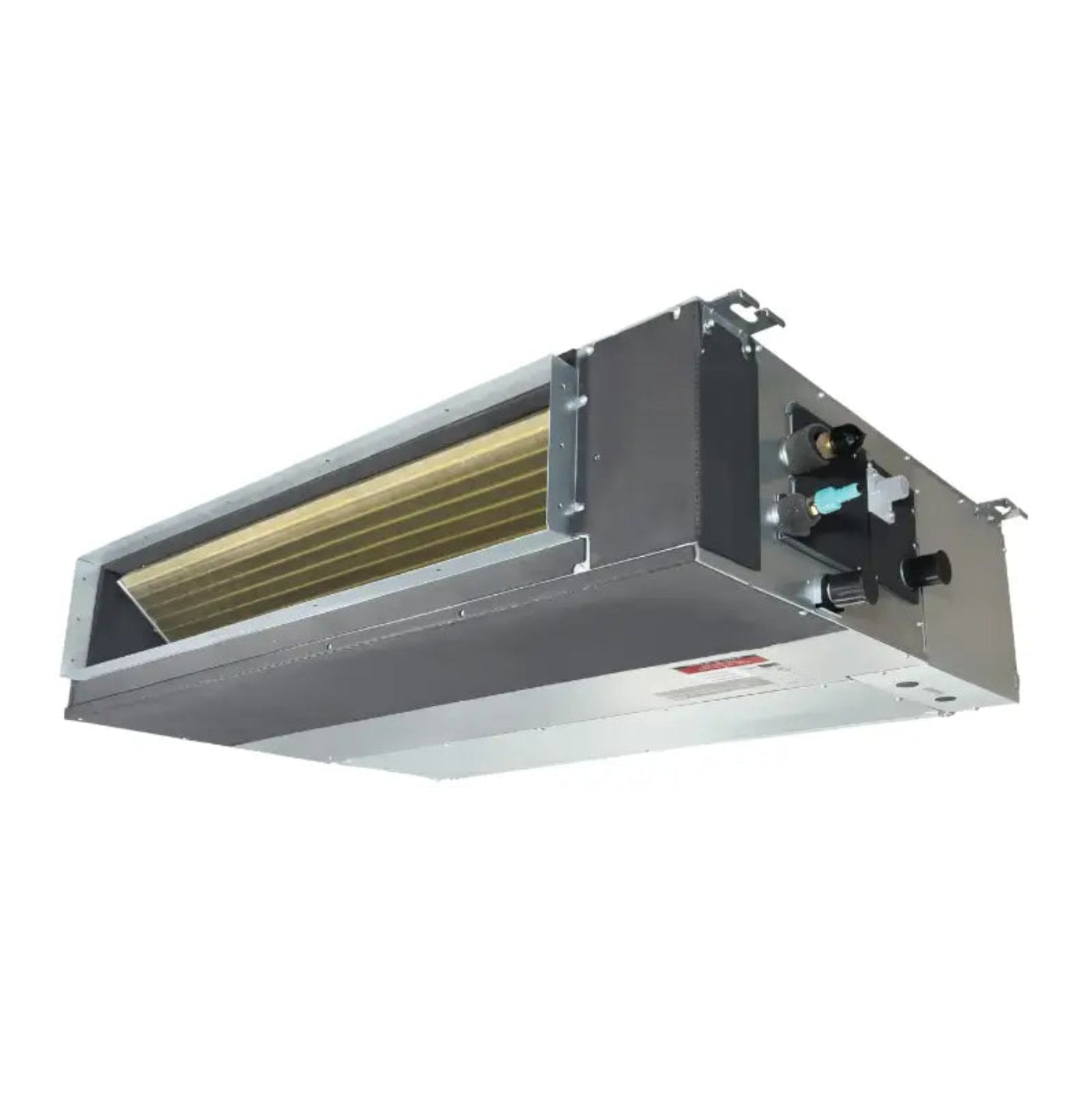

Up to 6 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
-
Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply |
208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) |
60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) |
60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F |
39,000 Btu/h |
| SEER2 / EER2 |
22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) |
9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse |
36 A / 40 A |
| Max. Connectable Indoor Units |
6 |
| Outdoor Noise Level |
65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
237.88 / 270.28 lbs |
| Refrigerant Type / Charge |
R454B / 151.68 oz |
| Pre-charged Line Length |
150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor |
262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) |
49.2 ft / 33 ft |
| Operating Range — Cooling / Heating |
-13–122°F / -13–75°F outdoor ambient |
What our Experts Think
-
Perfect for Multi-Room Comfort – This 60,000 BTU system independently heats and cools five rooms (9K + 9K + 9K + 9K + 24K), giving each zone its own temperature control for maximum comfort.
-
High-Efficiency Inverter Technology – Variable-speed inverter technology automatically adjusts output to maintain consistent temperatures while reducing energy consumption.
-
Eco-Friendly R454B Refrigerant – Uses next-generation R454B refrigerant for efficient performance with a lower environmental impact than older refrigerants.
-
Reliable Year-Round Heating & Cooling – Heat pump technology delivers dependable comfort through every season, including efficient heating in low outdoor temperatures.
-
Flexible Multi-Zone Design – Supports up to 6 indoor units, making it an excellent solution for large homes, additions, and multi-room renovations.
-
Expert Verdict – A premium whole-home mini split system that combines outstanding efficiency, flexible room-by-room climate control, and powerful performance for larger living spaces.
Q&A
Q: What is the total capacity of this mini split system?
A: This 60,000 BTU multi-zone system includes five indoor units (9K+9K+9K+9K+24K) for efficient heating and cooling across multiple rooms.
Q: Can each room have its own temperature setting?
A: Yes. Each indoor unit operates independently, allowing customized temperature control in every zone.
Q: Does this system provide both heating and cooling?
A: Yes. The heat pump system delivers reliable year-round cooling and heating.
Q: What refrigerant does this system use?
A: It uses R454B refrigerant, offering improved energy efficiency and a lower environmental impact.
Q: Is this system energy efficient?
A: Yes. Inverter technology automatically adjusts compressor speed to maintain comfort while reducing energy consumption.
Maintenance Tips
-
Clean the washable air filters every 2–4 weeks to maintain optimal airflow, heating, and cooling efficiency.
-
Keep the indoor units and outdoor condenser free of dust, leaves, and debris to ensure reliable performance and proper airflow.
-
Wipe the indoor units with a soft, damp cloth and avoid abrasive cleaners or harsh chemicals that may damage the finish.
-
Inspect condensate drain lines regularly to prevent clogs, leaks, and water damage.
-
Schedule annual professional maintenance to inspect refrigerant levels, electrical connections, and overall system performance for maximum efficiency.
