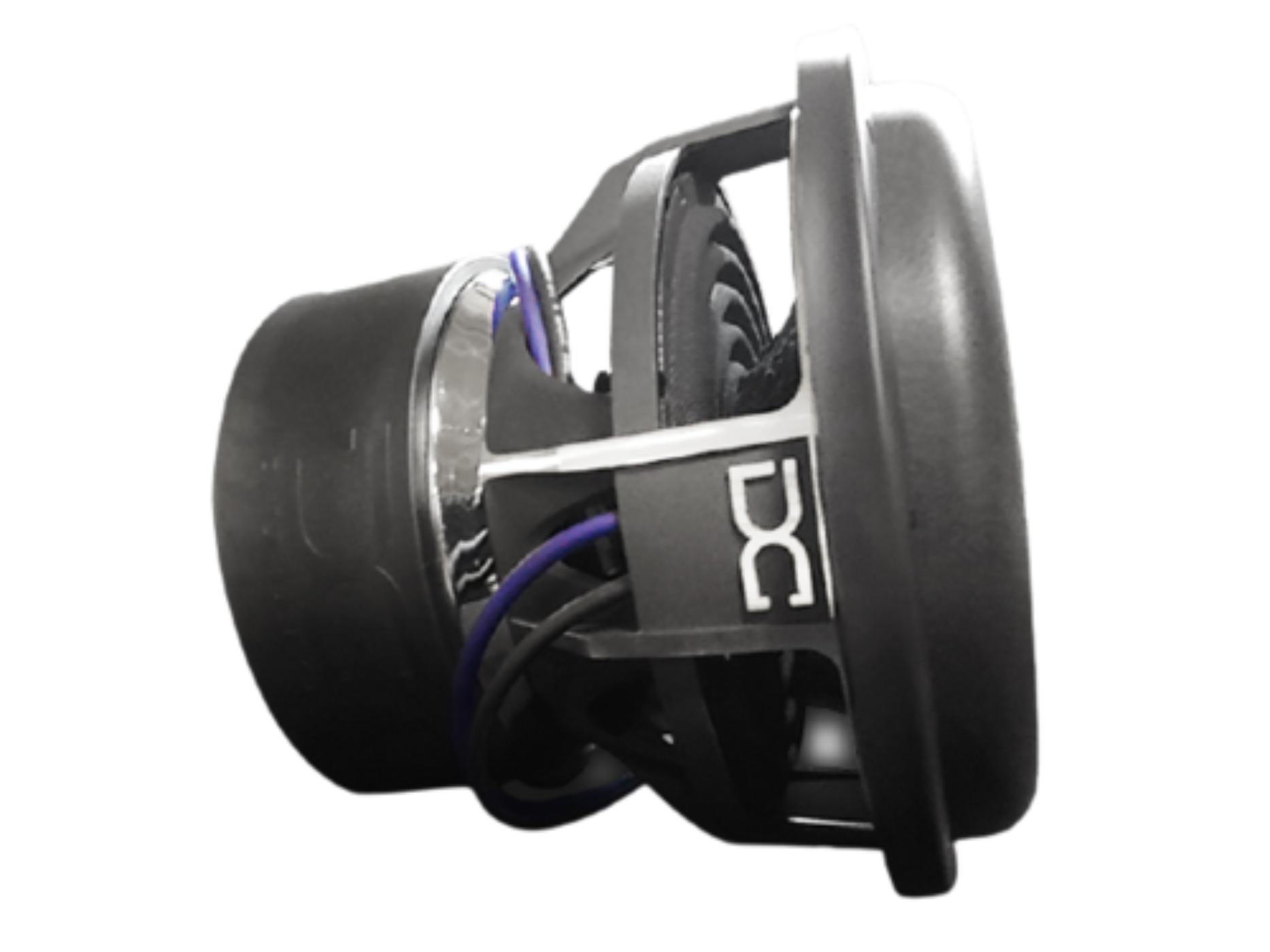

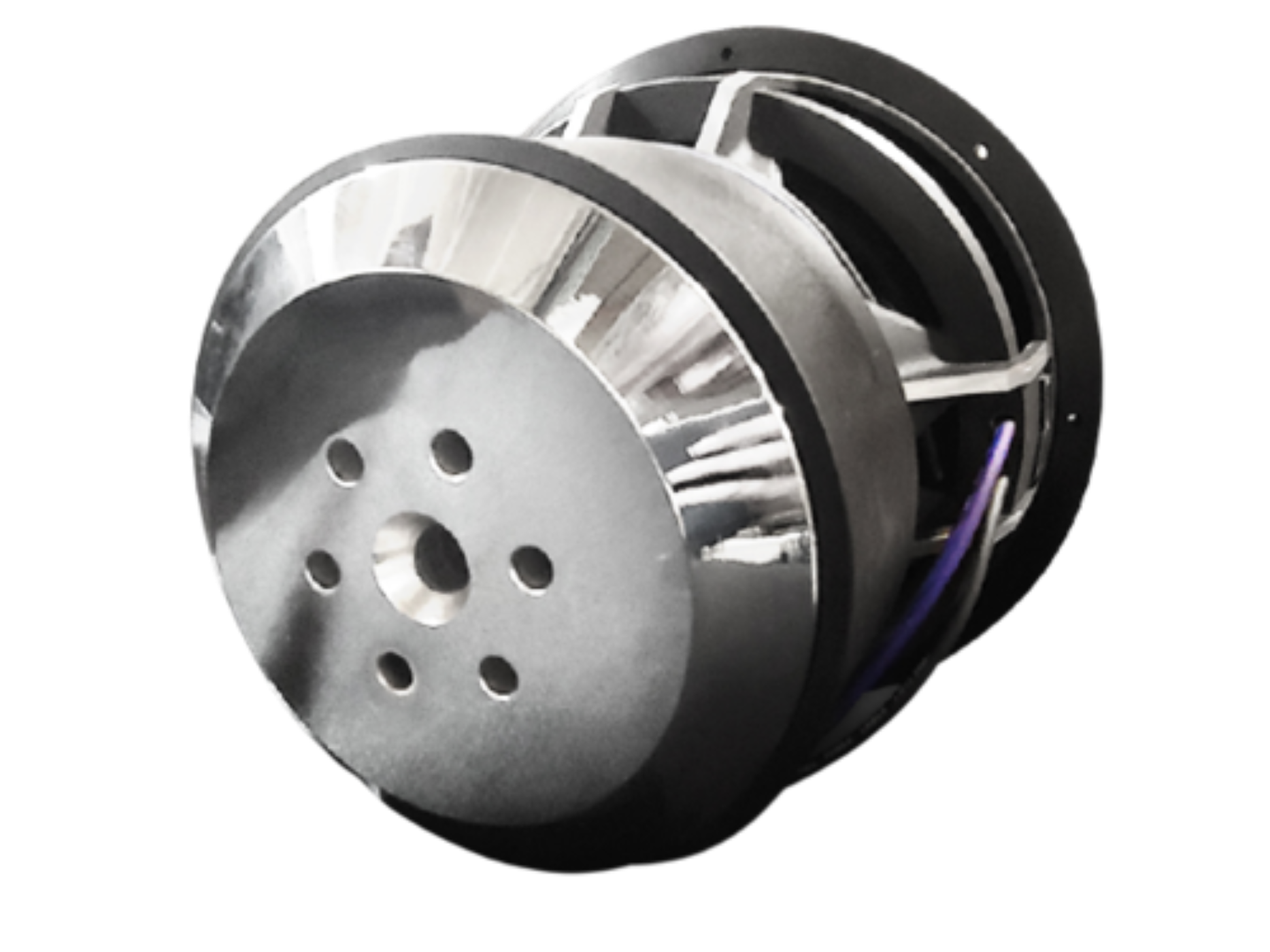

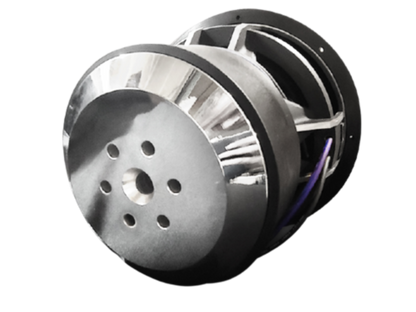

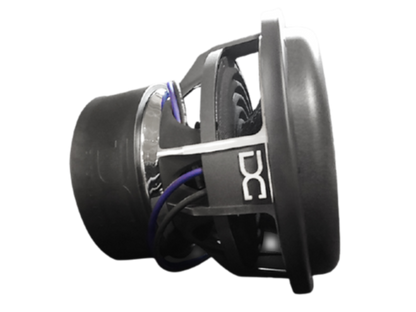

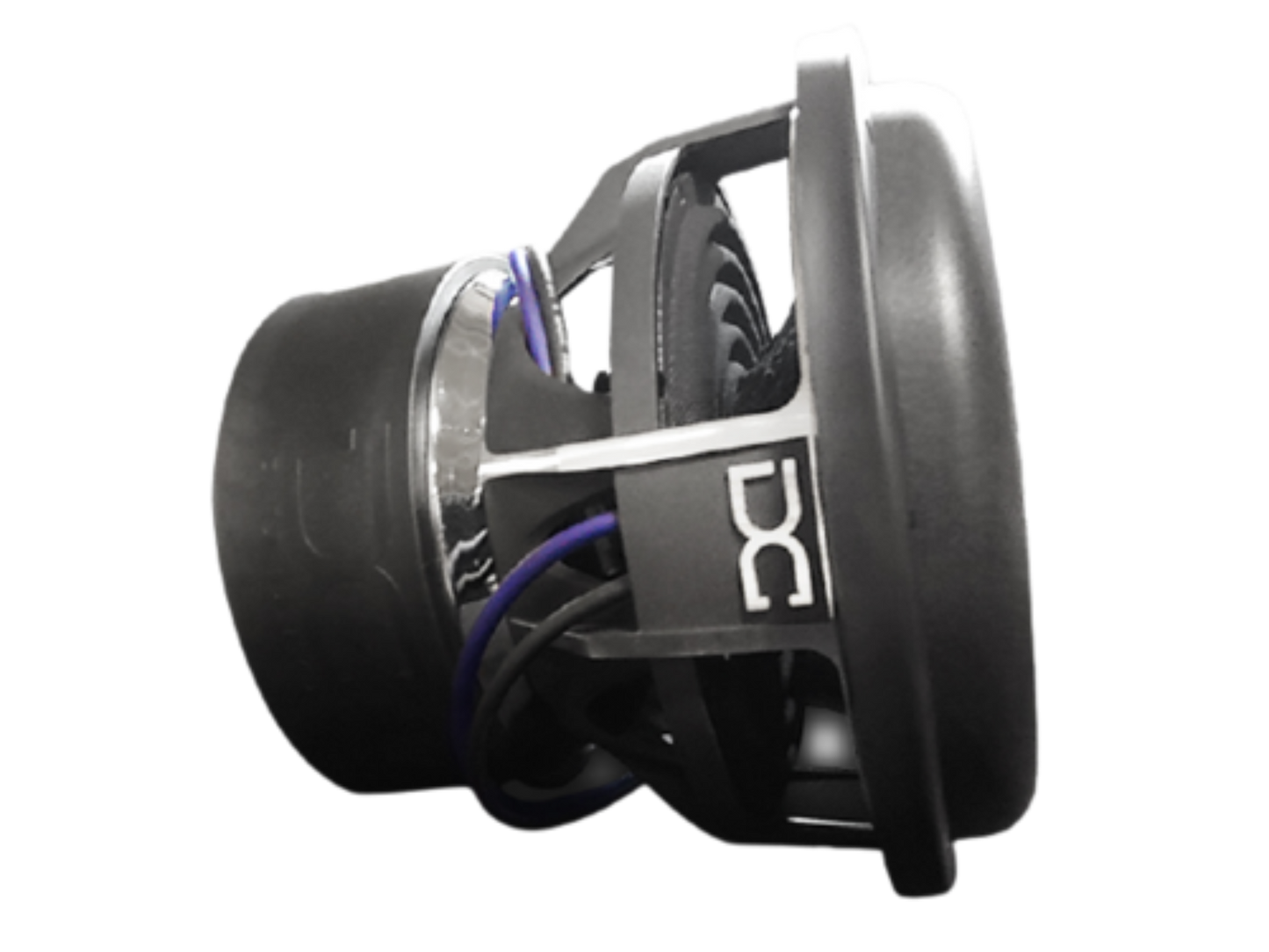

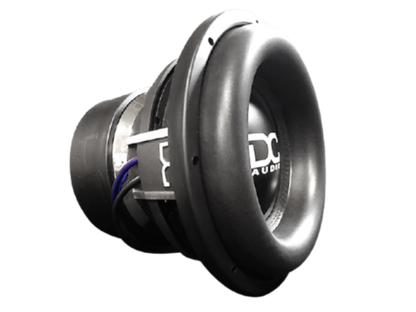

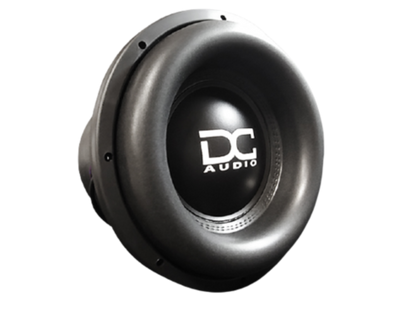

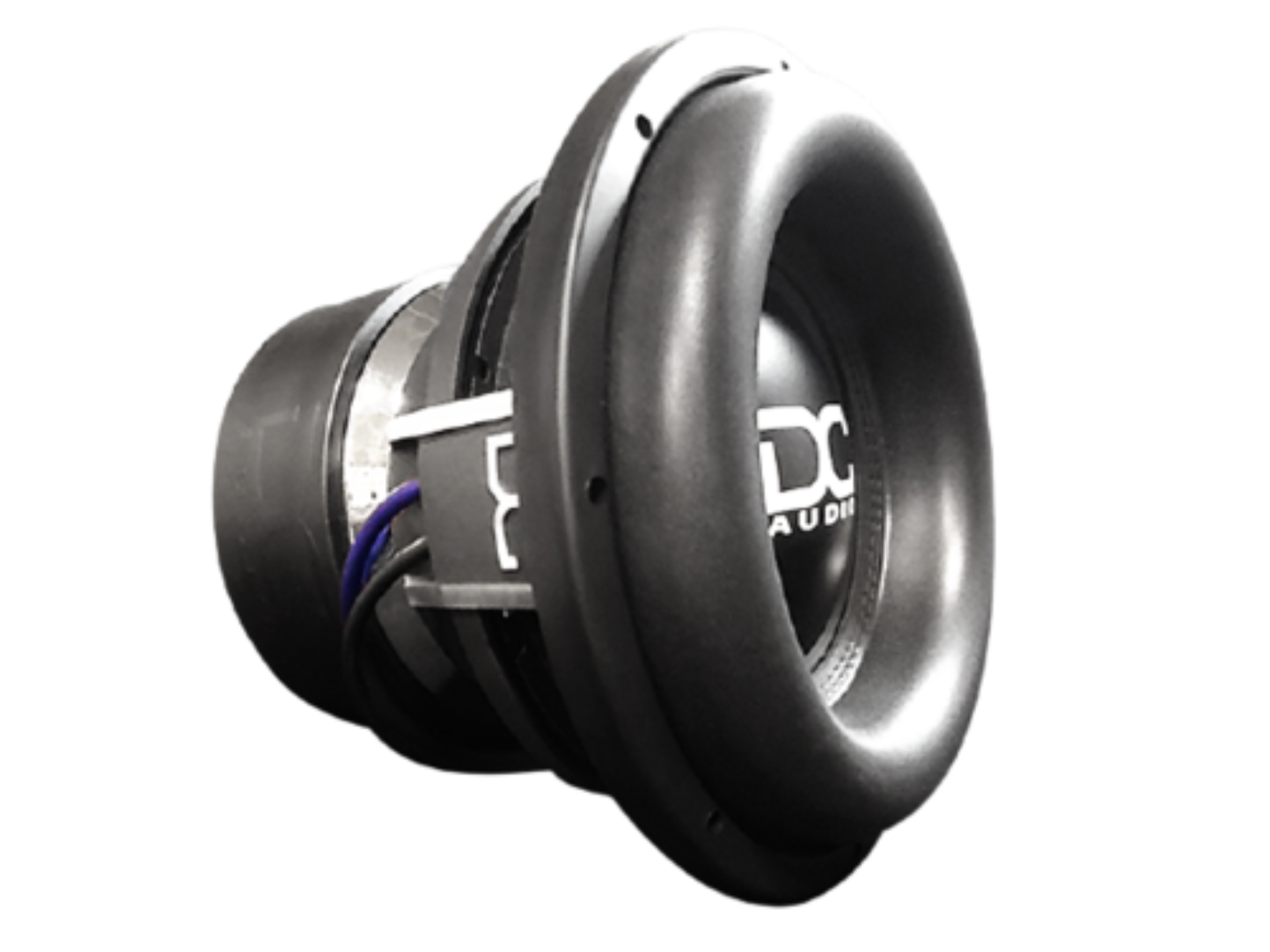

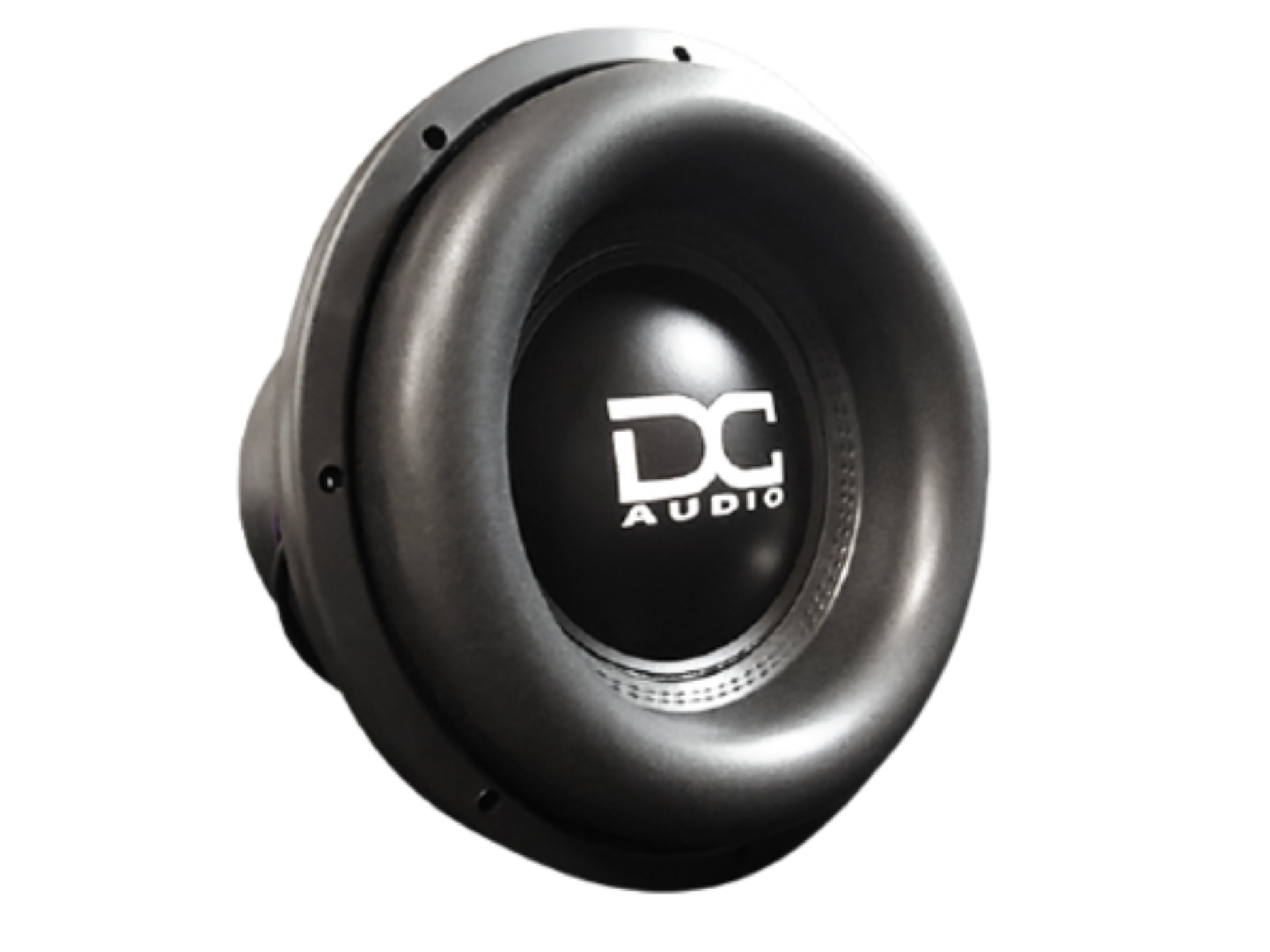

The DC Audio XL Elite 15" DCA-XLE-15-D1 is a high-performance competition subwoofer designed for powerful bass systems and serious car audio builds. Engineered for extreme output, it features a reinforced cone assembly, large motor structure, and high-temperature voice coil technology to deliver deep, accurate, and controlled bass. Built for daily high-power use and SPL applications, this 15-inch subwoofer offers exceptional durability and strong low-frequency performance.
Features
 Extremely rigid non-pressed paper cone assembly
 Multilayered polymer foam surround
 Polypropylene dust cover with DC logo
 Quad 10"OD Spiders
 Dual Extra heavy duty interweaved tinsel lead wire
 Cast Heavy Duty DC Aluminum black & Grind frame
 FEA analyzed and optimized motor assembly â Fully CNC machined
 Rubber mounting gasket
 8 Awg Direct Leads
 Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil
Specifications
Sub Size
12"
15"
18"
Mounting Depth
9.75"
11.00"
12.00"
Mounting Hole Diameter
11.15"
14.25"
16.90"
Outside Driver Diameter
12.50"
15.70"
18.50"
Motor Width
8.75"
8.75"
8.75"
Weight
65lbs
66lbs
67lbs
VC Diameter
3"
3"
3"
Displacement
.18Âł ft
.20Âł ft
.25Âł ft
Magnet Weight
54lbs
54lbs
54lbs
Power Handling RMS/Peak
2200/4400
2200/4400
2200/4400
Impedance (Ohm)
D.7/D1/D1.4/D2
D.7/D1/D1.4/D2
D.7/D1/D1.4/D2
Sd
494.00cm²
791.00cm²
1159.00cm²
Vas
liters
liters
liters
Cms
mm/N
mm/N
mm/N
Mms
g
367.4 g
g
Fs
32.9
BL
22.73 N/A
22.73 N/A
22.73 N/A
Re
3.98 ohm
1.8 ohm
3.98 ohm
Le
mH
mH
mH
Qms
6.31
Qes
0.37
Qts
0.35
Xmax
Ref SPL @ 1 watt
dB
90.3 dB
dB
Suggested Sealed
n/a
n/a
n/a
Suggested Ported
1.5Âł ft
3.5Âł ft
5.5Âł ft
Â
What Our Experts Think
The DC Audio XL Elite 15" (DCA-XLE-15-D1) is a competition-grade 15-inch subwoofer built for extreme bass systems, SPL builds, and powerful daily setups
Rated at approximately 2200W RMS / 4400W peak power handling for high-output performance with the right amplifier and enclosure setup
Features a dual 1-ohm voice coil configuration, allowing flexible wiring options for high-power amplifier matching
Uses a 3-inch 8-layer high-temperature aluminum voice coil, heavy-duty motor assembly, quad 10" spiders, and reinforced cone structure for durability under extreme power
CNC-machined motor design and aluminum frame construction provide strong mechanical performance and long-term reliability
Recommended for ported enclosures around 3.25 ftÂł to maximize low-frequency output and efficiency
Ideal for custom bass builds, competition vehicles, and high-output car audio systems
Q&A
Q: How much power does the DC Audio XL Elite 15 handle? A: It handles approximately 2200W RMS and 4400W peak power.
Q: What is the voice coil configuration? A: This model uses a dual 1-ohm voice coil setup.
Q: Is it good for daily use? A: Yes, when properly installed and tuned, it works well for powerful daily systems and SPL applications.
Q: What amplifier should be used? A: A high-quality amplifier delivering close to the subwooferâs RMS rating at the correct final impedance is recommended.
Q: What enclosure is recommended? A: A properly tuned ported enclosure is recommended for maximum bass output.
Maintenance Tips
Use a properly tuned amplifier to prevent clipping and overheating
Check subwoofer wiring and terminals regularly for secure connections
Ensure enclosure seals remain tight for consistent bass performance
Avoid exceeding recommended RMS power limits
Monitor voltage stability during high-output sessions
Allow proper cooling during extended heavy bass use
