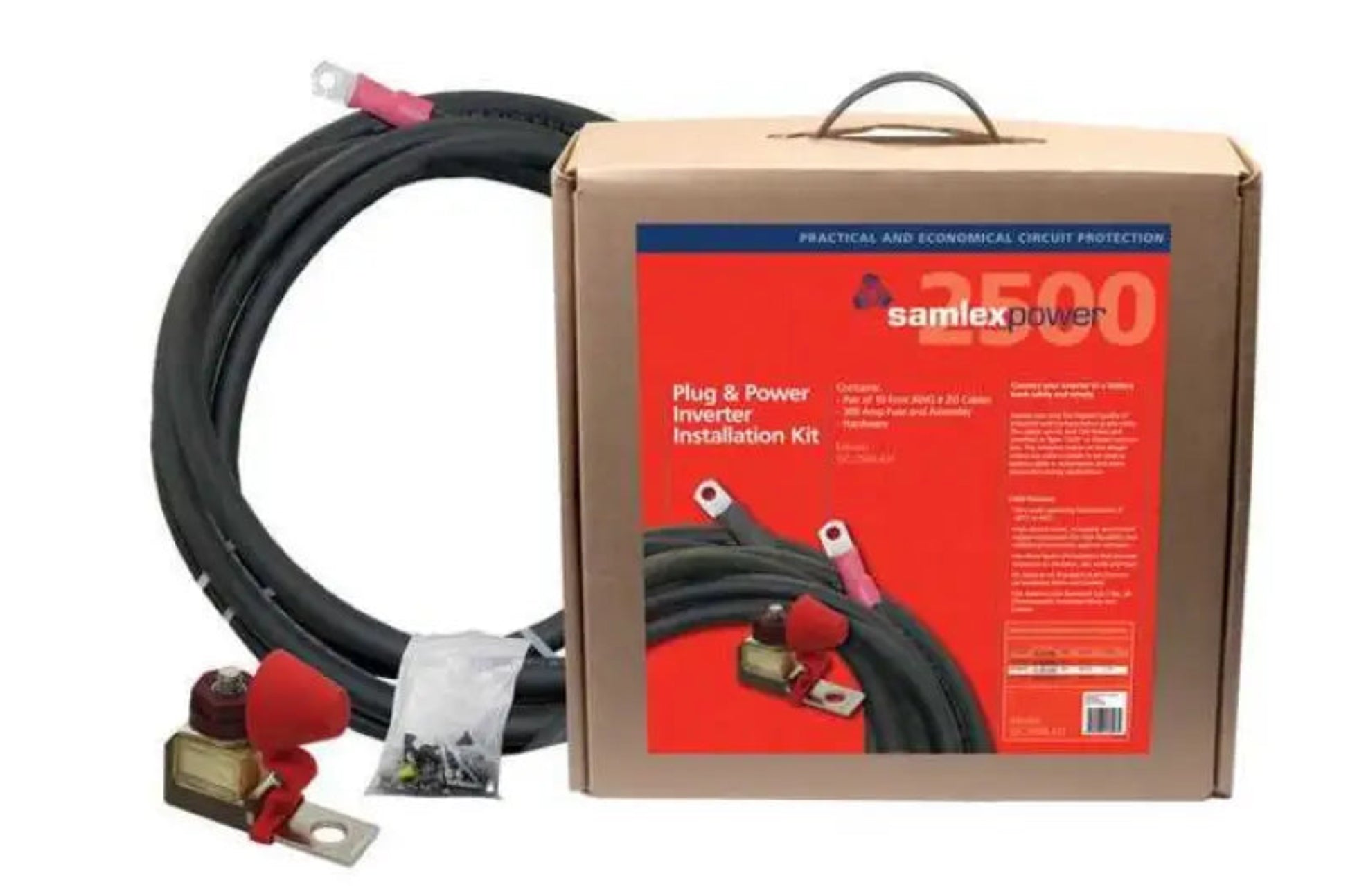

Samlex Solar Power Inverter Installation Kit Use To - S6ADC2500KIT
Elevate your solar power setup with the DC-2500-KIT Samlex Solar Power Inverter Installation Kit. This essential kit is designed for seamless installation of your power inverter, ensuring efficient and safe operation for your solar energy system.
Features
-
Heavy-Duty Cables: The kit includes robust cables crafted for reliable connection between the inverter and your battery bank, delivering optimal performance.
-
Protective Fuse Assembly: Safeguard your equipment with a built-in fuse that automatically protects against potential battery short-circuits, providing peace of mind during operation.
-
Plug and Play Design: Enjoy a hassle-free installation process with cables designed for a simple and secure plug-and-play connection.
-
Versatile Compatibility: This kit is suitable for installing both 12 Volt inverters (1700 to 2500 Watt) and 24 Volt inverters (3400 to 5000 Watt), making it a flexible choice for various setups.
-
Included Hardware: Everything you need for installation is included, ensuring you have a comprehensive solution at your fingertips.
What our Experts Think
-
High-capacity 3000W modified sine wave inverter designed to convert 12V DC battery power into 120–115V AC household electricity for off-grid and backup applications.
-
Delivers continuous 3000W output with up to ~6000W surge capability, supporting startup loads from motors, pumps, and appliances with brief power spikes.
-
Built for RV, marine, solar, and emergency backup systems, offering reliable performance in mobile and remote power setups.
-
Uses a modified sine wave output, suitable for most basic appliances, tools, and resistive loads, but less ideal for sensitive electronics or audio/medical equipment.
-
Integrated multi-layer protection system (low voltage, overload, thermal, short circuit, reverse polarity) helps protect both battery and connected devices.
-
Designed with load-controlled cooling and high-efficiency switching architecture to improve thermal stability during heavy use.
-
Wide 12V DC input range (~10.5–15V) ensures stable operation across typical deep-cycle and automotive battery systems.
-
Supports high surge demand for <1 second, making it practical for compressor-based appliances and induction motors at startup.
-
Rugged build and heavy-duty design make it suitable for continuous off-grid use in demanding environments like trucks, cabins, and solar setups.
Q&A
Q: What is the Samlex S6ADC2500KIT installation kit?
A: It is a complete heavy-duty DC wiring kit used to safely connect a Samlex inverter to a 12V battery bank in solar, RV, marine, or backup power systems.
Q: What does the kit include?
A: It typically includes heavy-gauge positive and negative battery cables, a high-amp fuse assembly, and pre-installed or crimp-ready terminals for secure inverter-to-battery connections.
Q: What is it used for?
A: It is used to provide a safe, low-resistance power connection between a 12V battery system and a high-wattage inverter (such as 2000W–3000W class systems).
Q: Why is an installation kit needed?
A: It ensures proper wire sizing, fuse protection, and safe current handling, reducing risks of overheating, voltage drop, and electrical damage.
Q: Does it include protection features?
A: Yes. It includes a high-amperage fuse system designed to protect the inverter and wiring from short circuits and overload conditions.
Q: Is it compatible with solar systems?
A: Yes. It is commonly used in off-grid solar setups, RV systems, boats, and emergency backup power installations.
Q: What size inverter is it designed for?
A: It is typically matched with mid-to-high wattage 12V inverters (around 2000W–3000W range, depending on configuration).
Maintenance Tips
- Inspect heavy-duty positive and negative DC cables regularly for cuts, wear, or insulation damage.
- Ensure all ring terminals and battery/inverter connections are tight to prevent arcing or overheating.
- Check the inline fuse assembly for corrosion, cracks, or signs of heat damage and replace if needed.
- Verify correct polarity (red positive, black negative) before every installation or reconnection.
- Keep cable routing clean, secure, and away from sharp edges or hot surfaces.
- Ensure fuse is installed close to the battery to protect the system from short-circuit faults.
- Avoid bending or stressing cables excessively to maintain conductivity and long-term durability.
- Keep connection points dry and free from dust or moisture to prevent resistance buildup.
- Periodically inspect for voltage drop signs such as inverter underperformance or heating cables.
- Turn off the inverter before servicing or tightening any DC connections for safety
