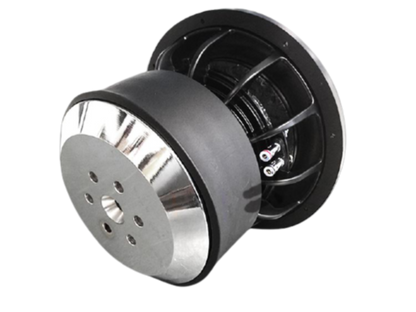

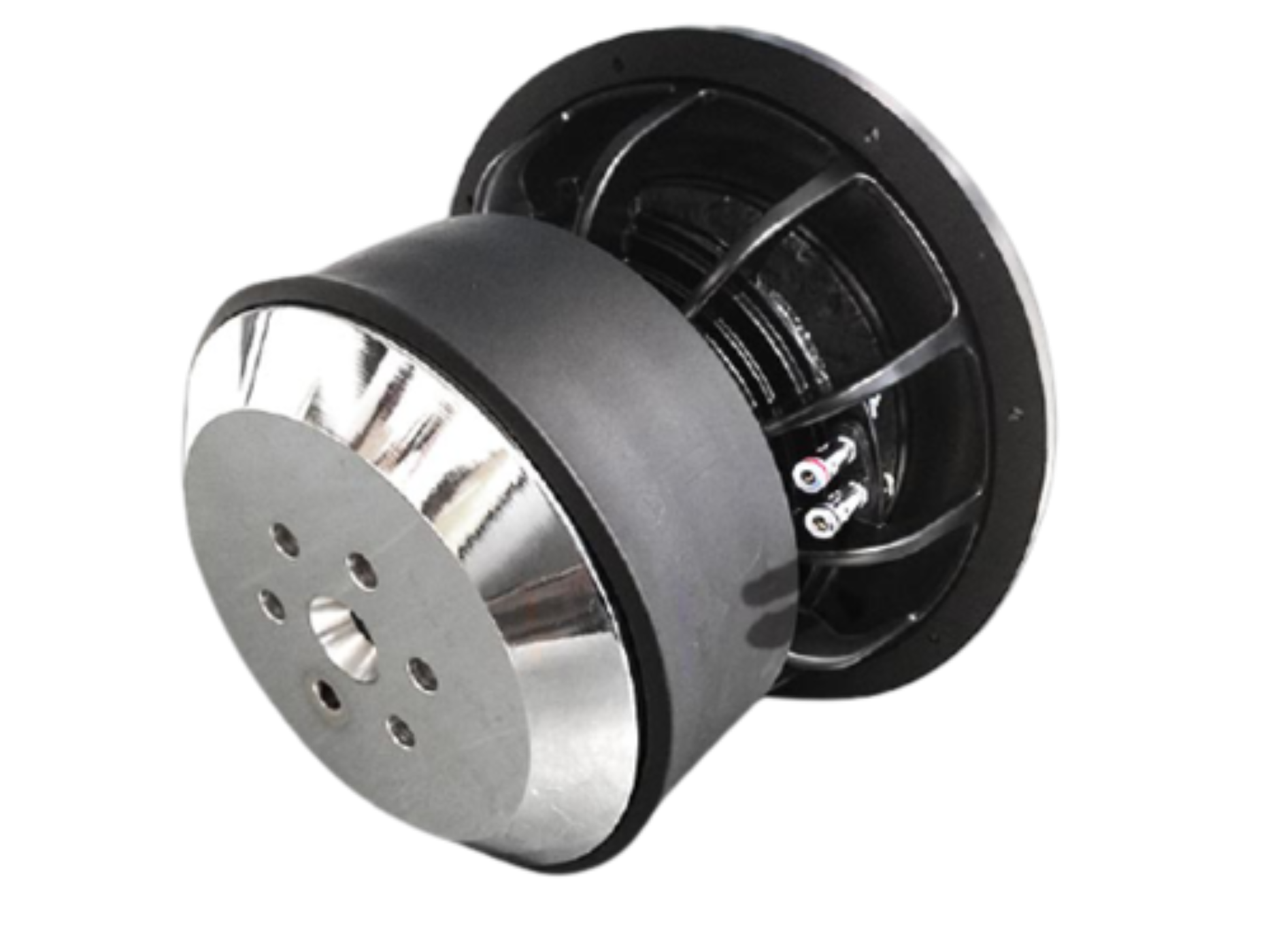

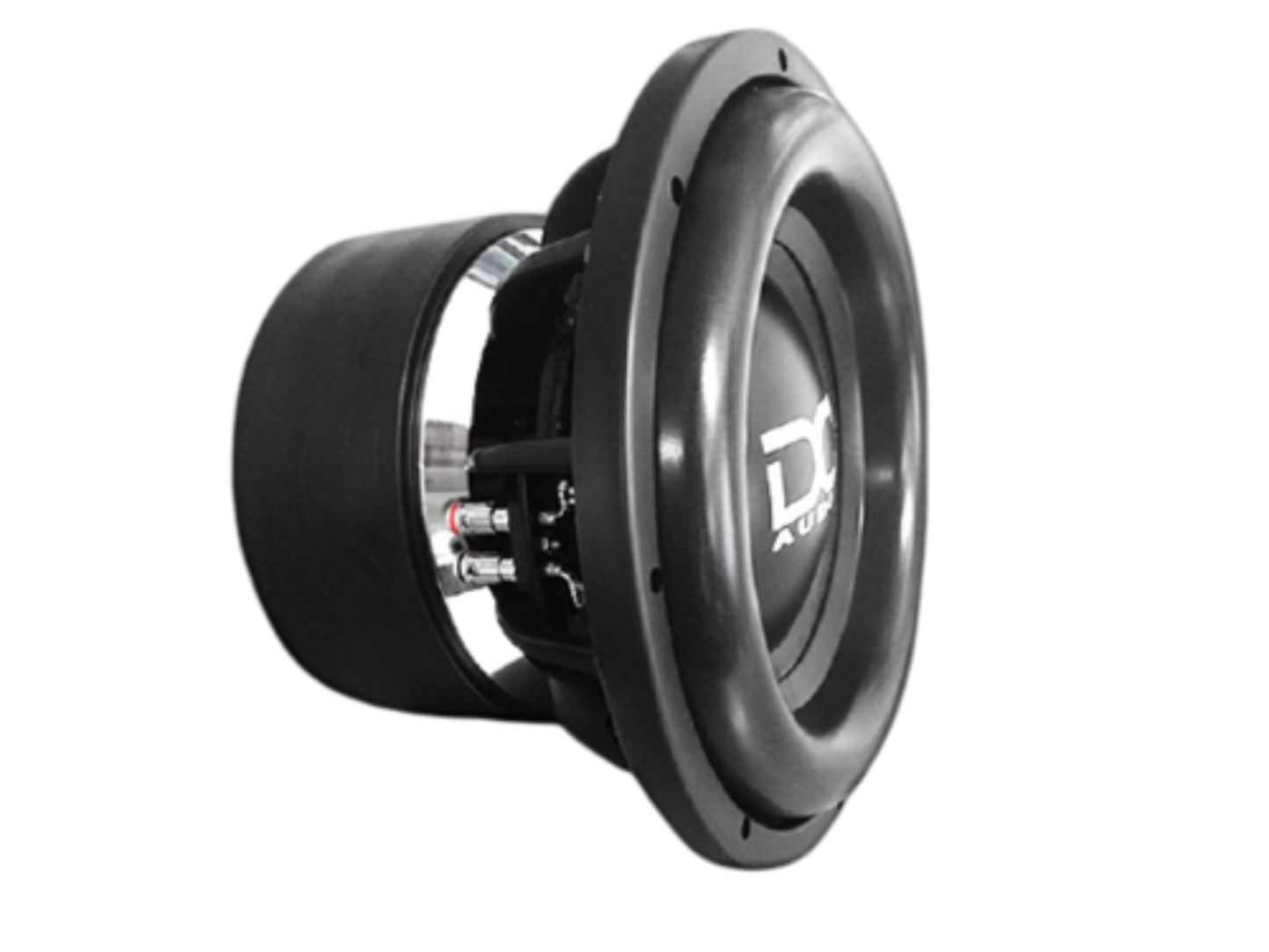

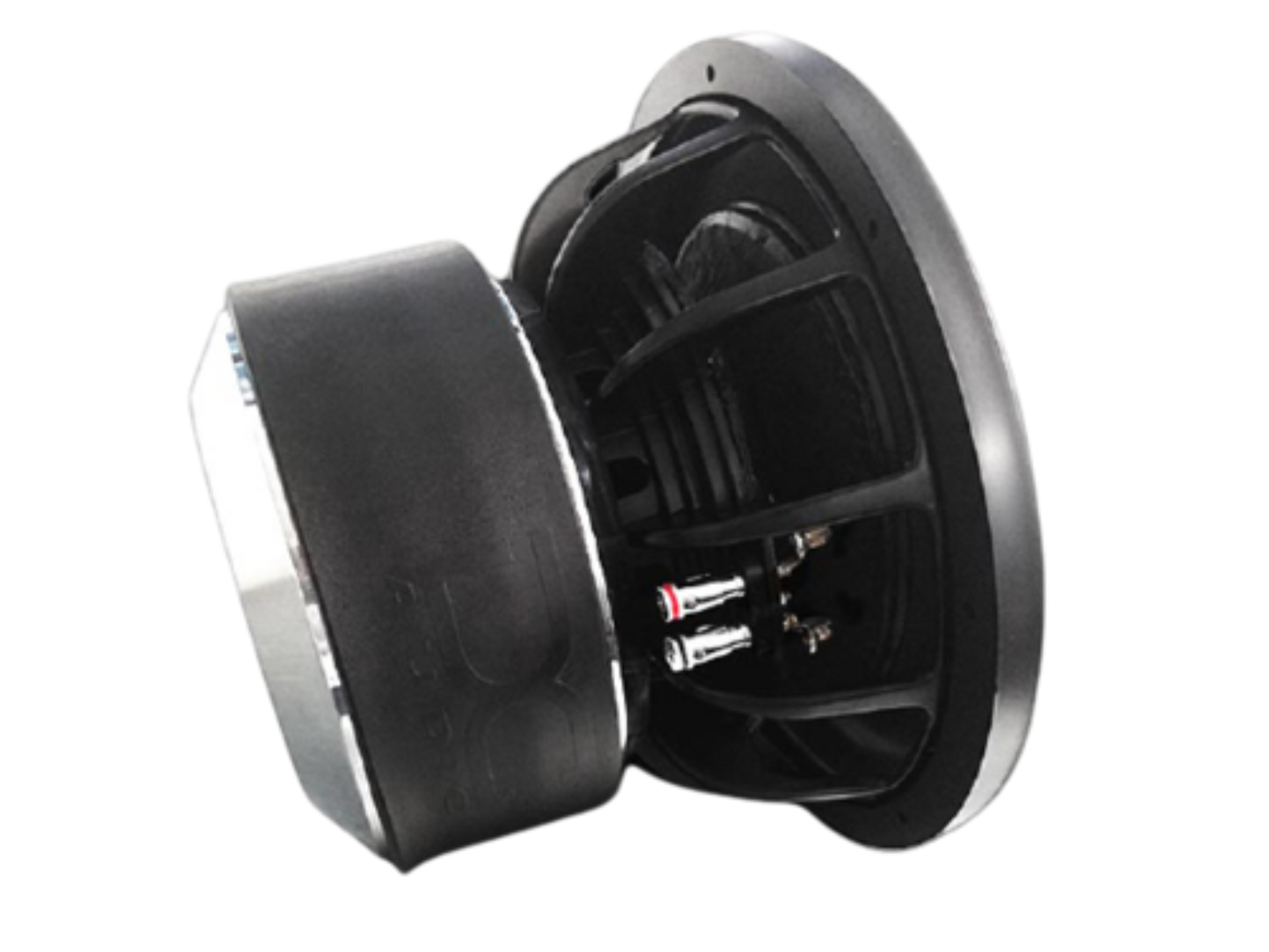

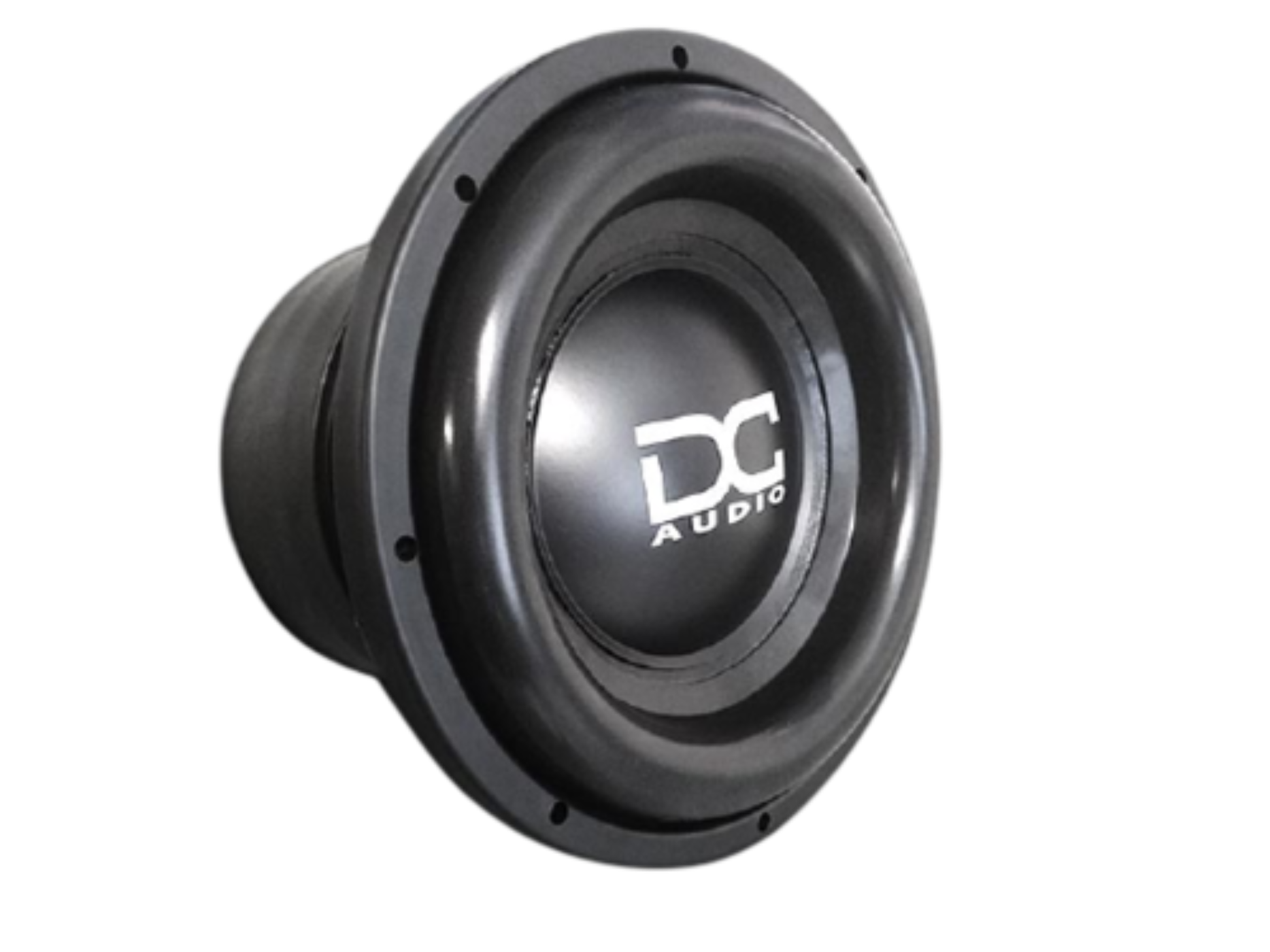

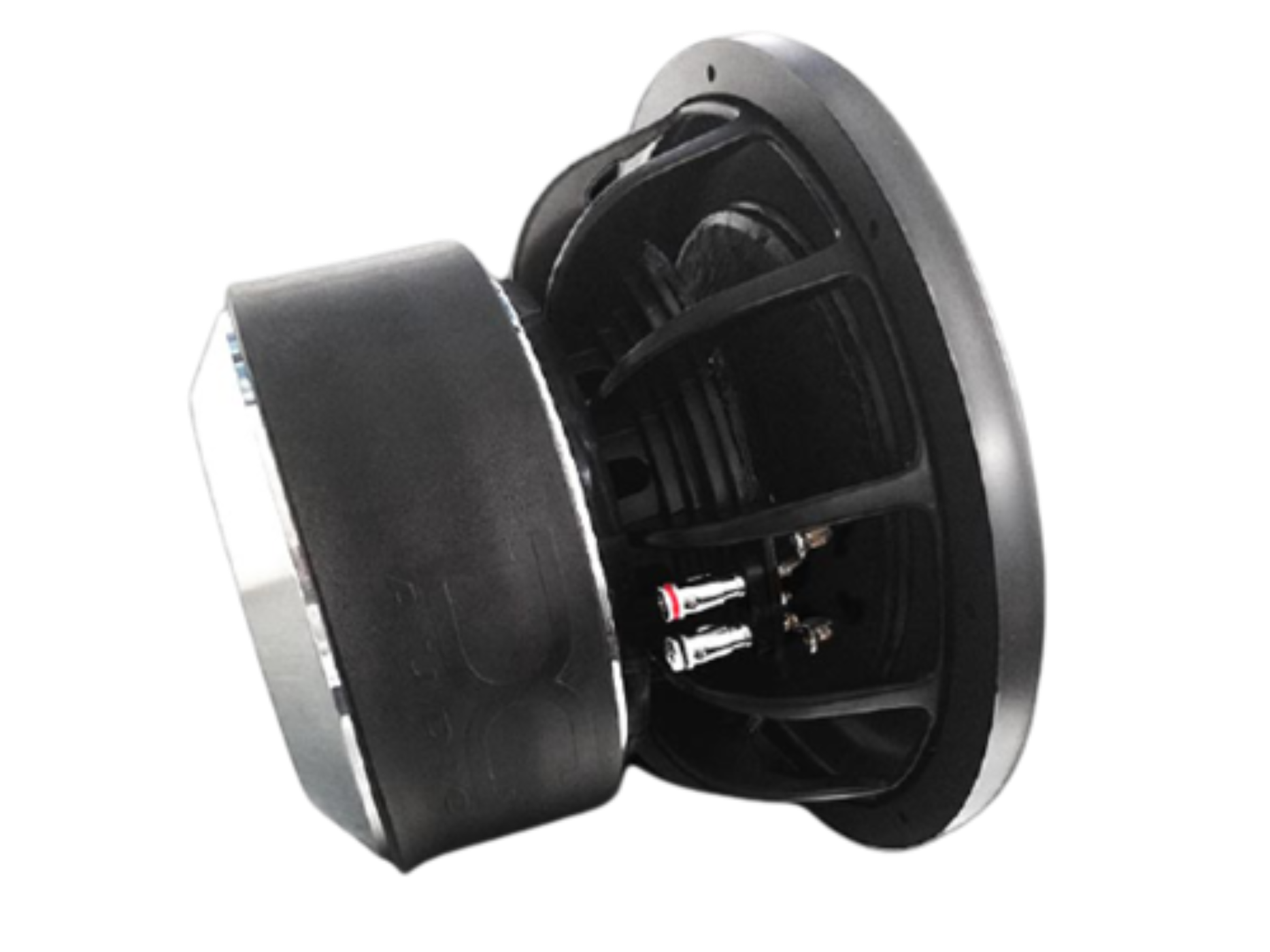

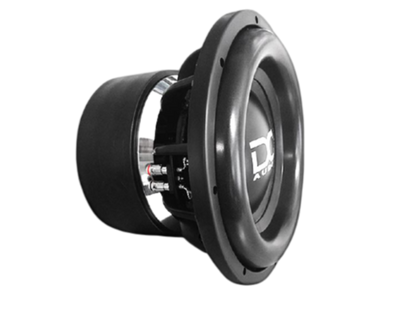

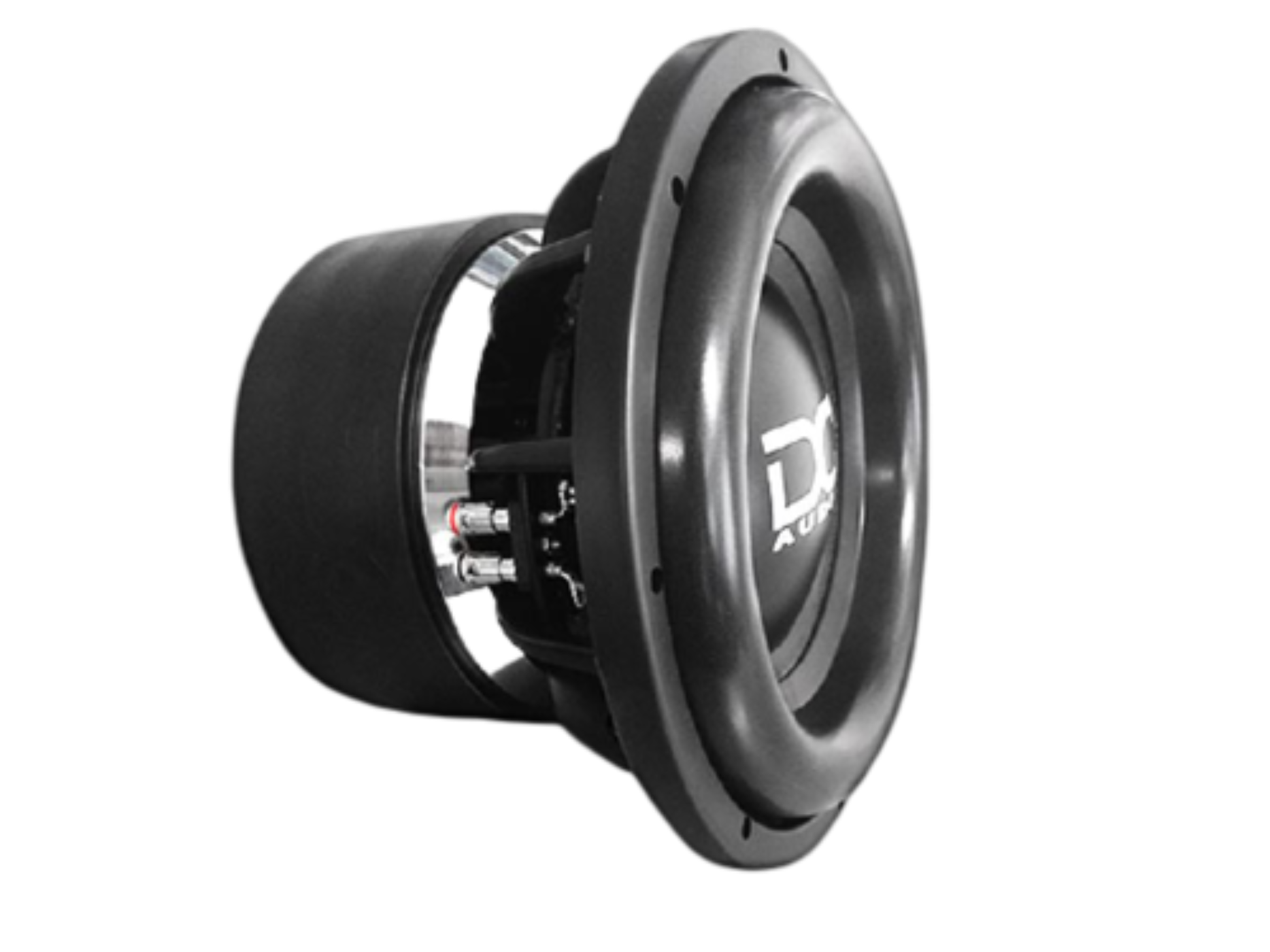

The DC Audio XL 12" DCA-XL-12-D.7 is a high-output 12-inch subwoofer built for powerful daily bass and competition-style SPL systems. It features a heavy-duty motor structure, reinforced cone assembly, and a high-temperature voice coil designed to handle extreme power while delivering deep, controlled low-frequency output. Ideal for custom car audio builds where strong bass and durability are essential.
Features
 Extremely rigid non-pressed paper cone assembly
 Multilayered polymer foam surround
 Polypropylene dust cover with DC logo
 Quad 8"OD semi cup progressive roll spiders
 Dual Extra heavy duty interweaved tinsel lead wire
 Cast aluminum black frame
 FEA analyzed and optimized motor assembly â Fully CNC machined
 Rubber mounting gasket
 Chrome spring loaded push terminals
 Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil
Specifications
Sub Size
10"
12"
15"
18"
Mounting Depth
8.25"
9.0"
10.25"
11.25"
Mounting Hole Diameter
9.25"
11"
14"
16.75"
Outside Driver Diameter
11.0"
12.5"
15.7"
18.5"
Motor Width
8.75"
8.75"
8.75"
8.75"
Weight
56lbs
57lbs
59lbs
60lbs
VC Diameter
3"
3"
3"
3"
Displacement
.18Âł ft
.19Âł ft
.23Âł ft
.26Âł ft
Magnet Weight
50lbs
50lbs
50lbs
50lbs
Power Handling RMS/Peak
2200 / 4400
2200 / 4400
2200 / 4400
2200 / 4400
Impedance (Ohm)
D.7/D1/ D1.4/D2
D.7/D1/ D1.4/D2
D.7/D1/ D1.4/D2
D.7/D1/ D1.4/D2
Sd
314.00 cm²
494.00 cm²
791.00 cm²
1159.00 cm²
Vas
12.42 liters
25.77 liters
66.02 liters
144.36 liters
Cms
0.085 mm/N
0.08 mm/N
0.07 mm/N
0.07 mm/N
Mms
171.77 g
213.7g
306.7 g
346.7 g
Fs
41.7
38.5
34.3
32.3
BL
BL 22.73 N/A
22.73 N/A
22.73 N/A
22.73 N/A
Re
3.98 Ohm
3.98 Ohm
3.98 Ohm
3.98 Ohm
Le
5.2mH
5.2mH
5.2mH
5.2mH
Qms
11.24
12.92
16.55
17.6
Qes
0.35
0.403
0.516
0.548
Qts
0.34
0.391
0.5
0.532
Xmax
26 mm
26 mm
26 mm
26 mm
Ref SPL @ 1 watt
85.9 dB
87.5 dB
89.0 dB
91.3 dB
Suggested Sealed
N/A
N/A
N/A
N/A
Suggested Ported
1.0Âł ft
1.5Âł ft
3.0Âł ft
5.5Âł ft
Â
What Our Experts Think
The DC Audio XL 12" (DCA-XL-12-D.7) is a high-performance 12-inch subwoofer built for SPL competition and powerful daily bass systems
Rated at approximately 2200W RMS / 4400W peak power handling, delivering deep, controlled low-frequency output when properly powered
Features a dual 0.7-ohm voice coil configuration for flexible wiring options with high-power monoblock amplifiers
Built with a 3-inch high-temperature aluminum voice coil, reinforced cone assembly, and heavy-duty suspension system for durability under extreme excursion
Uses a cast aluminum frame and CNC-optimized motor structure for strong mechanical stability and consistent performance
Designed for ported enclosures (optimized around ~1.5 ftÂł) for maximum bass output and efficiencyÂ
Ideal for competition builds, loud daily systems, and high-output custom audio installations
Q&A
Q: How much power does the DC Audio XL 12 handle? A: It handles around 2200W RMS and 4400W peak power with proper tuning and installation.
Q: What is the voice coil configuration? A: It uses a dual 0.7-ohm voice coil setup, allowing flexible wiring options.
Q: Is it good for daily use? A: Yes, it works well for daily systems when properly matched with a clean, stable amplifier.
Q: What amplifier works best with it? A: A high-power amplifier delivering around 1800â2200W RMS at the correct final impedance is ideal.
Q: What enclosure is recommended? A: A properly tuned ported box around 1.5 cubic feet is recommended for strong bass output and efficiency.Â
Maintenance Tips
Avoid clipping by properly setting amplifier gain
Maintain stable voltage during heavy bass use
Ensure enclosure is properly sealed and securely mounted
Check wiring and terminals regularly for tight connections
Keep subwoofer break-in period gentle before full power use
Avoid exceeding RMS rating to protect voice coil longevity
