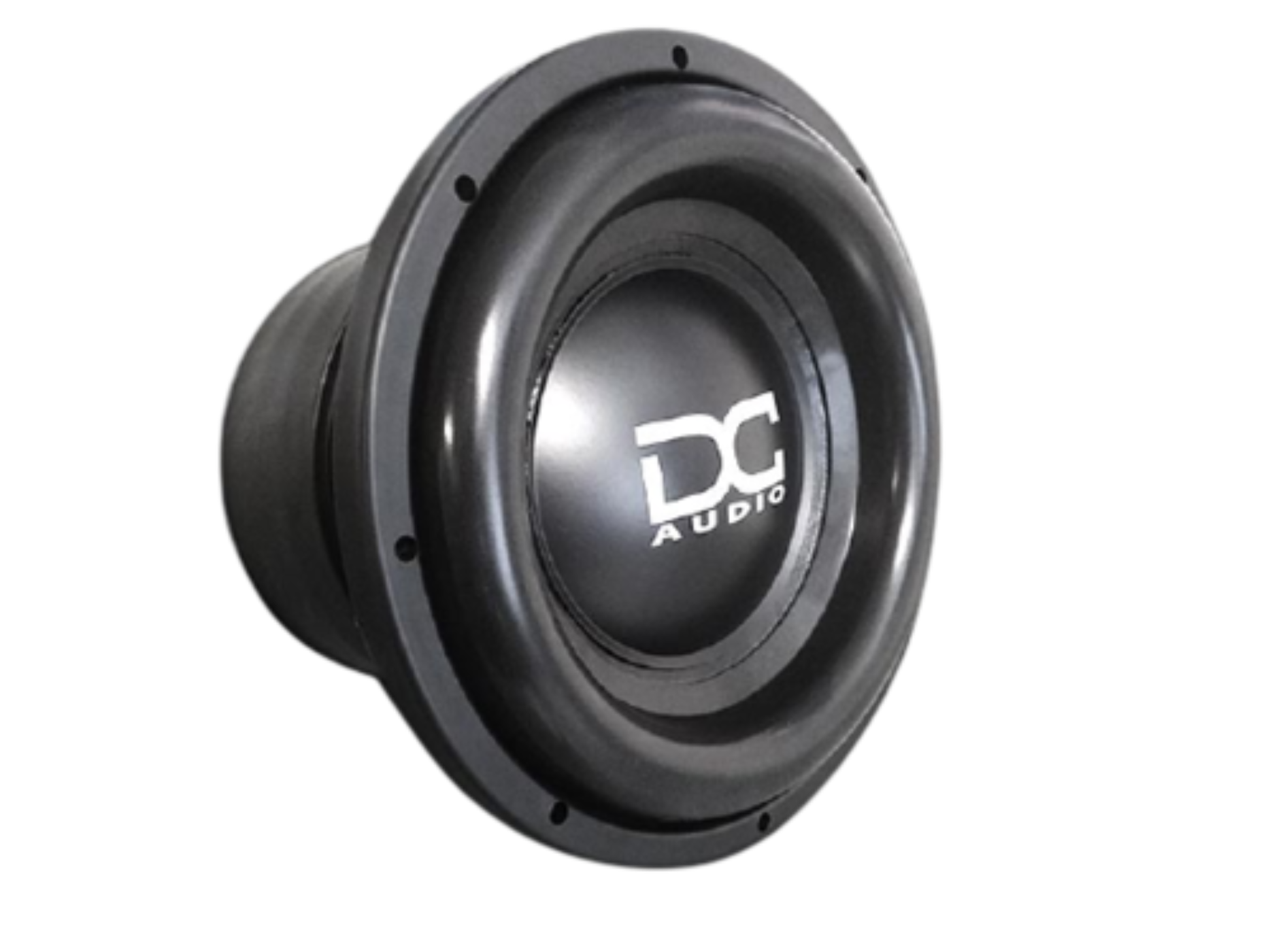

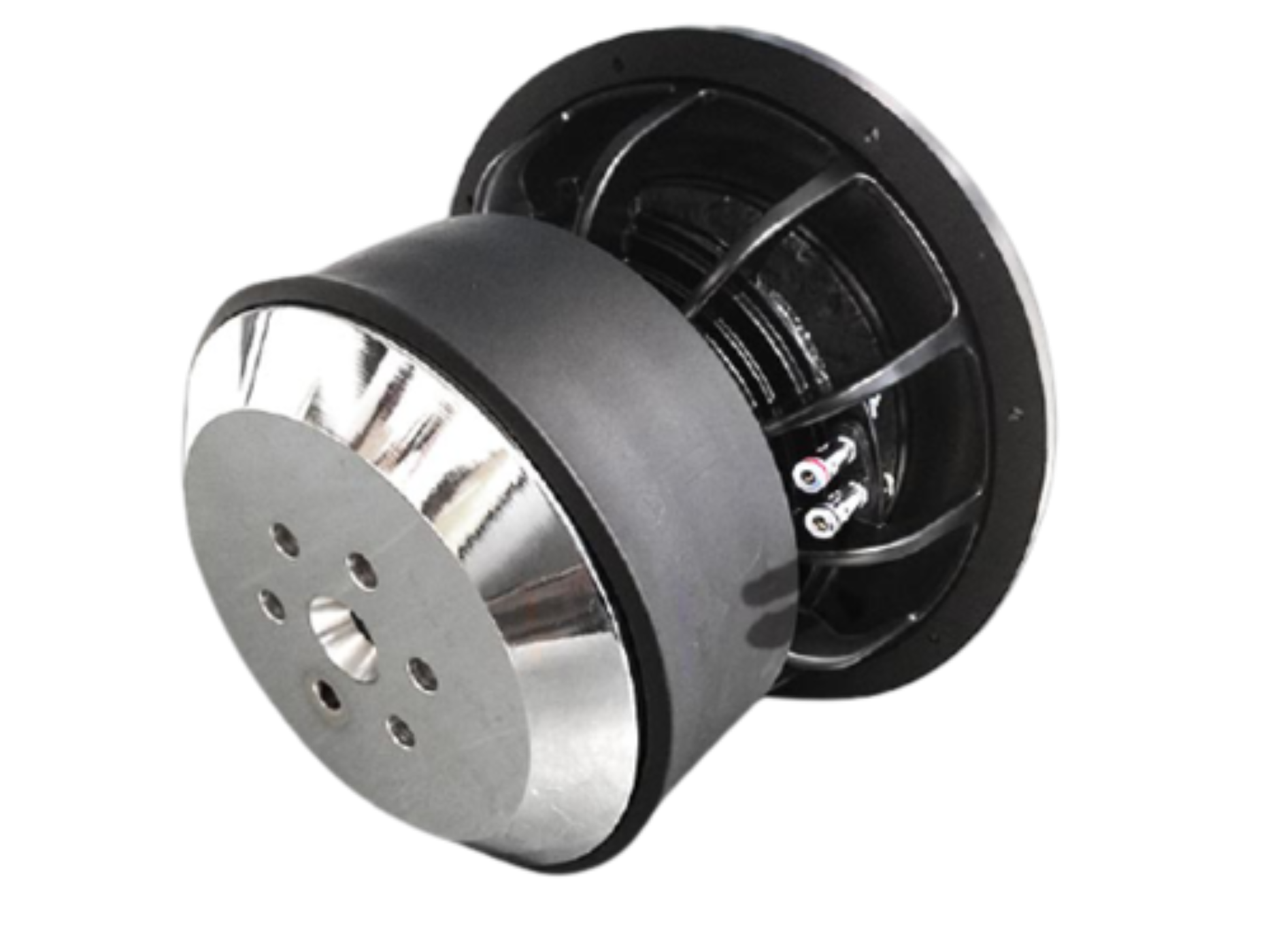

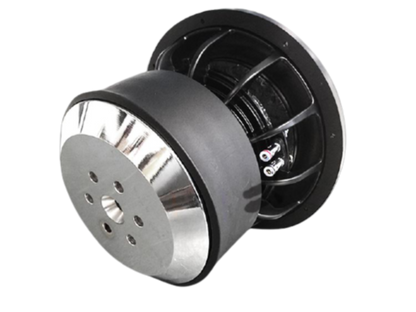

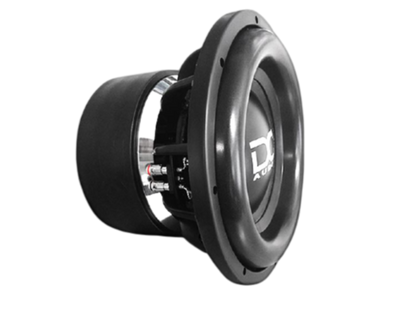

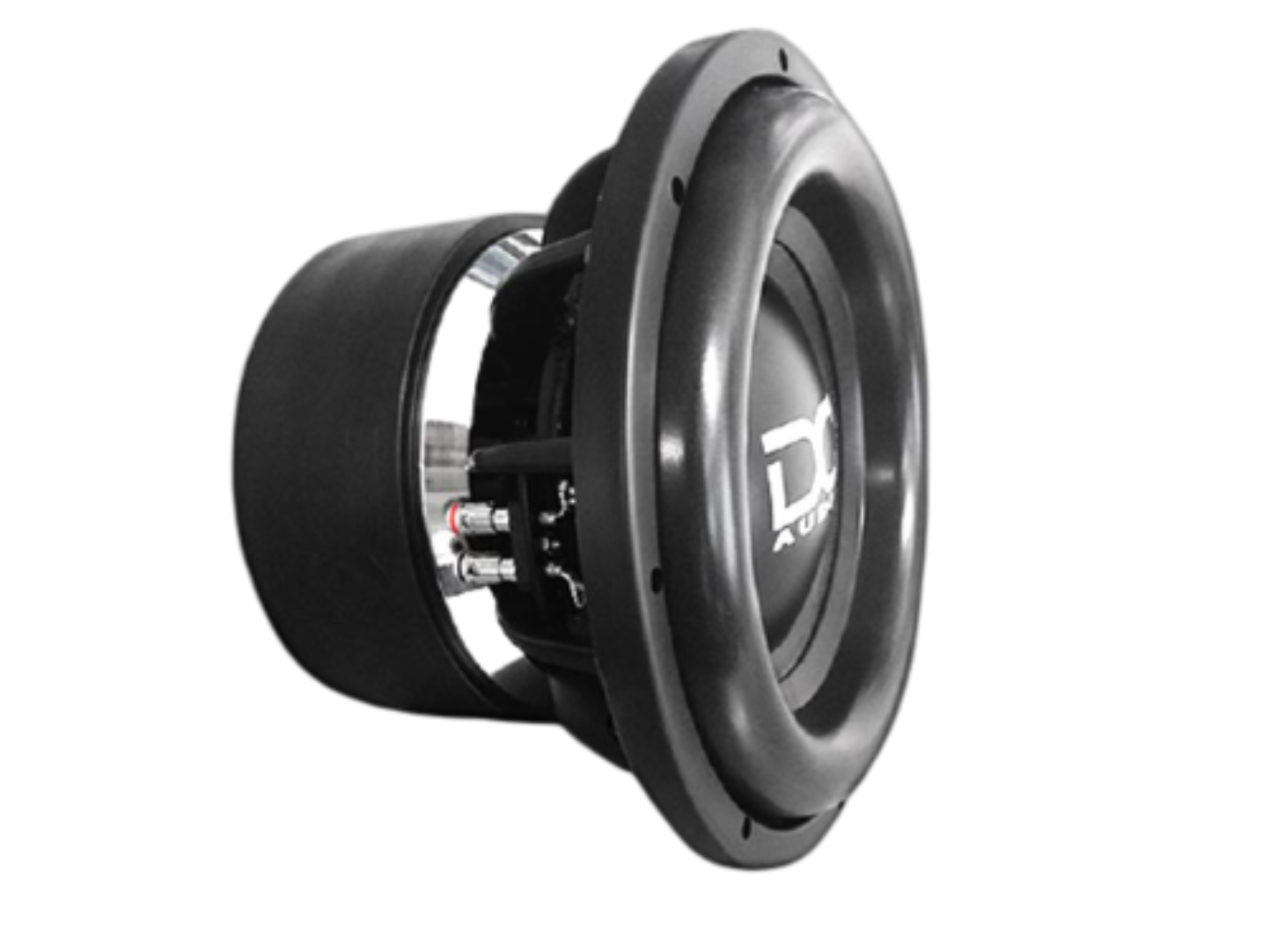

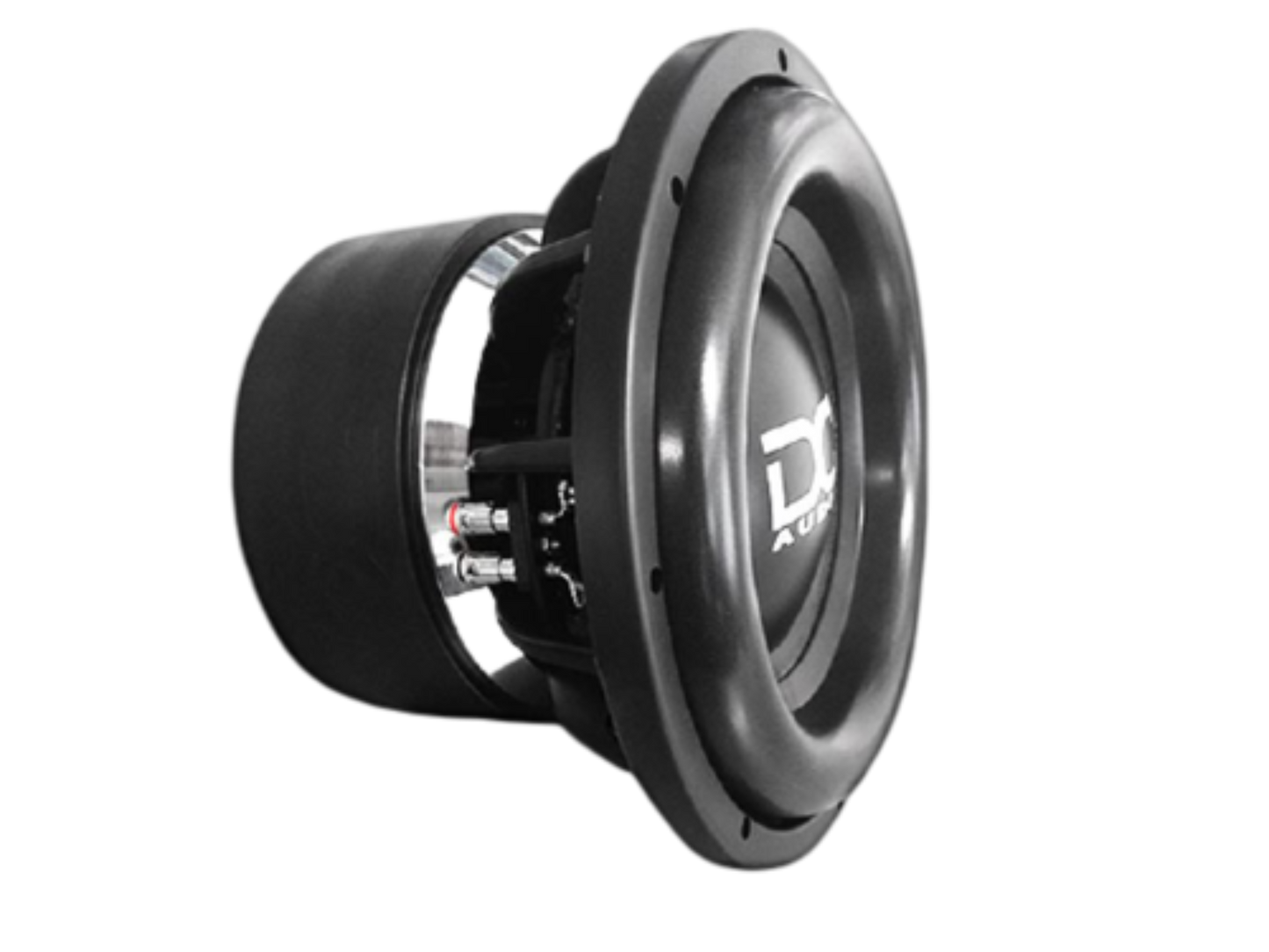

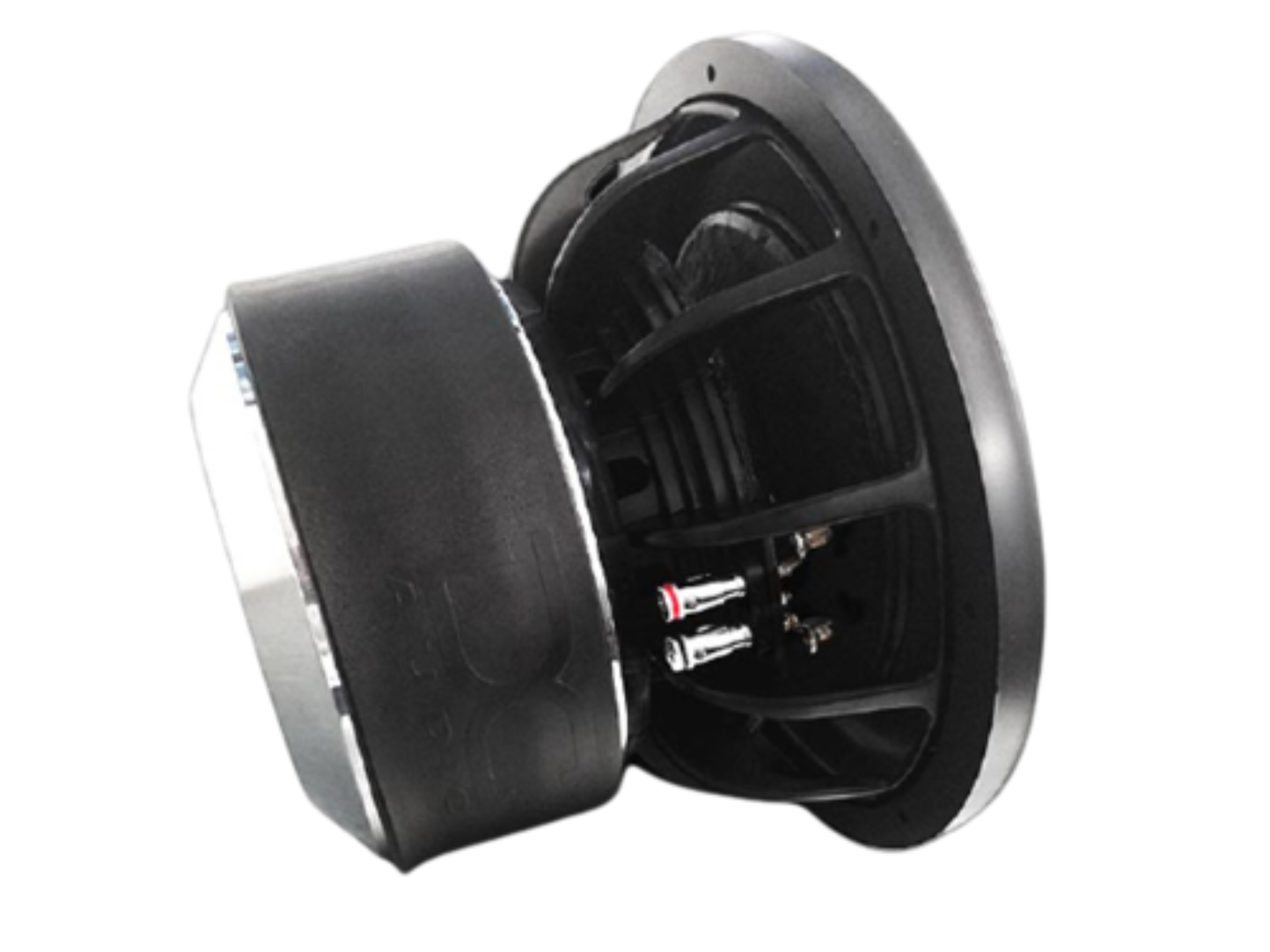

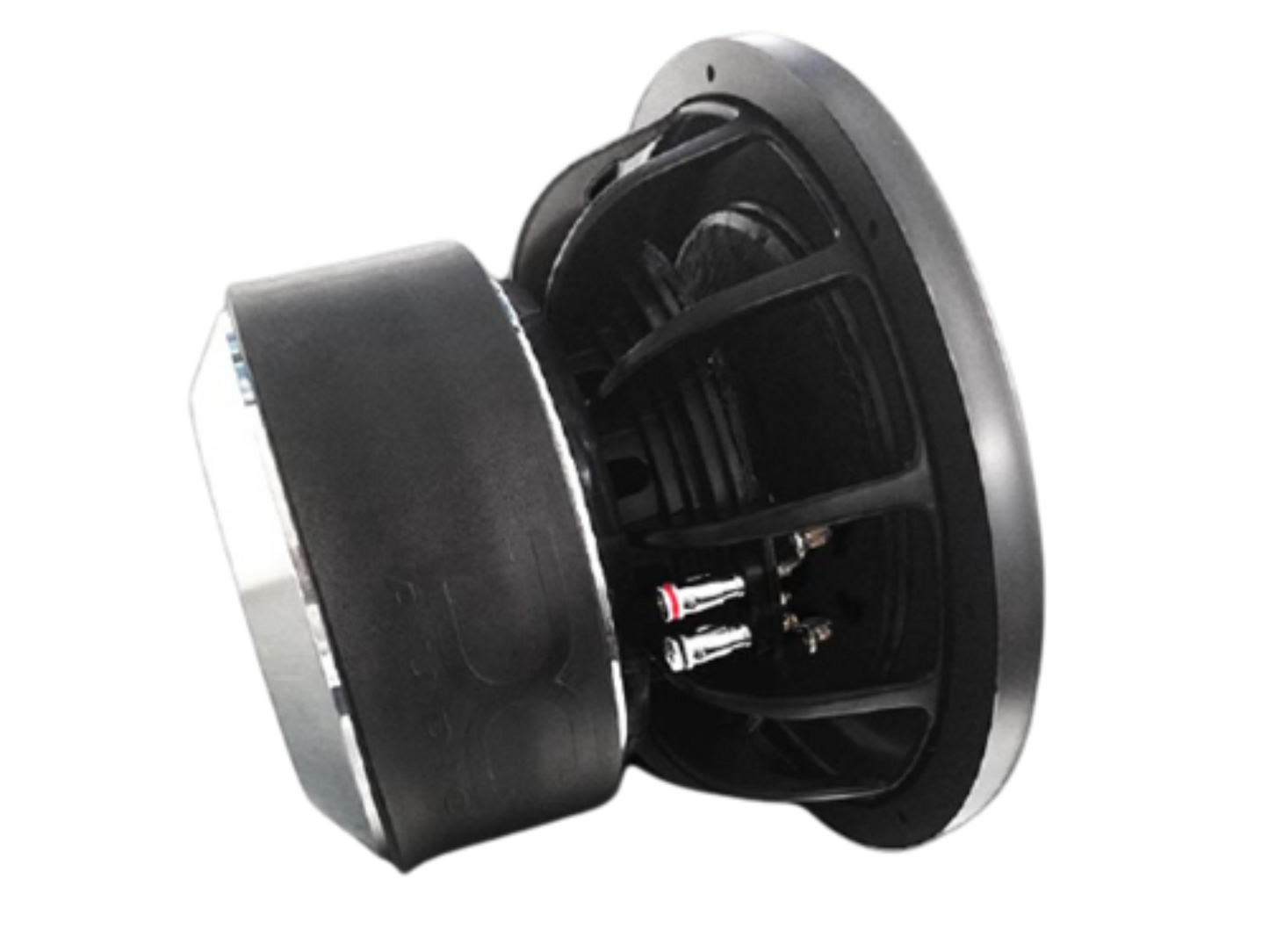

The DC Audio XL 18" DCA-XL-18-D1.4 is a high-performance 18-inch subwoofer built for powerful daily bass systems and competition-level car audio applications. Designed with a rugged motor structure, high-temperature voice coil, and reinforced cone assembly, it delivers deep, aggressive bass with excellent control and durability. Ideal for enthusiasts looking for strong low-frequency output and reliable performance in high-power builds.
Features
 Extremely rigid non-pressed paper cone assembly
 Multilayered polymer foam surround
 Polypropylene dust cover with DC logo
 Quad 8"OD semi cup progressive roll spiders
 Dual Extra heavy duty interweaved tinsel lead wire
 Cast aluminum black frame
 FEA analyzed and optimized motor assembly â Fully CNC machined
 Rubber mounting gasket
 Chrome spring loaded push terminals
 Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil
Specifications
Sub Size
10"
12"
15"
18"
Mounting Depth
8.25"
9.0"
10.25"
11.25"
Mounting Hole Diameter
9.25"
11"
14"
16.75"
Outside Driver Diameter
11.0"
12.5"
15.7"
18.5"
Motor Width
8.75"
8.75"
8.75"
8.75"
Weight
56lbs
57lbs
59lbs
60lbs
VC Diameter
3"
3"
3"
3"
Displacement
.18Âł ft
.19Âł ft
.23Âł ft
.26Âł ft
Magnet Weight
50lbs
50lbs
50lbs
50lbs
Power Handling RMS/Peak
2200 / 4400
2200 / 4400
2200 / 4400
2200 / 4400
Impedance (Ohm)
D.7/D1/ D1.4/D2
D.7/D1/ D1.4/D2
D.7/D1/ D1.4/D2
D.7/D1/ D1.4/D2
Sd
314.00 cm²
494.00 cm²
791.00 cm²
1159.00 cm²
Vas
12.42 liters
25.77 liters
66.02 liters
144.36 liters
Cms
0.085 mm/N
0.08 mm/N
0.07 mm/N
0.07 mm/N
Mms
171.77 g
213.7g
306.7 g
346.7 g
Fs
41.7
38.5
34.3
32.3
BL
BL 22.73 N/A
22.73 N/A
22.73 N/A
22.73 N/A
Re
3.98 Ohm
3.98 Ohm
3.98 Ohm
3.98 Ohm
Le
5.2mH
5.2mH
5.2mH
5.2mH
Qms
11.24
12.92
16.55
17.6
Qes
0.35
0.403
0.516
0.548
Qts
0.34
0.391
0.5
0.532
Xmax
26 mm
26 mm
26 mm
26 mm
Ref SPL @ 1 watt
85.9 dB
87.5 dB
89.0 dB
91.3 dB
Suggested Sealed
N/A
N/A
N/A
N/A
Suggested Ported
1.0Âł ft
1.5Âł ft
3.0Âł ft
5.5Âł ft
Â
What Our Experts Think
The DC Audio XL 18" (DCA-XL-18-D1.4) is a high-output 18-inch subwoofer built for powerful daily systems, SPL builds, and competition-level bass setups
Handles approximately 2200W RMS / 4400W peak power for extreme low-frequency output when paired with the right amplifier and enclosure
Features a dual 1.4-ohm voice coil configuration for flexible wiring options with high-power monoblock amplifiers
Built with a 3-inch 8-layer high-temperature aluminum voice coil, CNC-machined motor assembly, heavy-duty frame, and reinforced cone structure for durability under high power
Designed for deep, powerful bass response with strong excursion capability and reliable performance during extended use
Recommended for large ported enclosures (around 5.5 ftÂł) to maximize output and efficiency
Ideal for custom car audio builds, SPL enthusiasts, and high-output bass systems
Q&A
Q: How much power does the DC Audio XL 18 handle? A: It handles approximately 2200W RMS and 4400W peak power with proper tuning and installation.
Q: What is the voice coil configuration? A: This model uses dual 1.4-ohm voice coils.
Q: Is it good for daily use? A: Yes, it works well for powerful daily systems when matched with the correct amplifier and enclosure.
Q: What amplifier works best with it? A: A quality amplifier delivering around 2000â2500W RMS at the correct final impedance is recommended.
Q: What enclosure is recommended? A: A properly tuned ported enclosure around 5.5 cubic feet is recommended for maximum bass performance.
Maintenance Tips
Use a properly tuned amplifier to prevent clipping and overheating
Monitor voltage stability during high-power bass sessions
Check speaker terminals and wiring regularly for secure connections
Keep enclosure seals tight for consistent bass response
Avoid exceeding recommended RMS power limits
Allow proper cooling during extended high-output operation
