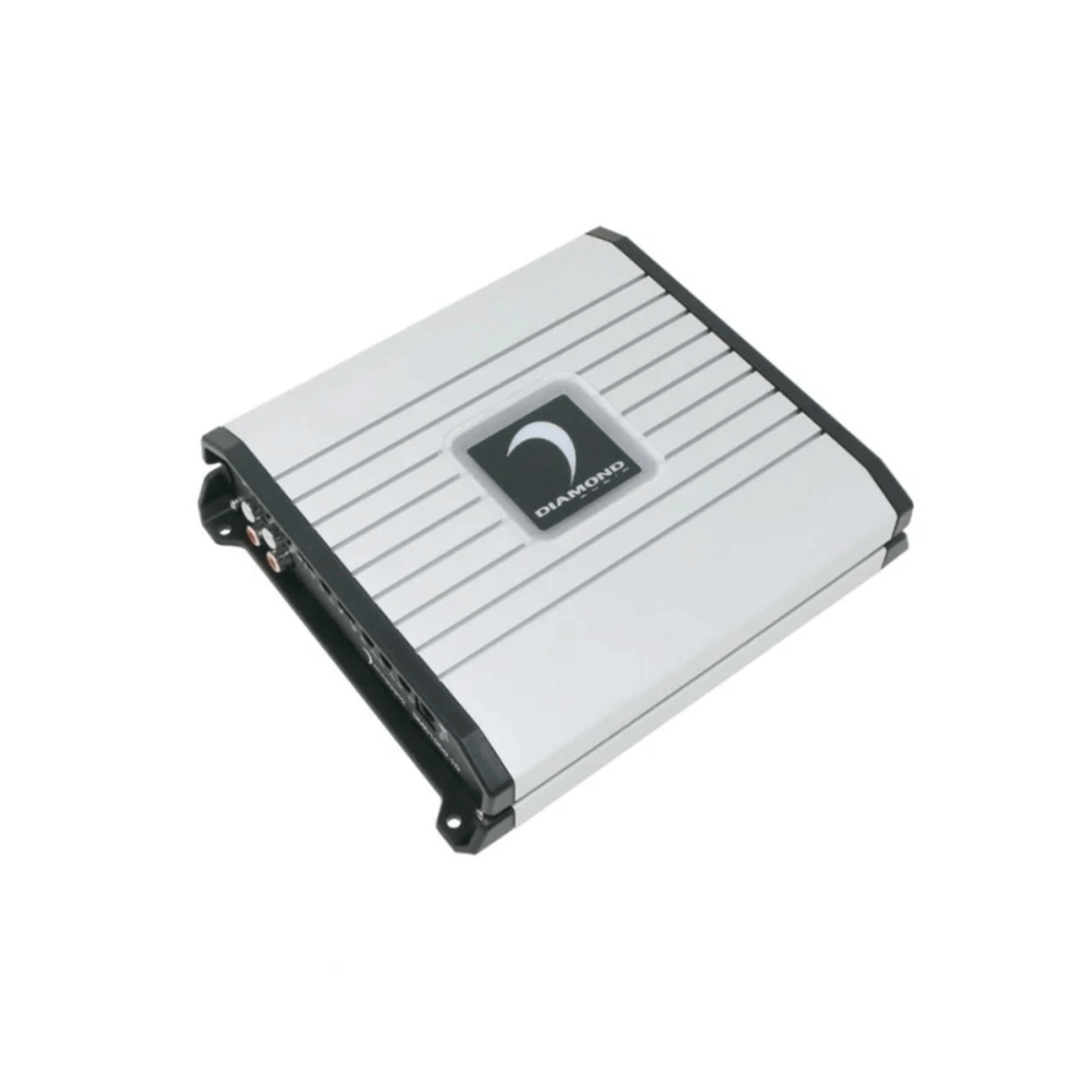

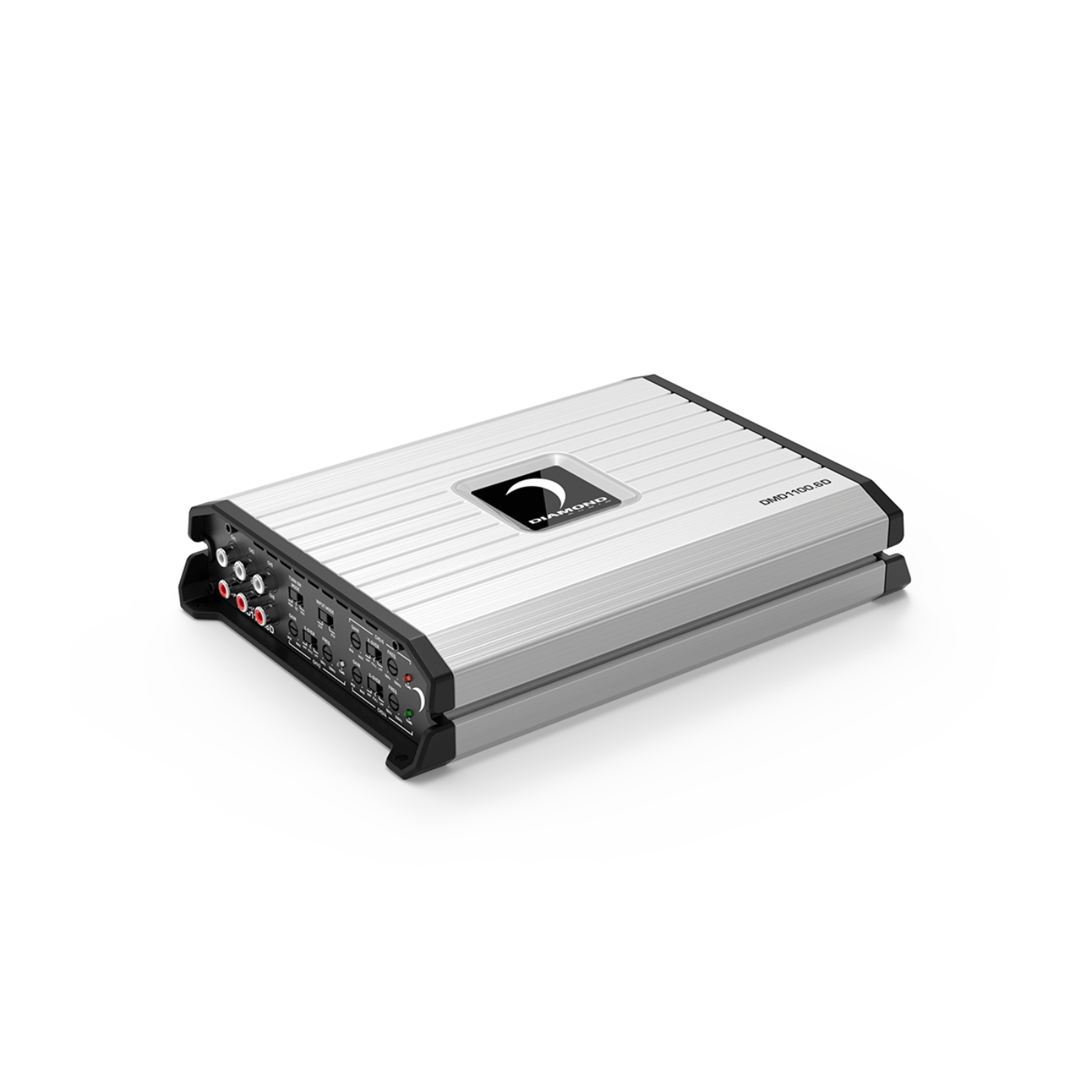

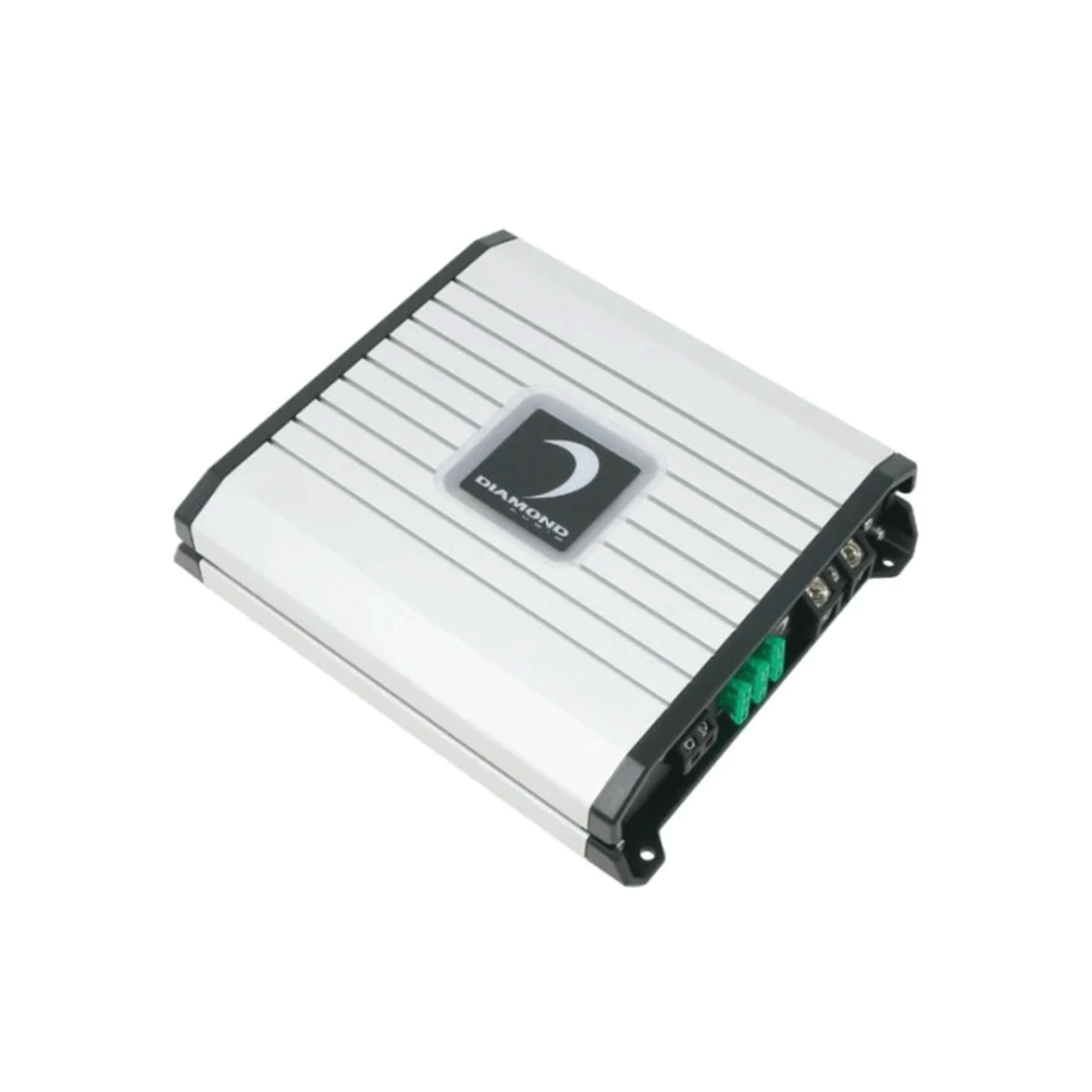

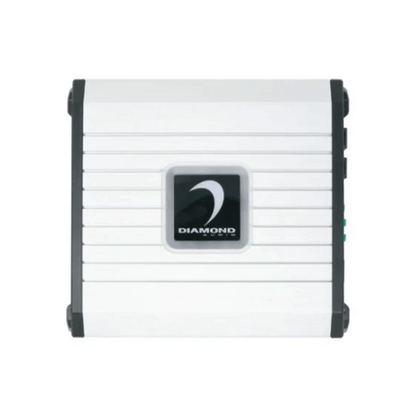

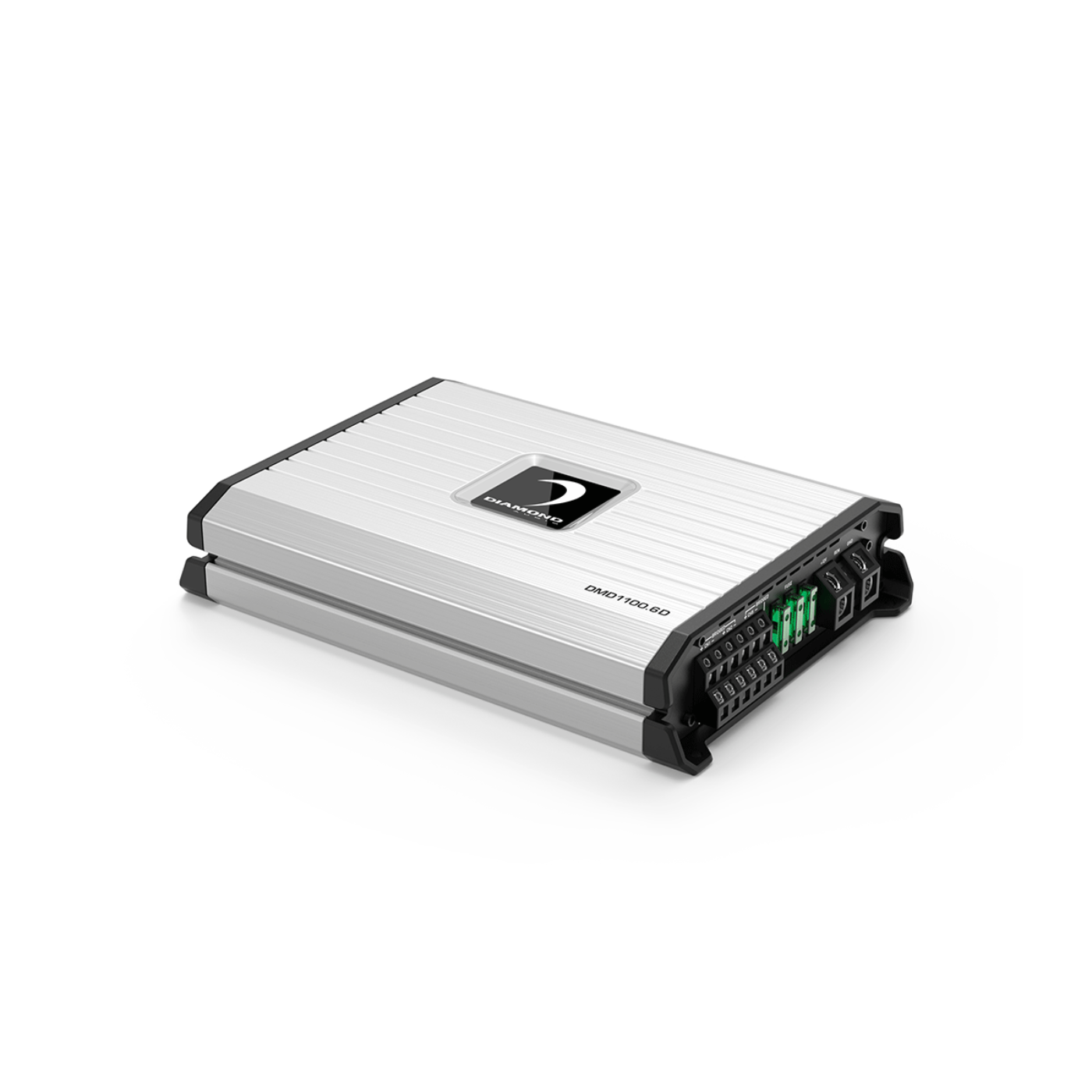

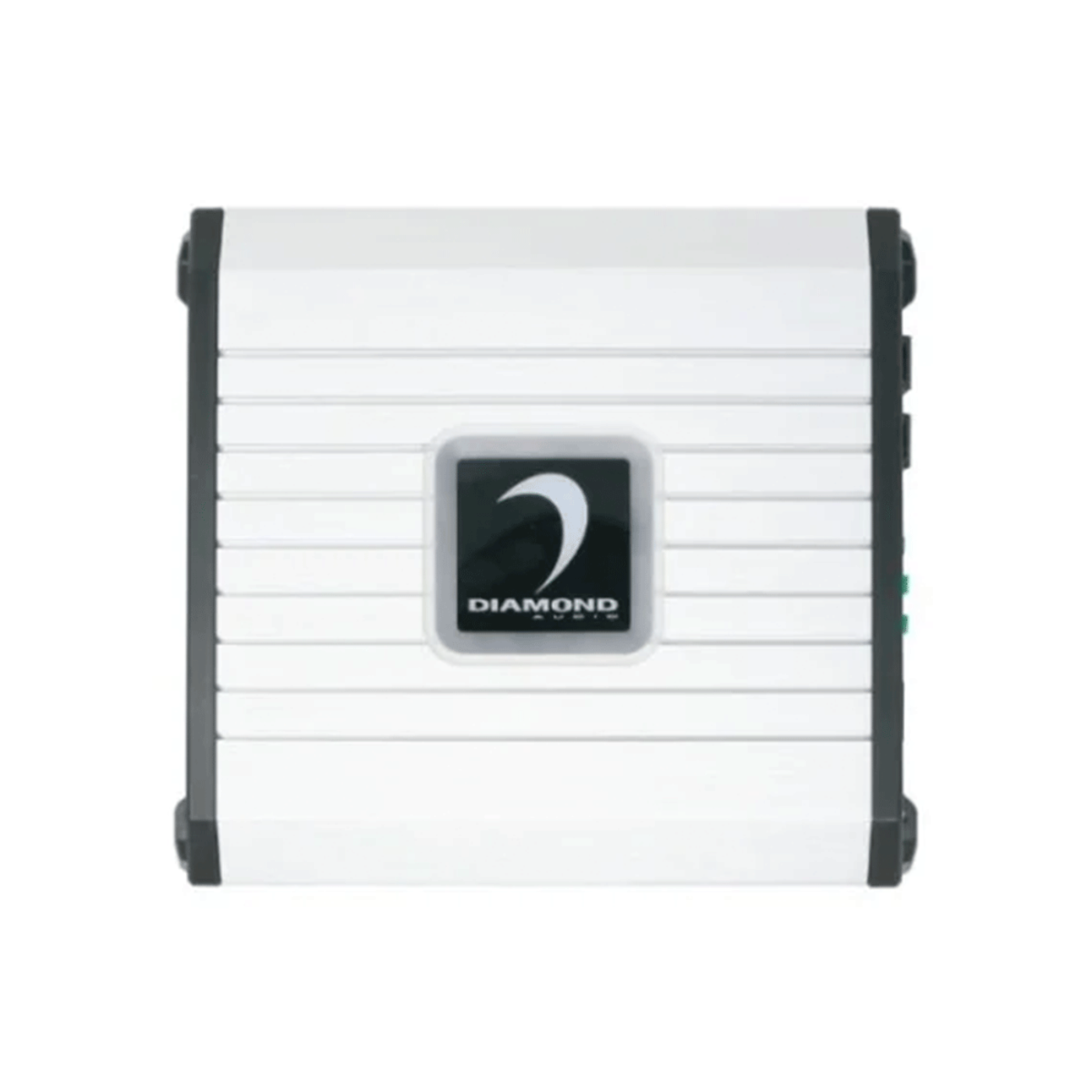

Diamond Audio 6-Channel DMD Series Full Range Digital Amplifier - DMD1100.6D
Take complete control of your system with the Diamond Audio DMD Series 6-Channel Full Range Class D Digital Amplifier, engineered for power, flexibility, and value in modern car audio installations. Designed to drive full-range speakers and subwoofers from a single amplifier, this 6-channel car amplifier delivers dynamic performance with efficient power output.
Built with advanced Class D digital amplifier technology, the Diamond Audio 6-channel amplifier produces 125W x 4 + 250W x 2 at 2 ohms and 80W x 4 + 125W x 2 at 4 ohms, offering versatile power for multi-speaker setups. With bridging capabilities up to 500W x 1 at 4 ohms and dedicated subwoofer channel options delivering 700W x 1 at 2 ohms, this amplifier is ideal for powering a complete audio system with clarity and authority.
Engineered with 4-layer FR4 PCB construction and advanced SMD circuitry, the DMD Series amplifier ensures reliable performance, efficient heat dissipation, and long-term durability. Balanced differential inputs provide clean, noise-free signal transfer, making it perfect for both factory and aftermarket integrations.
Fine-tune your sound with variable high-pass and low-pass crossover controls (50Hzā500Hz), allowing precise tuning for speakers and subwoofers. Whether youāre building a fully active system or a traditional front/rear/sub setup, this full-range Class D amplifier delivers balanced, distortion-free sound across the frequency spectrum.
Installation is simple with selectable 2-channel or 6-channel input modes and REM, VOX, and DC turn-on options, ensuring seamless compatibility with any head unit. Built-in short circuit, thermal, and voltage protection safeguards your system, while the compact chassis allows flexible mounting options.
The Diamond Audio DMD 6-Channel Amplifier delivers powerful, flexible, and efficient performance, making it the ultimate solution for all-in-one car audio systems seeking premium sound on a budget.
Features
ā¢ 6-channel full range Class D digital amplifier
ā¢ 125W x 4 + 250W x 2 @ 2Ī© / 80W x 4 + 125W x 2 @ 4Ī©
ā¢ Bridging capability up to 700W subwoofer output
ā¢ 4-layer PCB with advanced SMD technology
ā¢ Variable HPF/LPF crossover controls (50Hzā500Hz)
ā¢ Balanced differential inputs for clean signal
ā¢ Selectable 2CH / 6CH input modes
ā¢ REM / VOX / DC auto turn-on options
ā¢ Compact, high-efficiency design
What our Experts Think Ā
-
High-performance 6-channel digital amplifier designed to power complete multi-speaker audio systems with clean, efficient output.
-
Full-range Class D technology delivers powerful sound while maintaining excellent efficiency and reduced heat generation.
-
Multi-channel flexibility makes it ideal for front, rear, and subwoofer system configurations in automotive and powersports applications.
-
Compact yet powerful design provides easy installation without sacrificing performance or reliability.
-
An excellent choice for serious audio enthusiasts seeking strong output, precise control, and premium sound quality from a single amplifier.
Ā
Q&A Ā Ā
Q: What is the Diamond Audio DMD1100.6D designed for?
A: The DMD1100.6D is a 6-channel full-range digital Class D amplifier designed to power complete car audio systems, including multiple speakers and subwoofers from one compact amplifier.
Q: How much power does the DMD1100.6D deliver?
A: It delivers 125W x 4 + 250W x 2 RMS at 2Ī© and 80W x 4 + 125W x 2 RMS at 4Ī©, with bridged output options for higher power applications.
Q: Can the DMD1100.6D run speakers and a subwoofer?
A: Yes. Its 6-channel layout allows flexible setups for full-range speakers, component systems, and dedicated subwoofer channels.
Q: Does the amplifier include tuning controls?
A: Yes. It features adjustable HPF/LPF crossovers, selectable input modes, balanced differential inputs, and turn-on options for easy system setup.
Q: Why choose the Diamond Audio DMD1100.6D?
A: It combines compact size, efficient digital Class D performance, strong multi-channel output, and flexible installation for a powerful audio upgrade.
Maintenance Tips Ā
- Clean the amplifier surface with a soft, dry microfiber cloth to prevent dust buildup.
- Ensure proper airflow around the amplifier to maintain cooling and avoid overheating.
- Inspect power, ground, RCA, and speaker connections regularly for secure, corrosion-free contact.
- Check fuses and wiring periodically for signs of wear or damage.
- Keep the amplifier protected from excessive moisture, heat, and direct sunlight.
- Verify mounting hardware stays tight to reduce vibration and maintain reliable performance.
