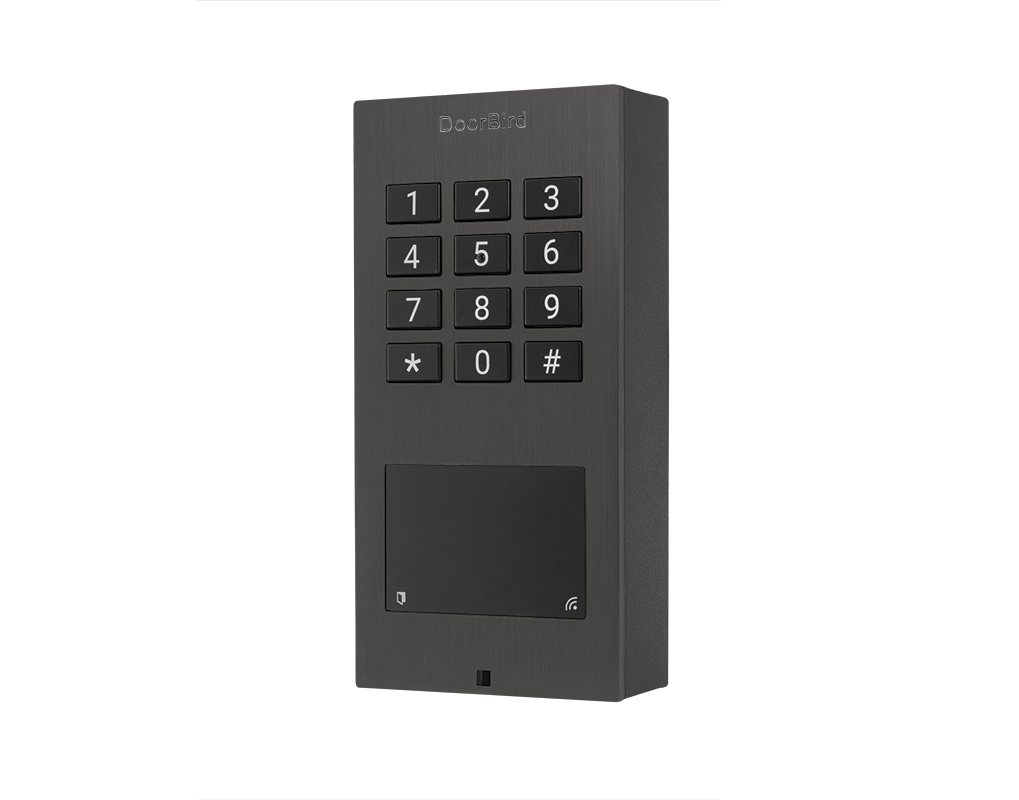

DoorBird A1121 Surface-Mount IP Access Control Device in Titanium
Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms
Titanium-finish as PVD coating, stainless steel, brushed
(GTIN/EAN: 4260423872202, P/N: 423872202)
Highlights
- Surface-mount housing included
- WiFi / LAN connection (PoE capable)
- Keypad
- 125 KHz and 13.56 MHz RFID reader
- Tamper sensor
- Wiegand interface
- 2 freely configurable bistable switching relays
Features
-
Three separate access control devices combined:
Keypad
RFID Reader
Bluetooth low Energy (BLE)
-
Keypad Module
Configurable via App
Up to 500 individual PIN codes
Individual events (e.g. trigger a relay, HTTP(s) request)
-
RFID sensor
125 KHz
13.56 MHZ
-
Bluetooth low Energy (BLE)
For access control, compatible external sensors and smart locks
- WiFi-capable
- Two freely configurable bistable switching relay
- Wiegand interface
- Manipulation sensor
| Front panel |
3 mm (0.12 in)
Available in brushed stainless steel V2A / V4A
and V2A with bronze and titanium finish,
DB 703, RAL 7016, Graphite Black (Raven Polar) |
Mounting housing
(backbox)
|
Polycarbonate |
| Mounting type |
Surface-mounted. Flush-mounted and retrofit version sold separately |
| Power supply |
15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Keypad module |
12 keys, illuminated, configurable via App, e.g.
- Individual PIN codes
- Individual events (e.g. switch a relay, HTTP(s) request)
- Individual schedules
- Up to 500 PIN codes manageable
|
| Tamper Sensor |
Integrated |
| Weight |
250 g |
| Connectors |
- LAN/PoE (T+, T-, R+, R-)
- 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
- 15 – 48 V DC input (+, -), max. 15 W
- Wiegand
|
| Weatherproof |
Yes, IP65 |
| Approvals |
IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368 |
| Dimensions |
128 x 62 x 28 mm (H x W x D)
5.04 x 2.44 x 1.1 in (H x W x D)
|
| Operating conditions |
-25 to +55°C / -13 to 131°F
Humidity 10 to 85 % RH
(non-condensing)
|
| Scope of delivery |
1x Main Electrical Unit with front panel
1x Wall mounting bracket
1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
1x RJ45 adapter
1x Screwdriver
1x Quickstart guide with Digital Passpor
t 1x Installation manual
1x Small parts
|
