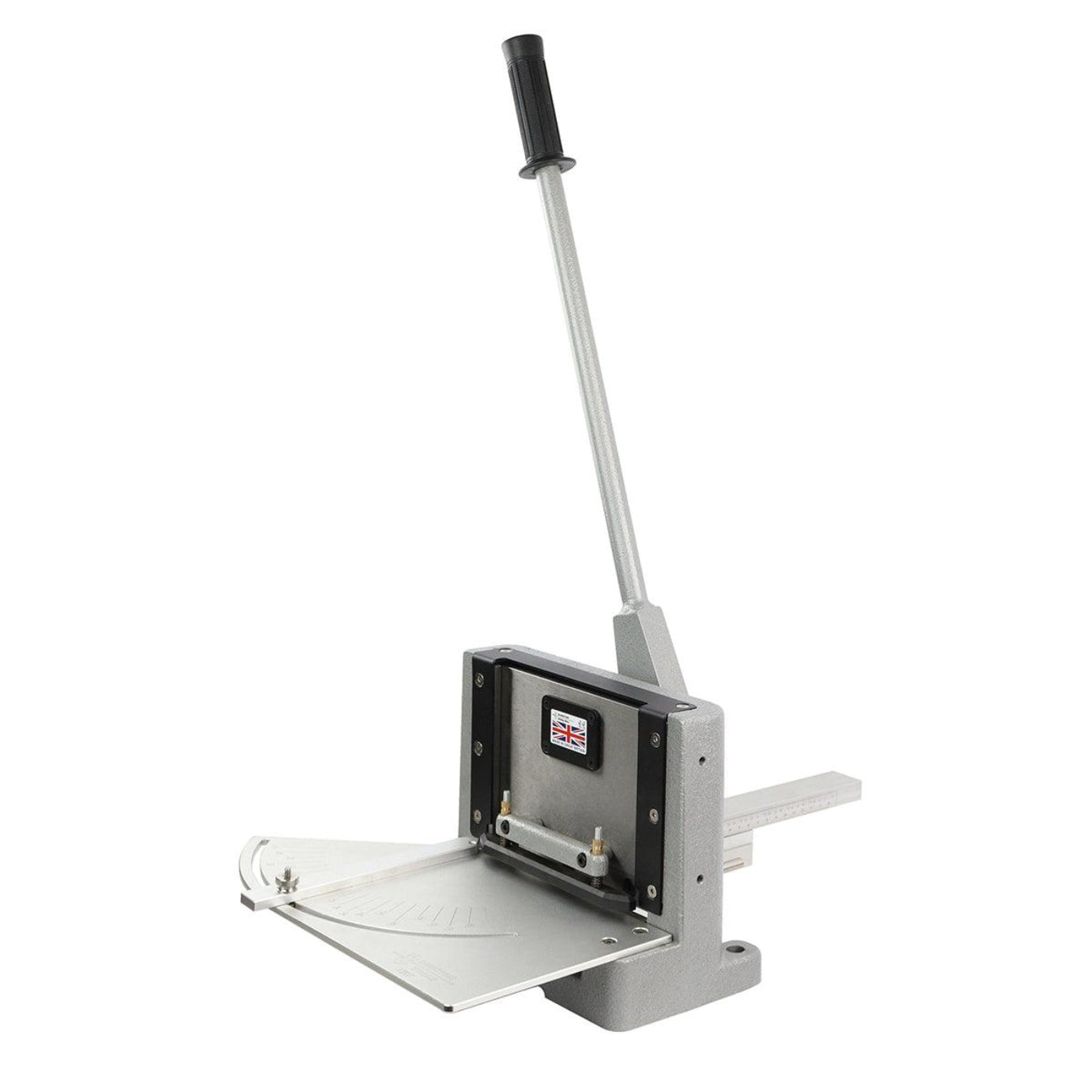

Durston 1207 6" Guillotine Shear - 153.896
Durston 1207 6″ Guillotine Shear is the upgraded, UK-made bench shear featuring a larger stainless table, wider guide, improved backstop, and a patent-pending square rack-and-pinion drive for smoother cutting with less effort. It cleanly shears sheet up to 160 mm (6-1/4″) wide by 1.5 mm non-ferrous and 0.75 mm mild steel, making precise straight or angled cuts fast and repeatable.
Features
-
Higher capacity: Cuts 160 mm (6-1/4″) wide; up to 1.5 mm non-ferrous and 0.75 mm mild steel.
-
Upgraded work support: Larger stainless table and guide allow wider sheet to pass—even at 45°.
-
Improved backstop: Smooth bearing guides with hand-tighten lock for quick, precise repeat cuts.
-
Square drive system: Patent-pending rack & pinion transfers maximum torque directly to the blade.
-
Precision blade: Precision-ground, hardened & tempered; four cutting edges for long service life.
-
Angle cutting: Built-in mitre gauge & ruler—angles to 60° in 5° increments.
-
Bench-mount ready: Mounting holes for secure installation on a work surface (hardware not included).
-
UK-made durability: Strong, rigid construction for jewelry-grade results.
Specifications
| Model |
Durston 1207 (6″ Guillotine Shear) |
| Max Cut Width |
6-1/4″ (160 mm) |
| Max Thickness – Non-Ferrous |
1.5 mm |
| Max Thickness – Mild Steel |
0.75 mm |
| Angle Range |
0°–60° in 5° increments (mitre gauge) |
| Dimensions (L × W × H) |
10-5/8″ × 8-3/4″ × 7-3/4″ (270 × 220 × 200 mm) |
| Net Weight |
37-1/2 lb (17 kg) |
| Shipping Weight |
41.8 lb (19 kg) |
| Country of Origin |
United Kingdom |
Included
- Durston 1207 6″ Guillotine Shear
- Integrated stainless table with ruler and adjustable mitre gauge
- Improved backstop with bearing guides
What our Experts Think
-
Professional precision cutting tool: The Durston 1207 6" Guillotine Shear (153.896) is a heavy-duty bench shear designed for clean, accurate straight and angled cuts in non-ferrous sheet metals.
-
Upgraded cutting system: Features a patent-pending square drive mechanism that maximizes torque transfer for smoother cutting with reduced operator effort and improved control.
-
Improved material handling: The enlarged stainless steel table and upgraded backstop system allow more stable feeding and repeatable cuts with minimal movement or slippage.
-
Angle versatility built-in: Supports angled cuts up to 60° in 5° increments, making it suitable for precision fabrication and custom jewelry component shaping.
-
Durable workshop construction: Cast iron body and hardened, precision-ground blade ensure long service life and consistent cutting performance under frequent use.
-
Production-focused accuracy: Designed for repeat cutting tasks where consistency matters, reducing finishing work and improving workflow efficiency in professional studios.
Q&A
Q: What is the Durston 6" Guillotine Shear used for?
A: It is a professional bench tool designed to cut sheet metal cleanly and accurately in jewelry making and metal fabrication, allowing fast straight and angled cuts.
Q: What materials can it cut?
A: It is suitable for non-ferrous metals such as gold, silver, copper, brass, and aluminum, typically up to around 1.5mm sheet thickness (6" width).
Q: What is the cutting capacity?
A: It can cut sheets up to about 160mm (6–6.25") wide, depending on setup, and around 1.5mm thickness for non-ferrous metals.
Q: Can it make angled cuts?
A: Yes, it allows angled cutting up to 60° in 5° increments, making it useful for precise design work and repeatable shapes.
Q: What makes this guillotine shear better than basic cutters?
A: It features a patent-pending square drive system, which delivers higher torque and smoother cutting with less effort compared to older round-shaft designs.
Q: Does it help with accuracy?
A: Yes, it includes an improved backstop with bearing guides and a precision table, helping ensure repeatable, stable cuts with minimal movement.
Q: What type of blade does it use?
A: It uses a hardened and tempered steel blade with four usable cutting edges, extending service life before replacement or sharpening.
Q: Is it suitable for professional workshops?
A: Yes, it is designed for daily studio and production use, offering durability, stability, and consistent cutting performance.
Q: What makes this model stand out overall?
A: Its key advantages are clean precision cutting, strong mechanical leverage, and repeatable angle control, making it a reliable alternative to sawing sheet metal in jewelry work.
Maintenance Tips
-
Clean blade after every use: Remove metal chips and dust to maintain sharp, precise cutting edges and prevent buildup in the pivot area.
-
Lubricate pivot & drive system: Lightly oil the hinge, square drive, and moving joints to ensure smooth, low-effort cutting action.
-
Rotate blade edges: The hardened blade has multiple cutting edges—rotate when performance drops instead of over-sharpening.
-
Avoid over-thickness cutting: Do not exceed rated material thickness to protect the hardened blade and frame alignment.
-
Keep table & backstop clean: Ensure smooth feeding and accurate repeat cuts by removing debris from guide surfaces.
-
Check alignment regularly: Confirm blade seating and backstop alignment for straight, burr-free cuts.
-
Prevent rust: Wipe metal surfaces with a light anti-corrosion oil, especially in humid environments.
-
Tighten mounting bolts: Ensure the shear is securely fixed to a workbench for safe, vibration-free operation.
