Durston 1090 TUI 130 Double Sided Power Rolling Mill-130mm Flat & 130mm Wire 110V - 128.142

Durston 1090 TUI 130 Double Sided Power Rolling Mill-130mm Flat & 130mm Wire 110V - 128.142

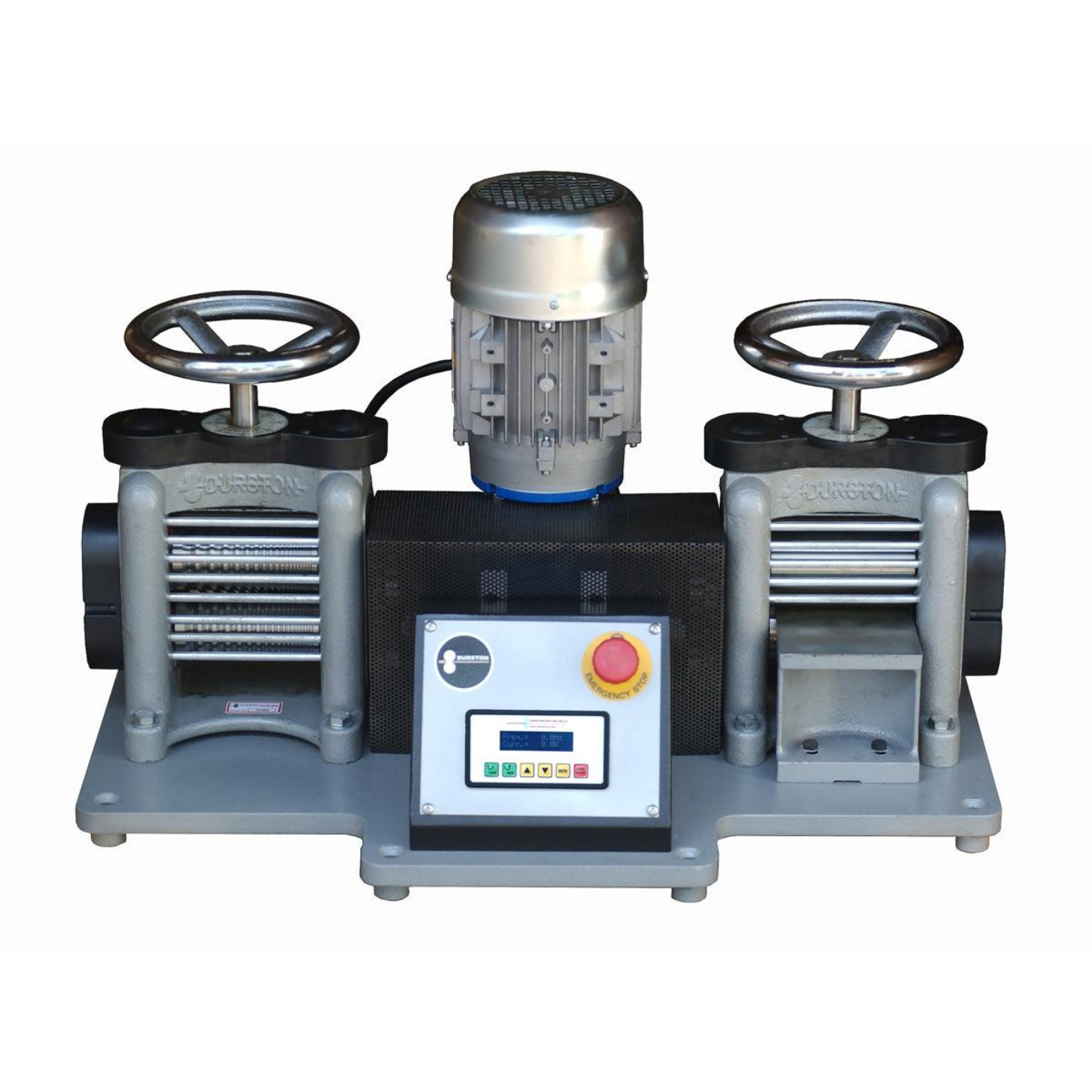

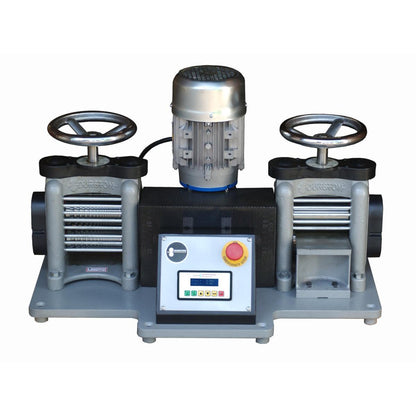

The Durston DRM-130 is a double-sided powered rolling mill built for serious production work. One side features a full 130 mm flat roll for sheet reduction; the other carries a dedicated 130 mm wire roll with 19 square groove sizes ranging from 1 mm to 10 mm. The cast iron base and gearbox cover provide the strength and rigidity needed for demanding studio and production environments, while high-quality Swedish roll steel — heat-treated to RC 63/64 — runs in heavy-duty roller bearings for long-lasting precision.

Power comes from a 1.5 hp (1.1 kW) 110 V motor paired with a precision epicyclic variable-speed gearbox, delivering smooth, near-silent operation across a 5–30 rpm speed range in both forward and reverse. Side extension rollers add quick half-round profiling capability without a tool change.

Features

• Full 130 mm flat roll on one side; dedicated 130 mm wire roll on the other
• 19 square wire groove sizes from 1 mm to 10 mm
• Side extension rollers: right side 4, 3, 2, 1.5 mm "D" grooves; left side 8, 6, 3.5 mm "D" grooves
• Maximum sheet operating thickness: 6 mm
• Maximum wire capacity: 10 mm
• Swedish roll steel heat-treated to RC 63/64
• Cast iron frame and gearbox cover for strength and rigidity
• Precision epicyclic variable-speed gearbox — smooth, near-silent power
• Forward/reverse operation with simple speed up/down controls
• Variable speed: 5–30 rpm (forward and reverse)
• Emergency stop button, front and rear safety bars, guarded extension rollers
• Easy-to-read calibrated disc for exact roll-gap measurement


Specifications

What our Experts Think

• Powerful Double-Sided Performance
  Combines 130mm flat rolls and 130mm wire rolls in one machine—perfect for jewelers who need versatility without switching equipment.
• Time-Saving Electric Operation (110V)
  Motorized functionality reduces manual effort, increases efficiency, and delivers consistent rolling results for high-volume work.
• Precision Engineering by Durston
  Renowned for exceptional build quality, Durston rolling mills ensure smooth operation, accuracy, and long-term reliability.
• Ideal for Professional Jewelry Production
  Handles sheet and wire rolling with ease, making it a must-have for goldsmiths, silversmiths, and production studios.
• Consistent, High-Quality Output
  Maintains even pressure across rolls for uniform thickness—critical for professional-grade results.
• Heavy-Duty & Durable Construction
  Built to withstand continuous use while maintaining performance, making it a solid long-term investment.
• Space-Efficient Dual Function Design
  Eliminates the need for separate mills, saving valuable workspace while maximizing productivity.

Q&A

Q: What is the Durston 1090 TUI 130 Double-Sided Power Rolling Mill?
A: It’s a professional electric rolling mill designed for jewelers, featuring 130mm flat rolls and 130mm wire rolls for versatile metal forming in one machine.

Q: What types of work can this rolling mill handle?
A: It handles both sheet metal rolling (up to 6mm thick) and wire shaping (10mm to 1mm grooves), making it ideal for goldsmithing, silversmithing, and jewelry production.

Q: What are the key features of this model?
A: Key features include a 1.1kW 110V motor, variable speed control (forward/reverse), 19 wire grooves, and side extension rollers for half-round shaping.

Q: What makes the TUI series different from other Durston mills?
A: The TUI range offers the same core performance as Durston’s premium mills but uses a steel base instead of cast iron to provide a more cost-effective solution without sacrificing quality components.

Q: Is this rolling mill suitable for professional use?
A: Yes, it’s built with hardened rolls, heavy-duty construction, and precision engineering, making it ideal for continuous professional workshop use.

Q: What safety features are included?
A: It includes an emergency stop button, safety bars, and protective guards over gears and rollers for safe operation.

Q: Does it support variable speed control?
A: Yes, the mill offers digitally controlled variable speeds (approx. 5–20 RPM) for precise rolling control.

Q: What materials can be processed with this rolling mill?
A: Suitable for gold, silver, copper, and other non-ferrous metals commonly used in jewelry making.

Q: What are the dimensions and weight?
A: It’s a heavy-duty unit (approx. 160kg / 341 lbs) designed for stability and long-term use in workshops.

Maintenance Tips

• Keep rollers clean & polished – After each use, wipe the 130mm flat and wire rollers to remove metal debris. This prevents surface damage and preserves the hardened 64 RC finish.
• Lubricate moving parts regularly – Apply light machine oil to gears, bearings, and adjustment screws to maintain smooth variable-speed operation and reduce wear on the 1.1KW motor system.
• Avoid overloading capacity – Do not exceed 6mm sheet thickness or 10mm wire capacity to prevent roller misalignment and motor strain.
• Use proper material preparation – Always anneal metal before rolling to reduce stress on the rolls and ensure consistent results across both flat and wire sides.
• Check alignment periodically – Ensure rollers are evenly aligned across the 130mm width to avoid uneven rolling and long-term damage.
• Protect from rust & humidity – Store in a dry workshop and apply anti-rust oil when not in use, especially on exposed steel components.
• Inspect safety features – Regularly test emergency stop, safety bars, and guards to maintain safe operation during powered use.
• Secure mounting surface – Bolt the mill to a stable stand or workbench to handle its heavy-duty operation (~150kg+) and prevent vibration damage.
• Clean extension rollers – Maintain side extensions and grooves (1mm–10mm range) free from debris for precise wire forming.
