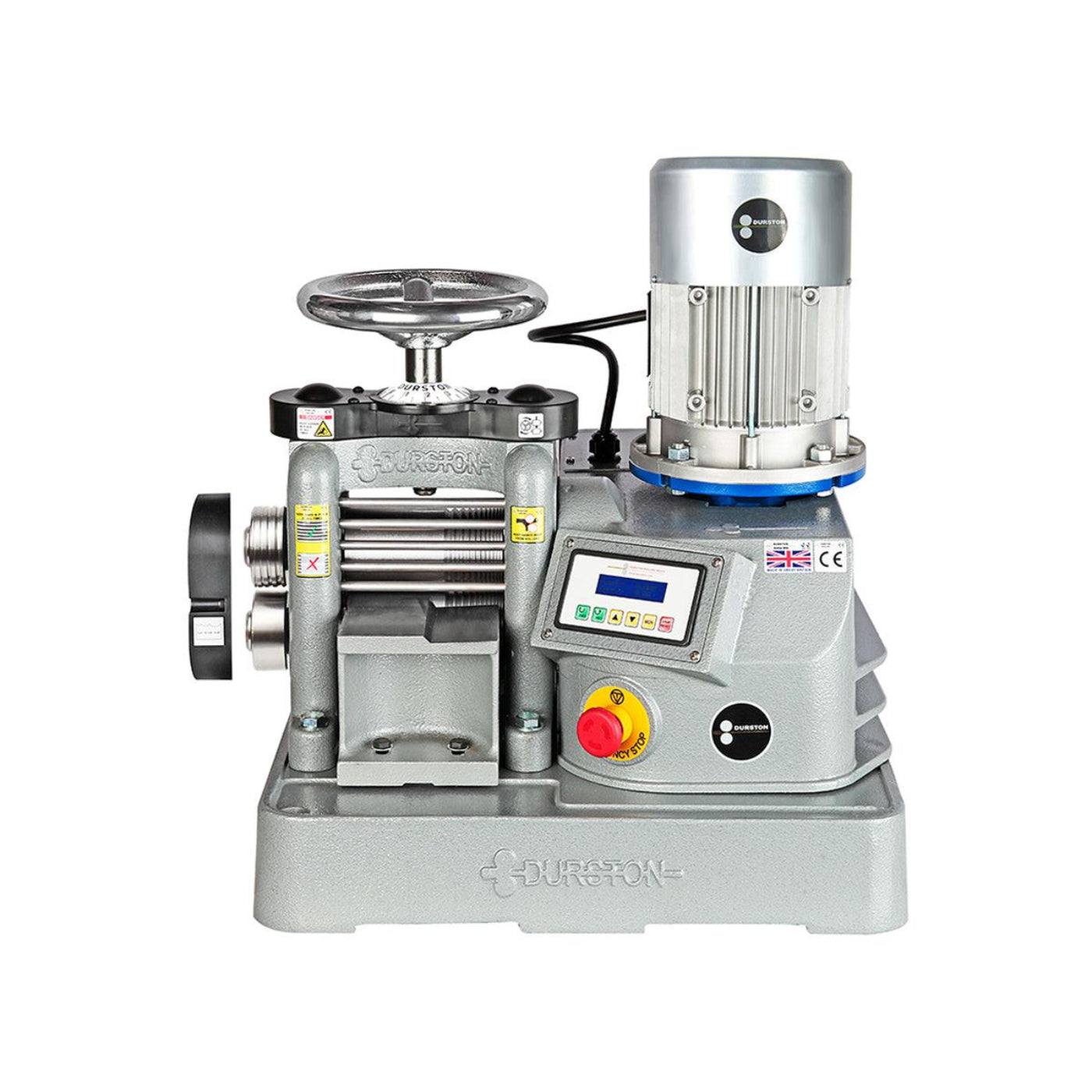

Durston 1071 Power Mill-DRM C130 Single Sided - Combination Flat/Wire - 128.138
The Durston Power Mill DRM C130 is a bench-top powered combination rolling mill built for production-grade performance and precise control. Its one-piece cast iron mill frame houses high-quality steel rolls running in heavy-duty roller bearings, driven by a 1.5 hp (1.1 kW) 110 V motor paired with a high-precision epicyclic variable-speed gearbox. The result is near-silent, continuous operation with smooth, reliable throughput. Controls are straightforward and safety-conscious: forward/reverse buttons, speed up/down, emergency stop, front and rear safety bars, and guards over the extension rollers keep the operator protected at every step.
The C130's single-sided combination roller configuration handles both flat sheet reduction and wire rolling in one mill. An easy-to-read calibrated disc lets you dial in exact roll gap measurements, while Swedish roll steel treated to RC 63/64 hardness ensures lasting precision and durability through demanding daily use.
Features
- Variable speed: 5–30 rpm (forward and reverse)
- High-precision epicyclic variable-speed gearbox for smooth, consistent output
- One-piece cast iron mill frame and cast iron gearbox for rigid, stable operation
- Heavy-duty roller bearings for near-silent continuous running
- Swedish roll steel treated to RC 63/64 hardness
- Easy-to-read calibrated disc for exact roll gap measurement
- 11 square wire grooves ranging from 8 mm down to 1 mm
- Four half-round side extension rolls: 4, 3, 2, and 1.5 mm
- Forward/reverse buttons, speed controls, emergency stop, and front/rear safety bars
- Guards over extension rollers
Specifications
| Motor |
1.1 kW (1.5 hp), 110 V |
| Speed Range |
5–30 rpm (forward and reverse) |
| Roll Size |
130 mm × 65 mm |
| Roller Type |
Combination flat/wire, single-sided |
| Sheet Thickness Capacity |
6 mm |
| Wire Grooves |
11 square sizes, 8 mm – 1 mm |
| Maximum Wire Capacity |
8 mm |
| Side Extension Rolls |
Four half-rounds: 4, 3, 2, 1.5 mm |
| Overall Dimensions |
19-3/4" × 15-3/8" × 21-1/4" H (500 × 390 × 540 mm) |
| Net Weight |
286 lb (130 kg) |
What our Experts Think
-
Production-grade powered precision: The Durston 1071 Power Mill DRM C130 (128.138) is a heavy-duty single-sided powered rolling mill designed for continuous workshop use with consistent, controlled output.
-
Dual-purpose combination system: Built for both flat sheet reduction and wire forming, it integrates a 130mm roll set with precision grooves and flat rolling capability for versatile metalwork.
-
High-torque industrial motor: Equipped with a 1.1 kW (1.5 HP) motor, it delivers stable power for long production runs, reducing operator fatigue and ensuring uniform results.
-
Precision wire + sheet control: Features multiple wire grooves (typically 11 sizes) plus side extension rollers for half-round profiles (4, 3, 2, 1.5 mm), enabling advanced forming flexibility.
-
Built for durability and accuracy: Cast iron frame and induction-hardened rolls ensure long-term rigidity, wear resistance, and consistent surface finish quality under heavy use.
-
Workshop safety and usability focus: Includes forward/reverse control, variable speed operation, emergency stop, and protective guards for safe, controlled operation in professional environments.
Q&A
Q: What is the Durston DRM C130 Power Mill used for?
A: It is a professional powered rolling mill designed for both flat sheet rolling and wire forming, widely used in jewelry manufacturing and metal fabrication.
Q: What is the roller width and capacity?
A: It features a 130mm roller width and can handle sheet metal up to approximately 6mm thickness, depending on material type.
Q: How many wire grooves does it include?
A: The main roller includes 11 square wire grooves ranging from about 8mm down to 1mm for step-by-step wire reduction.
Q: Does it include half-round extension rolls?
A: Yes, side extensions provide four half-round profiles (approximately 4mm, 3mm, 2mm, and 1.5mm) for shaping wire and shanks.
Q: What motor does it use?
A: It uses a 1.1 kW industrial motor, designed for continuous workshop operation with smooth powered rolling.
Q: Is it suitable for professional use?
A: Yes, it is built with cast iron construction, hardened rollers (RC ~64), and precision gearing, making it suitable for daily production use in workshops.
Q: What makes this model stand out?
A: Its key advantage is the all-in-one combination capability (flat + wire + half-round forming) in a powered system, reducing the need for multiple separate rolling mills.
Maintenance Tips
-
Clean rollers after every use: Remove metal dust from both flat and wire grooves to maintain precision and prevent surface marking.
-
Protect hardened rolls: Wipe with light anti-rust oil (e.g., 3-in-1) when idle, then clean before next use to avoid contamination.
-
Lubricate gears & bearings: Regularly grease drive gears and oil adjustment points for smooth, quiet powered operation.
-
Use gradual reductions: Avoid heavy single passes to protect the 1.1 kW motor, gearbox, and roller alignment.
-
Keep extension grooves clean: Clear 4, 3, 2, 1.5 mm half-round channels to maintain accurate wire shaping.
-
Check alignment regularly: Ensure rollers remain parallel for consistent sheet thickness and uniform wire profiles.
-
Avoid dirty or hardened metal: Only roll clean, annealed material to prevent groove damage and roller marking.
-
Cover when not in use: Protect from dust and humidity to prevent corrosion on cast iron and steel components.
