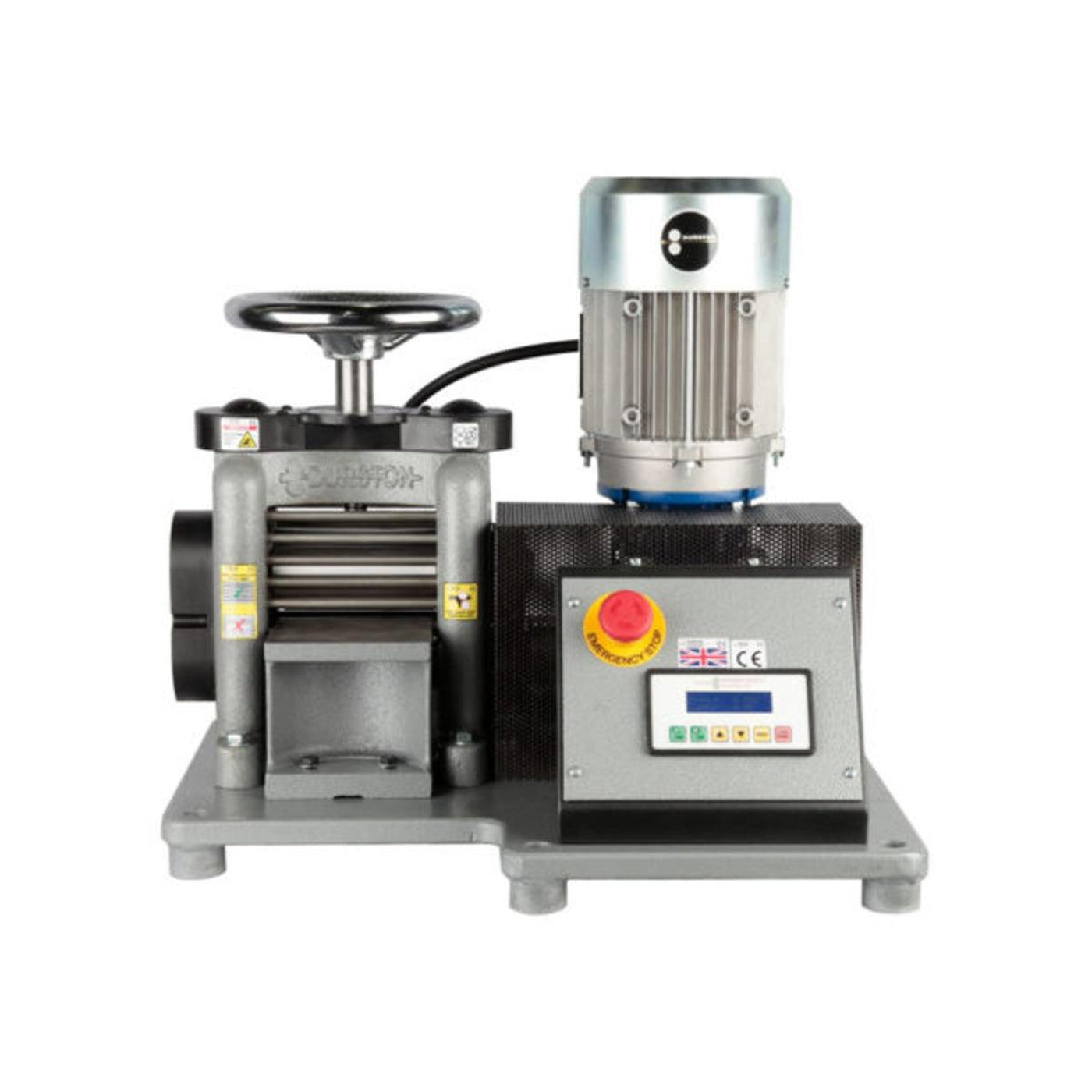

Durston 1088 Power TUI F130 Single Sided 130mm Flat Rolling Mill - 128.141FLAT
The Durston Power TUI F130 is a single-sided, all-flat powered rolling mill delivering professional Durston performance at a more accessible price point. The TUI line achieves its cost advantage through a steel base and perforated aluminum gearbox cover in place of the cast iron base and cover found on the DRM series — while sharing the same motor, gearbox, and one-piece cast iron mill frame as those higher-tier mills. High-quality steel rolls run in heavy-duty roller bearings for reliable, repeatable sheet reduction in a professional studio or production environment.
Features
-
All-flat 130 mm roll surface for consistent sheet reduction across the full roller width
-
Side extension rolls with protective covers for half-round profile forming
-
Variable speed with forward and reverse operation
-
Emergency stop button plus front and rear safety bars for operator protection
- Metric and inch adjustable flywheels for precise gap control
- Same motor, gearbox, and cast iron rolling mill frame as Durston DRM mills
-
TUI: Steel base and perforated aluminum gearbox cover — cost-optimized construction
-
DRM: Cast iron base and cast iron gearbox cover — premium construction throughout
-
Shared between both lines: Motor, gearbox, cast iron rolling mill frame, and all rolling components
Specifications
| Motor |
1.1 kW (1.5 HP), 110 V |
| Roller Type |
Flat |
| Roll Size |
130 mm × 65 mm |
| Roller Length |
130 mm |
| Roller Diameter |
65 mm |
| Sheet Thickness Capacity |
6 mm |
| Side Extension Rolls |
Half-rounds: 4, 3, 2, 1.5 mm |
| Overall Dimensions |
19-3/4" L × 15-3/8" W × 21-1/4" H (500 × 390 × 540 mm) |
| Net Weight |
243 lb (110 kg) |
| Base Material |
Steel |
| Gearbox Cover |
Perforated aluminum |
| Mill Frame |
One-piece cast iron |
What our Experts Think
-
Dedicated 130mm Flat Rolling Power
Designed specifically for sheet metal work, the full-width 130mm flat rolls deliver consistent, even thickness—ideal for professional jewelers focused on precision sheet reduction.
-
Motorized Efficiency with Variable Speed Control
Equipped with a powerful 1.1kW motor and adjustable speed (forward & reverse), allowing smooth, controlled rolling with minimal manual effort.
-
Professional-Grade Output at Lower Cost
Part of Durston’s TUI range, offering the same core rolling components and performance as premium models, but with a more cost-efficient build.
-
Enhanced Versatility with Side Extensions
Includes integrated half-round wire grooves (4mm to 1.5mm), adding extra functionality beyond flat rolling without needing a combo mill.
-
Precision Control & Safety Features
Adjustable flywheels, emergency stop, and safety bars ensure accurate settings and secure operation in busy workshop environments.
-
Heavy-Duty Durston Construction
Built with a cast iron mill frame and high-quality steel rolls, ensuring durability, stability, and long-term reliability under continuous use.
-
Ideal for Sheet-Focused Jewelry Production
Perfect for goldsmiths and silversmiths who primarily work with sheet metal and want a powerful, space-efficient, single-purpose rolling solution.
Q&A
Q: What is the Durston 1088 Power TUI F130 Single-Sided Rolling Mill?
A: It’s a professional electric flat rolling mill featuring 130mm-wide flat rolls, designed for consistent sheet metal reduction in jewelry making and metalworking.
Q: What type of work is this rolling mill best for?
A: It’s ideal for flattening metal sheet, reducing thickness, and texturing, making it perfect for goldsmiths and silversmiths focused on sheet work rather than wire production.
Q: What are the key features of this model?
A: Key features include a 1.1kW 110V motor, variable speed control (5–20 RPM), forward/reverse operation, and 130mm flat rolling width for precision work.
Q: Does it include side extension rollers?
A: Yes, it includes side extension rollers with 4 half-round grooves (4mm–1.5mm), adding versatility for shaping wire profiles.
Q: What is the maximum sheet thickness capacity?
A: The mill can handle metal sheets up to approximately 6mm thick, suitable for most jewelry applications.
Q: What makes the TUI series different from Durston DRM mills?
A: The TUI range uses a steel base and cost-efficient construction, while maintaining the same motor, gearbox, and core rolling components as higher-end DRM mills.
Q: Is this rolling mill suitable for professional use?
A: Yes, it features heavy-duty bearings, hardened rolls, and a cast iron frame, making it reliable for continuous professional workshop use.
Q: What safety features are included?
A: It includes an emergency stop button, safety bars, and protective guards, ensuring safe operation during powered rolling.
Maintenance Tips
-
Clean rollers after every use – Wipe the 130mm flat rolls to remove metal particles and debris, preserving the smooth surface for consistent sheet reduction.
-
Apply light anti-rust oil – Use a thin coat of machine oil on rollers and exposed steel to prevent corrosion, especially in humid workshops.
-
Lubricate gears & bearings – Maintain the gearbox and internal components with proper lubrication to support the 1.1kW motor and ensure smooth variable-speed operation (5–20 RPM).
-
Avoid overloading capacity – Do not exceed ~6mm sheet thickness to prevent roller strain, misalignment, and motor wear.
-
Use clean, annealed metal only – Rolling dirty or unannealed material increases stress on the flat rolls and reduces precision output.
-
Protect side extension rollers – Keep the half-round extension grooves (4–1.5mm) clean and covered when not in use to avoid contamination and wear.
-
Check alignment regularly – Ensure even pressure across the full 130mm width to maintain accuracy and prevent uneven rolling results.
-
Inspect safety systems – Test emergency stop and safety bars periodically to ensure safe powered operation.
-
Secure machine properly – Mount the ~110kg mill on a stable bench or stand to minimize vibration and maintain precision.
-
Cover when idle – Use a dust cover to protect the flat rollers and motor housing from debris buildup.
