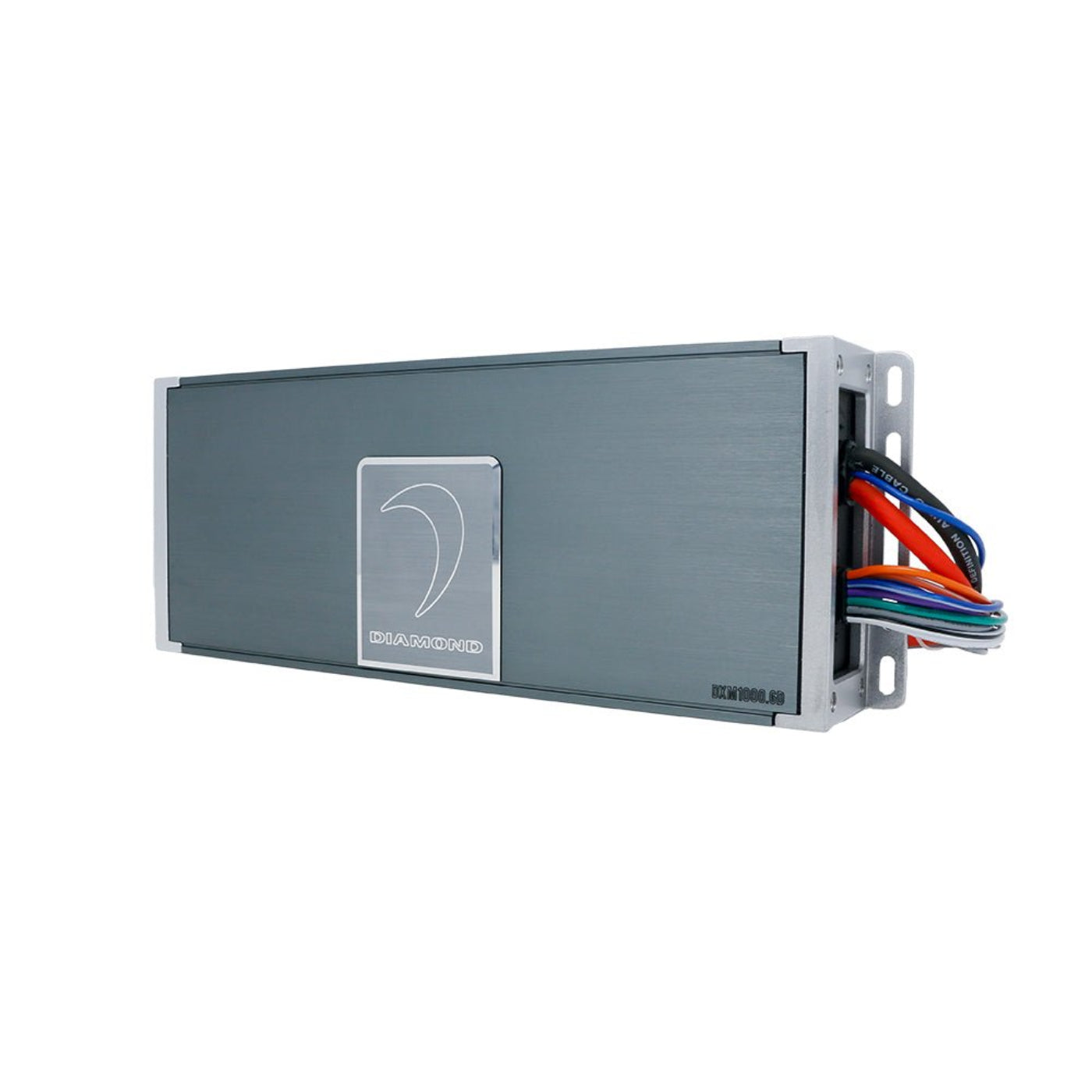

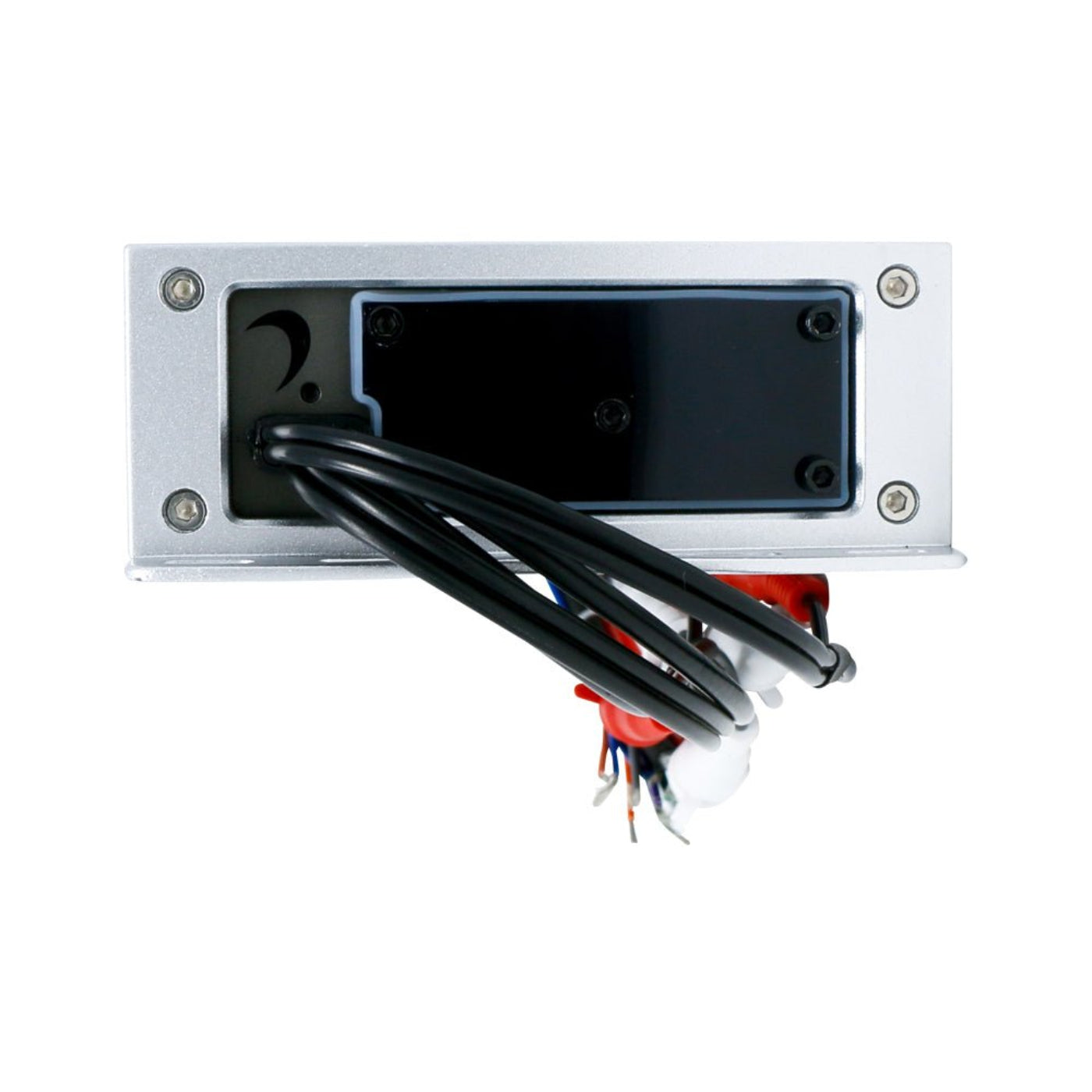

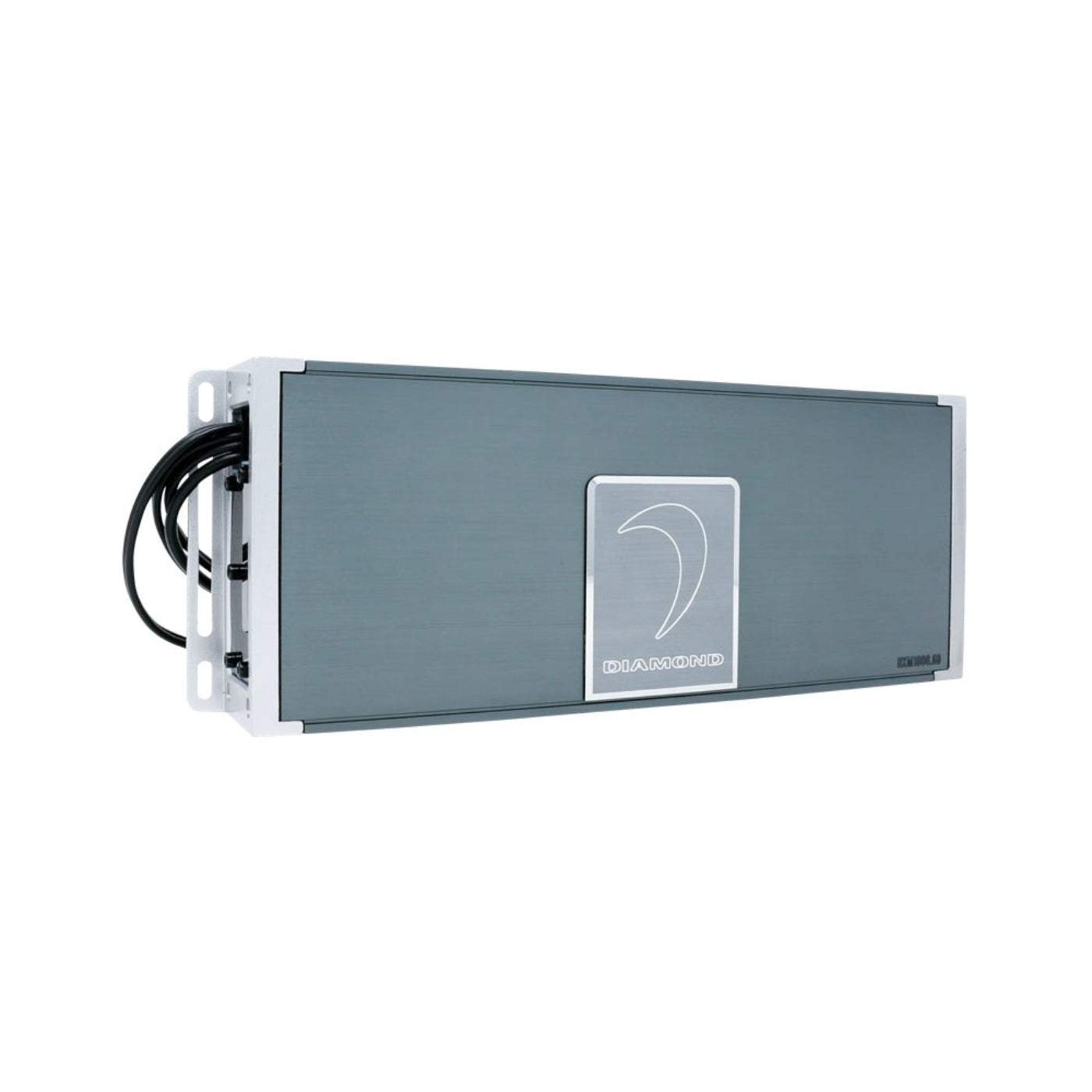

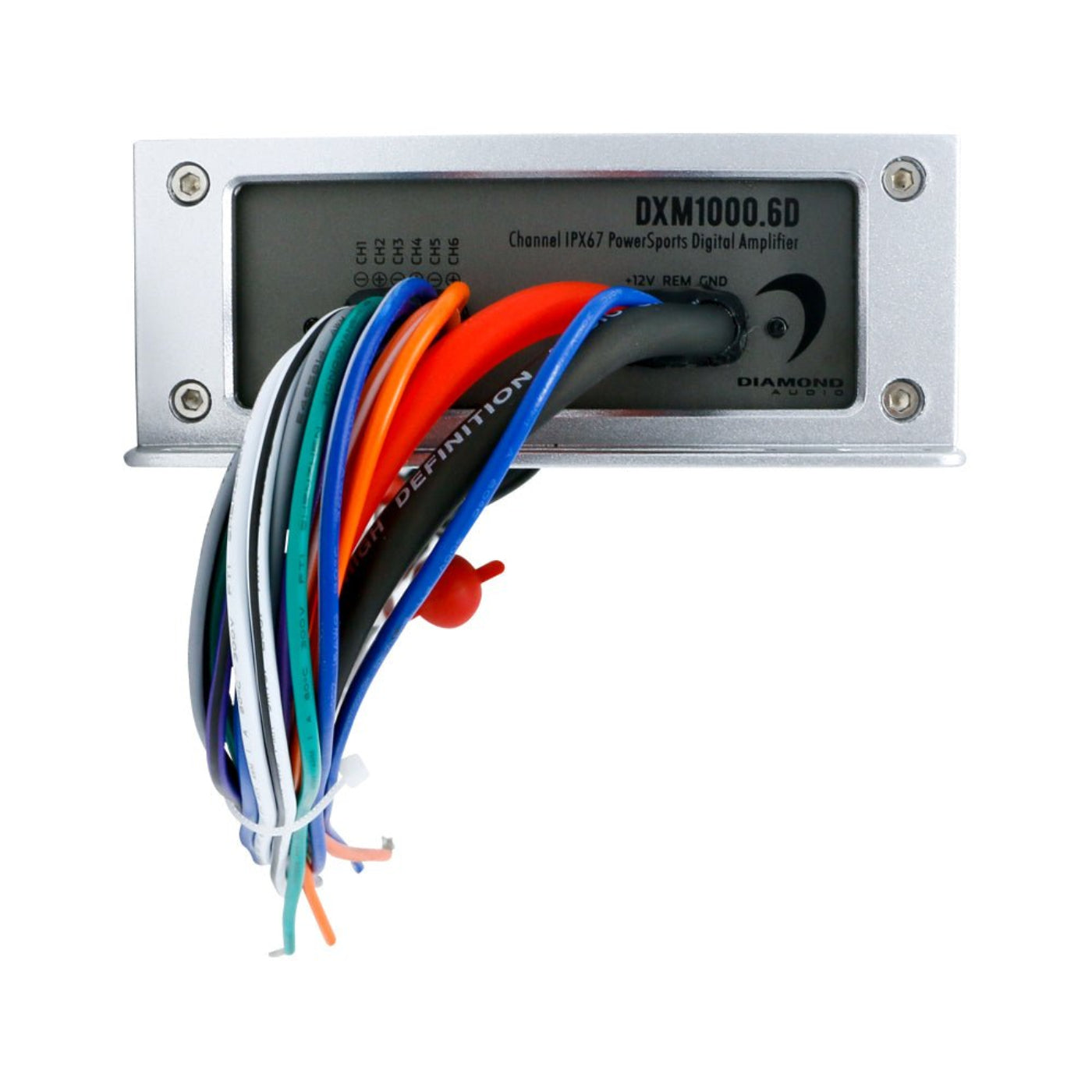

Diamond Audio 6-Channel DXM Series Full Range Class D Waterproof Amplifier - DXM1000.6D
Upgrade your outdoor audio system with the Diamond Audio DMX1000.6D 6-Channel Full Range Class D Waterproof Amplifier, engineered for marine, motorcycle, ATV, UTV, and off-road applications. Built to deliver powerful, clean sound in extreme environments, this IPX67-rated waterproof amplifier combines high output with rugged durability for reliable performance anywhere you ride or cruise.
Powered by advanced full-range Class D digital technology, the DMX1000.6D amplifier delivers impressive output with 100W x 6 at 4 ohms and 150W x 6 at 2 ohms, along with bridging capability up to 340W x 3 at 4 ohms. This 6-channel marine amplifier is ideal for powering multiple speakers or creating a fully active system, delivering crisp highs, detailed mids, and dynamic full-range sound.
Engineered for harsh environments, the Diamond Audio DMX1000.6D waterproof amplifier features IPX67-rated multi-layer circuit boards, protecting internal components from water, dust, and environmental exposure. Whether installed in a boat, side-by-side, motorcycle, or off-road vehicle, this marine-grade amplifier ensures long-lasting performance and reliability.
The DMX1000.6D Class D amplifier includes balanced differential inputs for noise-free signal transmission and a wide frequency response (10Hzâ33kHz) for accurate sound reproduction. With adjustable crossovers (40Hzâ400Hz) and selectable LPF / FULL / HPF modes, this amplifier allows precise tuning for optimal system performance.
Installation is simplified with selectable 2-channel or 6-channel input modes and REM, VOX, and DC turn-on options, making it compatible with both factory and aftermarket head units. Additional features such as power and protection LED indicators, built-in short circuit, thermal, and voltage protection, and an included remote bass knob provide added convenience and control.
The Diamond Audio DMX1000.6D Amplifier delivers powerful, reliable, and crystal-clear performance, making it the ultimate solution for multi-channel marine and powersports audio systems that demand durability and high output.
Features
⢠6-channel full range Class D waterproof amplifier
⢠IPX67-rated for marine and outdoor applications
⢠100W x 6 @ 4Ί / 150W x 6 @ 2Ί / 340W x 3 bridged
⢠Balanced differential inputs for clean signal
⢠Selectable LPF / FULL / HPF crossover modes
⢠2CH / 6CH input flexibility
⢠Short circuit, thermal, and voltage protection
⢠Compact, durable design for easy installation
⢠Includes remote bass knob and LED status indicator
What our Experts Think Â
Â
Q&A Â
Q: What is the Diamond Audio DXM1000.6D designed for?
A: It is a 6-channel full-range Class D waterproof amplifier built for marine, motorcycle, UTV, and outdoor audio systems.
Q: What are the benefits of a 6-channel amplifier?
A: It allows multiple speakers to be powered from one amplifier, creating a complete multi-speaker audio setup.
Q: Is the DXM1000.6D waterproof?
A: Yes. It features a waterproof design made to handle moisture, splashes, and harsh outdoor environments.
Q: Does Class D technology improve efficiency?
A: Yes. Class D amplification provides strong power output with lower heat and reduced power consumption.
Q: Is this amplifier good for powersports audio upgrades?
A: Yes. Its rugged construction and high-output design make it ideal for boats, ATVs, UTVs, and motorcycles.
