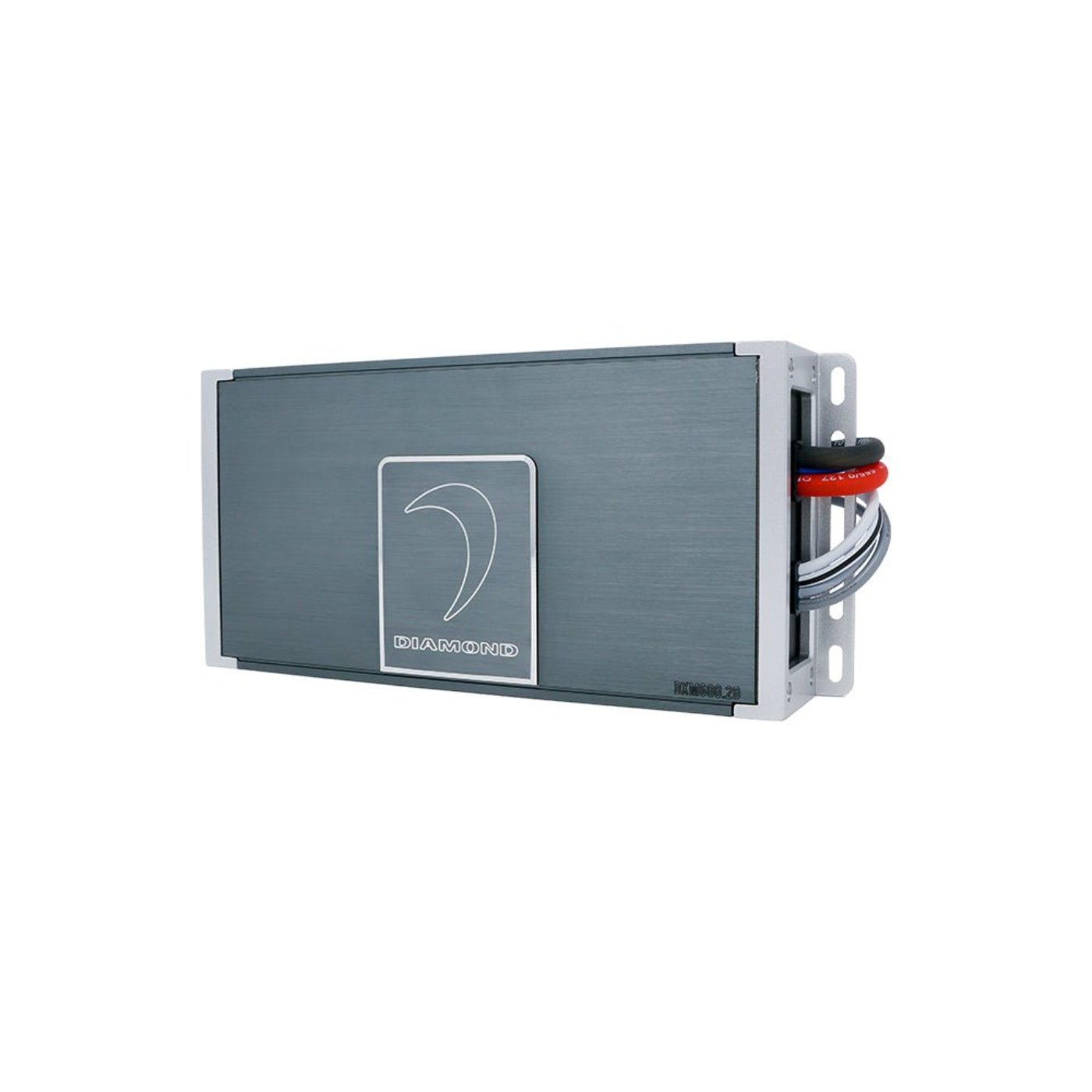

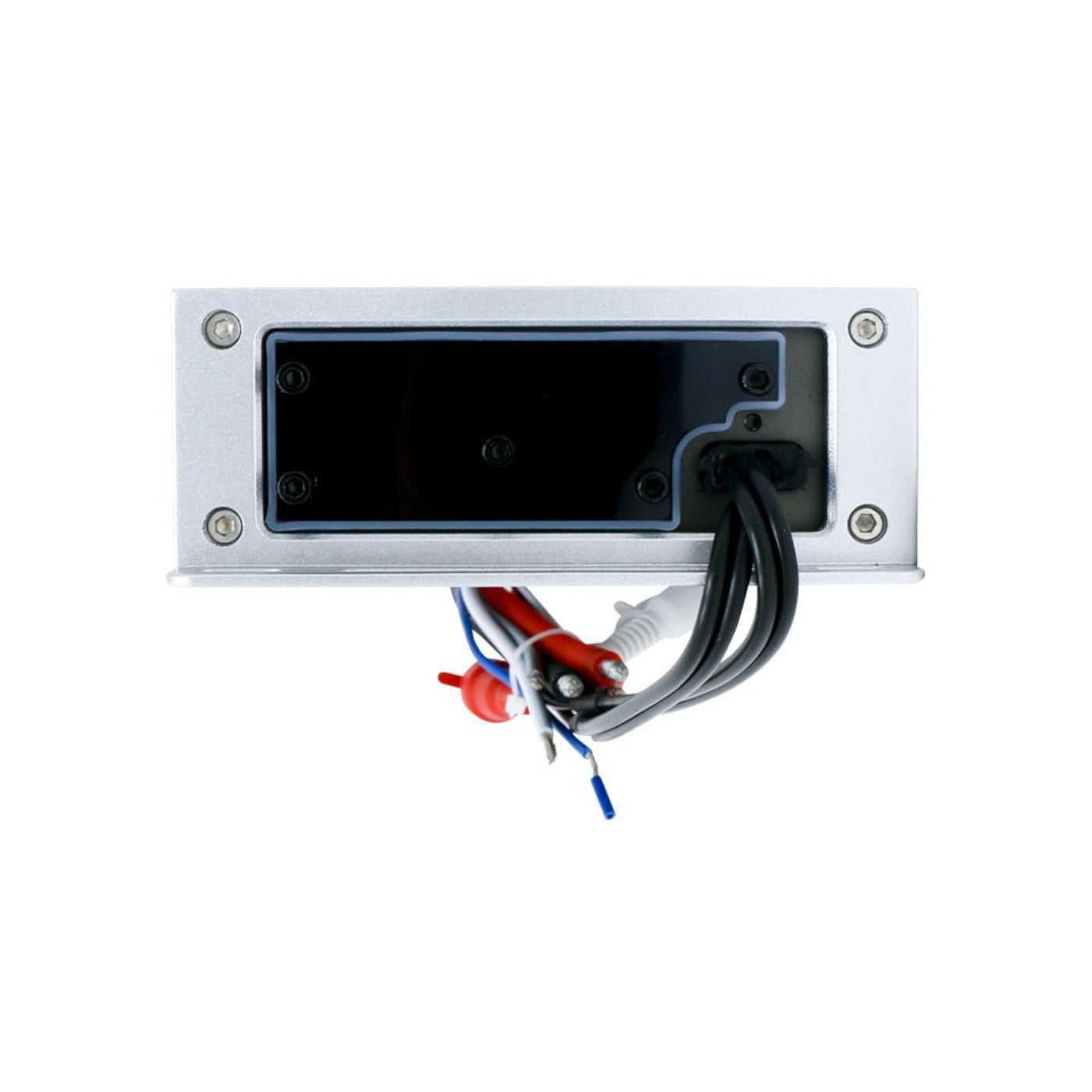

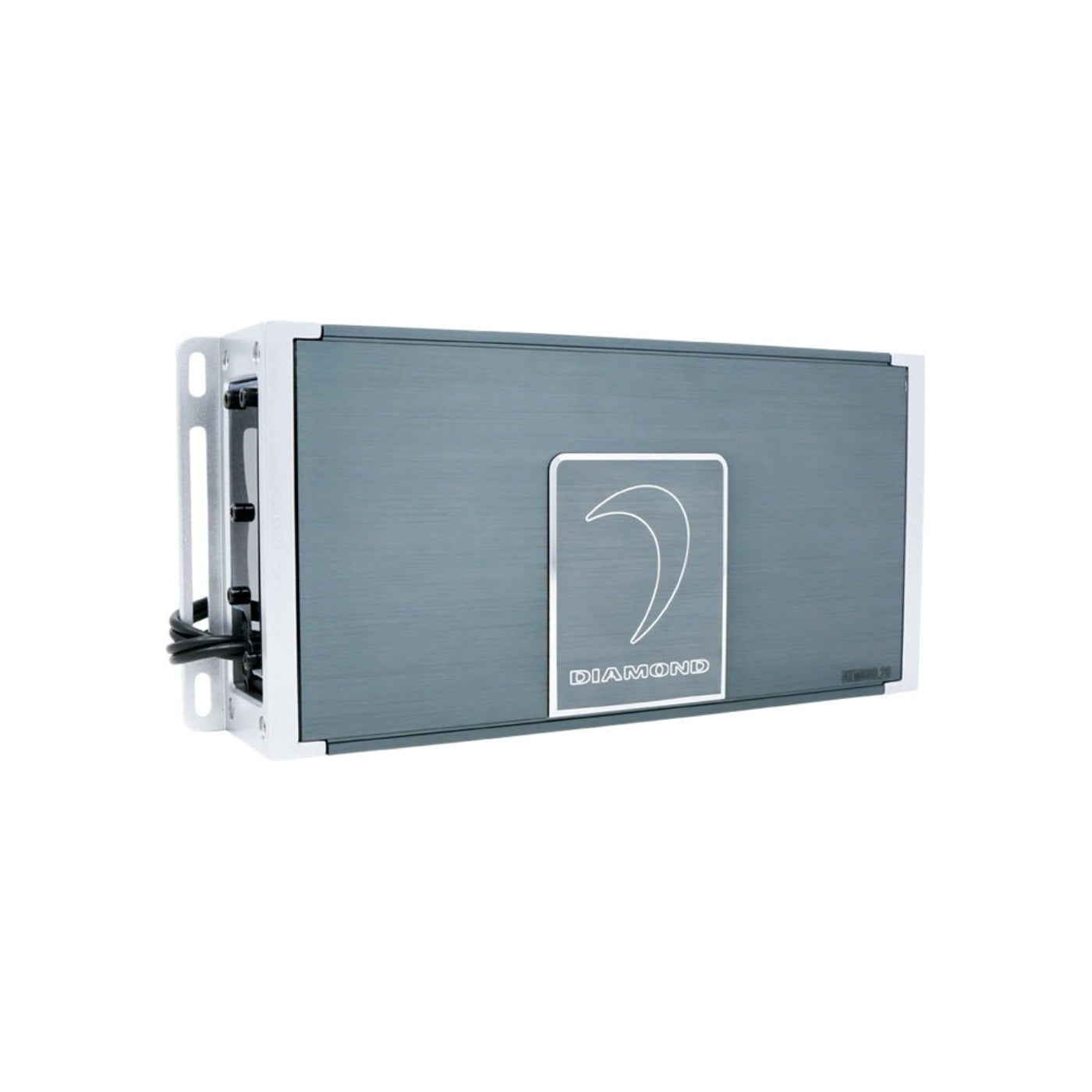

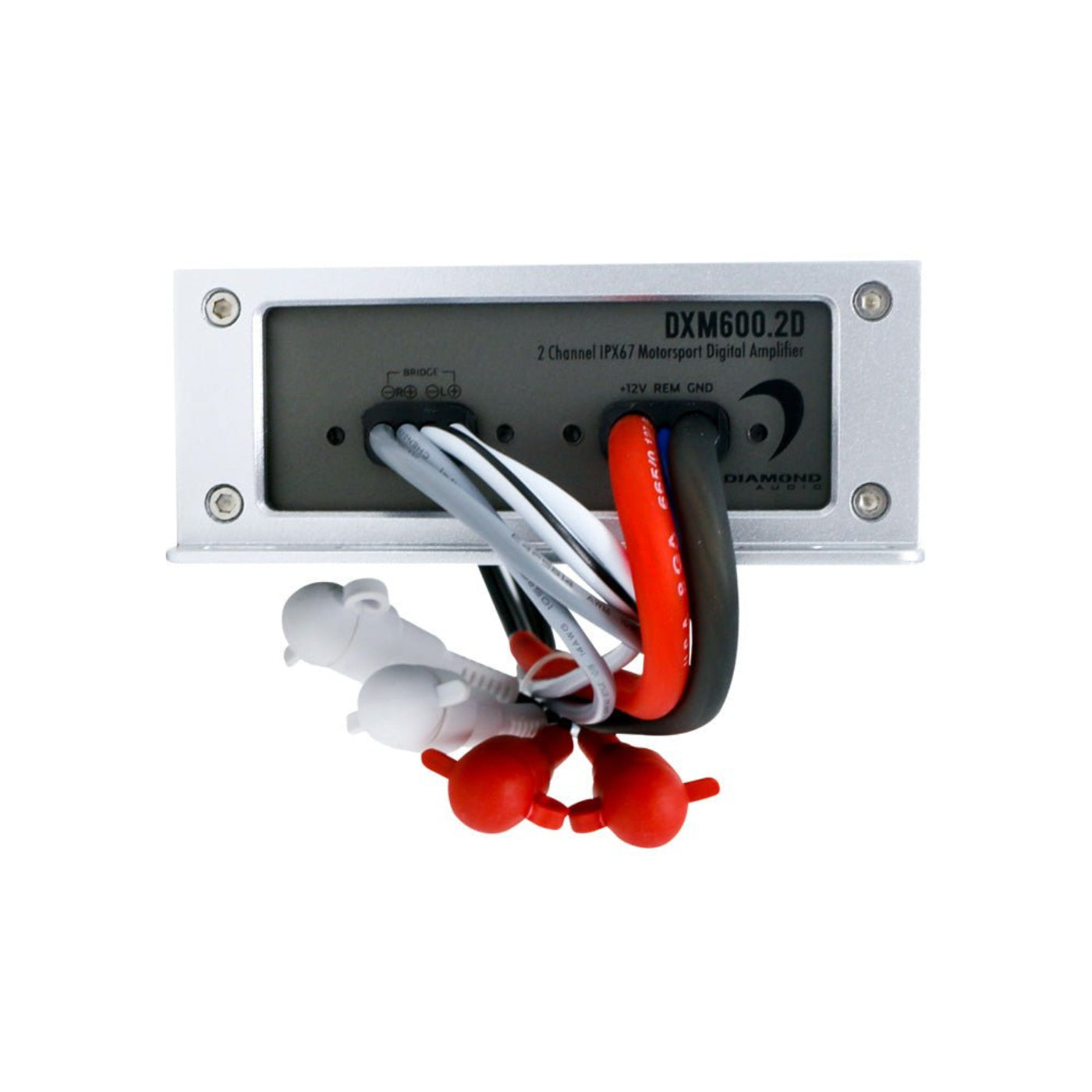

Diamond Audio 2-Channel DXM Series Full Range Class D Waterproof Amplifier - DXM600.2D
Power your outdoor audio system with confidence using the Diamond Audio DXM600.2D 2-Channel Full Range Class D Waterproof Amplifier. Designed for extreme environments, this marine-grade amplifier delivers powerful, clean sound while offering the durability required for boats, motorcycles, ATVs, UTVs, and off-road vehicles.
Engineered with advanced full-range Class D digital technology, the DXM600.2D amplifier provides impressive output with 200W x 2 at 4 ohms, 300W x 2 at 2 ohms, and 600W x 1 bridged at 4 ohms, making it ideal for powering full-range speakers or subwoofers. The Direct FET power MOSFET output stage ensures efficient power delivery with minimal distortion, giving you dynamic, high-quality sound in any environment.
Built for harsh conditions, the Diamond Audio DXM600.2D waterproof amplifier features IPX67-rated multi-layer circuit boards, offering superior protection against water, dust, and environmental exposure. Whether installed in a marine vessel or powersports vehicle, this waterproof car audio amplifier is built to last.
The DXM600.2D 2-channel amplifier also includes balanced differential inputs, ensuring noise-free signal transmission for clear and accurate sound reproduction. With adjustable crossovers (40Hzā400Hz), selectable LPF / FULL / HPF modes, and up to 18dB bass boost, this versatile amplifier allows precise system tuning to match your audio preferences.
Installation is simple with selectable REM, VOX, and DC turn-on modes, making it compatible with both factory and aftermarket head units. Additional features such as power and protection LED indicators and built-in short circuit, thermal, and voltage protection ensure reliable performance.
The Diamond Audio DXM600.2D Amplifier delivers powerful, reliable, and crystal-clear sound, making it the ultimate solution for marine and powersports audio systems that demand performance and durability.
Features
ā¢ 2-channel full range Class D waterproof amplifier
ā¢ IPX67-rated for marine and outdoor applications
ā¢ 200W x 2 @ 4Ī© / 300W x 2 @ 2Ī© / 600W bridged @ 4Ī©
ā¢ Balanced differential inputs for noise-free signal
ā¢ Adjustable crossover and bass boost control
ā¢ Short circuit, thermal, and voltage protection
ā¢ Compact, durable design for easy installation
ā¢ LED power and protection indicators
What our Experts Think
What Our Experts Think
-
DXM Series 2-channel Class D amplifier designed to deliver efficient, powerful full-range audio performance.
-
Waterproof construction makes it ideal for marine, powersports, and outdoor audio applications where durability matters.
-
Full-range amplifier design provides clean power for speakers with excellent clarity and balanced sound output.
-
Class D technology improves efficiency, reduces heat, and helps maximize battery performance.
-
Compact and versatile design allows easy installation in boats, UTVs, motorcycles, and vehicles.
-
Built for harsh environments with protection against moisture, vibration, and demanding conditions.
-
Reliable power delivery helps enhance speaker performance with louder and cleaner audio.
-
An excellent choice for outdoor audio enthusiasts seeking dependable performance and all-weather durability.
Ā Ā
Q&A Ā Ā
Q: What is the Diamond Audio DXM600.2D designed for?
A: The DXM600.2D is a 2-channel full-range Class D waterproof amplifier designed for marine, motorcycle, ATV, UTV, and off-road audio systems.
Q: How much power does the DXM600.2D deliver?
A: It delivers 300W x 2 RMS at 2Ī©, 200W x 2 RMS at 4Ī©, and 600W bridged at 4Ī© for strong, efficient audio performance.
Q: Is the DXM600.2D built for harsh environments?
A: Yes. It features an IPX67-rated waterproof design, making it suitable for boats, powersports vehicles, and outdoor installations.
Q: Does the DXM600.2D include tuning controls?
A: Yes. It includes adjustable crossovers, selectable LPF/FULL/HPF modes, bass boost control, and phase adjustment for system tuning.
Q: Why choose the Diamond Audio DXM600.2D?
A: It combines compact Class D efficiency, waterproof durability, and flexible 2-channel power for reliable high-performance audio upgrades.
Maintenance Tips Ā Ā
- Clean the amplifier surface with a soft microfiber cloth to remove dust, dirt, and residue.
- Inspect power, ground, RCA, and speaker connections regularly for secure, corrosion-free contact.
- Ensure waterproof seals and mounting points remain properly secured to protect internal components.
- Keep ventilation areas clear to maintain efficient cooling during extended use.
- Check wiring and fuse condition periodically for wear or damage.
- Avoid unnecessary exposure to extreme heat, chemicals, or harsh environments to extend amplifier life.
